What is the Vimar VM-14604 used for?

The Vimar VM-14604 is a 2-module mounting frame designed for switch frame applications. It is intended for use with modular devices and mounting boxes where a 57 mm centre-to-centre distance is required.

What box size is this frame compatible with?

This model is specified for use with ø 60 mm mounting boxes. That makes it suitable for installations where that box diameter is already part of the project standard.

How many modules does the VM-14604 support?

The VM-14604 is a 2-module mounting frame. It is intended for applications that require support for two modular positions within the frame.

Does this frame include claws?

Yes, the Vimar VM-14604 is supplied as a frame with claws. That is part of the defined product configuration for this specific model.

What distinguishes the VM-14604 from other mounting frames?

This model is defined by its 2-module format, included claws, compatibility with ø 60 mm mounting boxes, and 57 mm distance between centres. Those details are the key points to match when comparing it against other frames in the same category.

Is this a heavy component for stock or project handling?

No, this is a lightweight component with a listed weight of 0.0181 kg. That can be useful for estimating packing, handling, and small-parts inventory requirements on larger projects.

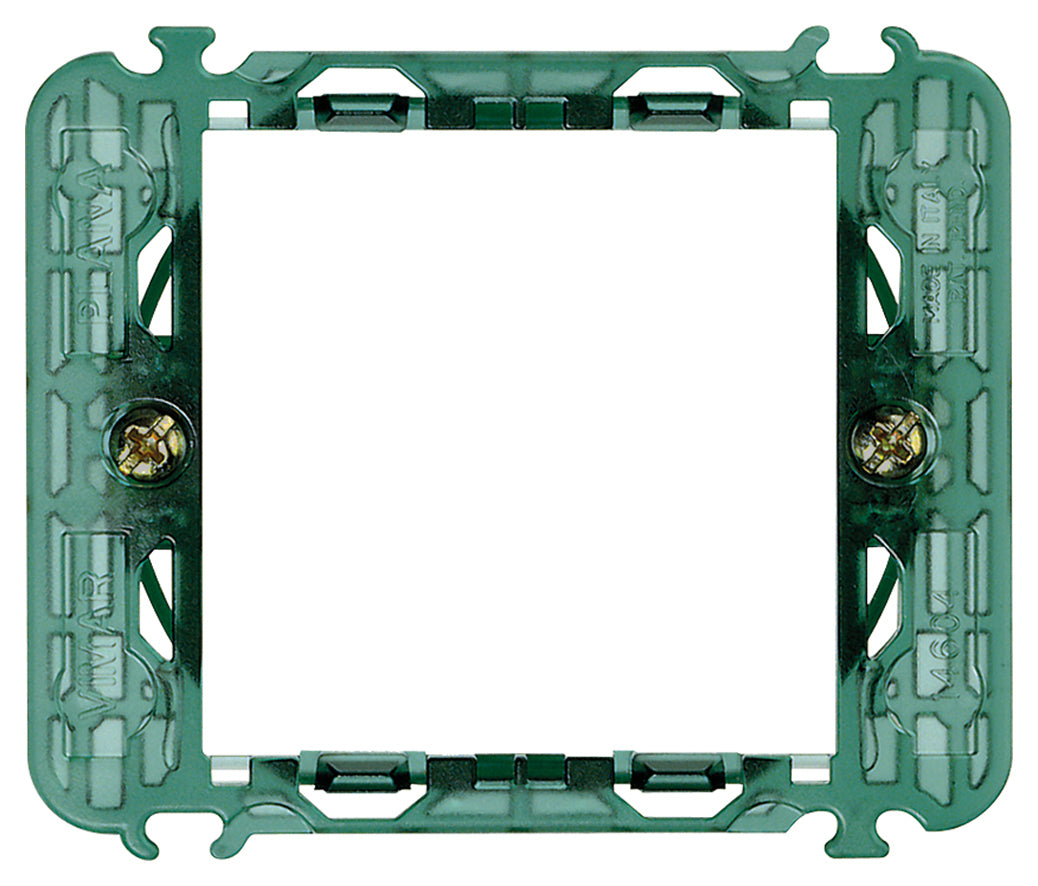

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

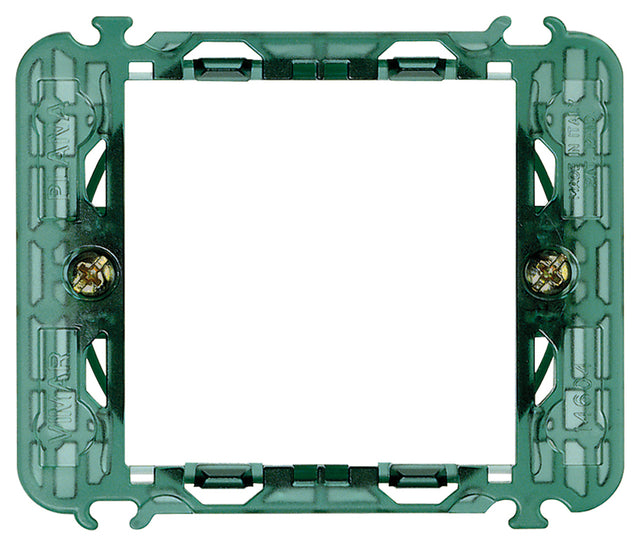

Vimar VM-14604 Frame 2M with Claws 57mm

2-module mounting framewith claws

SKU:

VM-14604

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Frame 2M +claws 57mm 2-module mounting frame, with claws, for ø 60 mm mounting boxes, modular, 57 mm distance between centres

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Finish	Material	Current
Vimar VM-14627 Frame 2M for Panel Mounting Green	Green	Plastic	—	View
Vimar VM-14626 Frame 1M for Panel Mounting Green	Green	Plastic	—	View
Vimar VM-14621 Frame 21M with Screws	Green	Plastic	—	View
Vimar VM-14620 Frame 14M with Screws Green	Green	Plastic	—	View
Vimar VM-14619 Frame 6(3+3)M with Screws	Green	Plastic	—	View
Vimar VM-14618 Frame 8M with Screws	Green	Plastic	—	View
Vimar VM-14617 Frame 7M with Screws Green	Green	Plastic	—	View
Vimar VM-14605 Frame 2M wihtout Screws 57mm	Green	Plastic	—	View
Vimar VM-14603 Frame 2M without screws 71mm	Green	Plastic	—	View
Vimar VM-14602 Frame 2M with Claws 71mm	Green	Plastic	—	View
Vimar VM-14601 Frame 1M with Claws Green	Green	Plastic	—	View
Vimar VM-14507 Frame 2M for RF Device White	White	Plastic	—	View
