Vimar

Vimar VM-14602 Frame 2M with Claws 71mm

2-module mounting framewith claws
SKU VM-14602
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-14602 is Vimar PLANA 14602, frame 2M +claws 71mm.

2-module mounting frame, with claws, for ø 60 mm mounting boxes, modular, 71 mm distance between centres

Features

  • The transparency helps the installation and the wiring of devices
  • The honeycomb structure gives structural strength
  • The slots in the corners enable fixing to the panel
  • The hooking teeth encourage fixing in series for the installation of multiple modules

Specifications

VM-14602Specifications from the official datasheet

Technical data

Product type
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
No
Suitable for mounting in round junction box 60 mm
Yes
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated

Packaging

EAN
8007352108929
Packed size (cm)
7.4 × 7.4 × 1.5
Packed weight
21.4 g
Pieces per box
50

Certifications

Certifications
CE marking (EU), IMQ (Italy)

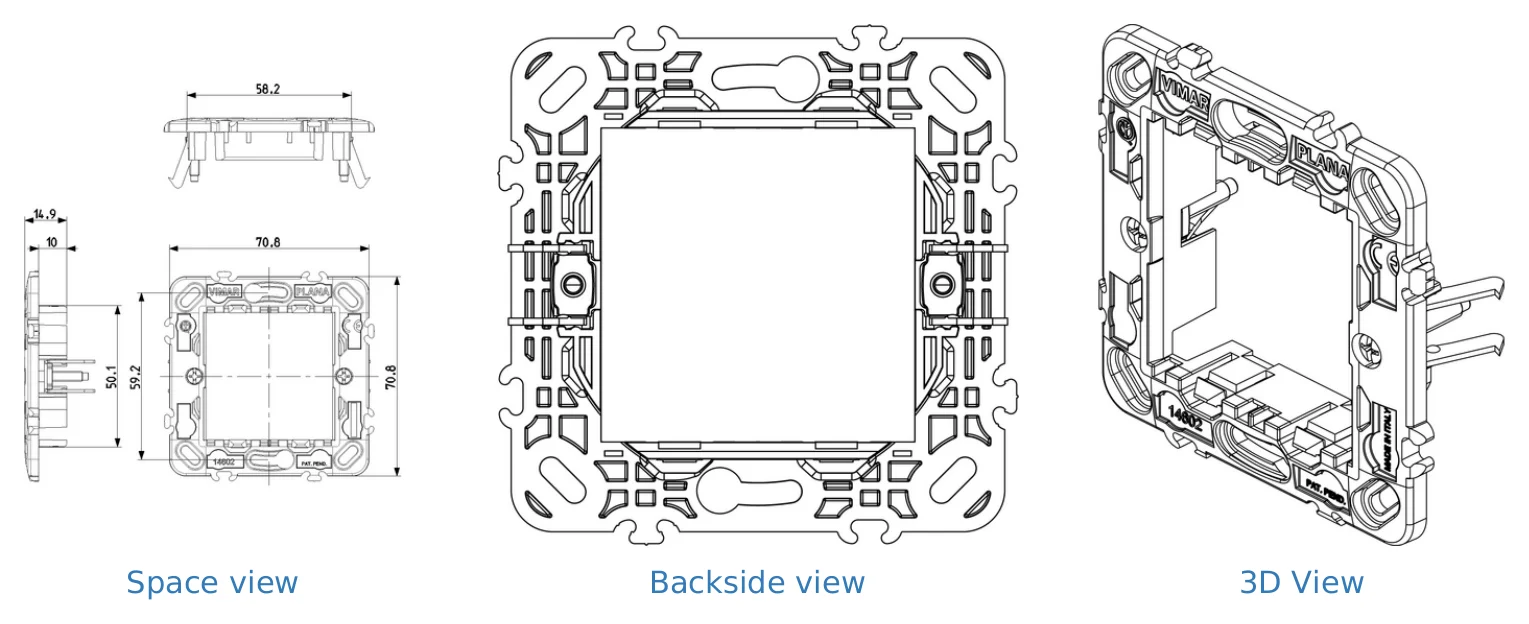

Technical drawings

VM-14602 Drawings
Drawings

Downloads

FAQ

What is the Vimar VM-14602 used for?

The Vimar VM-14602 is a 2-module mounting frame designed for switch-frame applications. It is intended for use with compatible modular devices and mounting boxes where a 71 mm centre-to-centre distance is required.

What are the key specifications of the Vimar VM-14602 frame?

This model is a 2-module mounting frame with claws and a 71 mm distance between centres. It is designed for use with ø 60 mm mounting boxes and has a listed weight of 0.0214 kg.

Is the Vimar VM-14602 compatible with standard mounting boxes?

The product description states that the VM-14602 is intended for ø 60 mm mounting boxes. Buyers should also confirm that their application requires a 2-module modular frame with 71 mm centre spacing.

Does the Vimar VM-14602 include claws?

Yes, this frame is specified as a 2-module mounting frame with claws. That feature is part of the model description for VM-14602.

How does the Vimar VM-14602 differ from other mounting frames?

The main distinguishing details provided for this model are its 2-module format, integrated claws, suitability for ø 60 mm mounting boxes, and 71 mm spacing between centres. Those factors are the key points to compare against other frames in the same series or size category.

What warranty is listed for the Vimar VM-14602?

The listed warranty period for the Vimar VM-14602 is 3 years. This gives buyers a clear reference for the product's stated coverage period.
