Vimar

Vimar VM-14603 Frame 2M without screws 71mm

2-module mounting framewithout screws
SKU VM-14603
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-14603 is Vimar PLANA 14603, frame 2M without screws 71mm.

2-module mounting frame, without screws, for 60 mm fixing centres or 56x56 mm mounting boxes, modular, 71 mm distance between centres, for horizontal or vertical installation

Features

  • The transparency helps the installation and the wiring of devices
  • The honeycomb structure gives structural strength
  • The slots in the corners enable fixing to the panel
  • The hooking teeth encourage fixing in series for the installation of multiple modules
  • Thanks to the central slots, the support can be fixed onto the wall level

Specifications

VM-14603Specifications from the official datasheet

Technical data

Product type
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
No
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated

Packaging

EAN
8007352108943
Packed size (cm)
7.4 × 7.4 × 1.5
Packed weight
13.73 g
Pieces per box
50

Certifications

Certifications
CE marking (EU), Product Environm. Profile, IMQ (Italy)

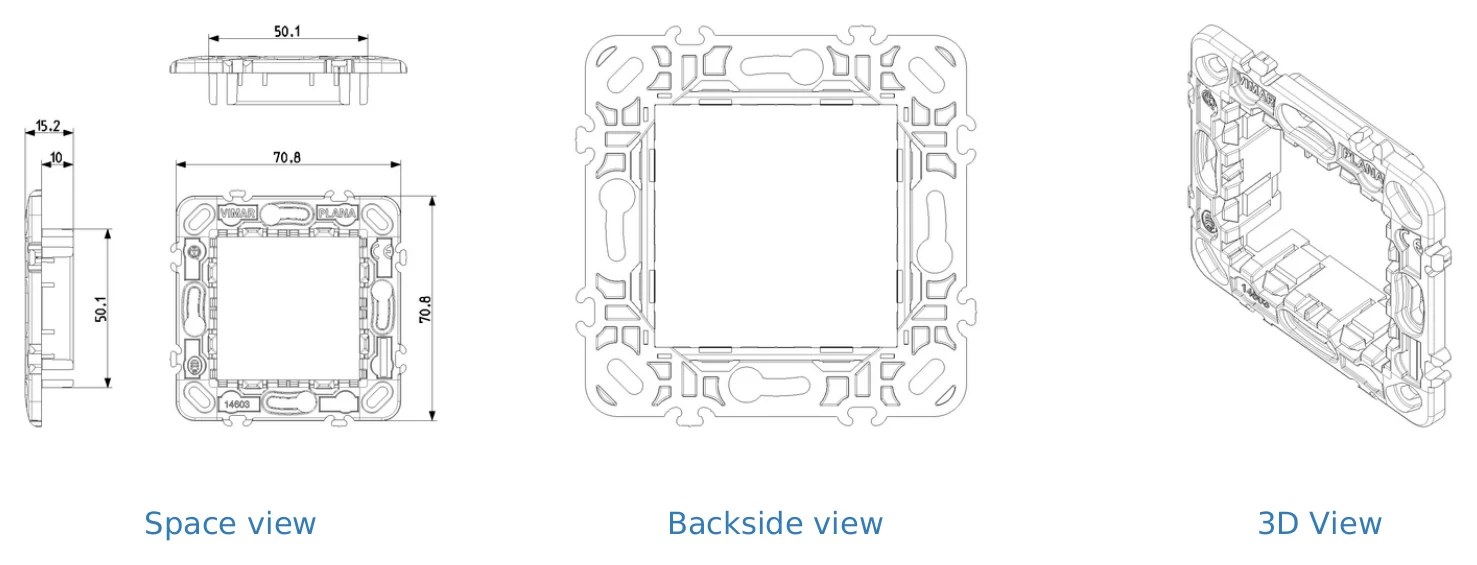

Technical drawings

VM-14603 Drawings
Drawings

Downloads

FAQ

What is the Vimar VM-14603 used for?

The Vimar VM-14603 is a 2-module mounting frame designed for switch system applications in the Plana series. It is intended to hold compatible modular devices in either a horizontal or vertical layout.

What are the key specifications of the Vimar VM-14603 frame?

This model is a 2-module frame without screws and has a 71 mm distance between centres. It is designed for 60 mm fixing centres or 56x56 mm mounting boxes, and the listed product color is green.

Is the Vimar VM-14603 compatible with standard mounting box formats?

Yes, the product description states that it is suitable for 60 mm fixing centres or 56x56 mm mounting boxes. That makes it relevant for buyers checking compatibility with those specified box dimensions.

Can the Vimar VM-14603 be used in both horizontal and vertical layouts?

Yes, this frame is intended for either horizontal or vertical installation orientation. That gives flexibility when matching the frame to the layout requirements of the product page application.

How does the Vimar VM-14603 differ from frames supplied with screws?

This specific version is described as a frame without screws. For buyers comparing variants, that means the distinguishing feature of VM-14603 is its screwless frame format rather than a screw-in version.

What warranty and weight are listed for the Vimar VM-14603?

The listed warranty period for this model is 3 years. Its stated weight is 0.0137 kg, which can be useful when reviewing product handling or shipping data.
