Vimar VM-14604 Frame 2M with Claws 57mm
Log in to see priceOverview
VM-14604 is Vimar PLANA 14604, frame 2M +claws 57mm.
2-module mounting frame, with claws, for ø 60 mm mounting boxes, modular, 57 mm distance between centres
Specifications
Technical data
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 2
- Number of modules vertical (module system)
- 1
- With built-in installation box
- No
- With screws
- No
- Suitable for mounting in round junction box 60 mm
- Yes
- Flush-mounted installation
- Yes
- Suitable for subfloor installation duct box
- No
- Suitable for wall duct
- No
- Suitable for mounting on DIN-rail 35 mm
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
Packaging
- EAN
- 8007352118973
- Packed size (cm)
- 7.16 × 6.06 × 2.5
- Packed weight
- 18.13 g
- Pieces per box
- 20
Certifications
- Certifications
- CE marking (EU), IMQ (Italy)

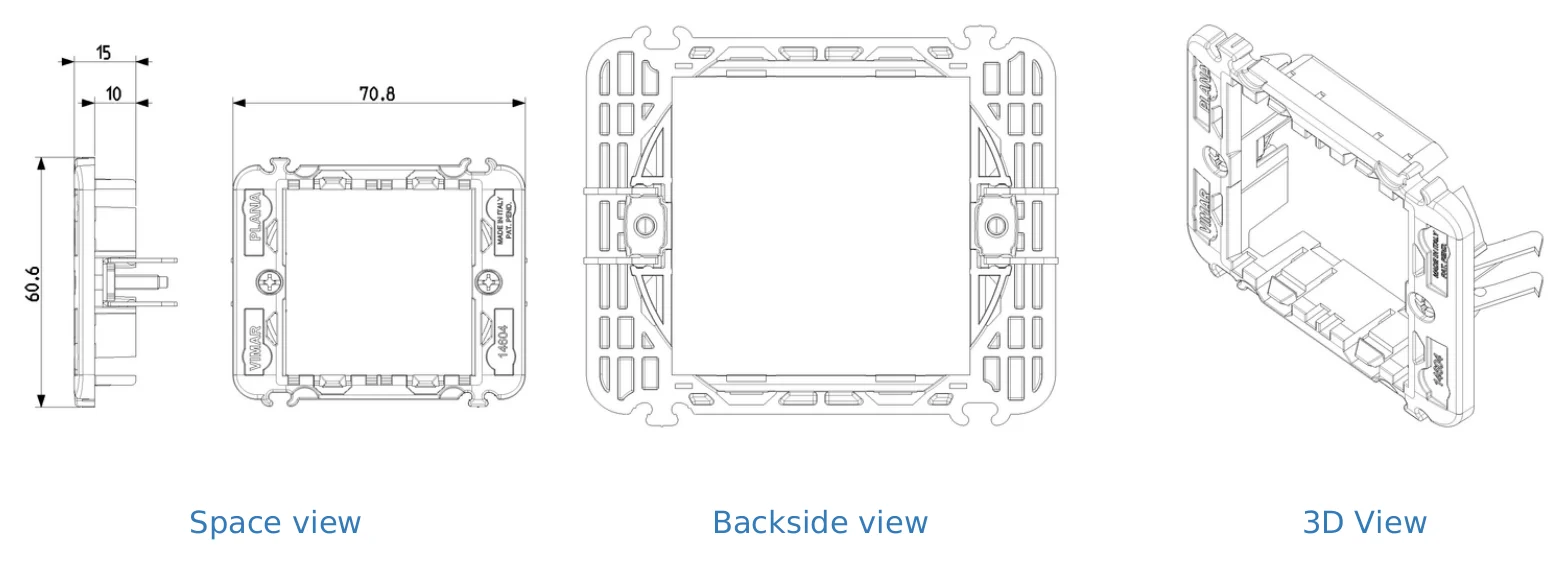

Technical drawings
Downloads
Certificates6
FAQ
What is the Vimar VM-14604 used for?
The Vimar VM-14604 is a 2-module mounting frame designed for switch frame applications. It is intended for use with modular devices and mounting boxes where a 57 mm centre-to-centre distance is required.
What box size is this frame compatible with?
This model is specified for use with ø 60 mm mounting boxes. That makes it suitable for installations where that box diameter is already part of the project standard.
How many modules does the VM-14604 support?
The VM-14604 is a 2-module mounting frame. It is intended for applications that require support for two modular positions within the frame.
Does this frame include claws?
Yes, the Vimar VM-14604 is supplied as a frame with claws. That is part of the defined product configuration for this specific model.
What distinguishes the VM-14604 from other mounting frames?
This model is defined by its 2-module format, included claws, compatibility with ø 60 mm mounting boxes, and 57 mm distance between centres. Those details are the key points to match when comparing it against other frames in the same category.
Is this a heavy component for stock or project handling?
No, this is a lightweight component with a listed weight of 0.0181 kg. That can be useful for estimating packing, handling, and small-parts inventory requirements on larger projects.
