Vimar VM-14617 Frame 7M with Screws Green
Log in to see priceOverview
VM-14617 is Vimar PLANA 14617, frame 7M +screws.
7-module mounting frame, with screws, for 6/7-module mounting boxes
Specifications
Technical data
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 7
- Number of modules vertical (module system)
- 1
- With built-in installation box
- No
- With screws
- Yes
- Suitable for mounting in round junction box 60 mm
- No
- Flush-mounted installation
- Yes
- Suitable for subfloor installation duct box
- No
- Suitable for wall duct
- No
- Suitable for mounting on DIN-rail 35 mm
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
Packaging
- EAN
- 8007352108967
- Packed size (cm)
- 20.34 × 7.38 × 2.18
- Packed weight
- 35.43 g
- Pieces per box
- 30
Certifications
- Certifications
- CE marking (EU), IMQ (Italy)

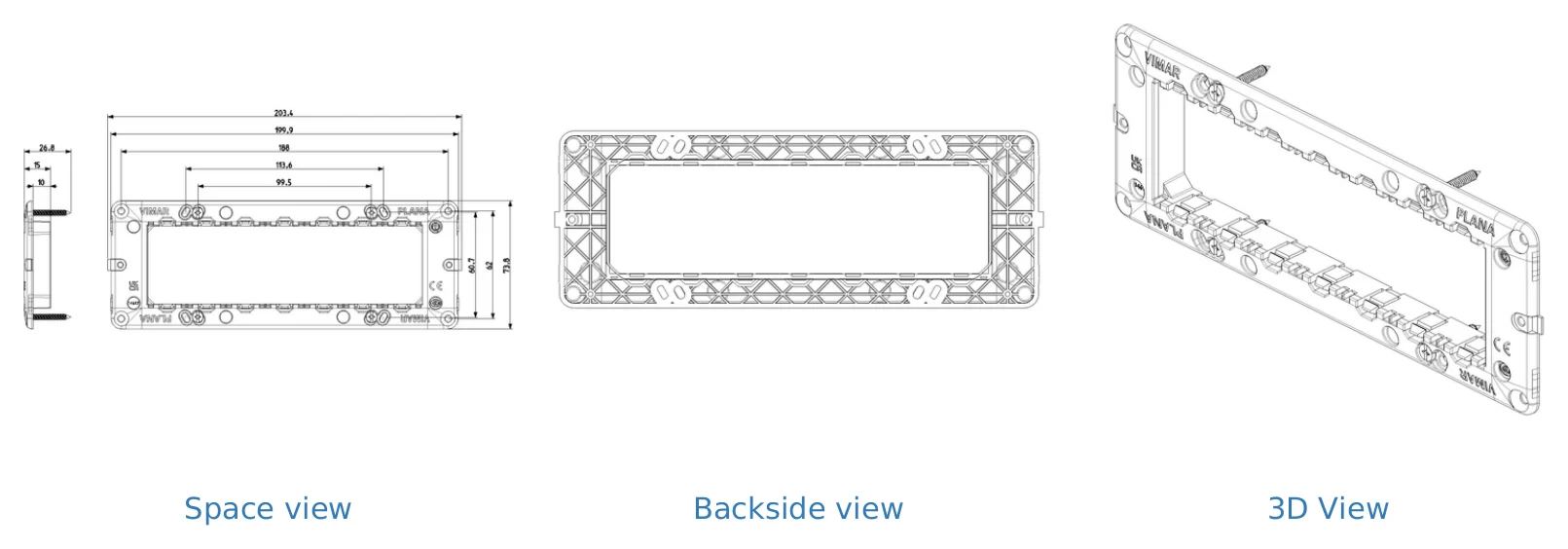

Technical drawings
Downloads
Certificates6
FAQ
What is the Vimar VM-14617 used for?
The Vimar VM-14617 is a 7-module mounting frame intended for switch system applications. It is designed for use where a 7M frame with included screws is needed on compatible mounting boxes.
Which mounting boxes is the Vimar VM-14617 compatible with?
This model is specified for 6-module and 7-module mounting boxes. Buyers should match it to those box formats when selecting a frame for a compatible switch setup.
Does the Vimar VM-14617 include screws?
Yes, the VM-14617 is supplied with screws. That matches the product description, which identifies it as a 7-module mounting frame with screws included.
What color is the Vimar VM-14617 frame?
The finish color of this model is green. That makes it a suitable choice when a green frame variant is specifically required for a project or product series match.
How heavy is the Vimar VM-14617?
The listed weight for the VM-14617 is 0.0354 kg. This indicates it is a lightweight frame component intended as part of a larger switch assembly.
What warranty period applies to the Vimar VM-14617?
This product has a listed warranty period of 3 years. For B2B buyers, that can be a useful reference when comparing lifecycle coverage across similar frame components.
