Vimar VM-14618 Frame 8M with Screws
Log in to see priceOverview
VM-14618 is Vimar PLANA 14618, frame 8M with screws.
8 (4+4)-module mounting frame, with screws, for V71318 and V71718 flush and 14788 table mounting boxes
Specifications
Technical data
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 4
- Number of modules vertical (module system)
- 2
- With built-in installation box
- No
- With screws
- Yes
- Suitable for mounting in round junction box 60 mm
- No
- Flush-mounted installation
- Yes
- Suitable for subfloor installation duct box
- No
- Suitable for wall duct
- No
- Suitable for mounting on DIN-rail 35 mm
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
Packaging
- EAN
- 8007352425569
- Packed size (cm)
- 14 × 14.4 × 2.2
- Packed weight
- 55.5 g
- Pieces per box
- 5
Certifications
- Certifications
- CE marking (EU), CCC (China), IMQ (Italy)

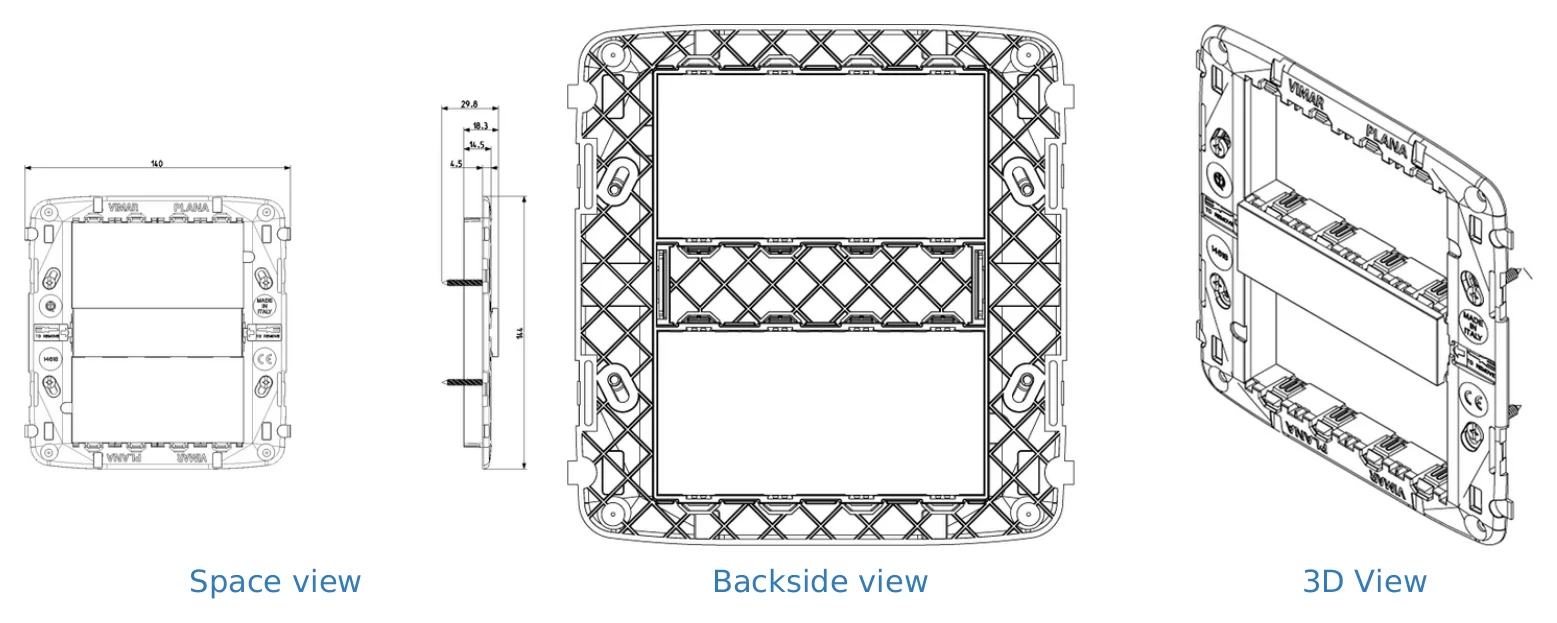

Technical drawings
Downloads
Certificates6
FAQ
What is the Vimar VM-14618 used for?
The Vimar VM-14618 is an 8-module mounting frame designed for switch frame applications. It is intended for use with compatible Vimar mounting boxes in configurations where an 8M frame with screws is required.
Which mounting boxes is the VM-14618 compatible with?
This model is specified for use with Vimar V71318 and V71718 flush mounting boxes, as well as the 14788 table mounting box. Buyers should match the frame to those referenced box models when checking compatibility.
Does the Vimar VM-14618 include screws?
Yes, the VM-14618 is supplied with screws. That is part of the stated product configuration for this 8-module mounting frame.
What module configuration does the VM-14618 support?
The product is described as an 8M frame with an 8-module layout in a 4+4 configuration. This makes it suitable for applications where that specific module capacity and arrangement are needed.
What color is the Vimar VM-14618 frame?
The listed finish color for the Vimar VM-14618 is green. This can be useful when matching the frame to project-specific identification or component selection requirements.
What are the warranty period and weight of the VM-14618?
The Vimar VM-14618 has a stated warranty period of 3 years. Its listed weight is 0.0555 kg, which can help when reviewing packing, handling, or product selection details.
