Vimar

Vimar VM-14619 Frame 6(3+3)M with Screws

4x4 in (6-module 3+3) mounting framewith screws
SKU VM-14619
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-14619 is Vimar PLANA 14619, frame 6(3+3)M +screws.

4x4 in (6-module 3+3) mounting frame, with screws, for 09996 flush mounting boxes

Specifications

VM-14619Specifications from the official datasheet

Technical data

Product type
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
2
With built-in installation box
No
With screws
Yes
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated

Packaging

EAN
8007352236240
Packed size (cm)
11.8 × 12.7 × 2.17
Packed weight
40.4 g
Pieces per box
10

Certifications

Certifications
CE marking (EU), IMQ (Italy)

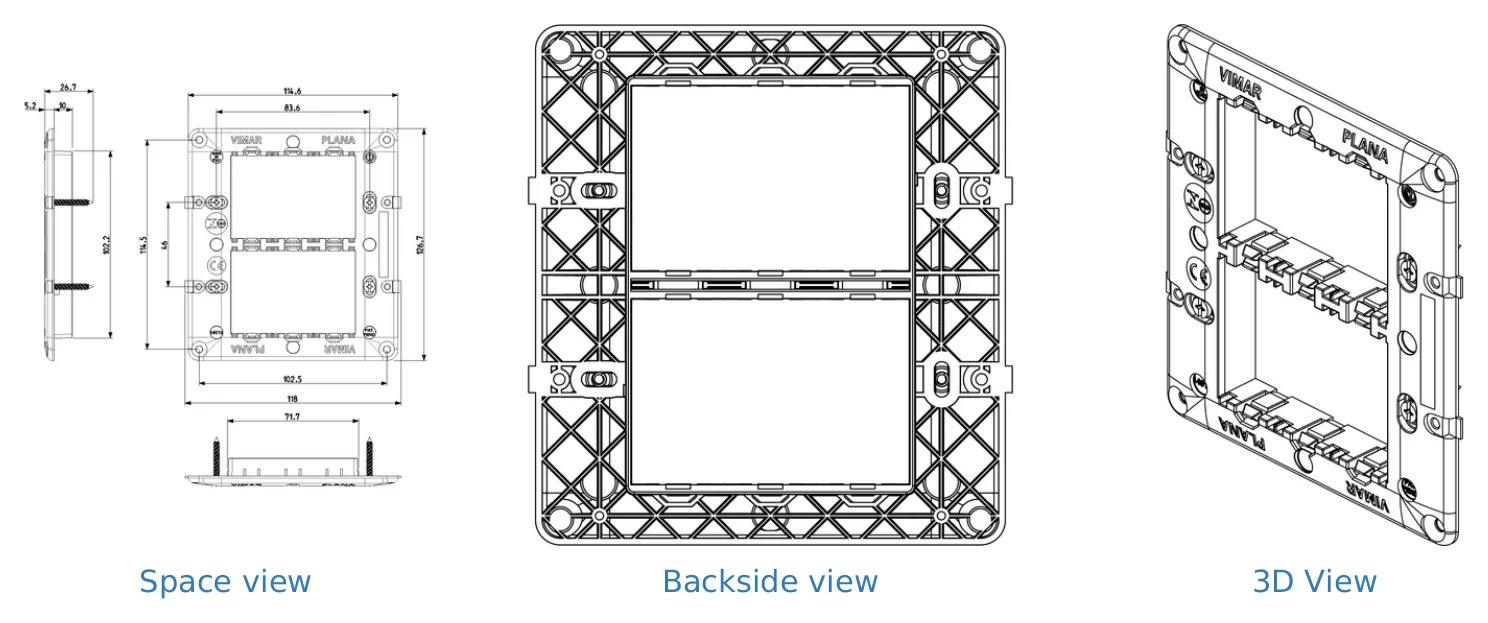

Technical drawings

VM-14619 Drawings
Drawings

Downloads

FAQ

What is the Vimar VM-14619 frame used for?

The Vimar VM-14619 is a 6-module (3+3) mounting frame for switch installations that use a 4x4 inch format. It is intended for use with 09996 flush mounting boxes and is part of Vimar's switch frame range.

Is the Vimar VM-14619 compatible with 09996 flush mounting boxes?

Yes. This model is specifically described for use with 09996 flush mounting boxes. If your project is based on that box reference and needs a 6-module 3+3 frame, this is the matching model.

What are the main specifications of the Vimar VM-14619 frame?

This model is a 6(3+3)M frame in a 4x4 inch format and includes screws. The listed product weight is 0.0404 kg, and the stated warranty period is 3 years.

Does the Vimar VM-14619 include fixing screws?

Yes. The product description states that this mounting frame comes with screws included. That makes it suitable when you need the frame supplied with its fixing hardware.

How does the Vimar VM-14619 differ from other switch frames?

This model is defined by its 6-module 3+3 layout, 4x4 inch mounting format, and compatibility with 09996 flush mounting boxes. Buyers usually select it when those exact dimensional and box-reference requirements matter, rather than choosing by finish alone.

What finish color does the Vimar VM-14619 have?

The listed finish colour for the Vimar VM-14619 is green. For projects where frame color needs to match a specified finish schedule, this model should be checked against that requirement.
