Vimar VM-14620 Frame 14M with Screws Green
Log in to see priceOverview
VM-14620 is Vimar PLANA 14620, frame 14M +screws.
14 (7+7)-module mounting frame, with screws, for V71320, V71620 and V71720 flush or 09920 surface mounting boxes
Specifications
Technical data
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 7
- Number of modules vertical (module system)
- 2
- With built-in installation box
- No
- With screws
- Yes
- Suitable for mounting in round junction box 60 mm
- No
- Flush-mounted installation
- Yes
- Suitable for subfloor installation duct box
- No
- Suitable for wall duct
- No
- Suitable for mounting on DIN-rail 35 mm
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
Packaging
- EAN
- 8007352116955
- Packed size (cm)
- 20.34 × 14.6 × 2.7
- Packed weight
- 91.21 g
- Pieces per box
- 10
Certifications
- Certifications
- CE marking (EU), IMQ (Italy)

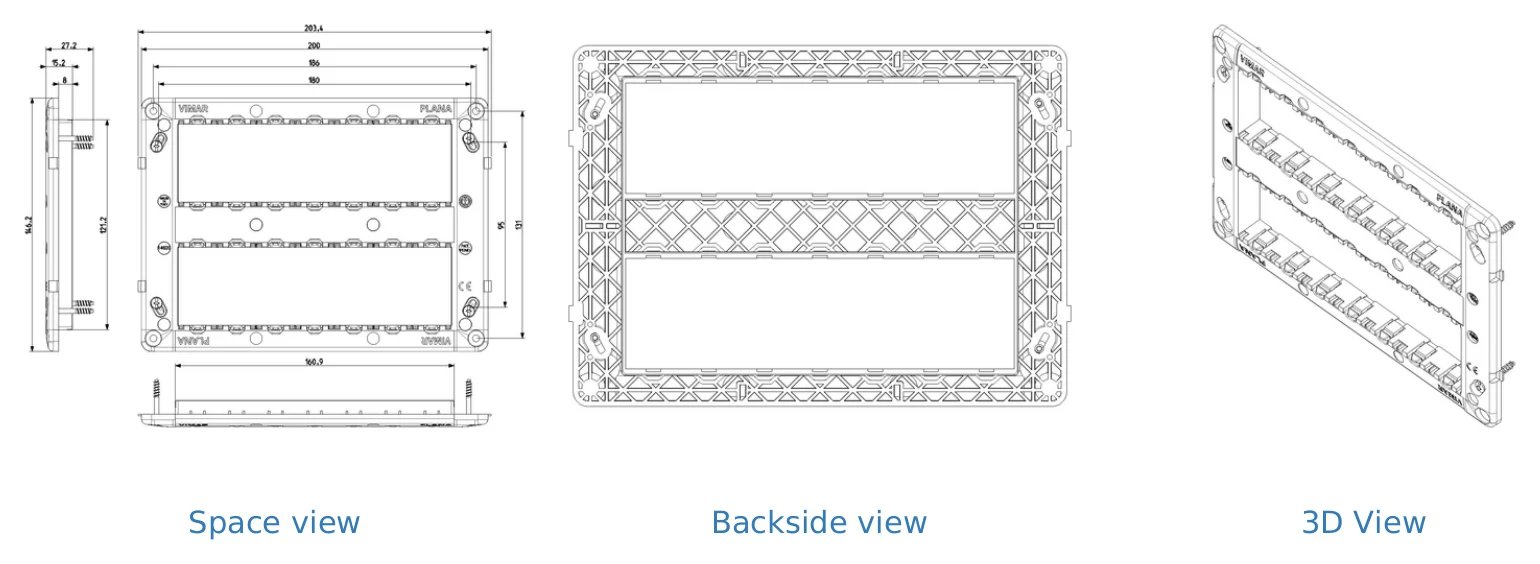

Technical drawings
Downloads
Certificates6
FAQ
What is the Vimar VM-14620 used for?
The Vimar VM-14620 is a 14-module mounting frame supplied with screws. It is intended for use with compatible Vimar flush or surface mounting boxes in applications where a 14-module frame is required.
Which mounting boxes are compatible with the Vimar VM-14620 frame?
This frame is specified for use with Vimar V71320, V71620, and V71720 mounting boxes. It is suitable for both flush and 09920 surface mounting box applications where those referenced box models are used.
How many modules does the Vimar VM-14620 support?
The VM-14620 is a 14-module frame. The product description also identifies the layout as 7+7 modules.
What distinguishes the Vimar VM-14620 from other mounting frames in the same series?
This model is specifically a 14-module frame and comes with screws included. It is also identified by its green finish, which helps distinguish it from other frame variants or sizes within the broader series.
What are the physical and warranty details for the Vimar VM-14620?
The listed weight of the Vimar VM-14620 is 0.0912 kg. The stated warranty period for this model is 3 years.
