Vimar VM-14621 Frame 21M with Screws
Log in to see priceOverview
VM-14621 is Vimar PLANA 14621, frame 21M +screws.
21(7+7+7)-module mounting frame, with screws, for flush mounting box V71321 or for surface mounting boxes 09921
Specifications
Technical data
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 7
- Number of modules vertical (module system)
- 3
- With built-in installation box
- No
- With screws
- Yes
- Suitable for mounting in round junction box 60 mm
- No
- Flush-mounted installation
- Yes
- Suitable for subfloor installation duct box
- No
- Suitable for wall duct
- No
- Suitable for mounting on DIN-rail 35 mm
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
Packaging
- EAN
- 8007352116979
- Packed size (cm)
- 19 × 22 × 2
- Packed weight
- 130.2 g
- Pieces per box
- 10
Certifications
- Certifications
- CE marking (EU), IMQ (Italy)

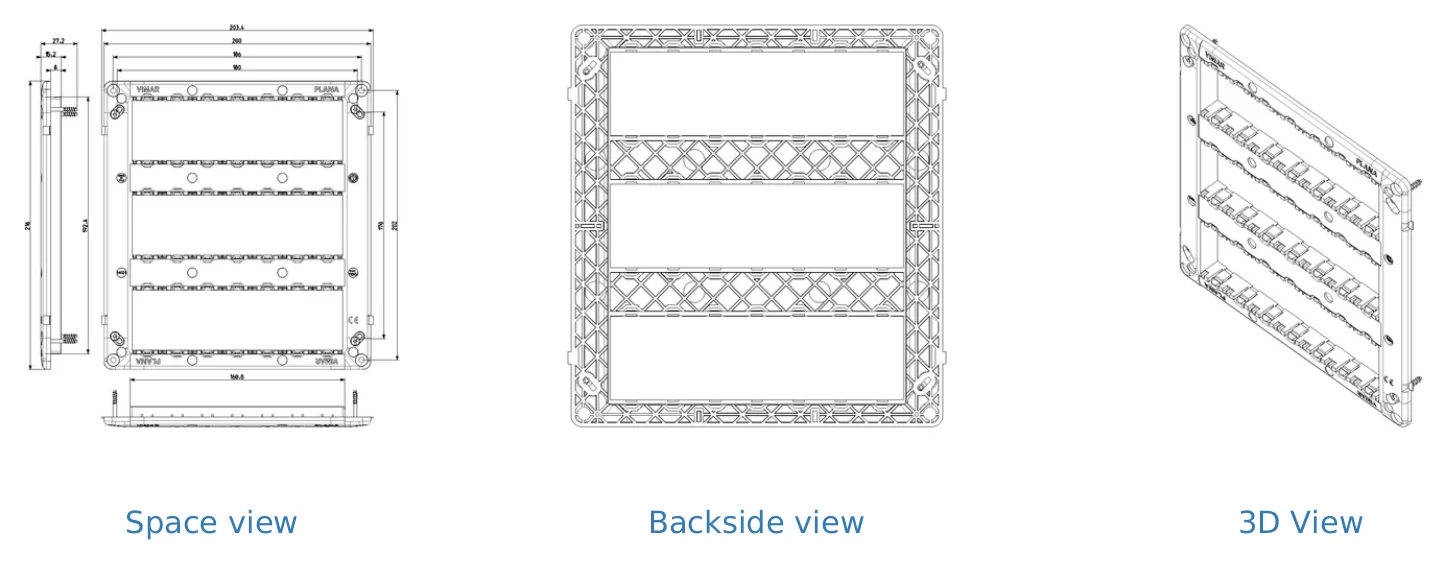

Technical drawings
Downloads
Certificates6
FAQ
What is the Vimar VM-14621 Frame 21M with Screws used for?
The Vimar VM-14621 is a 21-module mounting frame designed for switch frame applications. It is intended for use with a flush mounting box V71321 or with surface mounting boxes 09921, making it suitable where that box compatibility is required.
Which mounting box types are compatible with the VM-14621?
This model is specified for flush mounting box V71321 and for surface mounting boxes 09921. That compatibility is one of the key selection points for VM-14621 when matching it to an existing enclosure or project requirement.
How many modules does the VM-14621 frame support?
The VM-14621 is a 21-module frame arranged as 21 (7+7+7). That makes it a fit for applications where a 21-module layout is needed rather than a smaller frame size.
Does the Vimar VM-14621 include screws?
Yes. This model is supplied as a 21-module mounting frame with screws, as stated in the product description. That helps distinguish it from frame variants that may differ in included hardware.
What are the color, weight, and warranty of the VM-14621?
The listed finish colour for this model is green. Its weight is 0.1302 kg, and it carries a 3-year warranty period.
