Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar VM-V71306 Flush Mounting Box 6-7M Light Blue

6-7-module flush mounting box (GW 650 °C)

SKU VM-V71306

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

VM-V71306 is Vimar V71306, flush mounting box 6-7M light blue.

6-7-module flush mounting box (GW 650 °C), for masonry walls, light blue

Features

Plenty of space of internal wiring
Knockouts designed for the insertion of pipes with various cross-sections
Rack for fixing the dividing screen (patented)
Fixing lug of the support screws with zinc-plating treatment to prevent the thread from clogging during installation and favour screwing
Accessories available: anti-mortar covers and coupling joints to create multiple series of boxes

Specifications

VM-V71306Specifications from the official datasheet

Technical data

Product type: Box/housing for built-in mounting in the wall/ceiling
Mounting method: Flush-mounted
Shape: Rectangular
Construction type: Device connection box (round/square)
Provided with revolving ring: No
Couplable: Yes
Length: 59 mm
Width: 174 mm
Depth: 0 - 49.6 mm
Inner depth: 50 mm
For number of device inserts: 7
Mounting switching equipment: Screwing
With screws: No
Housing feed-through by break-out opening: Yes
Housing feed-through by seal membrane: No
Housing feed-through by nozzle: No
Housing feed-through by step membrane: No
For tube diameter: 20/25 mm
Pipe locking: No
Pipe locking optional: No
Inlet from the rear: Yes
Number of inlets: 9
Material: Plastic
Halogen free: Yes
Surface protection: Untreated
Colour: Blue
Degree of protection (IP): IP00
Transparent cover: No
Cover attachment: Screwed
Sealable: No
With screening: No
Airtight: No
Clamp position fixed: No
Luminaire hook mounting: No

Packaging

EAN: 8007352079526
Packed size (cm): 18.4 × 9 × 5
Packed weight: 60 g
Pieces per box: 6

Certifications

Certifications: CE marking (EU), IMQ (Italy)

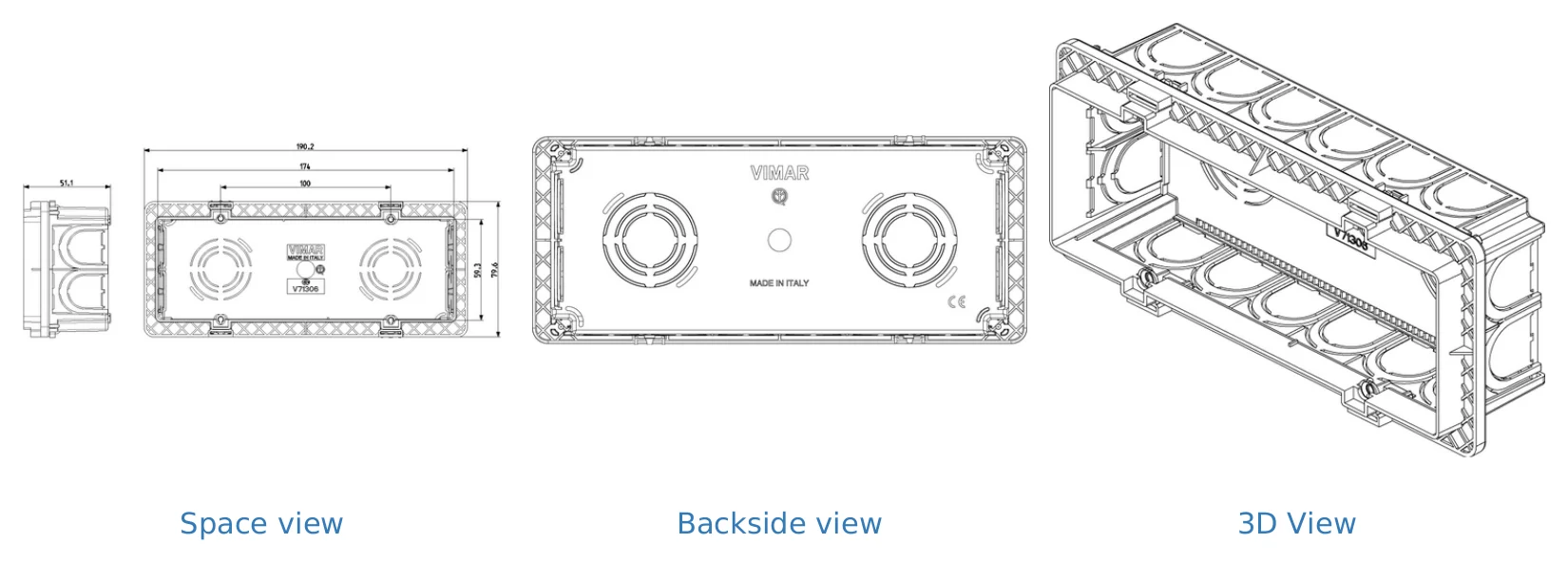

Technical drawings

Downloads

Certificates2

Certificates for Vimar Flush Box PDF Download

FAQ

What is the Vimar VM-V71306 used for?

The Vimar VM-V71306 is a 6-7 module flush mounting box for masonry walls. It is intended for use with compatible Vimar modular switch and socket ranges where a 6-7M flush box is required.

Which Vimar series is this flush mounting box associated with?

This model is listed across Vimar Arke, Plana, Eikon Chrome, Eikon Evo, Eikon Exe, Eikon Next, Eikon Tactil, and Eikon Vintage switch categories. Buyers should match the required 6-7M flush box format with the specific Vimar series and product configuration they are using.

What size module format does the VM-V71306 support?

The VM-V71306 is specified as a 6-7 module flush mounting box. This makes it suitable for product layouts that require a 6M or 7M flush box format.

What temperature range is this Vimar flush mounting box rated for?

The VM-V71306 has a stated operating temperature range from -20 °C to 50 °C. This helps buyers confirm suitability for environments within that temperature range.

What material safety rating is listed for this product?

The description specifies a GW 650 °C rating for this flush mounting box. This is a glow-wire test temperature reference provided for the VM-V71306.

What color and weight is the Vimar VM-V71306?

This model is light blue, with the product finish color listed as blue. Its stated weight is 0.0600 kg.

What warranty period is listed for the VM-V71306?

The listed warranty period for the Vimar VM-V71306 is 3 years. This warranty information applies to this specific SKU as provided in the product data.
