Vimar VM-V71320 Flush Mounting Box 12-14M Light Blue

12/14-module flush mounting box(Glow Wire 650 °C)

SKU VM-V71320

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

VM-V71320 is Vimar V71320, flush mounting box 12-14M light blue.

12/14-module flush mounting box, (Glow Wire 650 °C), for masonry walls, light blue

Features

Plenty of space of internal wiring
Wide range of accessories available: anti-mortar covers, coupling joints to create multiple series of boxes
Knockouts designed for the insertion of pipes with various cross-sections
Rack for fixing the dividing screen (patented)
Fixing lug of the support screws with zinc-plating treatment to prevent the thread from clogging during installation and favour screwing

Specifications

VM-V71320Specifications from the official datasheet

Technical data

Product type: Box/housing for built-in mounting in the wall/ceiling
Mounting method: Flush-mounted
Shape: Rectangular
Construction type: Device connection box (round/square)
Provided with revolving ring: No
Couplable: Yes
Length: 134 mm
Width: 180 mm
Depth: 0 - 70 mm
Inner depth: 50 mm
For number of device inserts: 14
Mounting switching equipment: Screwing
With screws: No
Housing feed-through by break-out opening: Yes
Housing feed-through by seal membrane: No
Housing feed-through by nozzle: No
Housing feed-through by step membrane: No
For tube diameter: 20/25 mm
Pipe locking: No
Pipe locking optional: No
Inlet from the rear: Yes
Number of inlets: 14
Material: Plastic
Halogen free: Yes
Surface protection: Untreated
Colour: Blue
Degree of protection (IP): IP00
Transparent cover: No
Cover attachment: Screwed
Sealable: No
With screening: No
Airtight: No
Clamp position fixed: No
Luminaire hook mounting: No

Packaging

EAN: 8007352117198
Packed size (cm): 19 × 14.4 × 7
Packed weight: 129.8 g
Pieces per box: 20

Certifications

Certifications: CE marking (EU), IMQ (Italy)

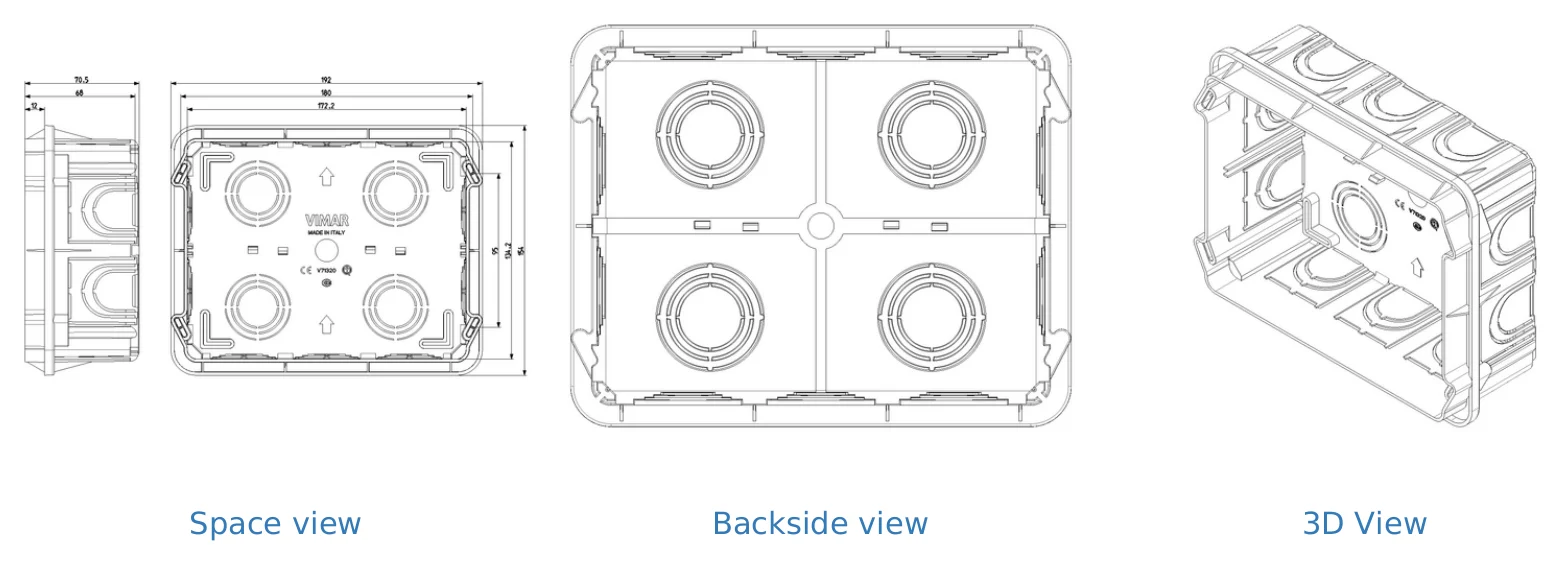

Technical drawings

Downloads

Certificates2

Certificates for Vimar Flush Box PDF Download

FAQ

What is the Vimar VM-V71320 flush mounting box designed for?

The Vimar VM-V71320 is a 12/14-module flush mounting box for masonry walls. It is intended for use as part of compatible Vimar switch and socket installations where a flush box of this module capacity is required.

Which Vimar ranges is the VM-V71320 associated with?

This model is categorized with several Vimar switch ranges, including Arké, Eikon Chrome, Eikon Evo, Eikon Exé, Eikon Next, Eikon Tactil, Eikon Vintage, and Plana. Buyers should match the 12/14-module format and product series requirements before ordering.

What color is the Vimar VM-V71320?

The VM-V71320 is supplied in light blue. Its listed finish colour is blue.

What operating temperature range is listed for the VM-V71320?

The listed temperature range for this model is -20 °C to 50 °C. This helps buyers confirm suitability for environments that stay within those stated limits.

What does the Glow Wire 650 °C rating mean for this product?

The product description lists a Glow Wire rating of 650 °C. This is a stated material safety-related characteristic for the VM-V71320 flush mounting box.

How much does the Vimar VM-V71320 weigh?

The listed weight for the Vimar VM-V71320 is 0.1298 kg. This can be useful for procurement, logistics, and multi-unit order planning.

What warranty period is listed for the VM-V71320?

The listed warranty period for the Vimar VM-V71320 is 3 years. Warranty handling may still depend on the seller's terms and the purchase channel.
