Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar VM-V71321 Flush Mounting Box 18-21M Light Blue

18/21-module flush mounting box(Glow Wire 650 °C)

SKU VM-V71321

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

VM-V71321 is Vimar V71321, flush mounting box 18-21M light blue.

18/21-module flush mounting box, (Glow Wire 650 °C), for masonry walls, light blue

Features

Plenty of space of internal wiring
Knockouts designed for the insertion of pipes with various cross-sections

Specifications

VM-V71321Specifications from the official datasheet

Technical data

Product type: Box/housing for built-in mounting in the wall/ceiling
Mounting method: Flush-mounted
Shape: Rectangular
Construction type: Device connection box (round/square)
Provided with revolving ring: No
Couplable: Yes
Length: 224 mm
Width: 192 mm
Depth: 0 - 70 mm
Inner depth: 50 mm
For number of device inserts: 21
Mounting switching equipment: Screwing
With screws: No
Housing feed-through by break-out opening: Yes
Housing feed-through by seal membrane: No
Housing feed-through by nozzle: No
Housing feed-through by step membrane: No
For tube diameter: 20/25 mm
Pipe locking: No
Pipe locking optional: No
Inlet from the rear: Yes
Number of inlets: 18
Material: Plastic
Halogen free: Yes
Surface protection: Untreated
Colour: Blue
Degree of protection (IP): IP00
Transparent cover: No
Cover attachment: Screwed
Sealable: No
With screening: No
Airtight: No
Clamp position fixed: No
Luminaire hook mounting: No

Packaging

EAN: 8007352117211
Packed size (cm): 19.2 × 22.4 × 7
Packed weight: 170.2 g
Pieces per box: 10

Certifications

Certifications: CE marking (EU), IMQ (Italy)

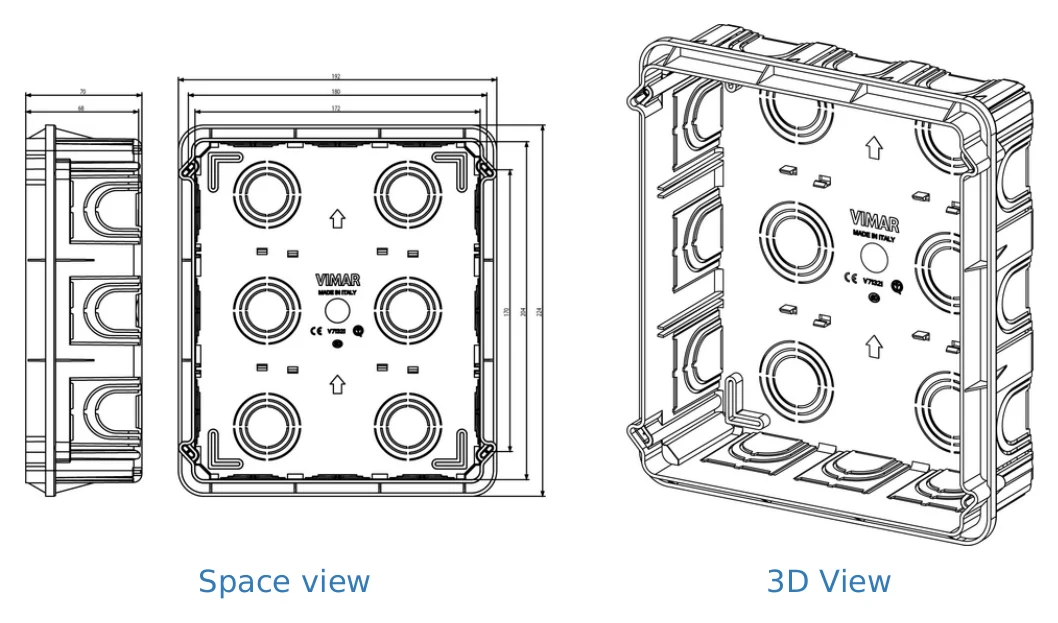

Technical drawings

Downloads

Certificates2

Certificates for Vimar Flush Box PDF Download

FAQ

What is the Vimar VM-V71321 used for?

The Vimar VM-V71321 is an 18/21-module flush mounting box for masonry walls. It is used as the in-wall box for compatible Vimar switch and socket configurations where an 18M to 21M capacity is required.

Which Vimar series is this flush mounting box associated with?

This model appears in categories for several Vimar switch ranges, including Plana, Arké, and multiple Eikon lines such as Chrome, Evo, Exé, Next, Tactil, and Vintage. Buyers should match the box size and product series requirements for their selected Vimar modules and plates.

What size configuration does the VM-V71321 support?

The VM-V71321 is specified as an 18/21-module flush mounting box. This makes it suitable for larger multi-module switch or socket layouts within the compatible Vimar ranges listed for this product.

What temperature range is this Vimar flush mounting box rated for?

The specified operating temperature range is -20 °C to 50 °C. That range helps buyers confirm whether the VM-V71321 fits the expected environmental conditions for the project.

What are the material safety and physical details listed for this model?

The VM-V71321 is listed with a Glow Wire rating of 650 °C. It is light blue, weighs 0.1702 kg, and includes a 3-year warranty period.
