Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar VM-V71704 Flush-Mount Box 4M f/Hollow Walls Blue

4-module mounting frame (GW 850 °C)

SKU VM-V71704

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

VM-V71704 is Vimar V71704, flush-mount box 4M f/hollow walls blue.

4-module mounting frame (GW 850 °C) for hollow walls, light blue

Features

Suitable for several types of hollow walls (e.g. plasterboard, wood, plastic laminate or similar)
Preparation of the hole with a hollow cutter with a diameter of 68 mm. Hole centring plate incorporated into the back
Improved retention knockouts, designed for the insertion of pipes with various cross-sections (16, 20 or 25 mm) and metal fins for surface mounting the box on walls with a variable thickness of between 1 and 38 mm
Fixing lugs for support screws made of metal
Wide range of accessories available: accessories with a template function for tracing the hole, with joining function for mounting in series and installation on the inside of the wall; internal partitions; decorative covers

Specifications

VM-V71704Specifications from the official datasheet

Technical data

Product type: Box/housing for built-in mounting in the wall/ceiling
Mounting method: Hollow wall
Shape: Rectangular
Construction type: Device connection box (round/square)
Provided with revolving ring: No
Couplable: Yes
Length: 72.5 mm
Width: 133.8 mm
Depth: 0 - 50 mm
Inner depth: 50 mm
For number of device inserts: 4
Mounting switching equipment: Screwing
With screws: No
Housing feed-through by break-out opening: Yes
Housing feed-through by seal membrane: No
Housing feed-through by nozzle: No
Housing feed-through by step membrane: No
For tube diameter: 20/25 mm
Pipe locking: No
Pipe locking optional: No
Inlet from the rear: Yes
Number of inlets: 14
Material: Plastic
Halogen free: Yes
Surface protection: Untreated
Colour: Blue
Degree of protection (IP): IP00
Transparent cover: No
Cover attachment: Screwed
Sealable: No
With screening: No
Airtight: No
Clamp position fixed: No
Luminaire hook mounting: No

Packaging

EAN: 8007352425705
Packed size (cm): 13.4 × 7.2 × 5
Packed weight: 38.64 g
Pieces per box: 5

Certifications

Certifications: CE marking (EU), Product Environm. Profile, IMQ (Italy)

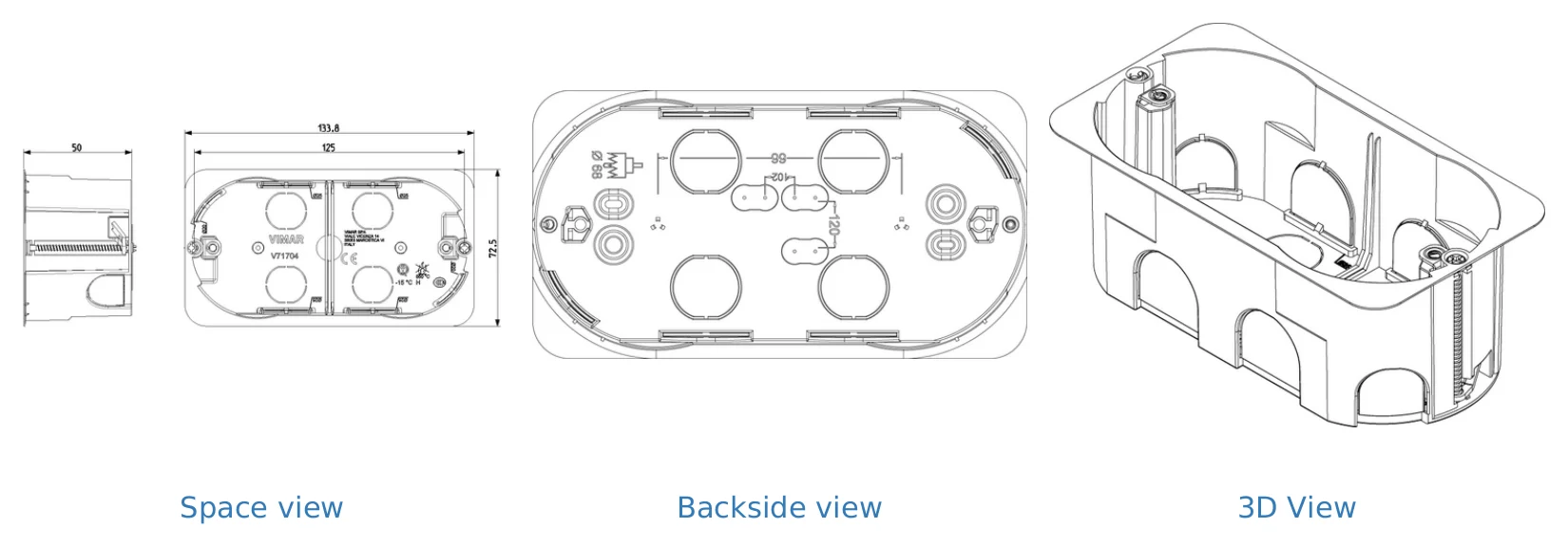

Technical drawings

Downloads

Certificates2

Certificates for Vimar Flush Box PDF Download

FAQ

What is the Vimar VM-V71704 used for?

The Vimar VM-V71704 is a 4-module flush-mount box designed for hollow walls. It is intended for use with compatible Vimar switch and socket ranges where a flush-mounted box is required.

Which Vimar series is this flush-mount box associated with?

This model is listed with several Vimar switch families, including Arke, Plana, Eikon Chrome, Eikon Evo, Eikon Exe, Eikon Next, Eikon Tactil, and Eikon Vintage categories. Compatibility should be checked against the required 4-module configuration and the specific Vimar frame or device range being specified.

How many modules does the VM-V71704 support?

The VM-V71704 is a 4-module flush-mount box. It is described as a 4M box for hollow walls.

What temperature range is specified for the Vimar VM-V71704?

The specified operating temperature range is from -20 °C to 50 °C. This makes the product suitable for environments within that stated temperature range.

What material safety rating is listed for this flush-mount box?

The product description lists a GW 850 °C rating for the 4-module mounting frame. No additional material or fire-rating specifications are provided in the supplied product data.

What color and weight are specified for the VM-V71704?

The VM-V71704 is light blue, with the finish color listed as blue. Its specified weight is 0.0386 kg.

What warranty period is listed for this product?

The listed warranty period for the Vimar VM-V71704 is 3 years. Warranty coverage should be confirmed with the seller’s terms for the specific order.
