Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar VM-V71706 Flush-Mount Box 6-7M f/Hollow Walls Blue

6-7-module flush mounting box (GW 850 °C)

SKU VM-V71706

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

VM-V71706 is Vimar V71706, flush-mount box 6-7M f/hollow walls blue.

6-7-module flush mounting box (GW 850 °C), for hollow walls, light blue

Features

Suitable for several types of hollow walls (e.g. plasterboard, wood, plastic laminate or similar)
Preparation of the hole with a hollow cutter with a diameter of 68 mm. Hole centring plate incorporated into the back
Improved retention knockouts, designed for the insertion of pipes with various cross-sections (16, 20 or 25 mm) and metal fins for surface mounting the box on walls with a variable thickness of between 1 and 38 mm
Fixing lugs for support screws made of metal
Wide range of accessories available: accessories with a template function for tracing the hole, with joining function for mounting in series and installation on the inside of the wall; internal partitions; decorative covers

Specifications

VM-V71706Specifications from the official datasheet

Technical data

Product type: Box/housing for built-in mounting in the wall/ceiling
Mounting method: Hollow wall
Shape: Rectangular
Construction type: Device connection box (round/square)
Provided with revolving ring: No
Couplable: Yes
Length: 72.5 mm
Width: 193 mm
Depth: 0 - 50 mm
Inner depth: 50 mm
For number of device inserts: 7
Mounting switching equipment: Screwing
With screws: No
Housing feed-through by break-out opening: Yes
Housing feed-through by seal membrane: No
Housing feed-through by nozzle: No
Housing feed-through by step membrane: No
For tube diameter: 20/25 mm
Pipe locking: No
Pipe locking optional: No
Inlet from the rear: Yes
Number of inlets: 18
Material: Plastic
Halogen free: Yes
Surface protection: Untreated
Colour: Blue
Degree of protection (IP): IP00
Transparent cover: No
Cover attachment: Screwed
Sealable: No
With screening: No
Airtight: No
Clamp position fixed: No
Luminaire hook mounting: No

Packaging

EAN: 8007352425750
Packed size (cm): 19.3 × 7.2 × 5
Packed weight: 54.8 g
Pieces per box: 5

Certifications

Certifications: CE marking (EU), IMQ (Italy)

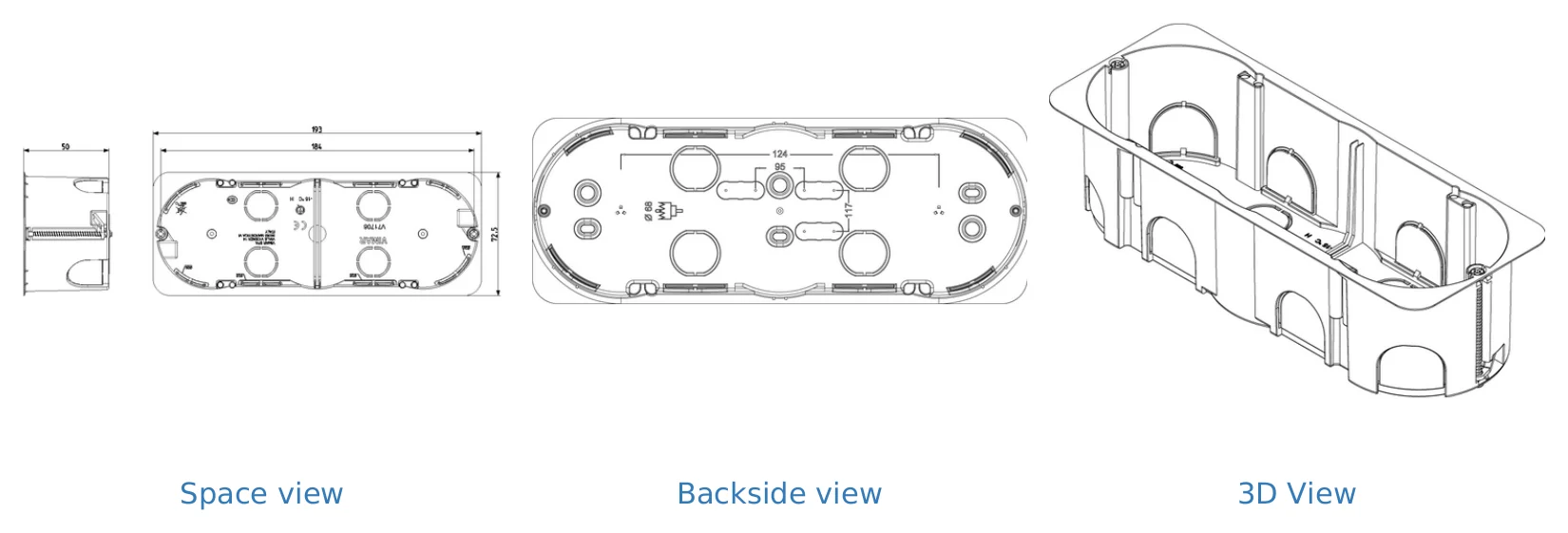

Technical drawings

Downloads

Certificates2

Certificates for Vimar Flush Box PDF Download

FAQ

What is the VM-V71706 used for?

The Vimar VM-V71706 is a 6-7 module flush-mount box for hollow walls. It is intended for use with compatible Vimar switch and socket ranges where a flush box for hollow-wall applications is required.

Which wall type is this flush-mount box designed for?

This model is specified for hollow walls. It is not described as a masonry or solid-wall box in the provided product data.

How many modules does the VM-V71706 support?

The VM-V71706 is listed as a 6-7 module flush mounting box. This makes it suitable for product page selections that require a 6- or 7-module hollow-wall box.

What Vimar ranges is this box associated with?

The product categories associate this box with Vimar Arke, Plana, Eikon Chrome, Eikon Evo, Eikon Exe, Eikon Next, Eikon Tactil, and Eikon Vintage switch families. Buyers should match the required module count and wall type before selecting it.

What is the operating temperature range for VM-V71706?

The specified temperature range is -20 °C to 50 °C. This helps confirm whether the box matches the environmental requirements of the project location.

What color is the VM-V71706 flush-mount box?

The VM-V71706 is light blue, with the finish colour listed as blue. This color detail can help distinguish it from similar flush box models during procurement or stock checks.

What is the warranty period for this product?

The warranty period listed for the Vimar VM-V71706 is 3 years. The product weight is 0.0548 kg, which may also be useful for ordering and logistics records.
