Vimar VM-V71718 Flush-Mount Box 8M f/Hollow Walls Blue

8-module mounting box (GW 850 °C)

SKU VM-V71718

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

VM-V71718 is Vimar V71718, flush-mount box 8M f/hollow walls blue.

8-module mounting box (GW 850 °C), for hollow walls, light blue

Features

Suitable for several types of hollow walls (e.g. plasterboard, wood, plastic laminate or similar)
Preparation of the hole with a hollow cutter with a diameter of 68 mm. Hole centring plate incorporated into the back
Improved retention knockouts, designed for the insertion of pipes with various cross-sections (16, 20 or 25 mm) and metal fins for surface mounting the box on walls with a variable thickness of between 1 and 38 mm
Fixing lugs for support screws made of metal
Wide range of accessories available: accessories with a template function for tracing the hole, with joining function for mounting in series and installation on the inside of the wall; internal partitions; decorative covers

Specifications

VM-V71718Specifications from the official datasheet

Technical data

Product type: Box/housing for built-in mounting in the wall/ceiling
Mounting method: Hollow wall
Shape: Rectangular
Construction type: Device connection box (round/square)
Provided with revolving ring: No
Couplable: Yes
Length: 138 mm
Width: 138 mm
Depth: 0 - 56 mm
Inner depth: 50 mm
For number of device inserts: 8
Mounting switching equipment: Screwing
With screws: No
Housing feed-through by break-out opening: Yes
Housing feed-through by seal membrane: No
Housing feed-through by nozzle: No
Housing feed-through by step membrane: No
For tube diameter: 20/25 mm
Pipe locking: No
Pipe locking optional: No
Inlet from the rear: Yes
Number of inlets: 16
Material: Plastic
Halogen free: Yes
Surface protection: Untreated
Colour: Blue
Degree of protection (IP): IP00
Transparent cover: No
Cover attachment: Screwed
Sealable: No
With screening: No
Airtight: No
Clamp position fixed: No
Luminaire hook mounting: No

Packaging

EAN: 8007352425781
Packed size (cm): 13.8 × 13.8 × 5.6
Packed weight: 80 g
Pieces per box: 10

Certifications

Certifications: CE marking (EU), IMQ (Italy)

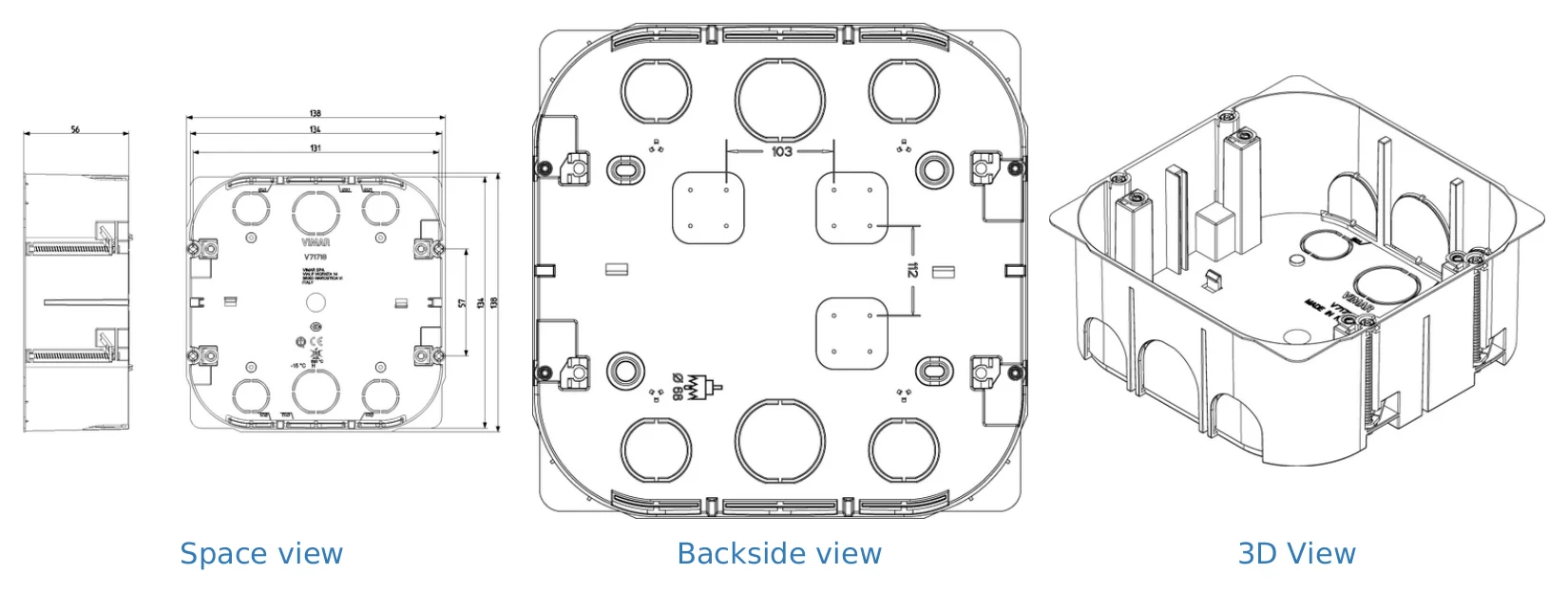

Technical drawings

Downloads

Certificates2

Certificates for Vimar Flush Box PDF Download

FAQ

What is the Vimar VM-V71718 used for?

The Vimar VM-V71718 is an 8-module flush-mount box for hollow walls. It is intended for use as a mounting box in compatible Vimar switch and socket systems where an 8M flush box is required.

Which Vimar series is this flush-mount box associated with?

This product is listed with multiple Vimar switch ranges, including Arké, Plana, Eikon Chrome, Eikon Evo, Eikon Exé, Eikon Next, Eikon Tactil, and Eikon Vintage categories. Buyers should match the 8-module format and hollow-wall application to the rest of the selected Vimar system.

How many modules does the VM-V71718 support?

The VM-V71718 is an 8-module flush-mount box. Its product description specifies it as an 8M mounting box for hollow walls.

What temperature range is specified for this model?

The listed operating temperature range for the Vimar VM-V71718 is -20 °C to 50 °C. This makes the temperature rating clear for buyers checking environmental suitability.

What color and weight is the VM-V71718?

This flush-mount box is light blue, with the finish color listed as blue. The stated product weight is 0.0800 kg.

What warranty period is listed for this Vimar flush-mount box?

The listed warranty period for the Vimar VM-V71718 is 3 years. This applies to the product model shown here.
