Vimar VM-V71720 Flush-Mountbox 12-14M f/Hollow Walls Blue

Multifunction mounting boxe (GW 850 °C)

SKU VM-V71720

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

VM-V71720 is Vimar V71720, flush-mountbox 12-14M f/hollowwalls blue.

Multifunction mounting boxe (GW 850 °C) for hollow walls, light blue

Features

Suitable for several types of hollow walls (e.g. plasterboard, wood, plastic laminate or similar)
Preparation of the hole with a hollow cutter with a diameter of 68 mm. Hole centring plate incorporated into the back
Improved retention knockouts, designed for the insertion of pipes with various cross-sections (16, 20 or 25 mm) and metal fins for surface mounting the box on walls with a variable thickness of between 1 and 38 mm
Wide range of accessories available: accessories with a template function for tracing the hole, with joining function for mounting in series and installation on the inside of the wall; internal partitions; decorative covers

Specifications

VM-V71720Specifications from the official datasheet

Technical data

Product type: Box/housing for built-in mounting in the wall/ceiling
Mounting method: Hollow wall
Shape: Rectangular
Construction type: Device connection box (round/square)
Provided with revolving ring: No
Couplable: Yes
Length: 142.8 mm
Width: 199.3 mm
Depth: 0 - 70 mm
Inner depth: 50 mm
For number of device inserts: 14
Mounting switching equipment: Screwing
With screws: No
Housing feed-through by break-out opening: Yes
Housing feed-through by seal membrane: No
Housing feed-through by nozzle: No
Housing feed-through by step membrane: No
For tube diameter: 20/25 mm
Pipe locking: No
Pipe locking optional: No
Inlet from the rear: Yes
Number of inlets: 10
Material: Plastic
Halogen free: Yes
Surface protection: Untreated
Colour: Blue
Degree of protection (IP): IP00
Transparent cover: No
Cover attachment: Screwed
Sealable: No
With screening: No
Airtight: No
Clamp position fixed: No
Luminaire hook mounting: No

Packaging

EAN: 8007352425804
Packed size (cm): 20 × 14.2 × 7
Packed weight: 123 g
Pieces per box: 20

Certifications

Certifications: CE marking (EU), IMQ (Italy)

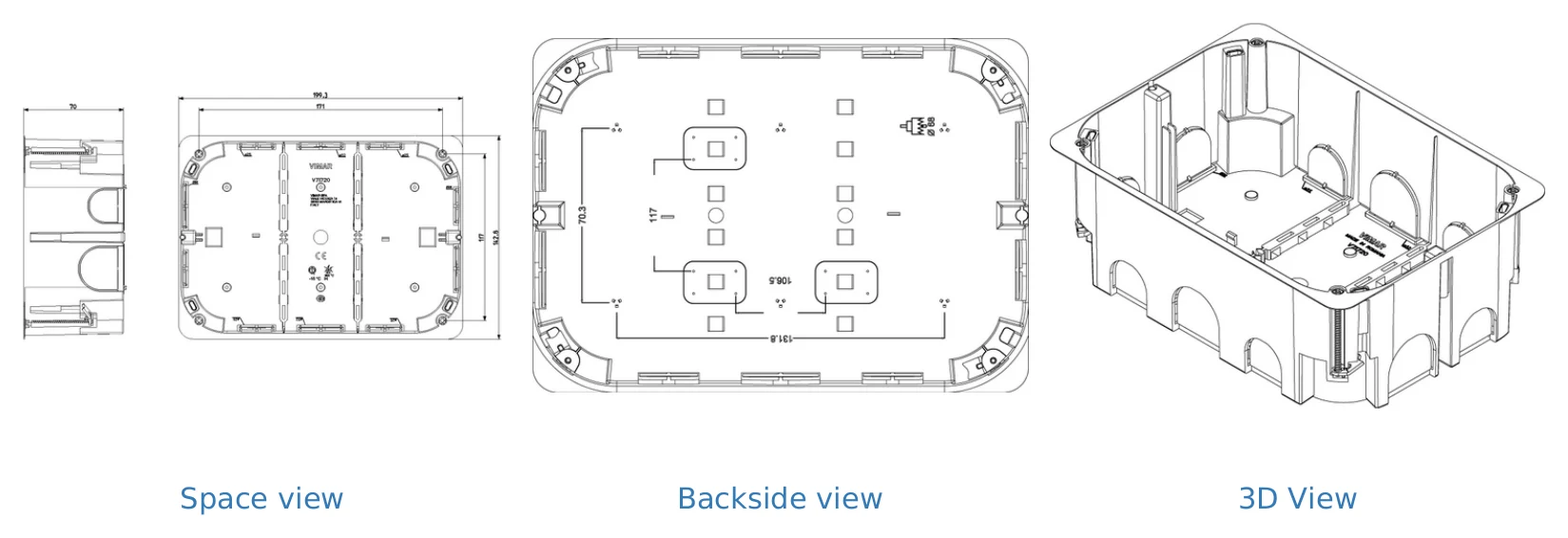

Technical drawings

Downloads

Certificates2

Certificates for Vimar Flush Box PDF Download

FAQ

What is the Vimar VM-V71720 used for?

The Vimar VM-V71720 is a flush-mount mounting box intended for hollow wall applications. It is designed for 12-14 module configurations and is part of Vimar switch and socket system product families.

Which wall type is this flush-mount box made for?

This model is specified for hollow walls. The product description identifies it as a multifunction mounting box for hollow walls, finished in light blue.

Is the VM-V71720 compatible with Vimar switch series?

The listed categories associate this flush-mount box with multiple Vimar switch ranges, including Arke, Plana, and several Eikon series categories. Buyers should match the 12-14M format and series requirements to the rest of the Vimar components in the project.

What temperature range is specified for this model?

The Vimar VM-V71720 is specified for temperatures from -20 °C to 50 °C. This range is useful for checking whether the product fits the expected environmental conditions of the project.

What are the main specifications of the VM-V71720?

This product is a light blue flush-mount box for hollow walls with a 12-14M format. It has a listed weight of 0.1230 kg, a 3-year warranty period, and a GW 850 °C material rating stated in the product description.

What color is the Vimar VM-V71720?

The finish color for this model is blue. The product description further identifies the mounting box as light blue.
