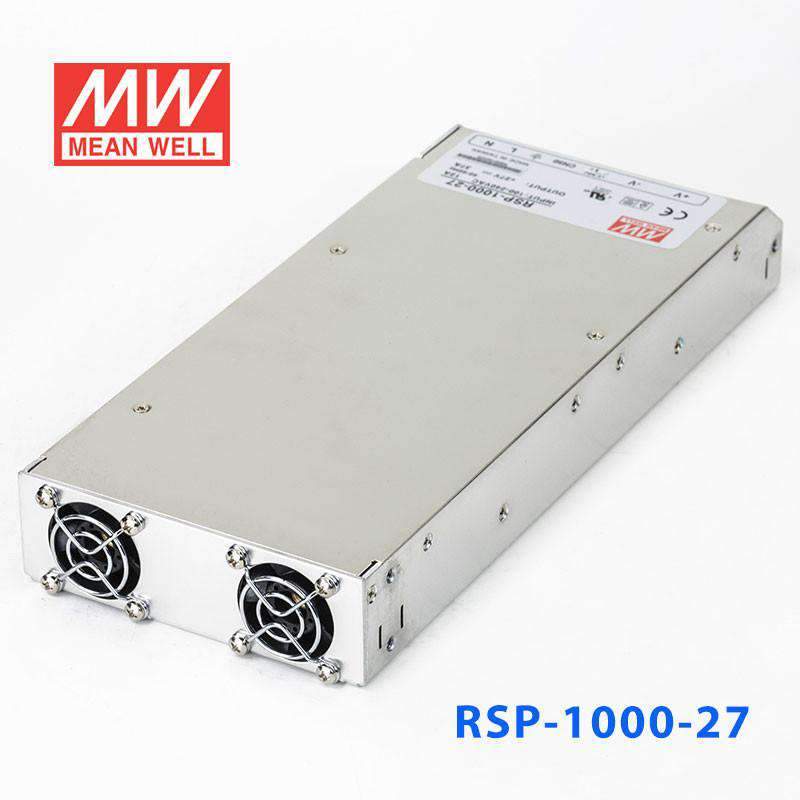

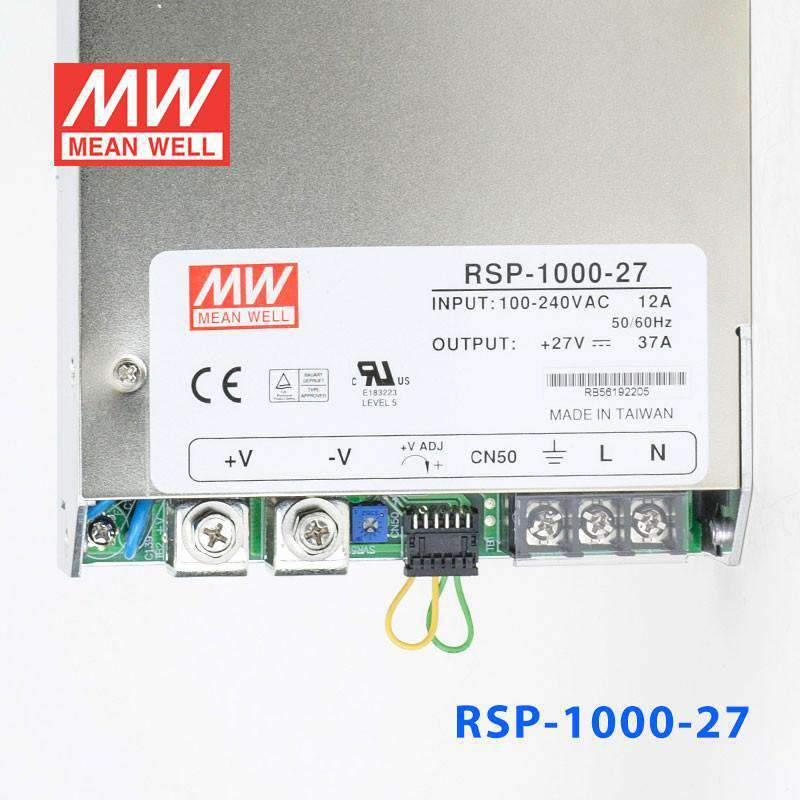

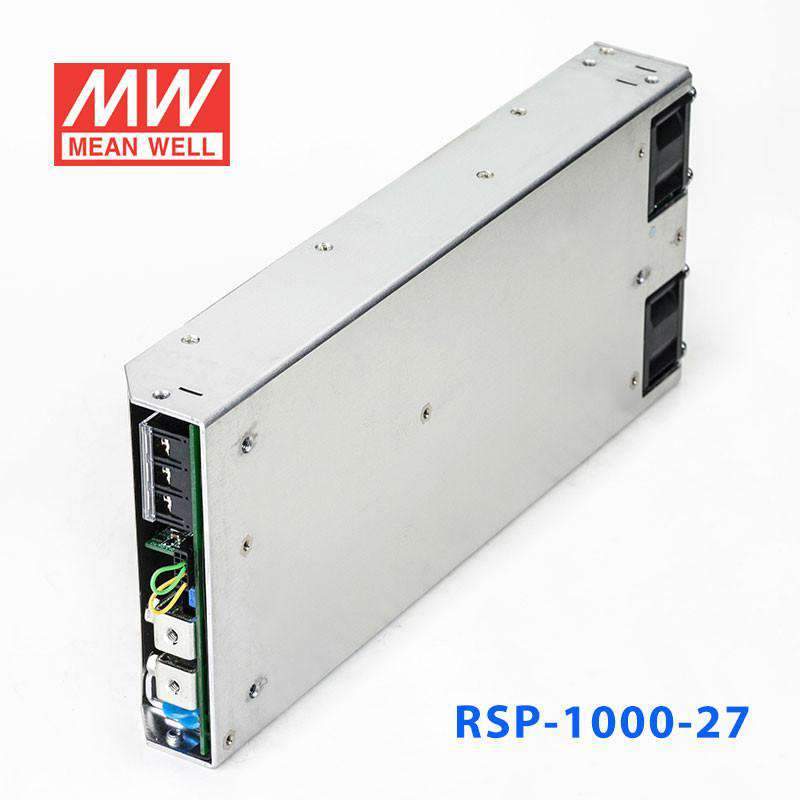

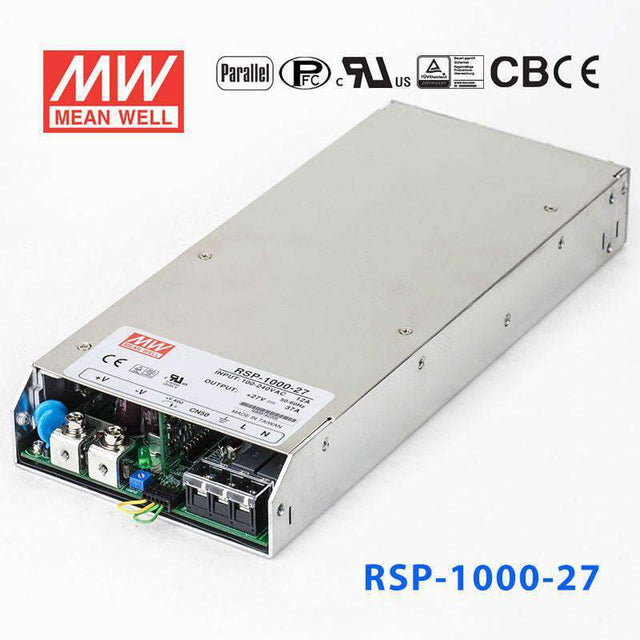

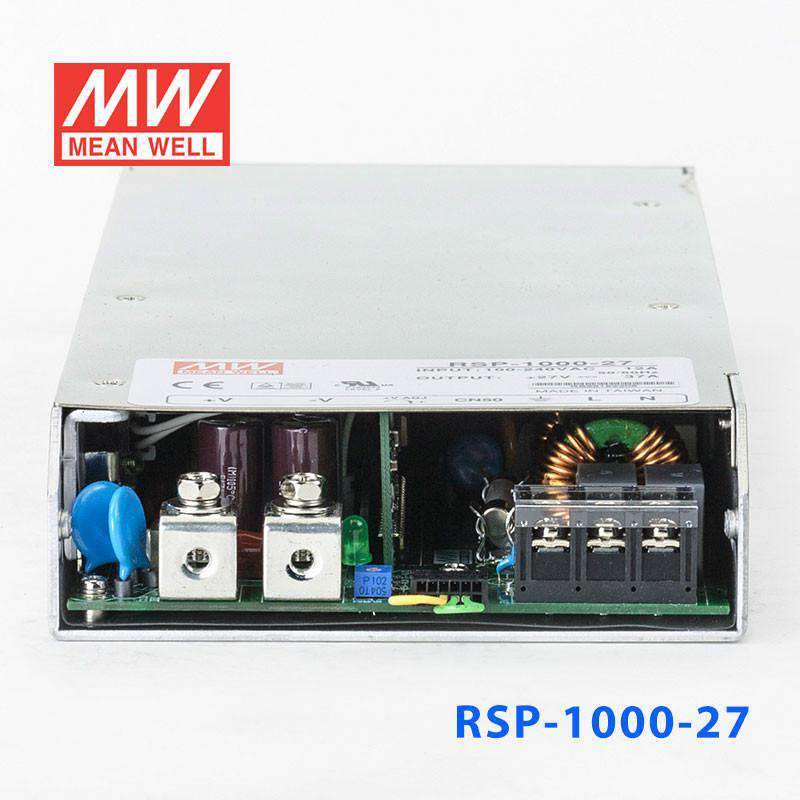

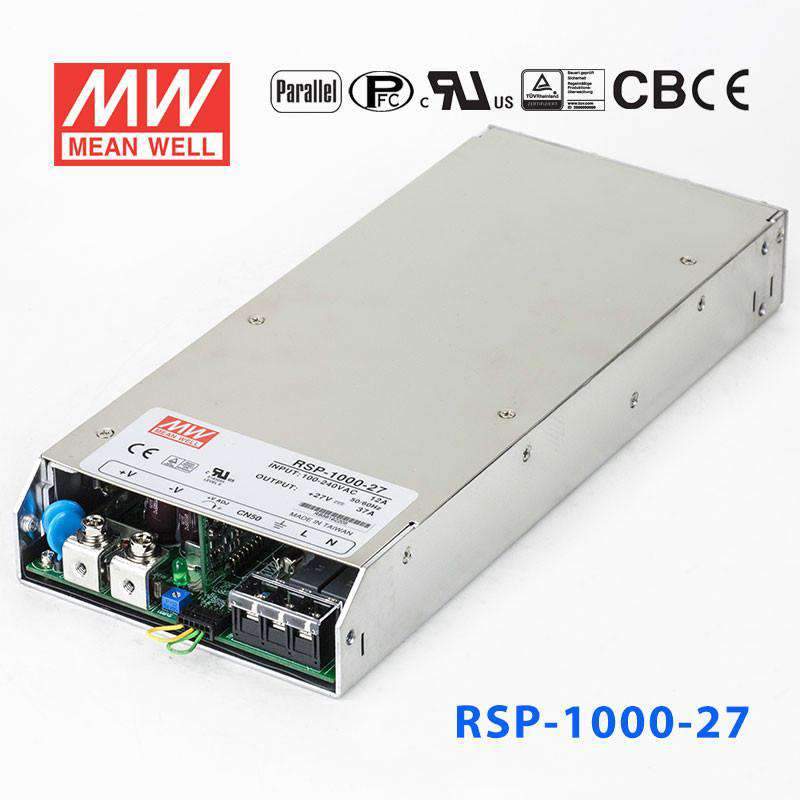

Mean Well RSP-1000-27 Power Supply 999W 27V 37A

built-in active PFChigh efficiency up to 91%active current sharing(3+1)

SKU RSP-1000-27

Log in to see price Trade pricing & online ordering for account holders

Select model — 9 in this family

RSP-1000-27

RSP-75-27 75W 27V Backorder

RSP-100-27 100W 27V Backorder

RSP-1000-27 1000W 27V Backorder

RSP-150-27 150W 27V Backorder

RSP-1500-27 1500W 27V Backorder

RSP-1600-27 1600W 27V Backorder

RSP-320-27 320W 27V Backorder

RSP-500-27 500W 27V Backorder

RSP-750-27 750W 27V Low stock

Product variants

Notify me when it's back in stock

The RSP-1000 is a 1000W Mean Well power converter (input range: 90~264VAC).

Key Features

✓ Input voltage range: 90~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ DC OK relay contact output
✓ Remote ON/OFF control
✓ Safety approvals: UL60950-1, TUV EN60950-1, EAC TP TC 004, CCC GB4943.1 , BSMI CNS14336-1
✓ 3 years warranty

Frequently Asked Questions

What applications require a 27V power supply like the RSP-1000-27?

The RSP-1000-27 provides 27V at 37A (999W) and is suited for 27V DC bus systems such as industrial battery charging applications for 24V lead-acid battery banks requiring a float/absorption voltage, certain servo amplifiers, and specialized telecommunications equipment with 27V bus specifications. The 90–264VAC input supports worldwide supply voltages.

Is the RSP-1000-27 suitable for N+1 redundant configurations?

Yes. Like all RSP-1000 variants, the RSP-1000-27 supports active current sharing (3+1), allowing up to three units in parallel delivering 111A at 27V combined, with a fourth unit available as a hot standby. Load balancing is automatic.

How does the RSP-1000-27 compare to the RSP-1000-24 and RSP-1000-48?

RSP-1000 voltage variants: RSP-1000-12 (720W/12V/60A), RSP-1000-15 (750W/15V/50A), RSP-1000-24 (960W/24V/40A), RSP-1000-27 (999W/27V/37A), RSP-1000-48 (1008W/48V/21A). The RSP-1000-27 sits between 24V and 48V at 27V/37A/999W. All share the same physical chassis and electrical characteristics.

What is the operating temperature range and ingress protection of the RSP-1000-27?

The RSP-1000-27 operates from -20°C to +60°C. It carries no IP rating for moisture or dust ingress, and must be installed in an appropriately rated enclosure for the deployment environment. The -20°C lower limit means it is not suited for unheated outdoor enclosures in very cold climates without supplemental heating.

What certifications does the RSP-1000-27 carry for global market compliance?

The RSP-1000-27 holds BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications. These approvals cover Taiwan, China, Europe, North America, and the Eurasian Economic Union.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RSP-1000-24 Power Supply 960W 24V 40A	960W	24V	40A	View
