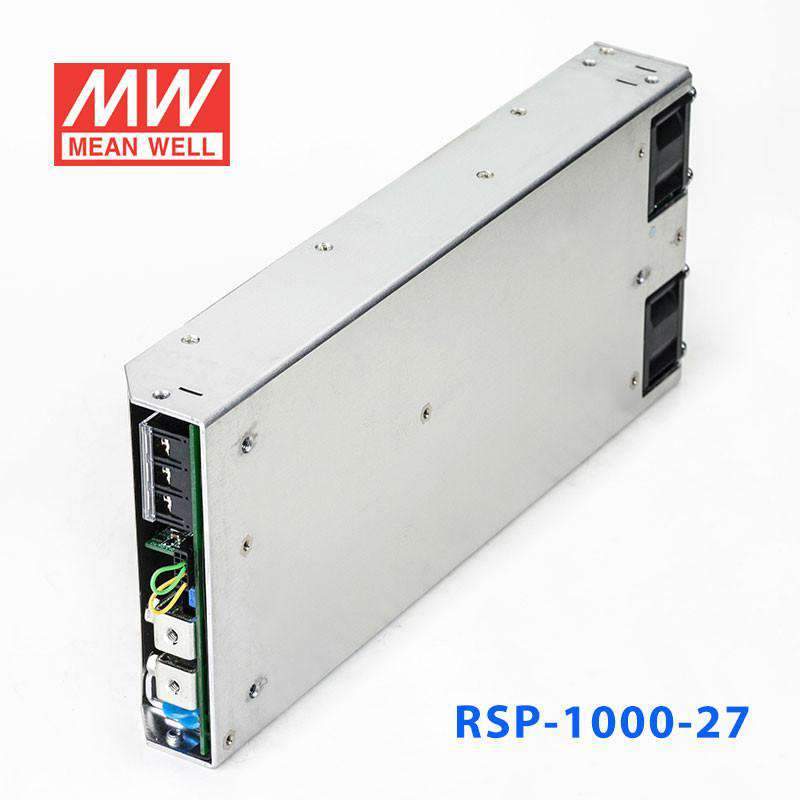

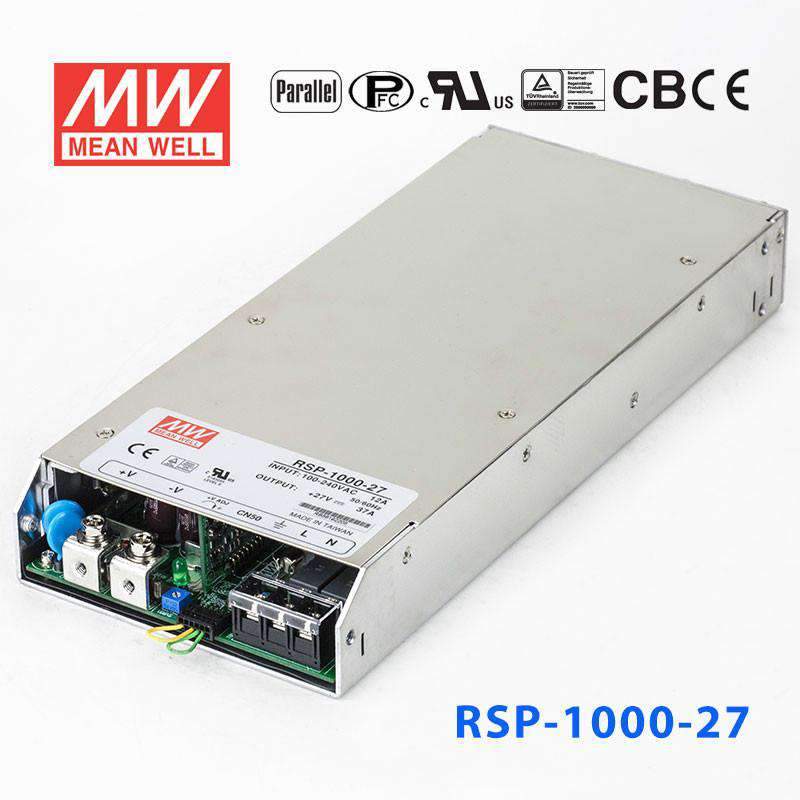

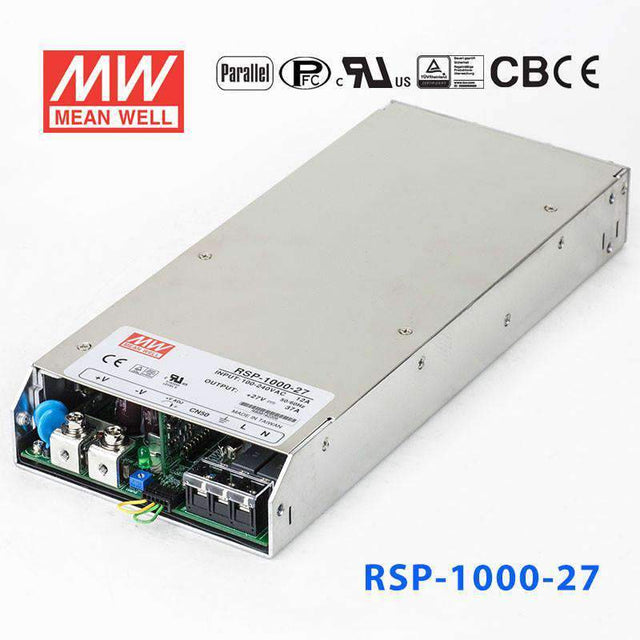

Mean Well RSP-1000-27 Power Supply 999W 27V

built-in active PFC, high efficiency up to 91%, active current sharing(3+1)

|

Description

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature

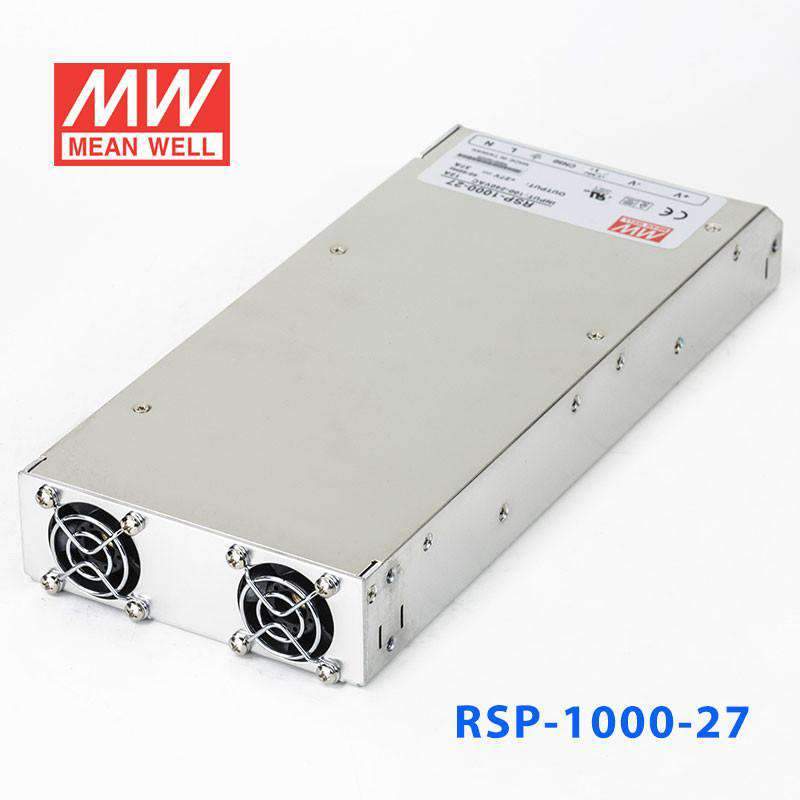

Forced air cooling by built-in DC fan
Vo can be trimmed by external resistor or external control signal
Built-in current sharing
Built-in remote sense and ON/OFF control
Built-in auxiliary power
DC OK signal
5 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 40A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection Range 105%~125%
Overload protection Type Constant current limiting, auto-recovery
Over voltage protection Range 115%~135%
Over voltage protection Type Shut down O/P voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -20~+60°C
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2

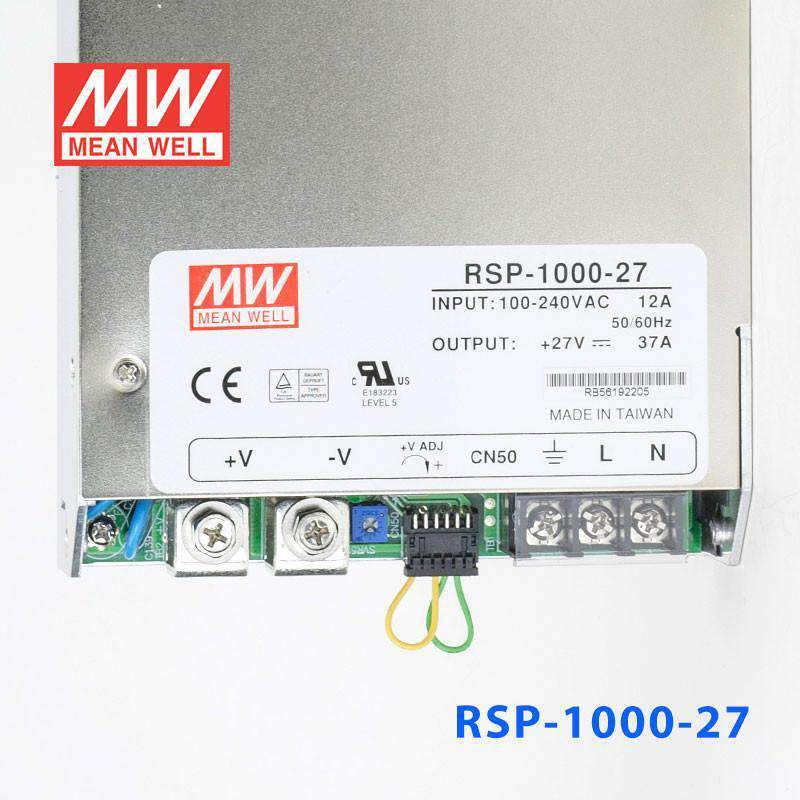

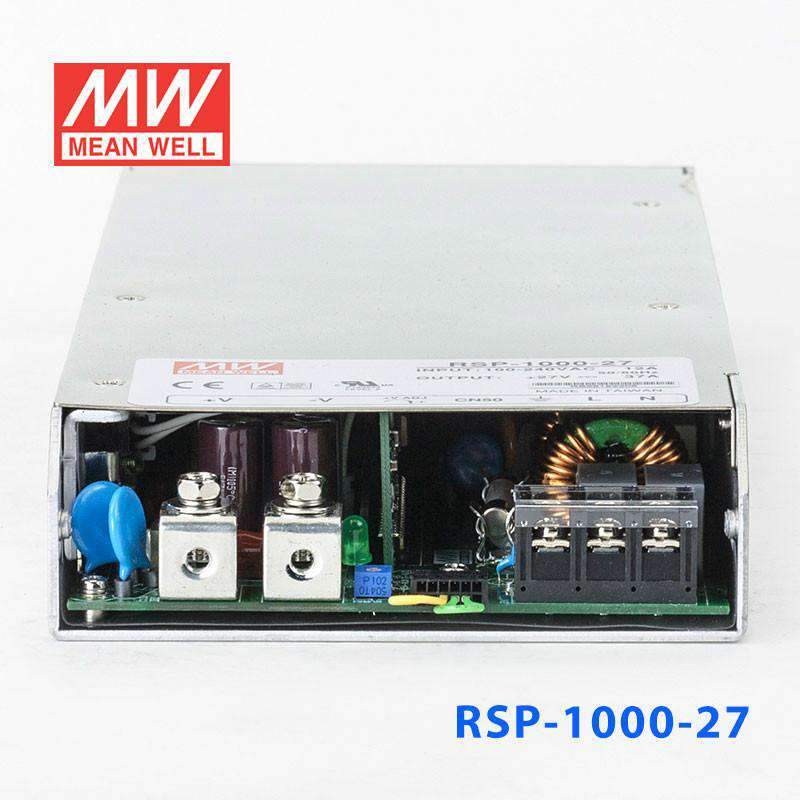

Connection Input 3P / 10mm pitch terminal block with cover
Connection Output Copper pillars
Dimension (LxWxH) 295x127x41
Case No. 952B
Packing 1.95kg; 6pcs / 12.7kg / 1.15CUFT

Specifications

  • Brand
    Mean Well
  • Series
    RSP Series
  • Power Rating
    999 Watt
  • Output Voltage
    27 Volt
  • Rated Current
    37 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    BSMI,CB,CCC,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~60°C
  • Warranty
    5 Year
  • Length
    29.5 cm
  • Width
    12.7 cm
  • Height
    4.1 cm
  • Weight
    1.95 kg
