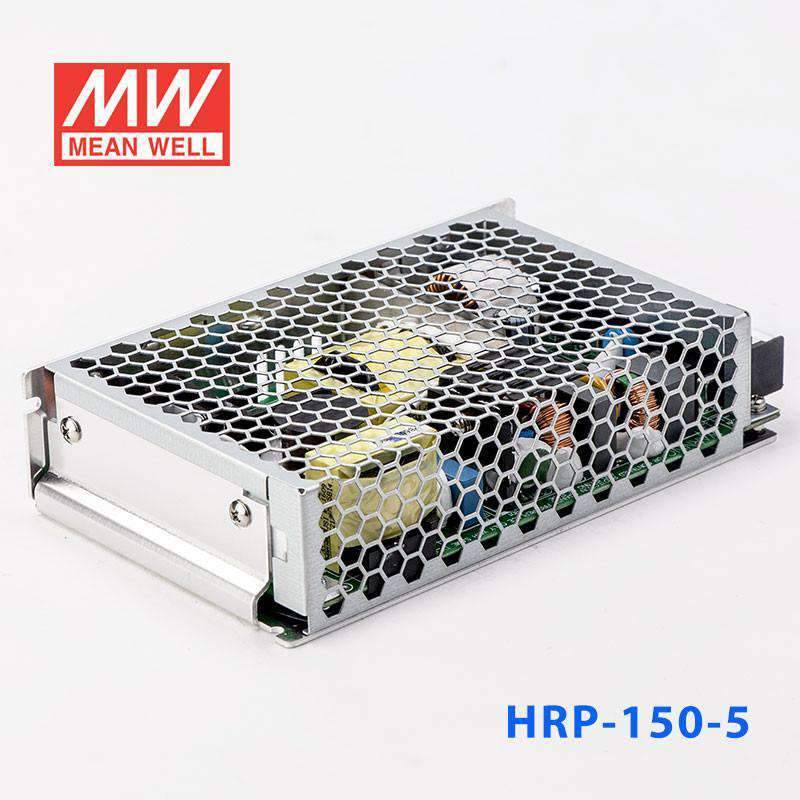

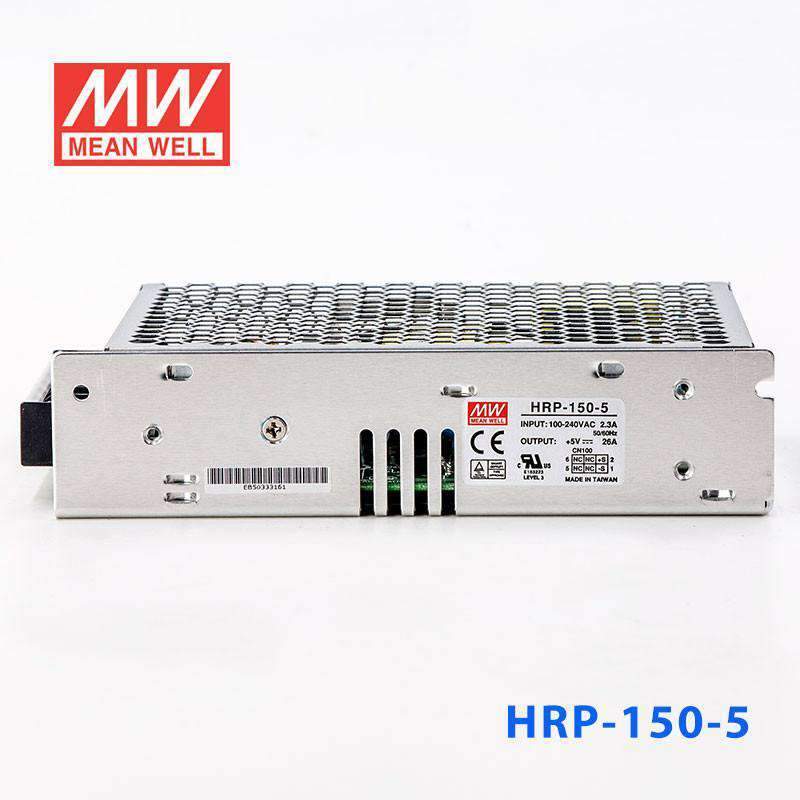

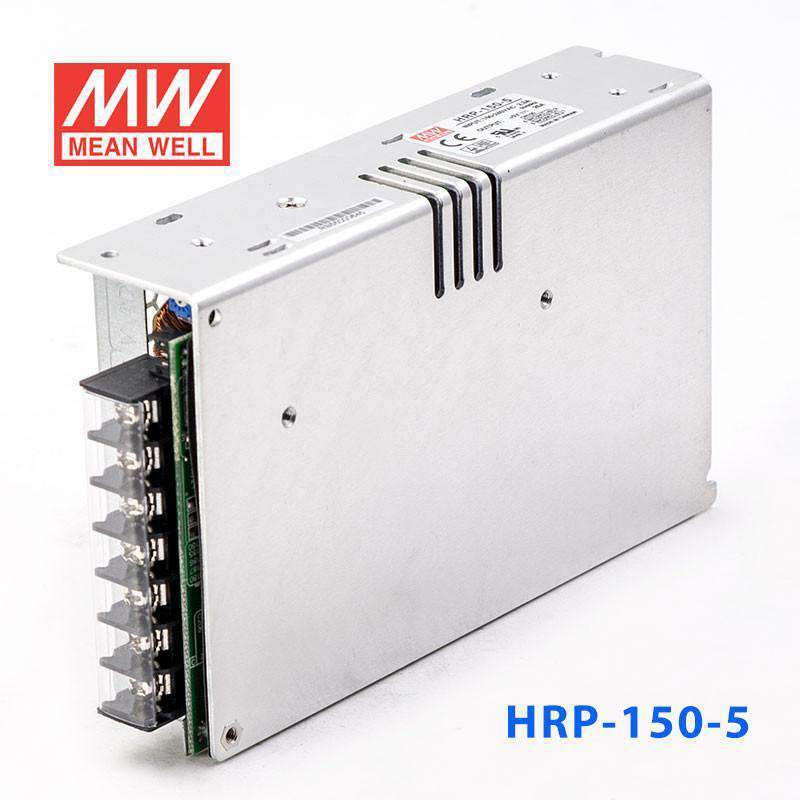

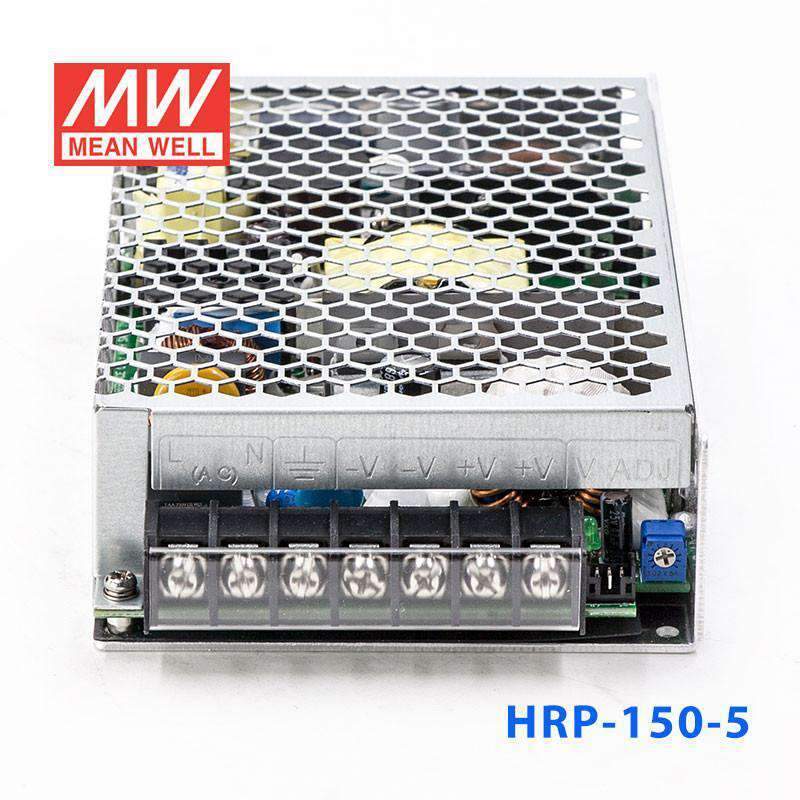

Mean Well HRP-150-5 Power Supply 130W 5V 26A

built-in active PFChigh efficiency up to 90%no load power consumption <0.5W~0.75W

SKU HRP-150-5

Log in to see price Trade pricing & online ordering for account holders

Select model — 7 in this family

HRP-150-5

HRP-75-5 75W 5V Backorder

HRP-100-5 100W 5V Backorder

HRP-150-5 150W 5V Backorder

HRP-200-5 200W 5V Backorder

HRP-300-5 300W 5V Low stock

HRP-450-5 450W 5V Backorder

HRP-600-5 600W 5V Backorder

Product variants

Available to order

Overview

HRP-150-5 is the 5V output model of this series: rated current 26A, rated power 130W, typical efficiency 85%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 38mm
Built-in remote sense function
5 years warranty

Specifications

HRP-150-5Specifications from the official datasheet (2026-07-13 edition)

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 26A
CURRENT RANGE: 0 ~ 26A
RATED POWER: 130W
RIPPLE & NOISE (max.)^Note.2: 80mVp-p
VOLTAGE ADJ. RANGE: 4.3 ~ 5.8V
VOLTAGE TOLERANCE^Note.3: ±2.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 85%
AC CURRENT (Typ.): 1.7A/115VAC 0.9A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 70A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 6 ~ 7V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -50 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.04%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55035 , BS EN/ EN61000-6-2 ,heavy industry level, EAC TP TC 020

OTHERS

MTBF: 1742.7K hrs min. Telcordia SR-332 (Bellcore) ; 238.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 159*97*38mm (L*W*H)
PACKING: 0.61Kg; 24pcs/15.6Kg/0.9CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: HRP-150-3.3/-5/-7.5/-12/-15)
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRP-150-5 Mechanical Specification — Mechanical Specification

HRP-150-5 Derating Curve — Derating Curve

Downloads

Certificates3

UL Certificate (HRP-150)(EN) PDF Download

TUV Certificate (HRP-150)(EN) PDF Download

EMC Certificate (HRP-150)(EN) PDF Download

Test reports1

Test Report (HRP-150-5)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the HRP-150-5 for a 5V industrial controller or embedded computer load?

Yes, this model is a constant-voltage 5V supply rated for 130W and 26A. That makes it a fit for 5V industrial controllers, embedded computers, and other 5V DC loads that need a higher current reserve within that 130W limit.

Is the HRP-150-5 suitable for powering multiple 5V logic or interface devices in one automation cabinet?

It can be a good fit when the combined load needs a regulated 5V output and stays within 26A and 130W. The wide 85-264VAC input also helps when the same equipment platform is used across different AC mains ranges.

Can this 5V power supply be used for high-current USB-style electronics or SBC-based systems?

It is appropriate for 5V DC equipment where the total demand fits within 26A and 130W. Compared with lower-current 5V units, this version is aimed at heavier 5V loads rather than light peripheral power only.

Is the HRP-150-5 a good choice for indoor control panels in hot or cold industrial spaces?

The specified operating temperature range is -40°C to +70°C (with output derating at higher temperatures per the derating curve), which supports use in a wide range of indoor industrial environments. No IP rating is listed in the provided specs, so the product data does not define outdoor or washdown suitability from an enclosure-protection standpoint.

How does the HRP-150-5 compare with the other HRP-150 voltage options?

Within the HRP-150 series listed here, the standard models are HRP-150-3.3 at 99W, 3.3V, 30A; HRP-150-5 at 130W, 5V, 26A; HRP-150-7.5 at 150W, 7.5V, 20A; HRP-150-12 at 156W, 12V, 13A; HRP-150-15 at 150W, 15V, 10A; HRP-150-24 at 156W, 24V, 6.5A; HRP-150-36 at 154.8W, 36V, 4.3A; and HRP-150-48 at 158.4W, 48V, 3.3A. The main difference across these siblings is the output voltage and current combination, with power ranging from 99W to 158.4W.
