Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

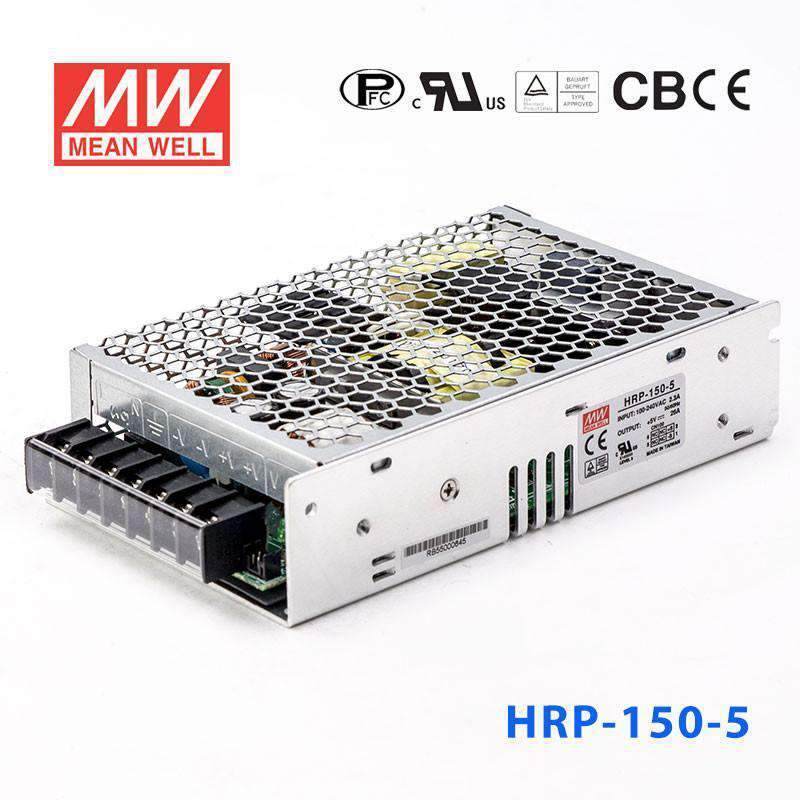

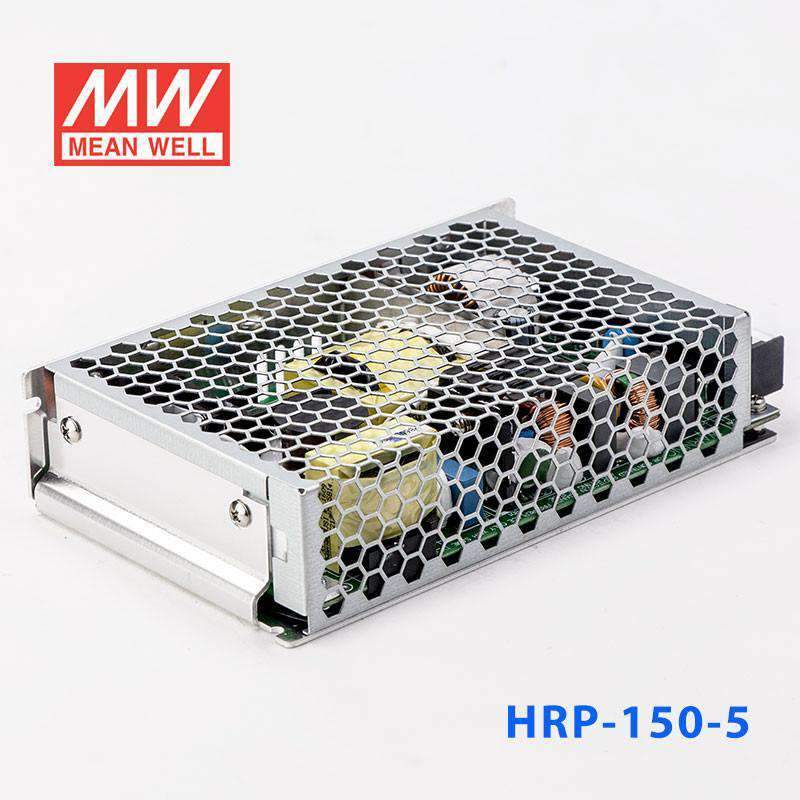

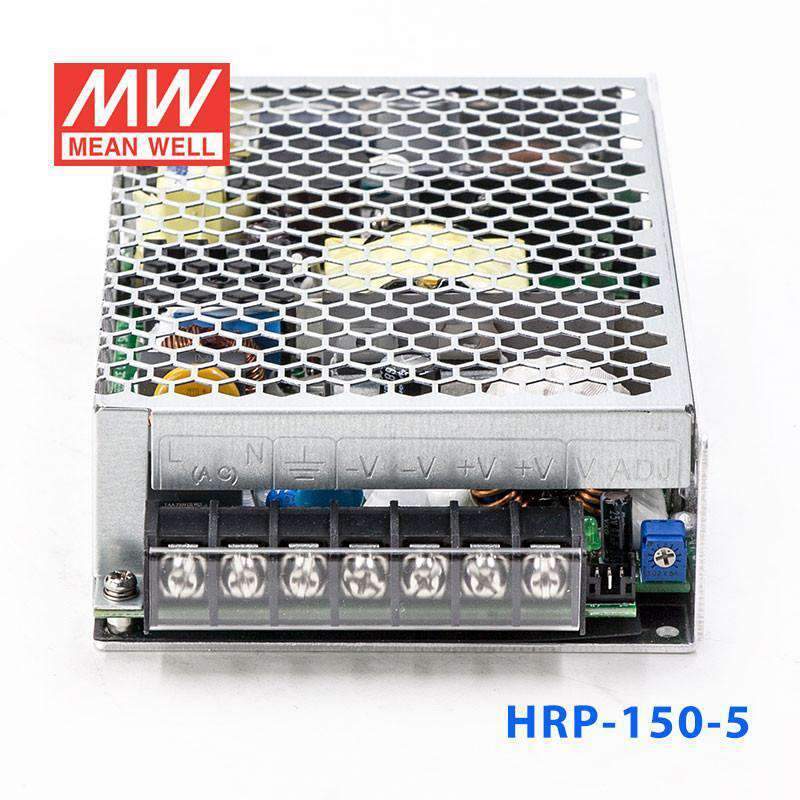

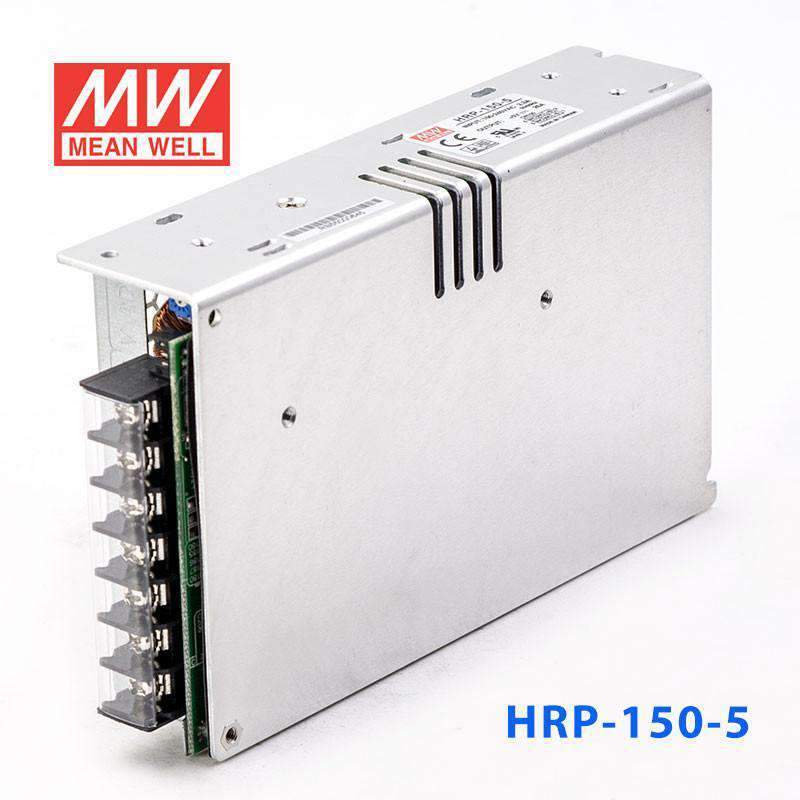

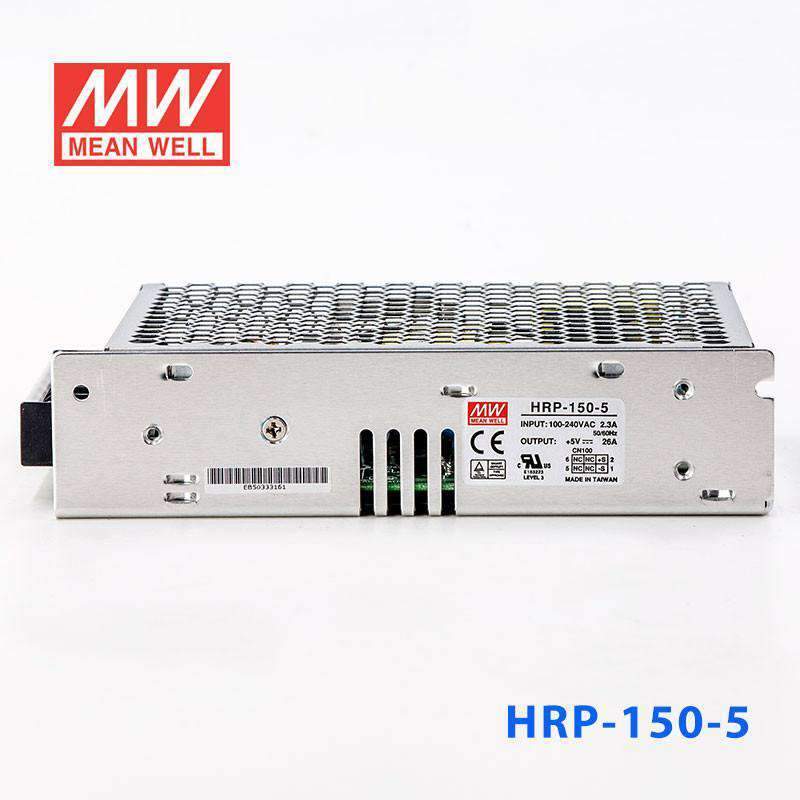

Mean Well HRP-150-5 Power Supply 130W 5V 26A

built-in active PFChigh efficiency up to 90%no load power consumption

SKU:

HRP-150-5

Log in to see price Trade pricing & online ordering for account holders

Select model — 7 in this family

HRP-150-5

HRP-75-5 75W 5V Backorder

HRP-100-5 100W 5V Backorder

HRP-150-5 150W 5V Backorder

HRP-200-5 200W 5V Backorder

HRP-300-5 300W 5V Low stock

HRP-450-5 450W 5V Backorder

HRP-600-5 600W 5V Backorder

Product variants

Notify me when it's back in stock

The HRP-150 is a 150W Mean Well DIN rail power converter with a 159mm profile (input range: 85~264VAC).

Key Features

✓ 159mm width — DIN rail TS-35 compatible
✓ Input voltage range: 85~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: SAFETY & EMC (Note 4)
✓ 3 years warranty

Frequently Asked Questions

Can I use the HRP-150-5 for a 5V industrial controller or embedded computer load?

Yes, this model is a constant-voltage 5V supply rated for 130W and 26A. That makes it a fit for 5V industrial controllers, embedded computers, and other 5V DC loads that need a higher current reserve within that 130W limit.

Is the HRP-150-5 suitable for powering multiple 5V logic or interface devices in one automation cabinet?

It can be a good fit when the combined load needs a regulated 5V output and stays within 26A and 130W. The wide 85-264VAC input also helps when the same equipment platform is used across different AC mains ranges.

Can this 5V power supply be used for high-current USB-style electronics or SBC-based systems?

It is appropriate for 5V DC equipment where the total demand fits within 26A and 130W. Compared with lower-current 5V units, this version is aimed at heavier 5V loads rather than light peripheral power only.

Is the HRP-150-5 a good choice for indoor control panels in hot or cold industrial spaces?

The specified operating temperature range is -40°C to +70°C, which supports use in a wide range of indoor industrial environments. No IP rating is listed in the provided specs, so the product data does not define outdoor or washdown suitability from an enclosure-protection standpoint.

How does the HRP-150-5 compare with the other HRP-150 voltage options?

Within the HRP-150 series listed here, the standard models are HRP-150-3.3 at 99W, 3.3V, 30A; HRP-150-5 at 130W, 5V, 26A; HRP-150-7.5 at 150W, 7.5V, 20A; HRP-150-12 at 156W, 12V, 13A; HRP-150-15 at 150W, 15V, 10A; HRP-150-24 at 156W, 24V, 6.5A; HRP-150-36 at 154.8W, 36V, 4.3A; and HRP-150-48 at 158.4W, 48V, 3.3A. The main difference across these siblings is the output voltage and current combination, with power ranging from 99W to 158.4W.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well HRP-150-36 Power Supply 154.8W 36V 4.3A	154.8W	36V	4.3A	View
