Mean Well HRP-75-48 Power Supply 76.8W 48V 1.6A

built-in active PFChigh efficiency up to 90%no load power consumption <0.5W~0.75W

SKU HRP-75-48

Log in to see price Trade pricing & online ordering for account holders

Select model — 7 in this family

HRP-75-48

HRP-75-48 75W 48V Backorder

HRP-100-48 100W 48V Backorder

HRP-150-48 150W 48V Backorder

HRP-200-48 200W 48V Backorder

HRP-300-48 300W 48V Backorder

HRP-450-48 450W 48V Low stock

HRP-600-48 600W 48V Low stock

Product variants

Available to order

Overview

HRP-75-48 is the 48V output model of this series: rated current 1.6A, rated power 76.8W, typical efficiency 89%.

Features

Universal AC input / Full range
Built-in active PFC function
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage
Protections: Over temperature (optional)
Cooling by free air convection
1U low profile 38mm
Built-in remote ON-OFF control
No load power consumption<0.5W
All using 105℃ long life electrolytic capacitors
5 years warranty

Specifications

HRP-75-48Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 1.6A
CURRENT RANGE: 0 ~ 1.6A
RATED POWER: 76.8W
RIPPLE & NOISE (max.)^Note.2: 240mVp-p
VOLTAGE ADJ. RANGE: 45 ~ 55.2V
VOLTAGE TOLERANCE^Note.3: ±1.5%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1800ms, 25ms/230VAC 1800ms, 25ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.9/230VAC PF>0.95/115VAC at full load
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 0.9A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 65A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed
OVER VOLTAGE: 57.6 ~ 67.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE (OPTIONAL): Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL: RC+ / RC-: 0 ~ 0.8V = power on ; 4 ~ 10V = power off

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55035 , BS EN/ EN61000-6-2 ,heavy industry level, EAC TP TC 020

OTHERS

MTBF: 2385.6K hrs min. Telcordia SR-332 (Bellcore) ; 352.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 129*98*38mm (L*W*H)
PACKING: 0.47Kg; 30pcs/ 15Kg/ 0.97CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

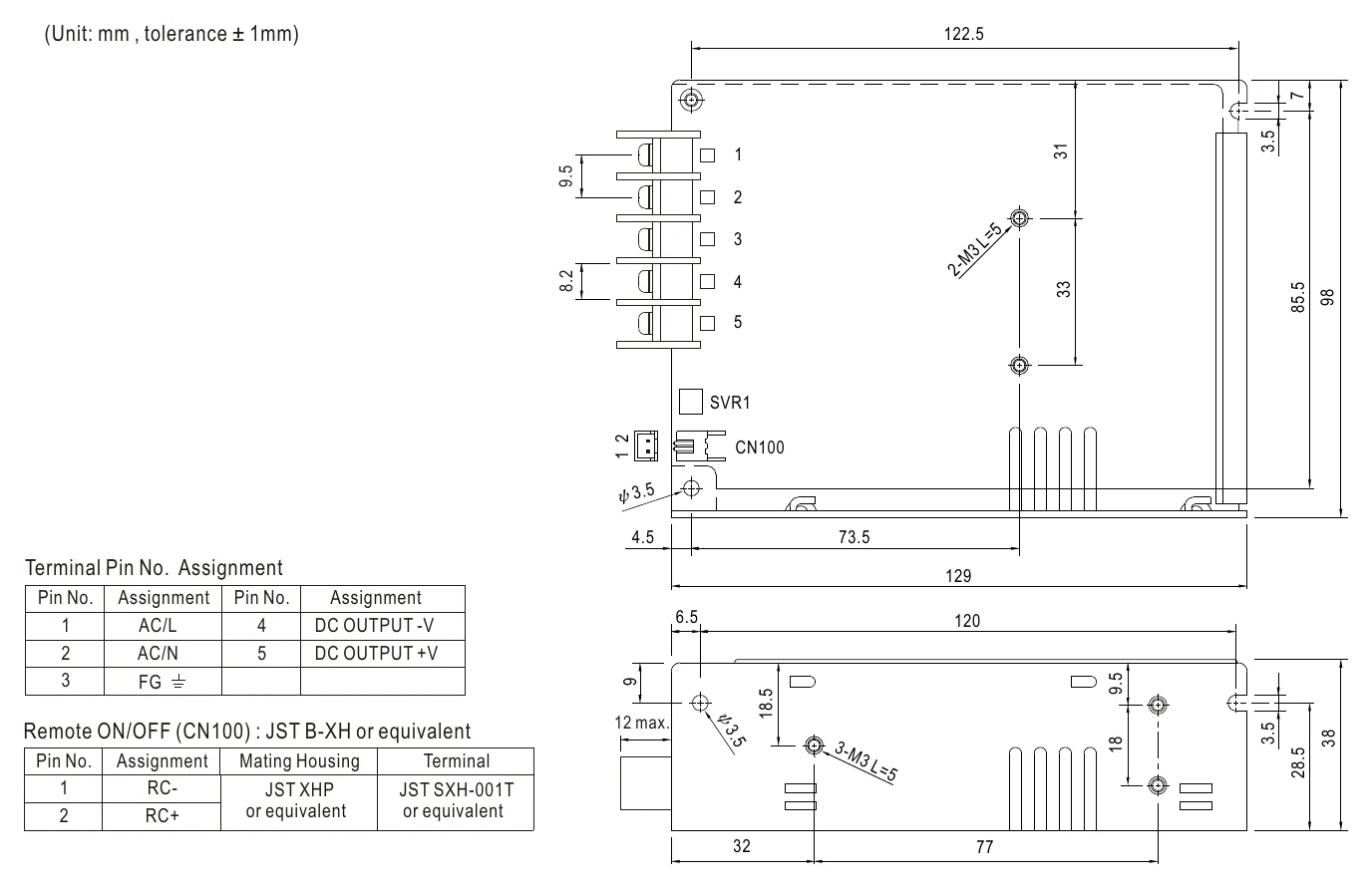

HRP-75-48 Mechanical Specification — Mechanical Specification

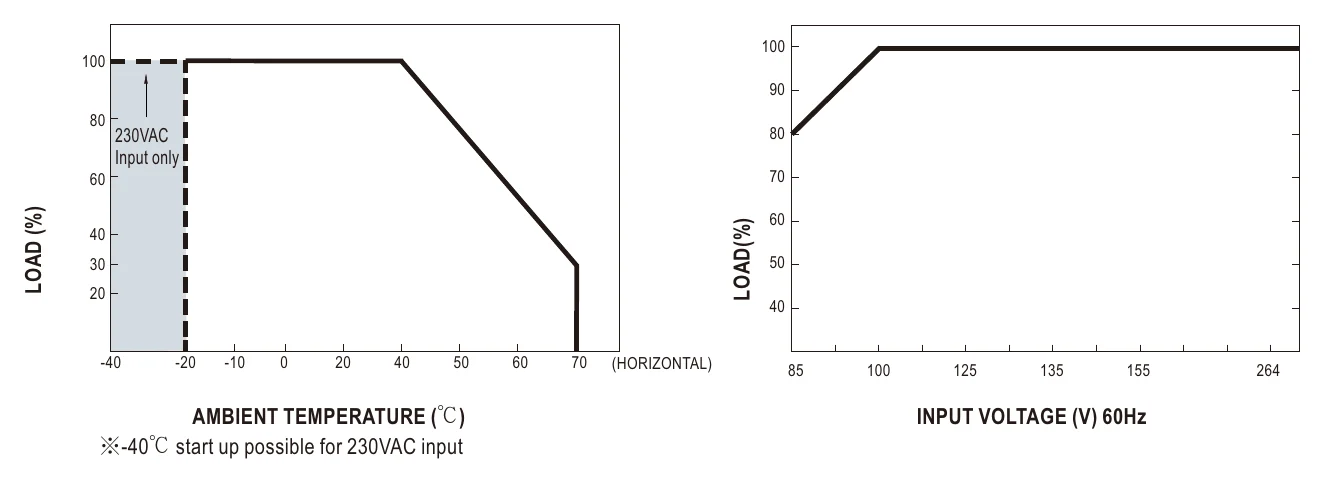

HRP-75-48 Derating Curve — Derating Curve

Downloads

Certificates3

UL Certificate (HRP-75)(EN) PDF Download

TUV Certificate (HRP-75)(EN) PDF Download

EMC Certificate (HRP-75)(EN) PDF Download

Test reports1

Test Report (HRP-75-48)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the HRP-75-48 for 48V telecom or industrial network equipment?

It is suitable for 48V constant voltage equipment that stays within 1.6A and 76.8W. That makes it a fit for lower-power 48V telecom, communications, or industrial network loads that require a regulated 48V bus.

Is the HRP-75-48 appropriate for a 48V embedded control system?

Yes, if the system is designed for 48V constant voltage input and its total demand does not exceed 76.8W or 1.6A. The 85-264VAC input is also useful where the AC source can vary across different sites.

Can this model be used for small 48V automation loads?

It can support 48V automation devices as long as the combined load remains within 1.6A at 48V. The output can also be adjusted between 45V and 55.2V to match the load, while staying within the 76.8W rating.

How does the HRP-75-48 compare with the other HRP-75 voltage options?

The HRP-75 range includes 3.3V 49.5W 15A, 5V 75W 15A, 7.5V 75W 10A, 12V 75.6W 6.3A, 15V 75W 5A, 24V 76.8W 3.2A, 36V 75.6W 2.1A, and 48V 76.8W 1.6A. The 48V version keeps similar wattage to the 24V and 36V units but offers the highest output voltage and the lowest current in the HRP-75 group.

Can the HRP-75-48 be used in unheated or warm equipment spaces?

The rated operating range is -40°C to +70°C, with output derating at the upper end per the derating curve (-40°C start-up is possible with 230VAC input), so it covers very cold and very warm ambient conditions. The provided specs do not list an IP rating, so it should be treated as a protected-location power supply unless enclosure protection is confirmed separately.
