Mean Well HVGC-100-350B Power Supply 75W 350mA - Dimmable

wide input range 180~528VACaluminium casing

SKU HVGC-100-350B

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by HVGC-150-350B

Available to order

Overview

HVGC-100-350B is the model of this series: rated current 350mA, rated power 99.75W, typical efficiency 91%. Type B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP67).

HVGC-100 series is a 100W LED AC/DC LED drive featuring the constant current mode and high voltage output. HVGC-100 operates from 180~528VAC and offers models with different rated current, 350mA and 700mA, respectively. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 design for indoor or outdoor installations
Function options: 3 in 1 dimming (dim-to-off)
Typical lifettime>50000 hours
5 years warranty

Specifications

HVGC-100-350BSpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

RATED CURRENT: 350mA
RATED POWER: 99.75W
CONSTANT CURRENT REGION^Note.2: 29 ~ 285V
CURRENT RIPPLE^Note.5: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms, 80ms /230VAC, 347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.98/277VAC, PF≧0.97/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC; @ load≧75%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 0.38A / 347VAC 0.28A / 480VAC
INRUSH CURRENT (Typ.): COLD START 25A(twidth=900μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 300 ~ 320V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750, CSA C22.2 No. 250.0-08, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, IP67 approved; design refer to UL60950-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, FCC Part 15 Subpart, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 745.0K hrs min. Telcordia SR-332 (Bellcore) ; 186.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 236*68*38.8mm (L*W*H)
PACKING: 1.18Kg; 12pcs/15.2Kg/0.74CUFT

MODEL ENCODING

A: Io adjustable through built-in potentiometer; IP65
B (this model): 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 347VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. It is measured 50% ~ 100% of maximum voltage under rated power delivery.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. This product is intended for North America and EU lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVGC-100-350B Block Diagram — Block Diagram

HVGC-100-350B DIMMING OPERATION — DIMMING OPERATION

HVGC-100-350B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVGC-100-350B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

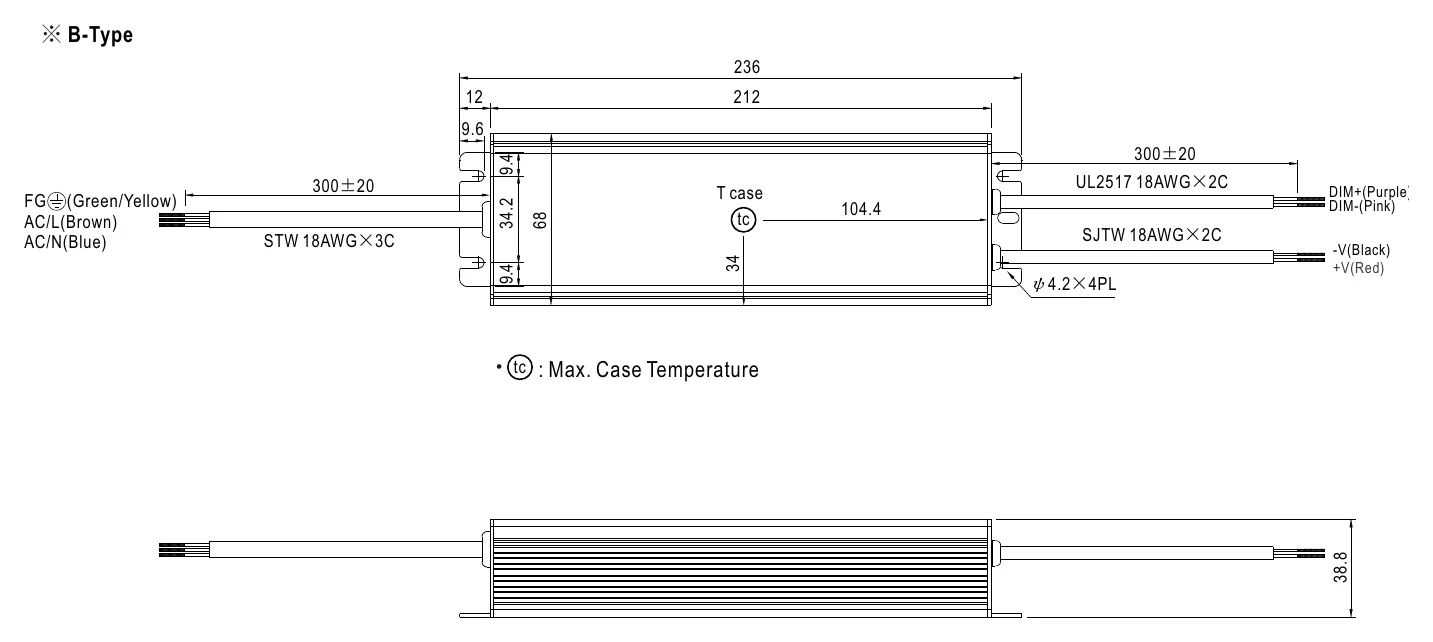

HVGC-100-350B MECHANICAL SPECIFICATION ※ B-Type — MECHANICAL SPECIFICATION ※ B-Type

HVGC-100-350B Dimensions (mm) — Dimensions (mm)

HVGC-100-350B WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp

Downloads

Datasheet1

HVGC-100-350B datasheetHVGC-100-SPEC.PDF · 2025-10-10 edition PDF Download

Certificates5

UL Certificate(HVGC-100)(EN) PDF Download

TUV Certificate(HVGC-100)(EN) PDF Download

EMC Certificate(HVGC-100)(EN) PDF Download

FCC Certificate(HVGC-100)(EN) PDF Download

CB Certificate(HVGC-100)(EN) PDF Download

Test reports1

Test Report(HVGC-100-350)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVGC-100-350B for outdoor LED downlights or façade lighting?

Yes, the HVGC-100 series is IP65 or IP67 approved and, with waterproof connectors, can operate in wet, damp or outdoor environments. Electrically, it provides 350mA constant current with a 29-285V operating range and up to 99.75W, so the LED load must fit within those limits. It is for constant current fixtures rather than constant voltage products.

Is the HVGC-100-350B suitable for weather-exposed signage modules?

It can be suitable where the LED signage modules are designed for 350mA constant current operation and the full load falls within 29-285V. The series is IP65 or IP67 approved, and waterproof connectors can be fitted for outdoor use. The exact number of LEDs still depends on each LED's forward voltage.

Would this driver work for a small LED array installed in a demanding industrial environment?

It is designed for harsh conditions, with IP65/IP67 series approval and a case temperature (Tcase) range of -40°C to +90°C. For the electrical side, the array must require 350mA constant current and have a total forward voltage within 29-285V, with total power within 99.75W. That combination makes it relevant for rugged small-array applications.

How many LEDs can the HVGC-100-350B drive in series?

That cannot be stated as a fixed LED count because the number of LEDs depends on the forward voltage of each LED. The driver's constant current range is 29-285V at 350mA, so the total series forward voltage has to stay inside that range. This is why matching by forward voltage is more accurate than matching by LED count.

How does the HVGC-100-350B compare with the A and AB versions?

All three 350mA HVGC-100 versions share the same core electrical ratings: 99.75W output and a 29-285V constant current range. The B version offers 3-in-1 dimming (0-10VDC, 10V PWM or resistance), the A version has a built-in potentiometer to adjust current from 210-350mA, and the AB version has both. Choose B when you need dimming without potentiometer adjustment.
