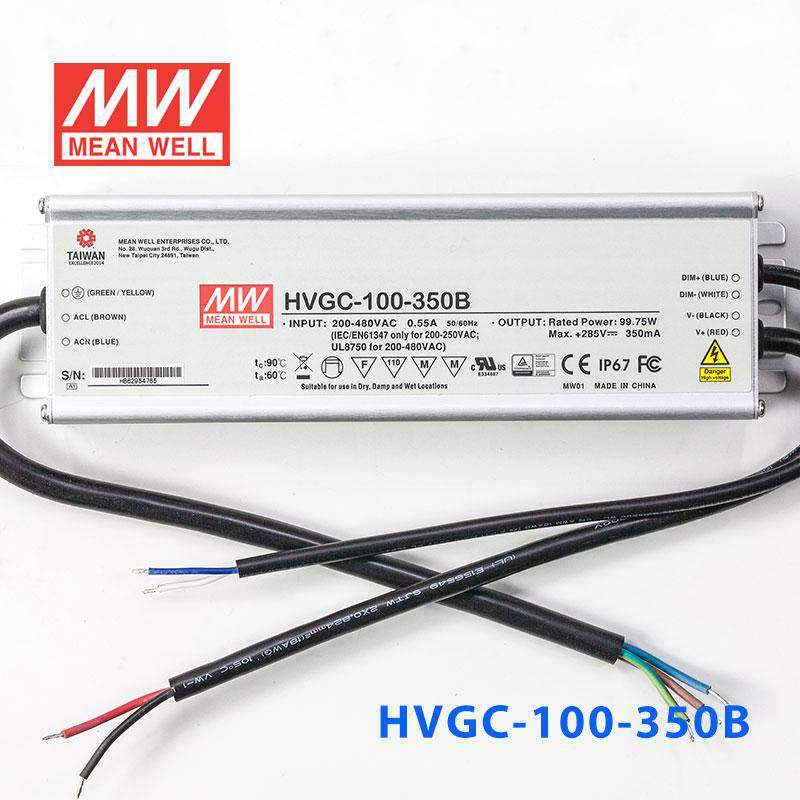

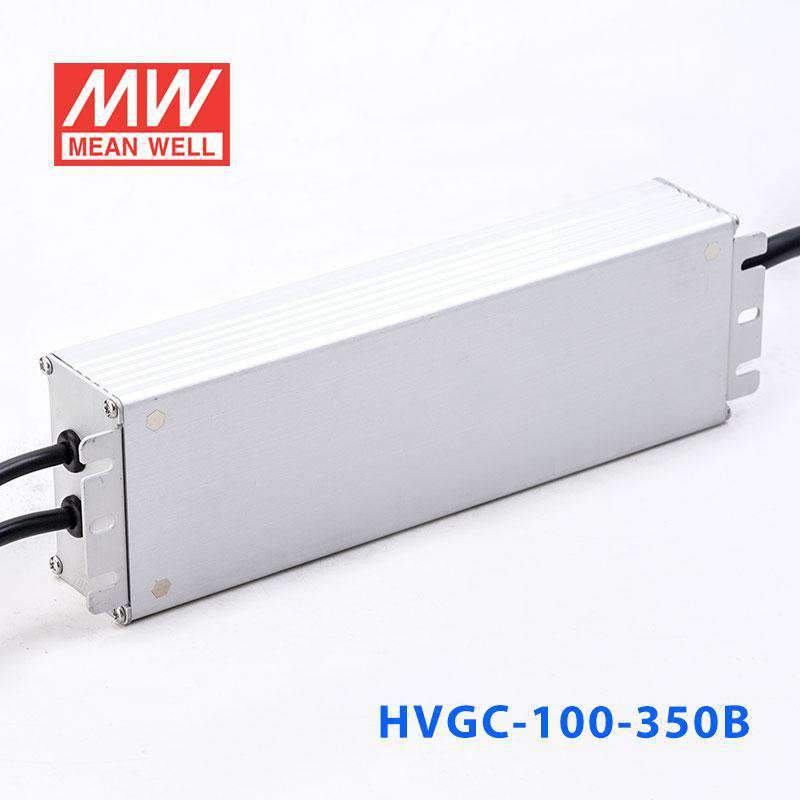

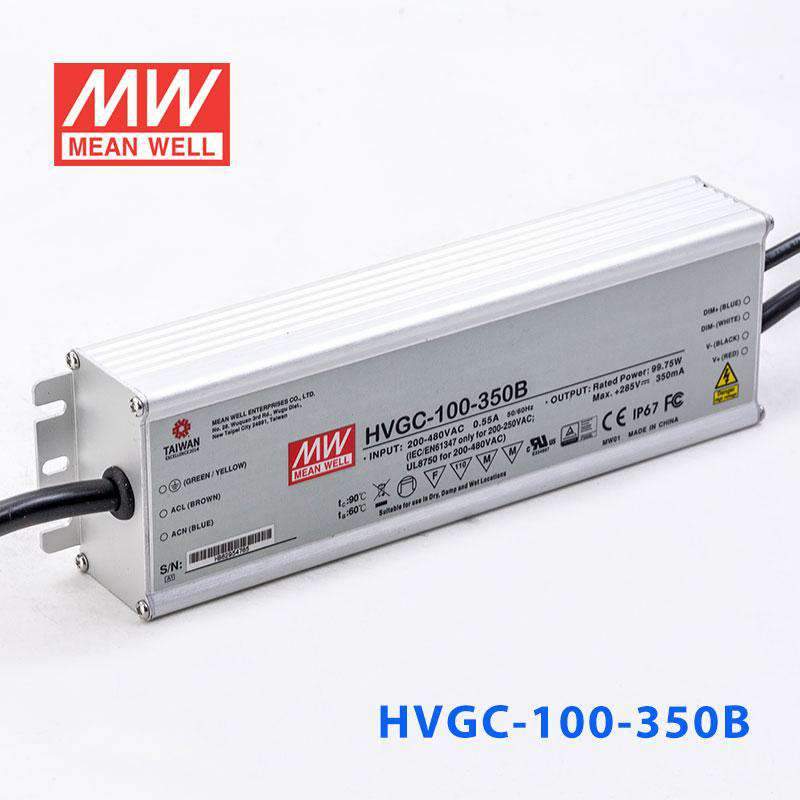

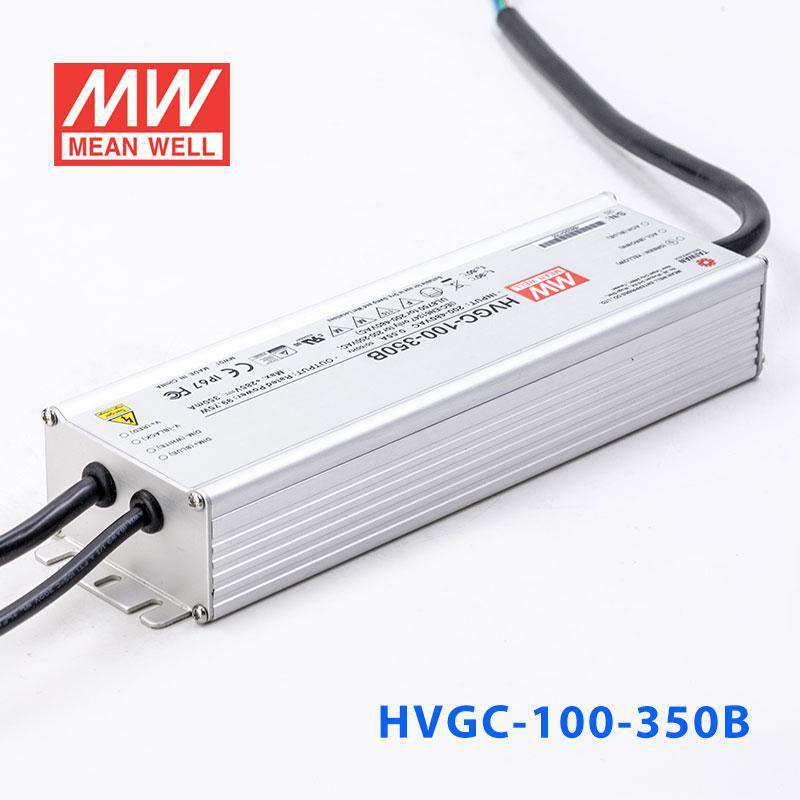

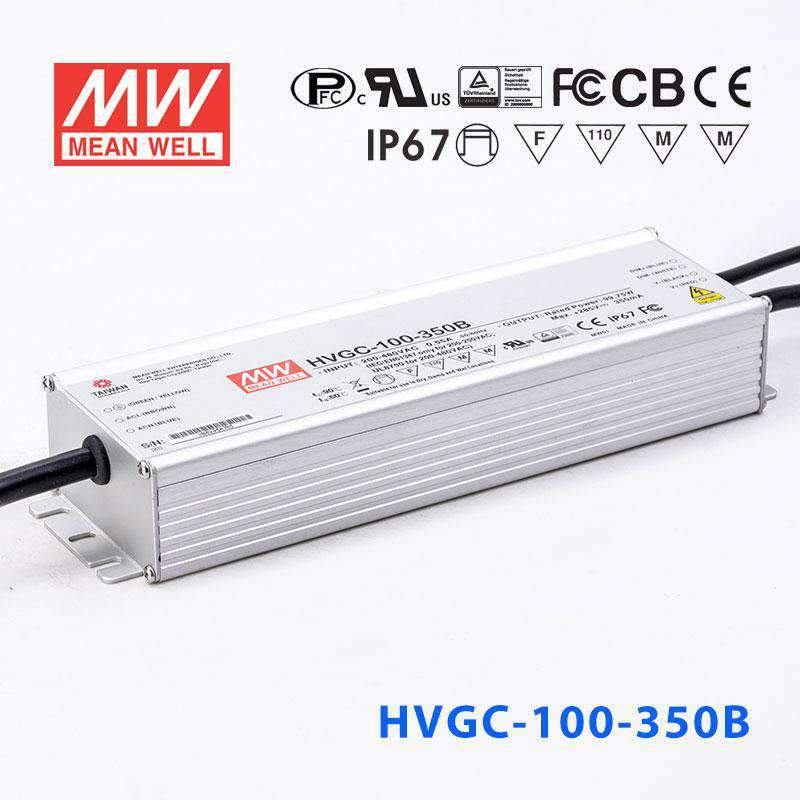

Mean Well HVGC-100-350B Power Supply 75W 350mA - Dimmable

wide input range 180~528VAC, aluminium casing
SKU:
HVGC-100-350B

|

Description

Features

180~528VAC wide input range
IP67 / IP65 design
Built-in active PFC
Protections: Short circuit / Over voltage / Over temperature
High efficiency up to 91%
Cooling by free air convection
Suitable for dry, damp. and wet location
Suitable for LED lighting and street lighting applications
Output current adjustable through output cable or internal potentiometer
Constant current design (C.C. mode)
Multiple models for choice: A-Type: IP65 rated. Constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details
5 years warranty

General Specification

AC input voltage range 180~528VAC (single phase); 254~747VDC
AC inrush current (max.) Cold start, 25A at 440VAC
Current adjustment range 60%~100%
Over voltage protection 105%~115% rated output voltage
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -40~+70ºC (refer to output derating curve)
Safety standards Design refer to UL8750, ENEC EN61347-1, EN61347-2-13, EN62384
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B
Connection Input UL rated, STW 18AWGx3C (30cm)
Connection Output A&D-Type SJTW 18AWGx2C (30cm)
Connection Output B-Type SJTW 18AWGx2C (30cm) + UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm) 236x 68x 38.8

Specifications

  • Brand
    Mean Well
  • Series
    HVGC Series
  • Power Rating
    99.75 Watt
  • Output Voltage
    285 Volt
  • Rated Current
    0.35 Ampere
  • Input Voltage
    180V~528V
  • Standards Met
    CB,CE,EAC,FCC,TUV,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~90°C
  • Warranty
    5 Year
  • Length
    23.6 cm
  • Width
    6.8 cm
  • Height
    3.88 cm
  • Weight
    1.18 kg
