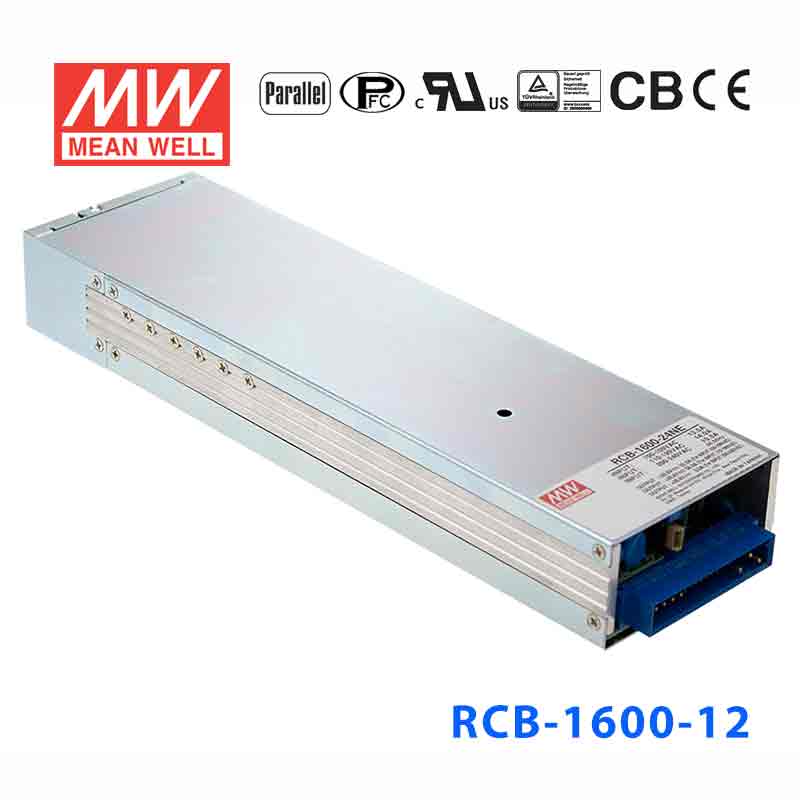

Mean Well RCB-1600-12 battery charger 1600W 14.4V 100A

charger for lead-acid and Li-ion batteriesoutput voltage and current programmablesupport hot swap

SKU RCB-1600-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The RCB-1600 is a 1440W Mean Well battery charger (input: 90~264VAC, operating temperature: -30~+70°C).

Key Features

✓ Input voltage: 90~264VAC
✓ Output voltage (max): 14.4V
✓ Rated output current: 100A
✓ Operating temperature: -30~+70°C
✓ Safety certifications: CB, CE, EAC, TÜV, UL
✓ 5 year warranty

Frequently Asked Questions

What is the Mean Well RCB-1600-12 designed for?

The RCB-1600-12 is a high-power AC/DC battery charger built for 14.4V battery charging applications. It is intended for industrial and commercial use cases that need up to 100A charging current in a compact 1U low-profile format.

What are the main output specifications of the RCB-1600-12?

This model is rated for 14.4V output and 100A current. The product name identifies it as a 1600W-class charger, while the provided power rating is listed as 1440W.

What battery types is the RCB-1600-12 compatible with?

According to the product description, the RCB-1600-12 can be used with different battery types including lead-acid batteries and lithium-ion batteries. It supports programmable charging behavior, which helps adapt the charger to different battery requirements.

How flexible is the charging control on the RCB-1600-12?

The RCB-1600-12 is described as an intelligent charger with embedded programmable charging curves. Users can adjust charging voltage and current through the built-in potentiometer, output programmable functions, PMBus, or CANBus.

Is the RCB-1600-12 suitable for demanding temperature conditions?

This charger has a specified operating temperature range of -30°C to 70°C. The product description also notes a temperature compensation function, making it better suited for demanding industrial environments than basic fixed-output chargers.

What are the physical and lifecycle considerations for this model?

The RCB-1600-12 uses a 1U low-profile design with a height of 41mm, which is useful where space efficiency matters. Its listed weight is 1.87 kg, and it carries a 5-year warranty.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Battery Type	Battery Voltage	Charging Current
Mean Well RCB-1600-48 battery charger 1600W 57.6V 27.5A	1584W	Lead Acid Battery	48V	—	View
Mean Well RCB-1600-24 battery charger 1600W 28.8V 55A	1584W	Lead Acid Battery	24V	—	View
