Over 15 years experience of providing support of MEAN WELL Power Supplies

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

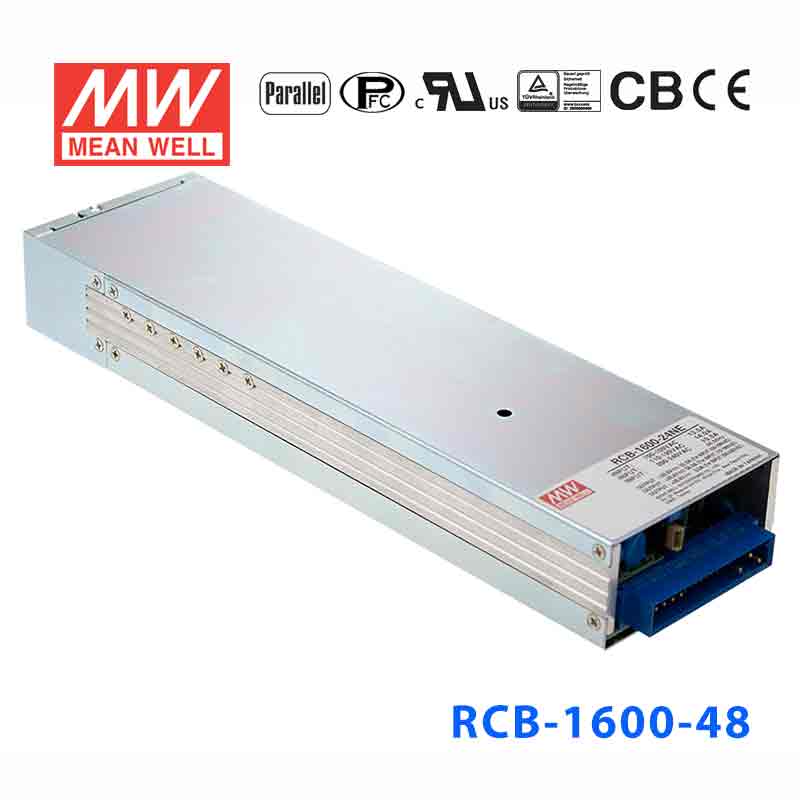

Mean Well RCB-1600-48 battery charger 1600W 57.6V 27.5A

charger for lead-acid and Li-ion batteries, output voltage and current programmable, support hot swap

|

Description

RCB-1600 series is a single output 1600W AC/DC charger with 1U low profile (41mm). It is an intelligent charger with embedded charging curves which are programmable. Users are also able to adjust the charging voltage and current via the built-in potentiometer, output programmable functions, PMBus, or CANBus to charge different types of batteries, such as lead-acid batteries and li-ion batteries. Various protection mechanisms as well as the temperature compensation function are provided to assure the normal and safe operations. The rack-mountable attribute allows RCB-1600 to perfectly suit the charging, backup or constant current source applications exploiting the rack architecture or central management.

Features

  • Charger for lead-acid batteries (Gel
  • flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
  • Built-in default 3 stage charging curves and programmable curve • Built-in I2C interface
  • PMBus protocol (Optional CANBus protocol)
  • Output voltage and current programmable
  • Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
  • Built-in active PFC function
  • Forced air cooling by built-in DC fan
  • Built-in OR-ing FET
  • support hot swap (hot plug)
  • Active current sharing up to 8000W for one 19" rack shelf
  • Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
  • Optional conformal coating
  • 5 years warranty

Applications

  • Large scale DC UPS or emergency backup system
  • Marine battery charger module
  • Electric scooter or vehicle charger station
  • Wastewater treatment system
  • Electrolysis system

Specifications

  • Brand
    Mean Well
  • Series
    RCB Series
  • Power Rating
    1584 Watt
  • Output Voltage
    57.6 Volt
  • Rated Current
    27.5 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    5 Year
  • Length
    30 cm
  • Width
    8.5 cm
  • Height
    4.1 cm
  • Weight
    1.87 kg
