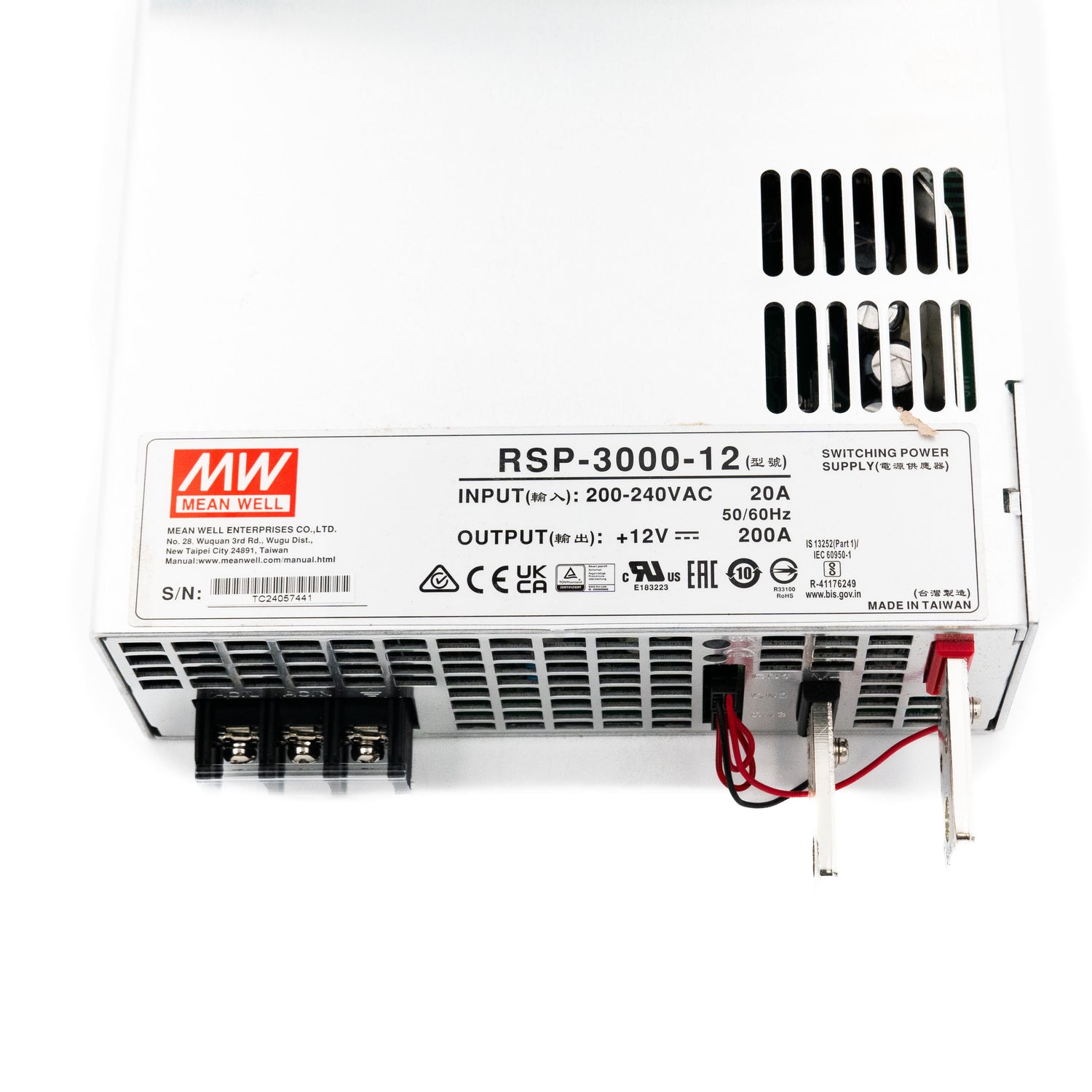

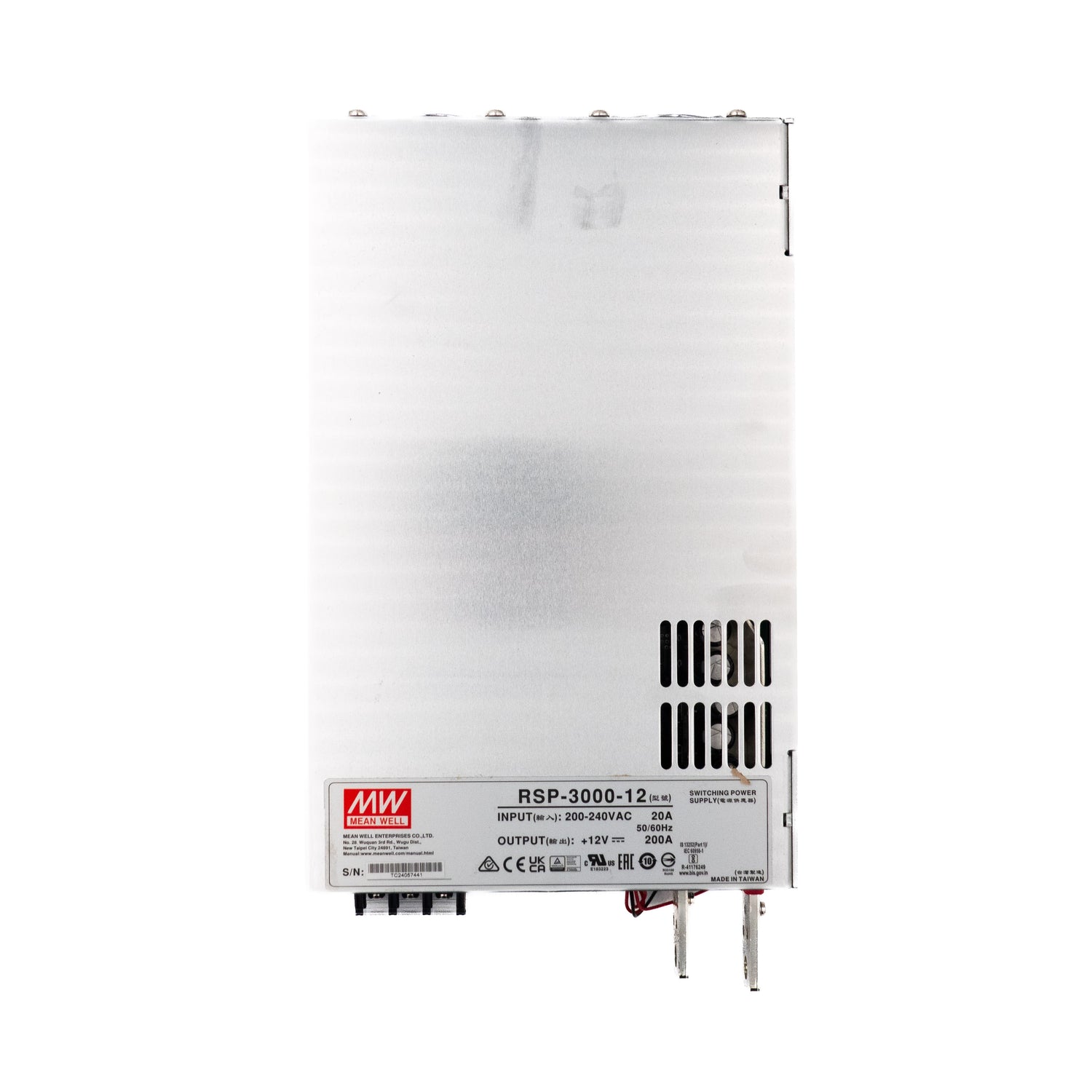

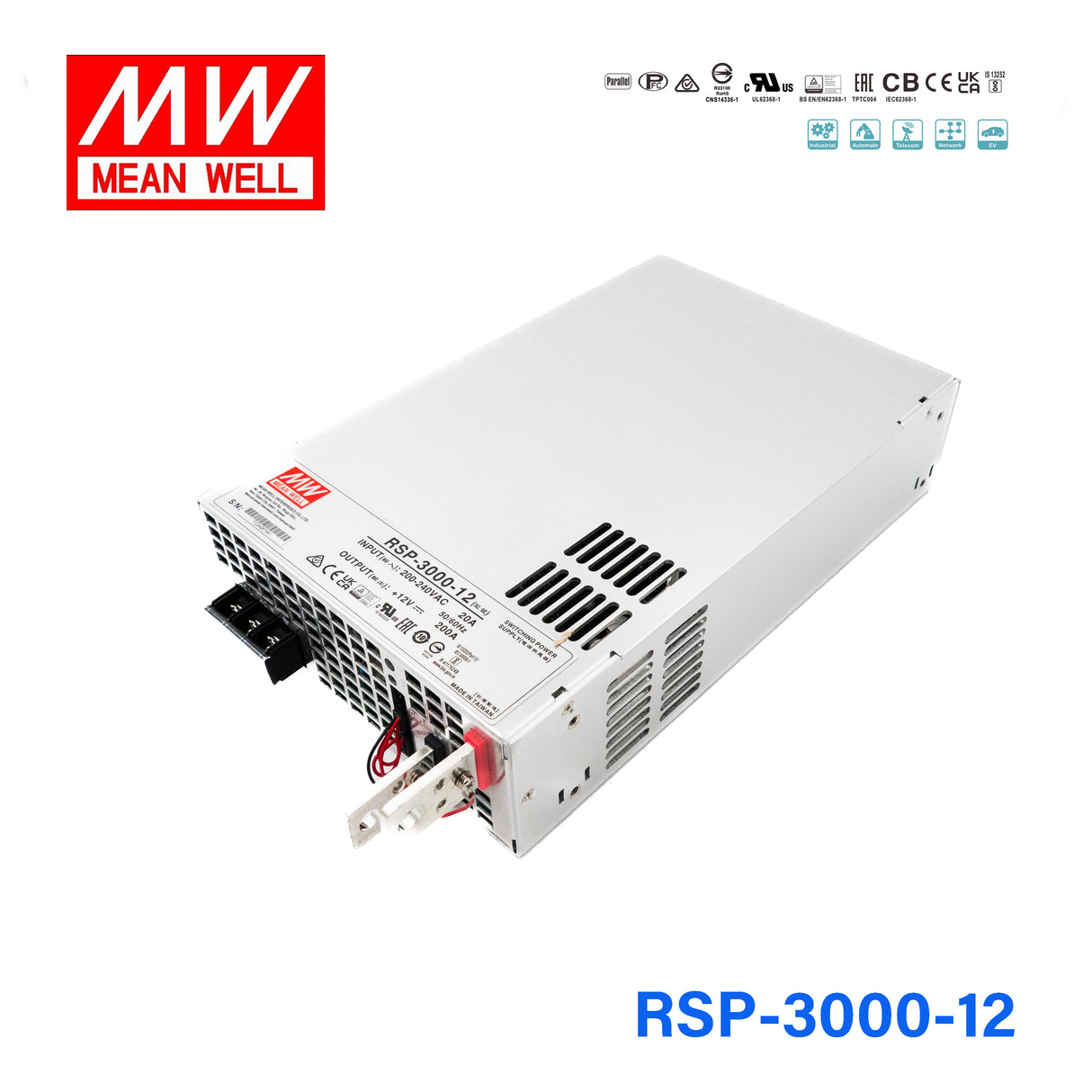

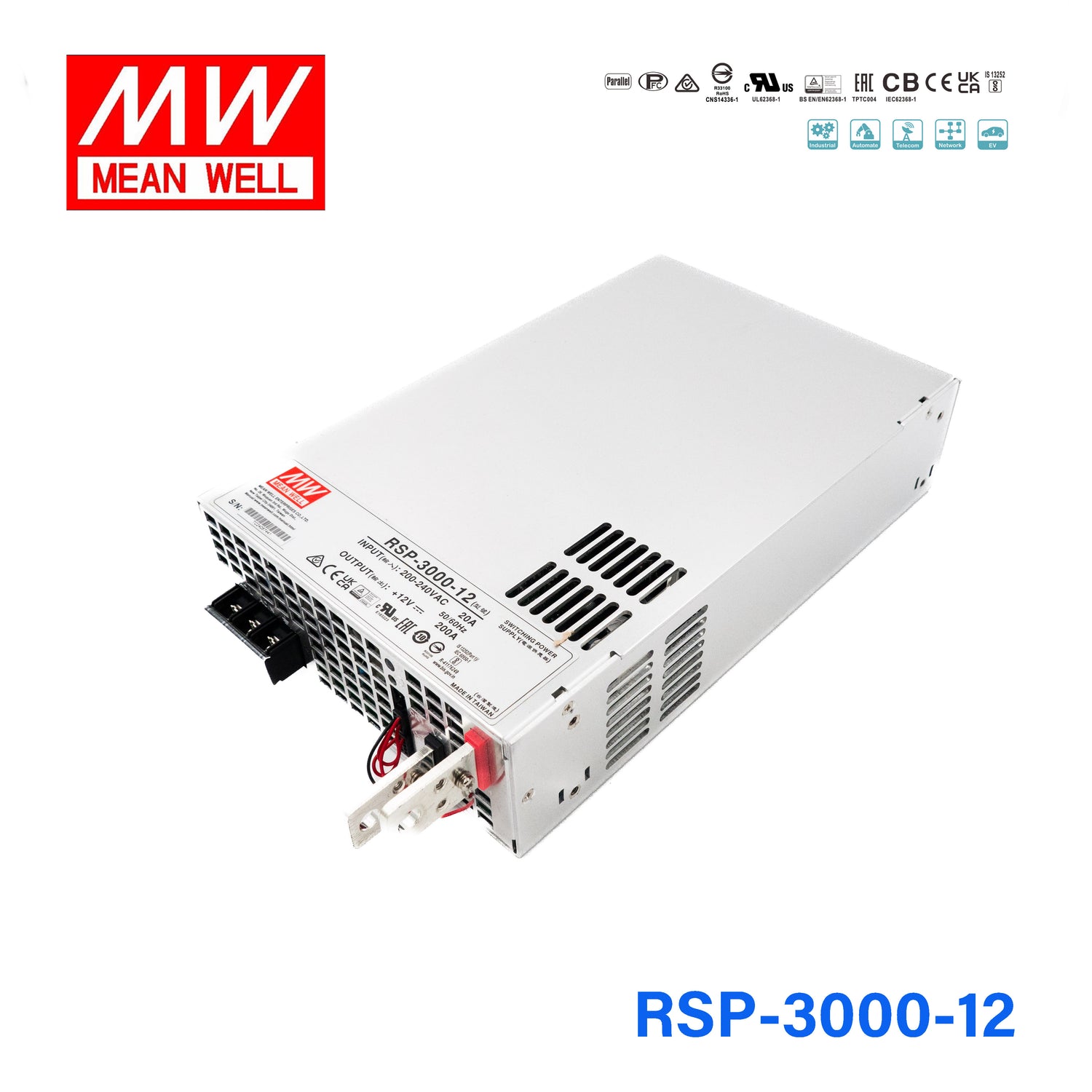

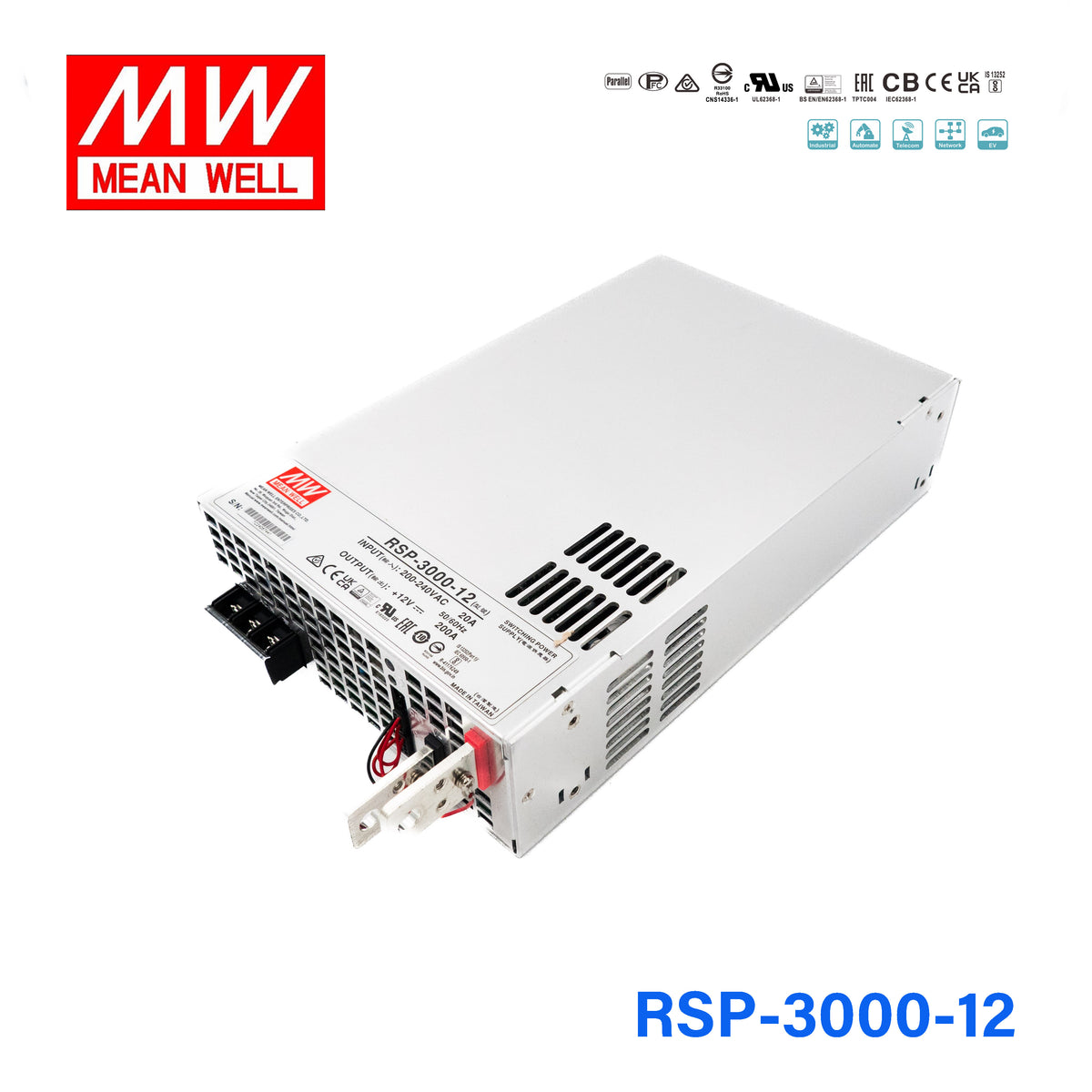

Mean Well RSP-3000-12 Power Supply 2400W 12V - Buy Now!

Overview

RSP-3000-12 is the 12V output model of this series: rated current 200A, rated power 2400W, typical efficiency 87.5%.

RSP-3000 is a 3KW single output enclosed type AC/DC power supply. This series operates for 180~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 70℃. Moreover, RSP-3000 provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.

Features

AC input 180~264VAC
Built-in active PFC function
High efficiency up to 91.5%

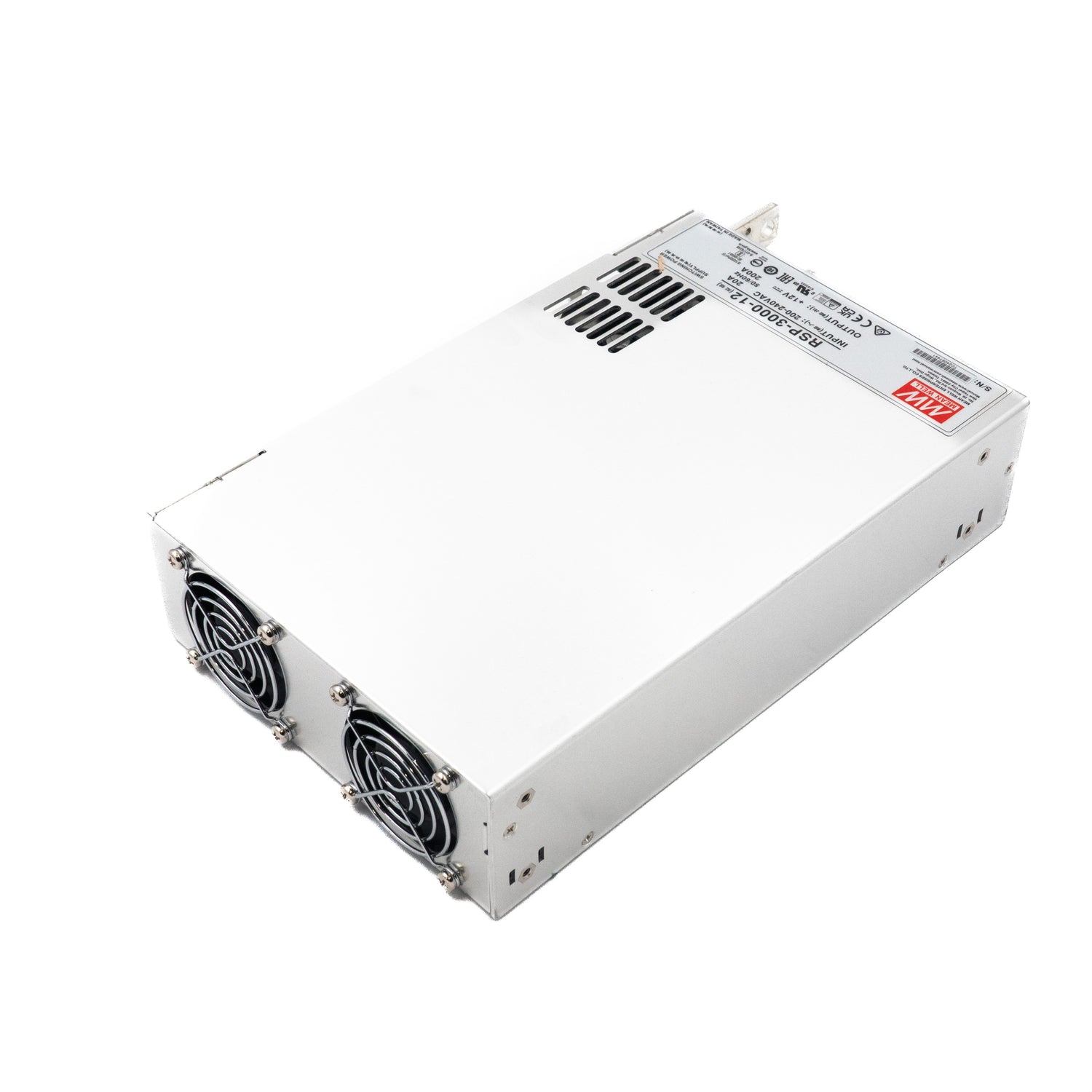

Forced air cooling by built-in DC fan
Output voltage programmable
Active current sharing up to 9000W (2+1)
Built-in remote ON-OFF control / remote sense / auxiliary power / power OK signal
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating
5 years warranty

Specifications

RSP-3000-12Specifications from the official datasheet (2026-07-20 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 200A
CURRENT RANGE: 0 ~ 200A
RATED POWER: 2400W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 10.8 ~ 13.2V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1000ms, 80ms at full load
HOLD UP TIME (Typ.): 10ms at full load

INPUT

VOLTAGE RANGE: 180 ~ 264VAC 254 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.95/230VAC at full load
EFFICIENCY (Typ.): 87.5%
AC CURRENT (Typ.): 20A/180VAC 16A/230VAC
INRUSH CURRENT (Typ.): 60A/230VAC
LEAKAGE CURRENT: <2.0mA / 240VAC

PROTECTION

OVERLOAD: 100 ~ 112% rated output power User adjustable continuous constant current limiting or constant current limiting with delay shutdown after 5 seconds, re-power on to recover
OVER VOLTAGE: 13.8 ~ 16.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV): 2.4 ~ 13.2V Please refer to the Function Manual.
CURRENT SHARING: Up to 9000W or (2+1) units. Please refer to the Function Manual.
AUXILIARY POWER(AUX): 12V@0.1A(Only for Remote ON/OFF control)
REMOTE ON-OFF CONTROL: Please refer to the Function Manual
REMOTE SENSE: Compensate voltage drop on the load wiring up to 0.25V. Please refer to the Function Manual.
ALARM SIGNAL OUTPUT: Power OK signal. Please refer to the Function Manual

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, AS/NZS62368.1, IS13252(Part1)/IEC60950-1 (except for 48V), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/ EN55032 (CISPR32), CNS15936 Class B
Radiated BS EN/ EN55032 (CISPR32), CNS15936 Class A
Harmonic Current BS EN/ EN61000-3-2 -----
Voltage Flicker BS EN/ EN61000-3-3 -----
EMC IMMUNITY: BS EN/ EN55035, BS EN/ EN61000-6-2, BSMI CNS13438

Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 3
EFT / Burst BS EN/ EN61000-4-4 Level 3
Surge BS EN/ EN61000-4-5 Level 3, 2KV/Line-Earth; Level 2, 1KV/Line-Line
Conducted BS EN/ EN61000-4-6 Level 3
Magnetic Field BS EN/ EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/ EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/ EN55032 (CISPR32), CNS15936	Class B
Radiated	BS EN/ EN55032 (CISPR32), CNS15936	Class A
Harmonic Current	BS EN/ EN61000-3-2	-----
Voltage Flicker	BS EN/ EN61000-3-3	-----

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 3
EFT / Burst	BS EN/ EN61000-4-4	Level 3
Surge	BS EN/ EN61000-4-5	Level 3, 2KV/Line-Earth; Level 2, 1KV/Line-Line
Conducted	BS EN/ EN61000-4-6	Level 3
Magnetic Field	BS EN/ EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/ EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 677.3K hrs min. Telcordia SR-332 (Bellcore) ; 75.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 278*177.8*63.5mm (L*W*H)
PACKING: 4Kg; 4pcs/16Kg/2.04CUFT

Test conditions and notes5

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RSP-3000-12 Block Diagram — Block Diagram

RSP-3000-12 Static Characteristics — Static Characteristics

RSP-3000-12 Function Manual — Function Manual

RSP-3000-12 R S P - 3 0 0 0 series — R S P - 3 0 0 0 series

RSP-3000-12 Example 3.2(A): Using external voltage source — Example 3.2(A): Using external voltage source

RSP-3000-12 Example 3.2(B): Using internal 12V auxiliary output — Example 3.2(B): Using internal 12V auxiliary output

RSP-3000-12 ◎ Connection Method — ◎ Connection Method

RSP-3000-12 ◎ By factory default, OLP(PIN9) and OL-SD(PIN10) — ◎ By factory default, OLP(PIN9) and OL-SD(PIN10)

RSP-3000-12 ◎ By factory default, OLP(PIN9) and OL-SD(PIN10) (2) — ◎ By factory default, OLP(PIN9) and OL-SD(PIN10) (2)

RSP-3000-12 R S P - 3 0 0 0 series (2) — R S P - 3 0 0 0 series (2)

RSP-3000-12 7.Three Phase Connect — 7.Three Phase Connect

RSP-3000-12 FIG. B: 3ψ4W 220/380VAC SYSTEM — FIG. B: 3ψ4W 220/380VAC SYSTEM

RSP-3000-12 FIG. C: 3ψ4W 190/110VAC SYSTEM — FIG. C: 3ψ4W 190/110VAC SYSTEM

RSP-3000-12 Mechanical Specification — Mechanical Specification

RSP-3000-12 ※Control Pin No. Assignment (CN3) : HRS DF11-10DP-2DS or… — ※Control Pin No. Assignment (CN3) : HRS DF11-10DP-2DS or…

Typical applications

Downloads

Certificates4

UL Certificate (RSP-3000)(EN) PDF Download

CB Certificate (RSP-3000)(EN) PDF Download

TUV Certificate (RSP-3000)(EN) PDF Download

EMC Certificate (RSP-3000)(EN) PDF Download

Test reports1

Test Report (RSP-3000-12)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What applications require the RSP-3000-12's 200A output at 12V?

The RSP-3000-12 delivers 2400W at 12V with up to 200A, making it one of the highest-current 12V enclosed supplies in the RSP series. Typical applications include large DC bus systems, high-power embedded computing clusters, and industrial electroplating or process heating equipment.

What is the minimum ambient temperature for the RSP-3000-12?

The RSP-3000-12 operates from -20°C to +70°C. It is rated for indoor enclosed use and does not carry an outdoor IP rating. Certifications include UL, CE, TÜV, CB, BSMI, and EAC.

How does the RSP-3000-12 compare to the RSP-2400-12?

Both units use the same 278.0 × 177.8 × 63.5 mm chassis and require 180-264VAC input. The RSP-2400-12 delivers 2000.4W at 166.7A, while the RSP-3000-12 increases output to 2400W at 200A. The RSP-3000-12 weighs 4.0 kg versus 3.3 kg for the RSP-2400-12.

Does the RSP-3000-12 include active current sharing?

Yes. The RSP-3000-12 supports 2+1 active current sharing, enabling two units to be paralleled for up to 400A total output with a third unit providing N+1 redundancy. Efficiency reaches up to 91.5%.
