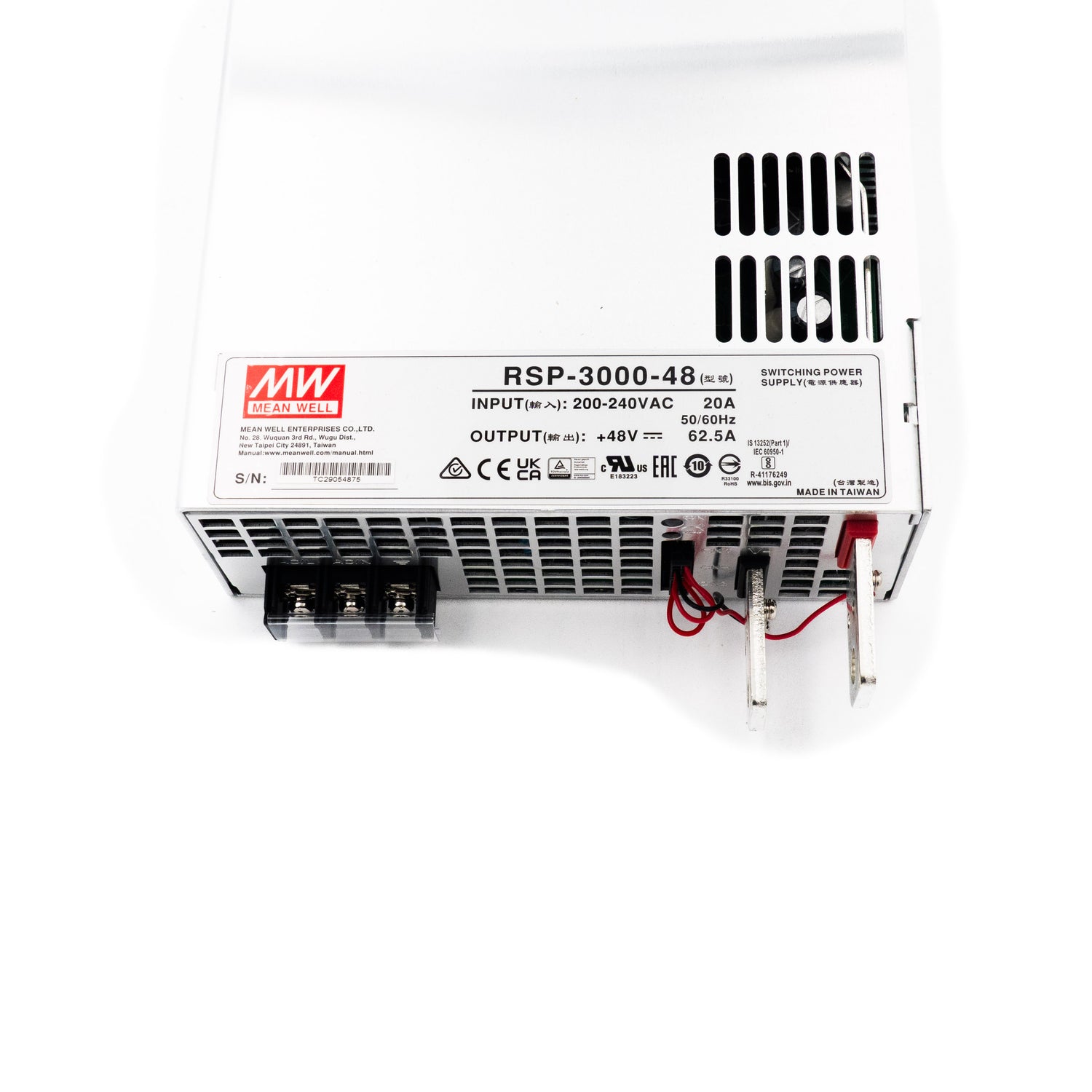

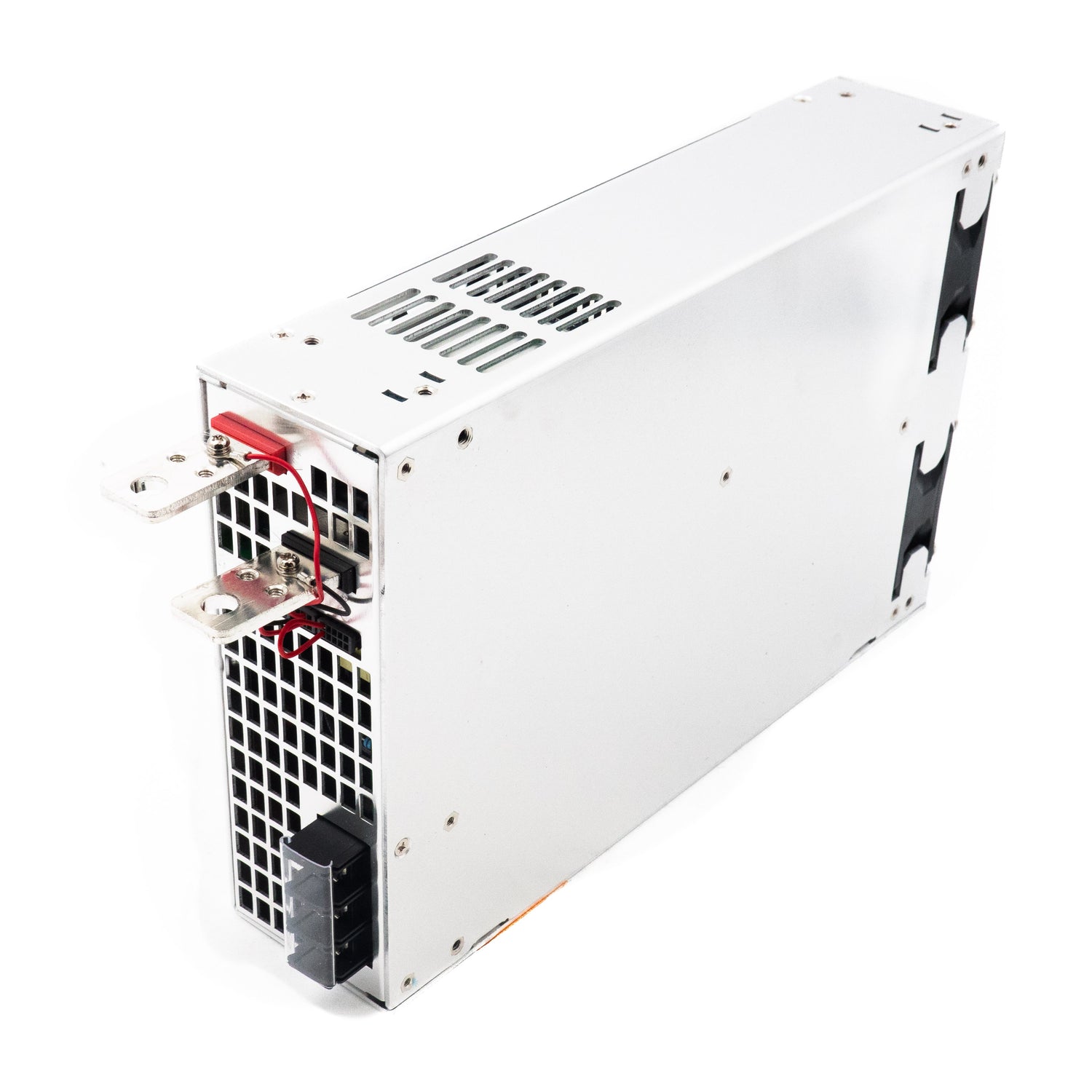

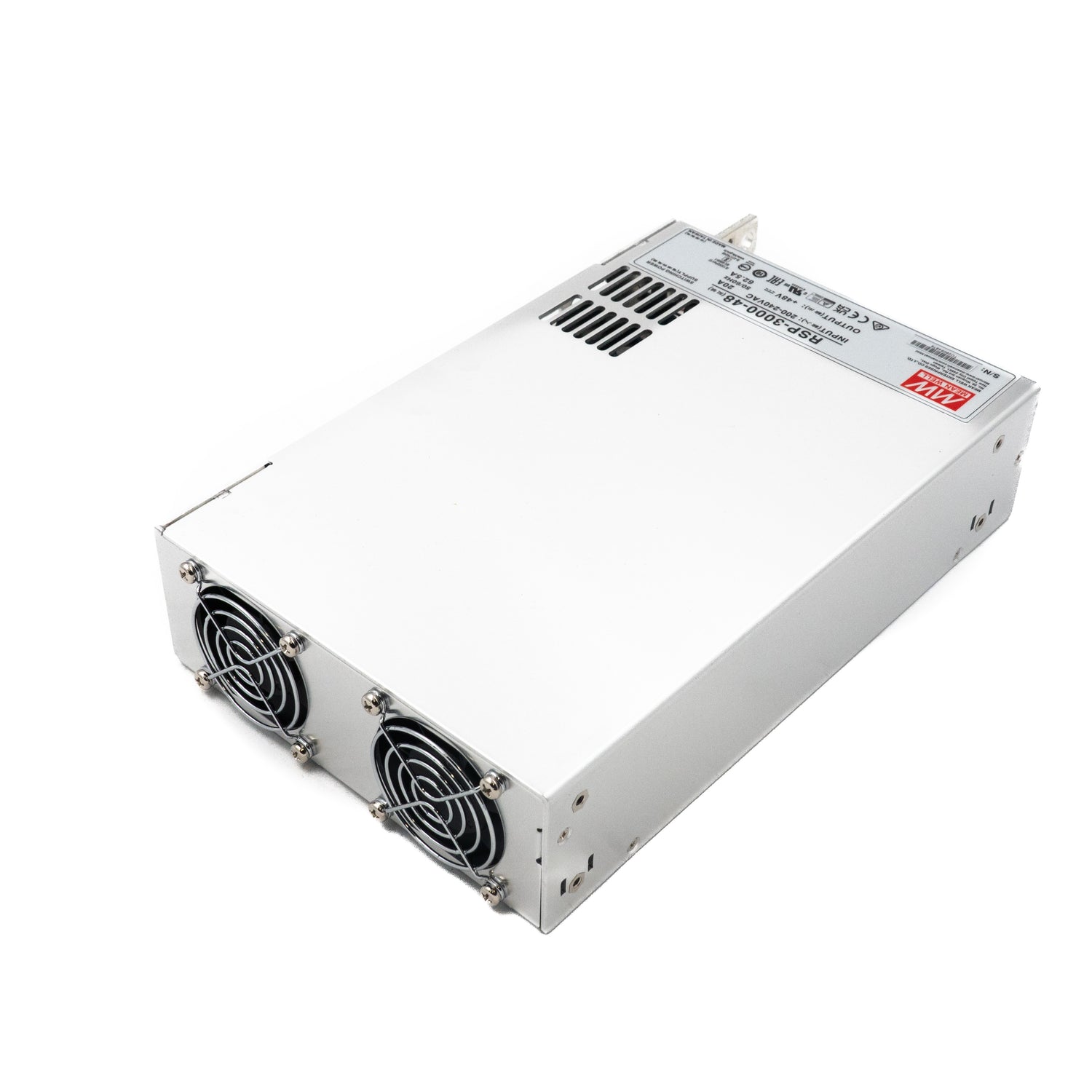

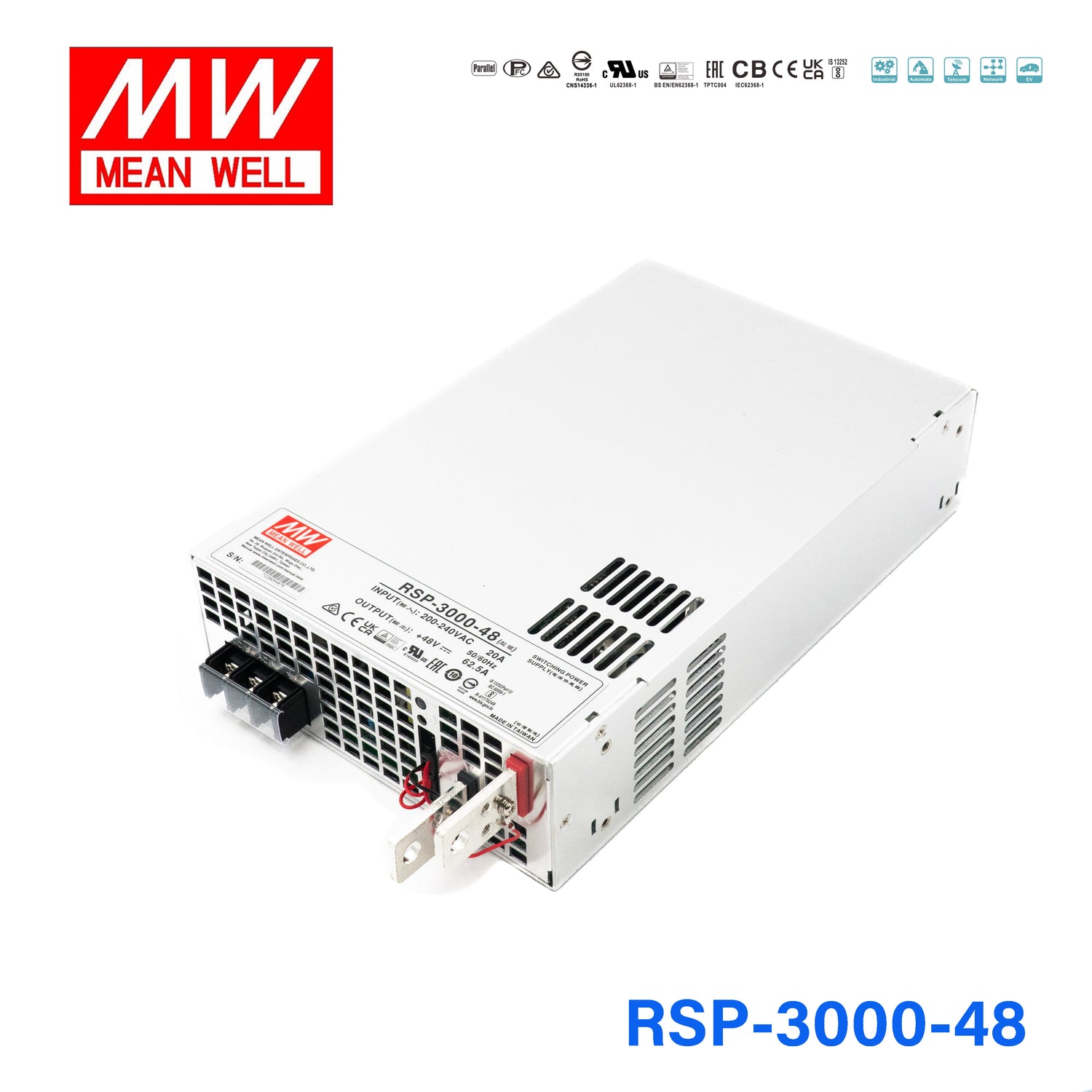

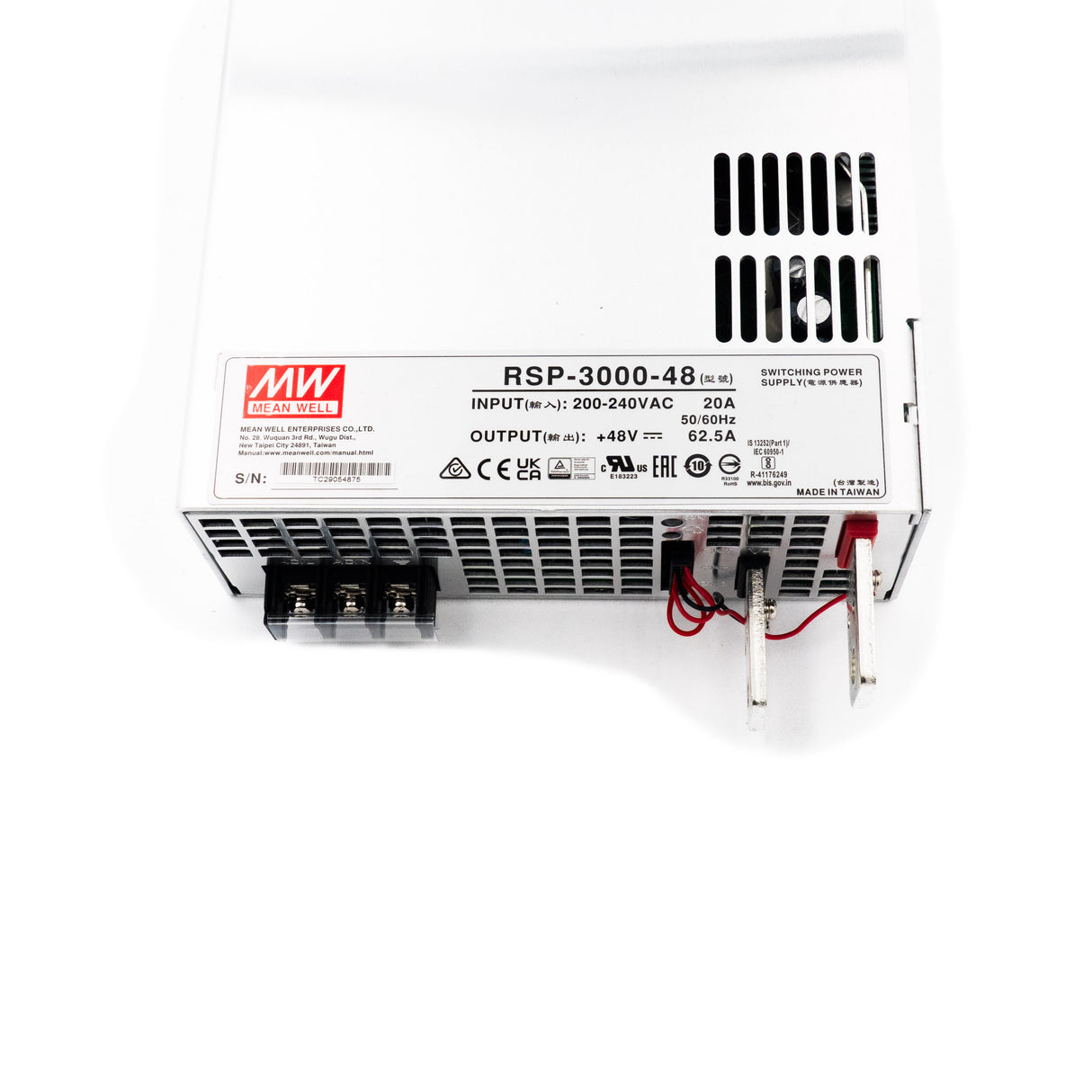

Mean Well RSP-3000-48 Power Supply 3000W 48V

built-in active PFC, high efficiency up to 91.5%, active current sharing(2+1)

|

Description

Features

AC input 180~264VAC only
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature / Fan alarm
Forced air cooling by built-in DC fan
Vo can be trimmed by external resistor or external control signal
Built-in current sharing
Built-in remote sense and ON/OFF control
Built-in auxiliary power
Alarm signal output
5 years warranty

General Specification

AC input voltage range 180~264VAC; 254~370VDC
AC inrush current (max.) Cold start, 60A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection Range 100%~112%
Overload protection Type Constant current limiting, shut off after 5 sec., re-power on to recover (can adjust to continuous constant current limiting)
Over voltage protection Range 115%~140%
Over voltage protection Type Shut down O/P voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -20~+70°C
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection Input 3P/13mm pitch terminal block with cover
Connection Output Copper pillars
Dimension (LxWxH) 278x177.8x63.5
Case No. 982B
Packing 4kg; 4pcs / 16kg / 1.89CUFT

Specifications

  • Brand
    Mean Well
  • Series
    RSP Series
  • Power Rating
    3000 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    62.5 Ampere
  • Input Voltage
    180V~264V
  • Standards Met
    BSMI,CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    5 Year
  • Length
    27.8 cm
  • Width
    17.78 cm
  • Height
    6.35 cm
  • Weight
    4 kg
