Archilight LED Neon Side-bend Glow-Wave Series

SKU NS1212-2467SCX-WW

Log in to see price Trade pricing & online ordering for account holders

Configure — 4 variants

NS1212-2467SCX-WW

LED Colour

4 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

In stock

Overview

Features

Easy to install: Simple design, can be cut and connected, easy to install

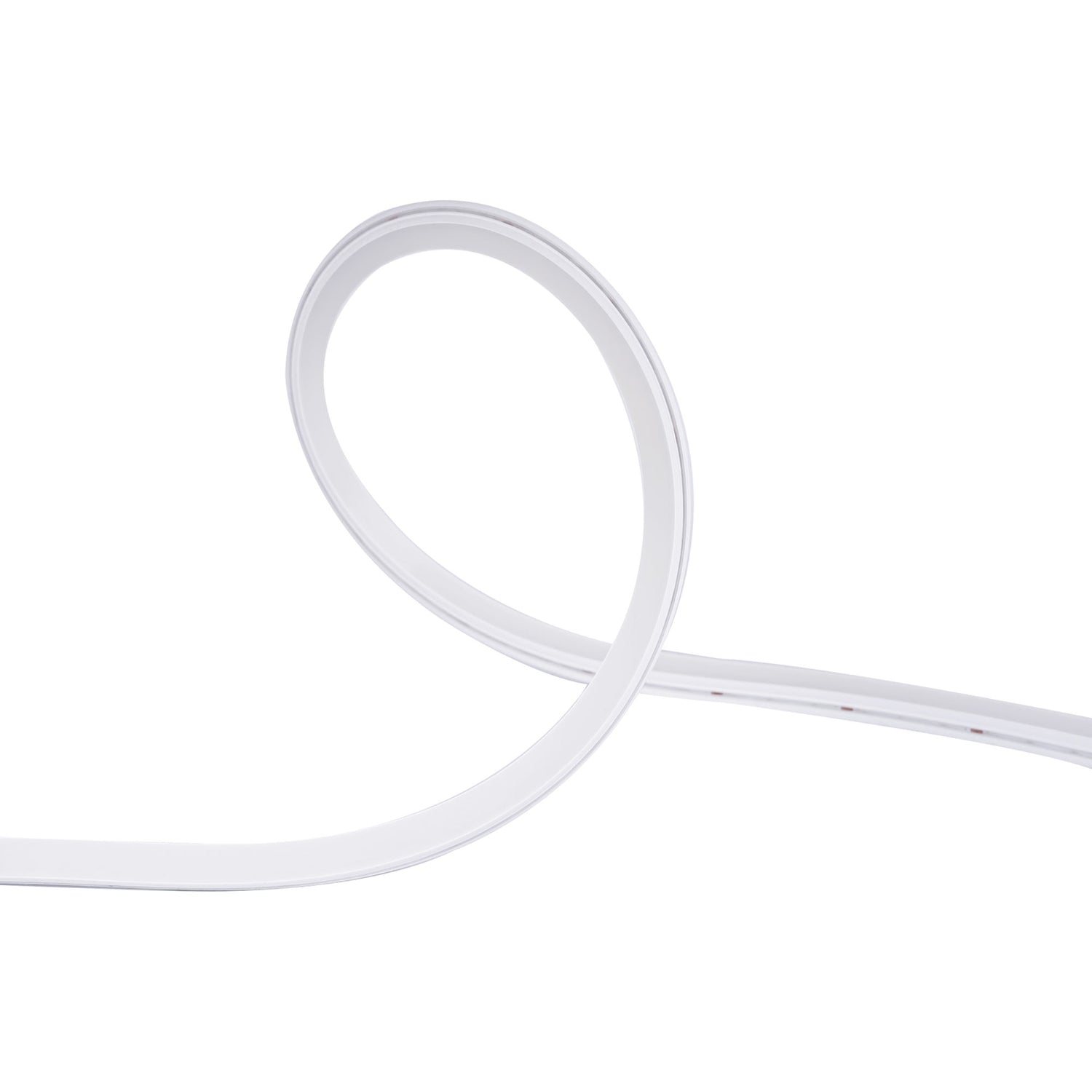

High flexible: It can be bent into various shapes and angles to meet different decoration requirements

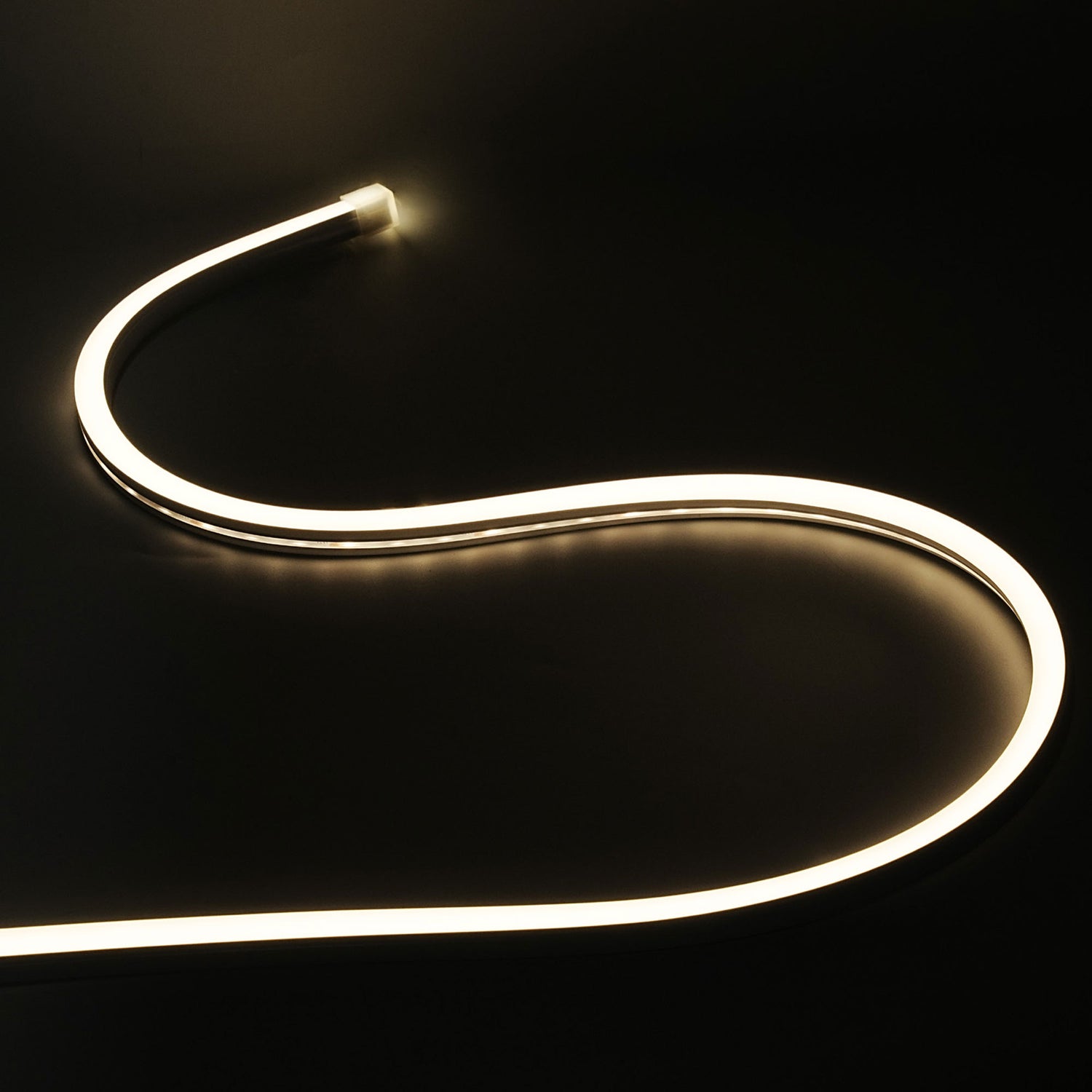

Good luminous effect: Via the side luminous design, the light is diffusely reflected by the diffusion part, and the light is more uniform and softer
IP67 Waterproof: Heat-resistant, UV-resistant, and IP67 waterproof for versatile indoor and outdoor use.

Specifications

Archilight LED Neon Side-bend Glow-Wave SeriesSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	Power Rating	LED Colour	LED Density per Meter	Brightness	Minimum Cuttable Length	Colour / CCT
NS1212-2467SCX-CW	9.6 W	Cool White 6500K	128	600 lm	62.5 mm	Cool White
NS1212-2467SCX-NW	9.6 W	Natural White 4000K	128	580 lm	62.5 mm	Nature White
NS1212-2467SCX-RGB	14.4 W	RGB Multicolour	120	200 lm	50 mm	RGB
NS1212-2467SCX-WW	9.6 W	Warm White 3000K	128	550 lm	62.5 mm	Warm White

Specification

LED Type: 2835
DC Voltage (V): 24
Beam Angle (degree): 120°
IP: 67

Environment

Operating ambient temperature: -20°C~40°C

Certifications & ratings

Certification marks: Class II, CE, RoHS

Technical drawings

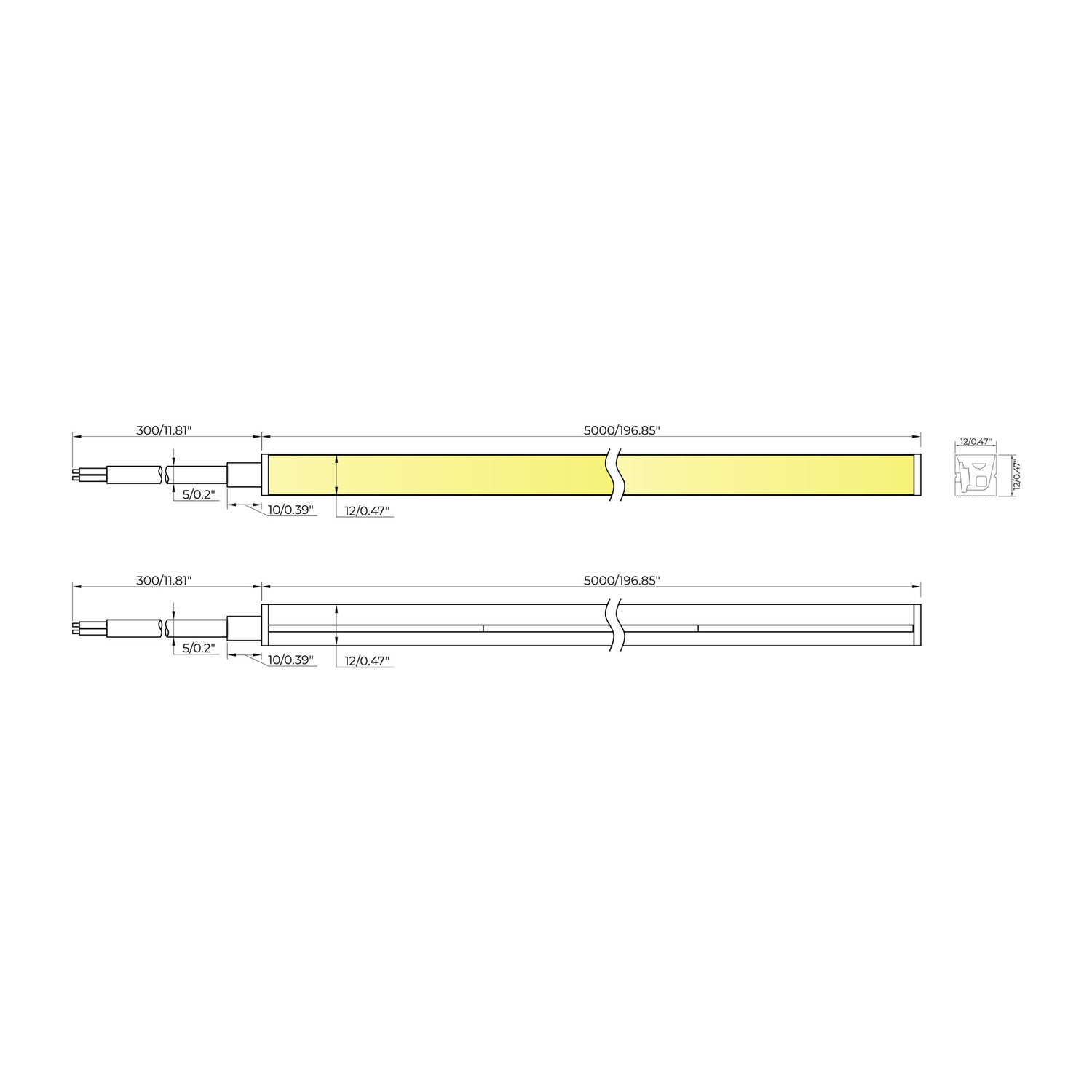

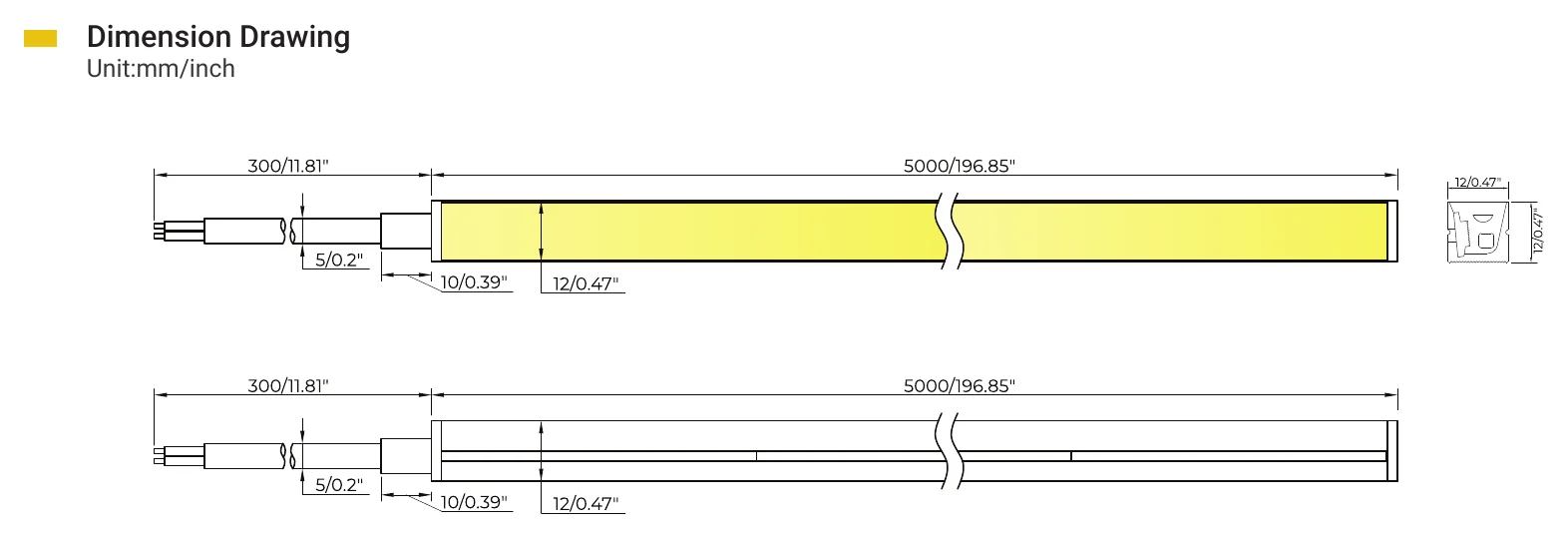

Archilight LED Neon Side-bend Glow-Wave Series Dimension Drawing — Dimension Drawing

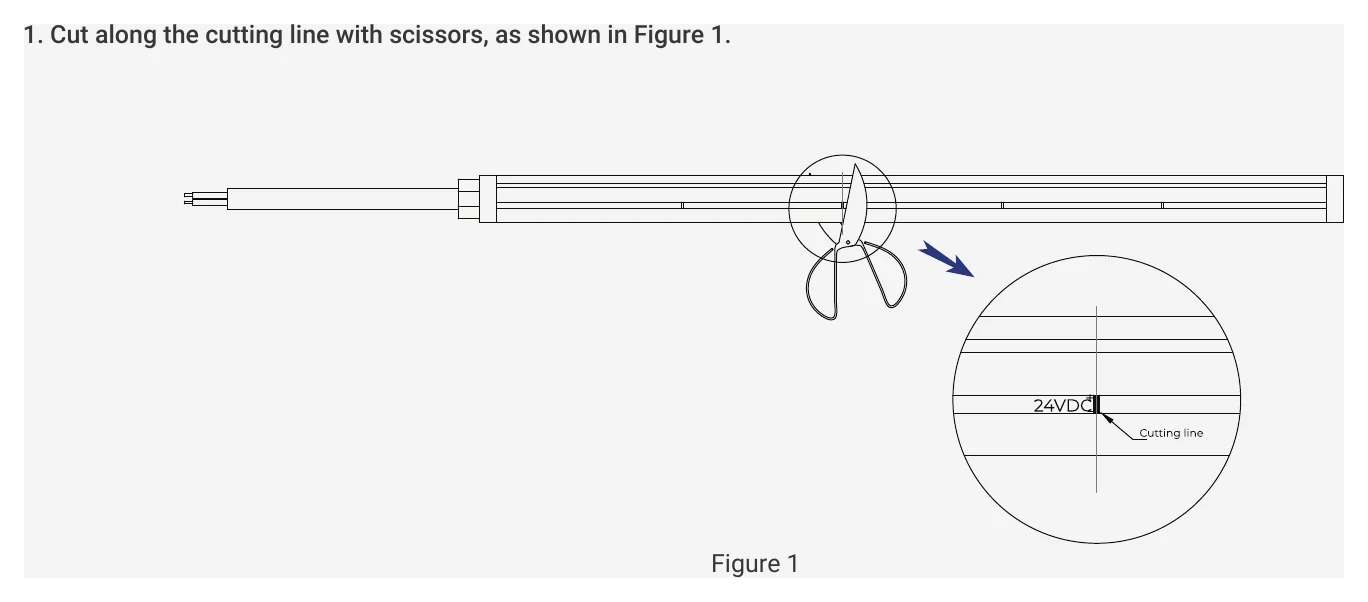

Archilight LED Neon Side-bend Glow-Wave Series 1. Cut along the cutting line with scissors, as shown in… — 1. Cut along the cutting line with scissors, as shown in…

Archilight LED Neon Side-bend Glow-Wave Series Installation — Installation

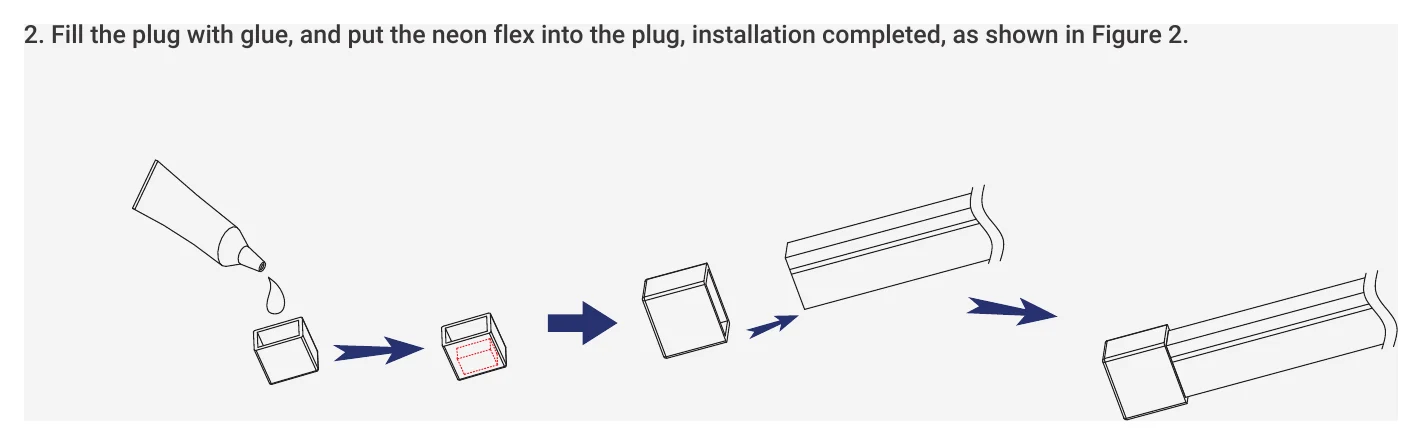

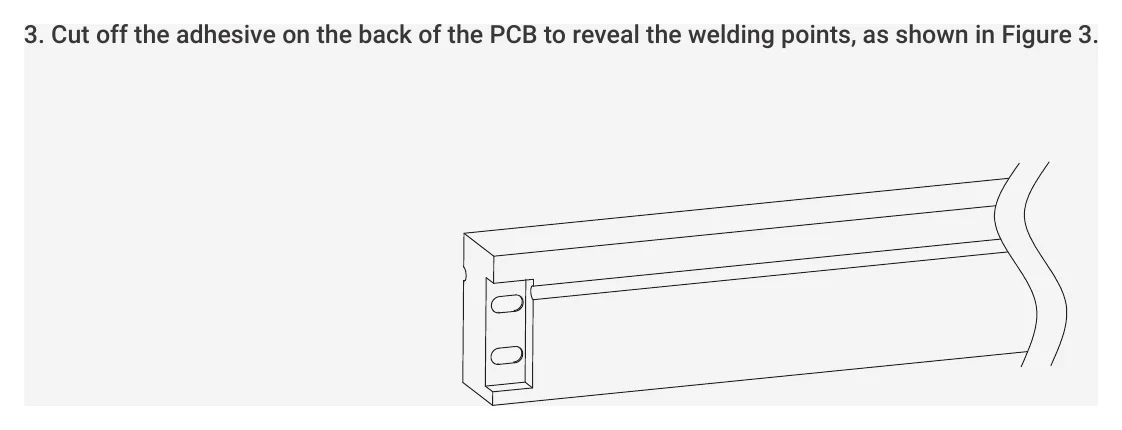

Archilight LED Neon Side-bend Glow-Wave Series Installation (2) — Installation (2)

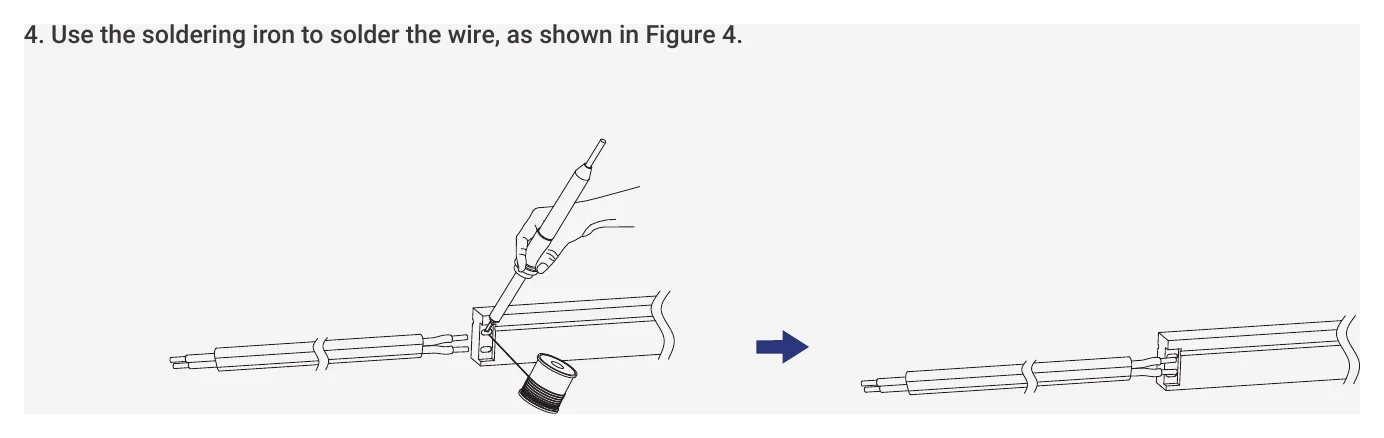

Archilight LED Neon Side-bend Glow-Wave Series 4. Use the soldering iron to solder the wire, as shown… — 4. Use the soldering iron to solder the wire, as shown…

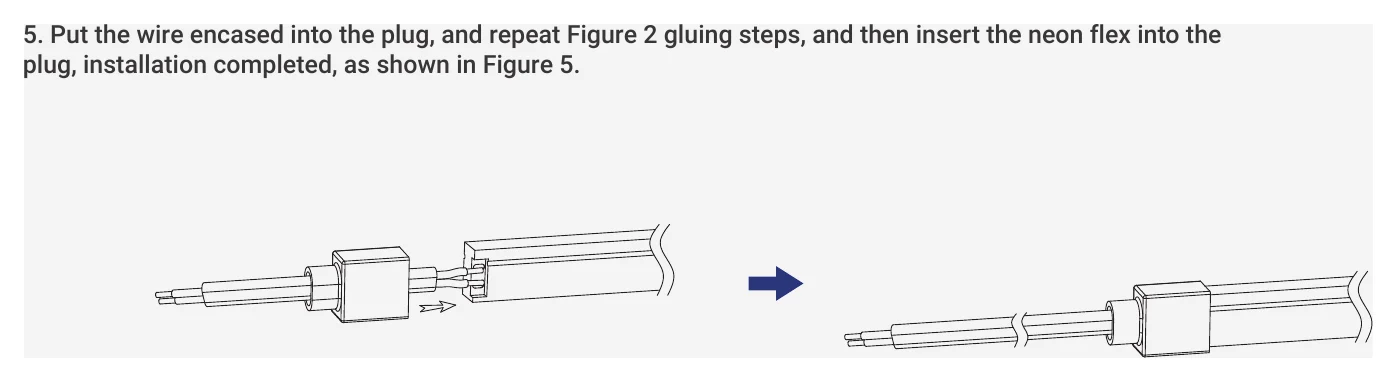

Archilight LED Neon Side-bend Glow-Wave Series Installation Opearation — Installation Opearation

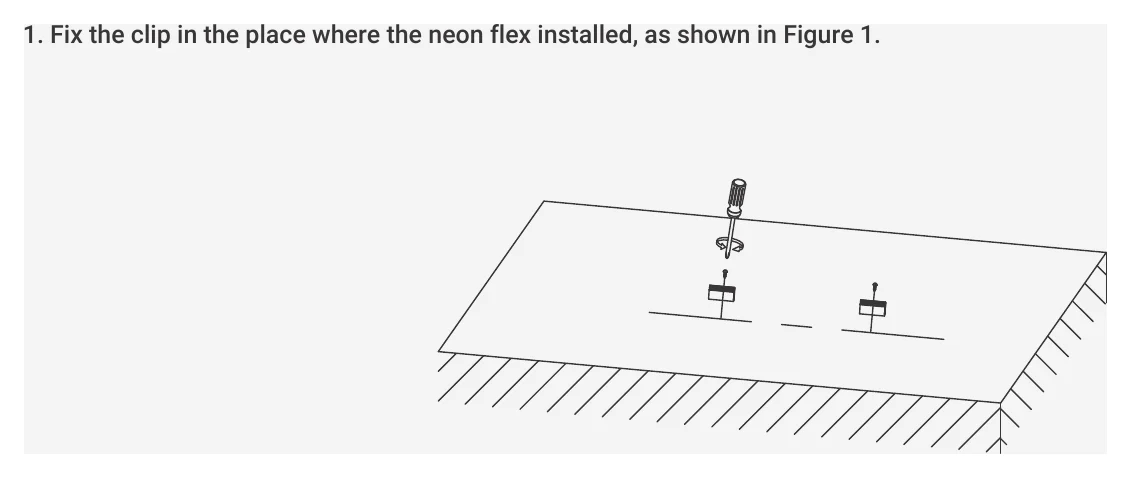

Archilight LED Neon Side-bend Glow-Wave Series Installation Diagram — Installation Diagram

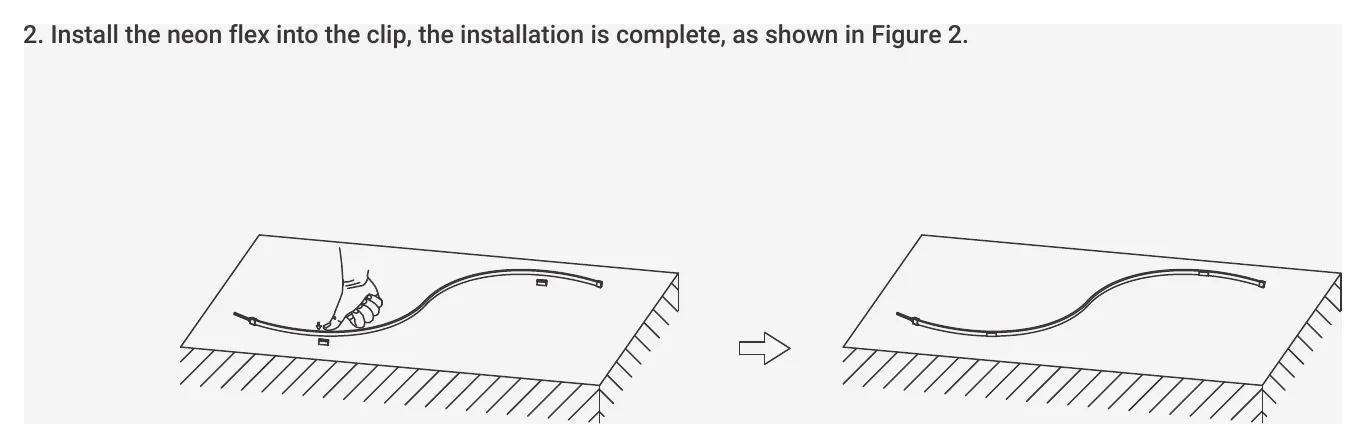

Archilight LED Neon Side-bend Glow-Wave Series 2. Install the neon flex into the clip, the installation… — 2. Install the neon flex into the clip, the installation…

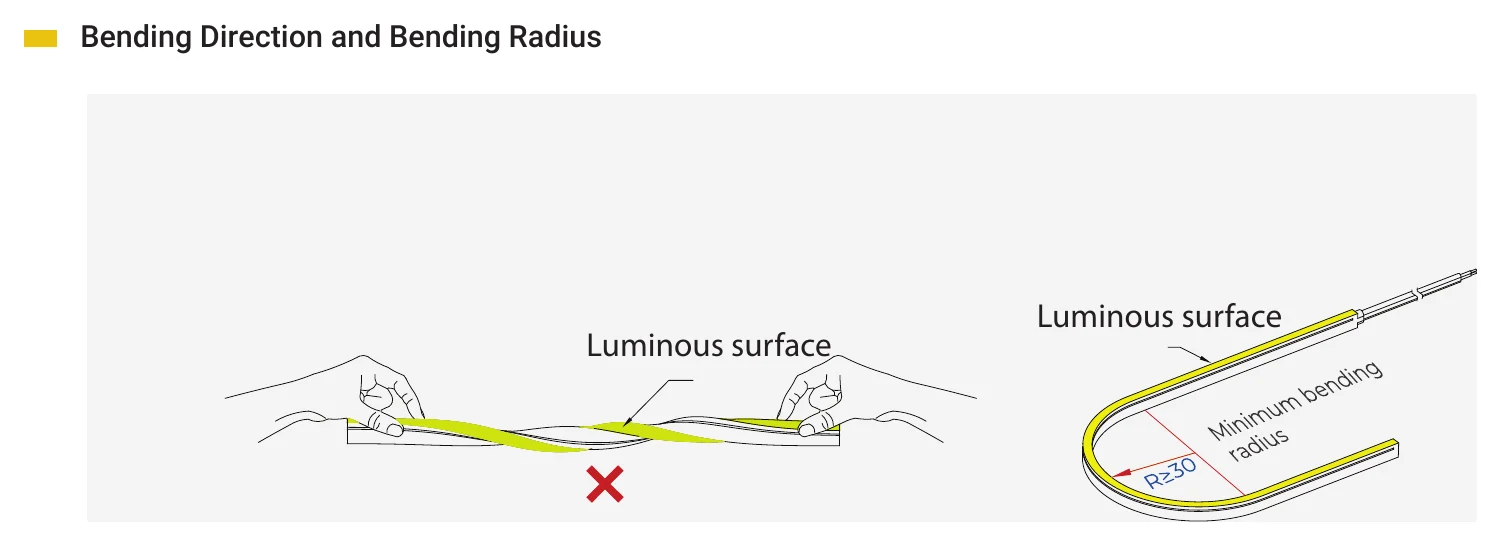

Archilight LED Neon Side-bend Glow-Wave Series Bending Direction and Bending Radius — Bending Direction and Bending Radius

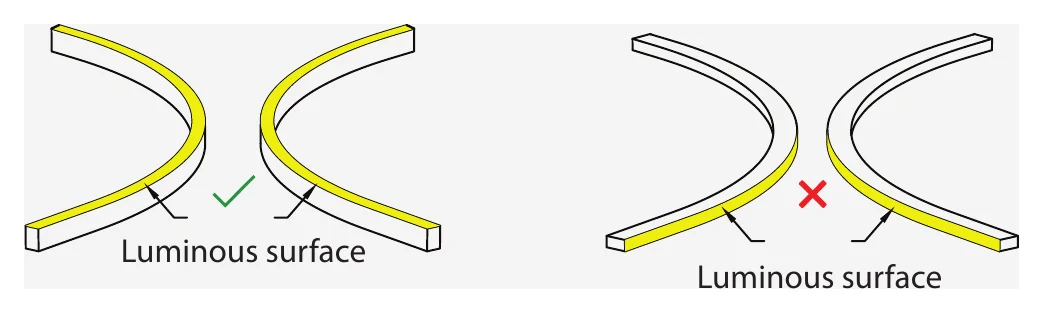

Archilight LED Neon Side-bend Glow-Wave Series Luminous surface — Luminous surface

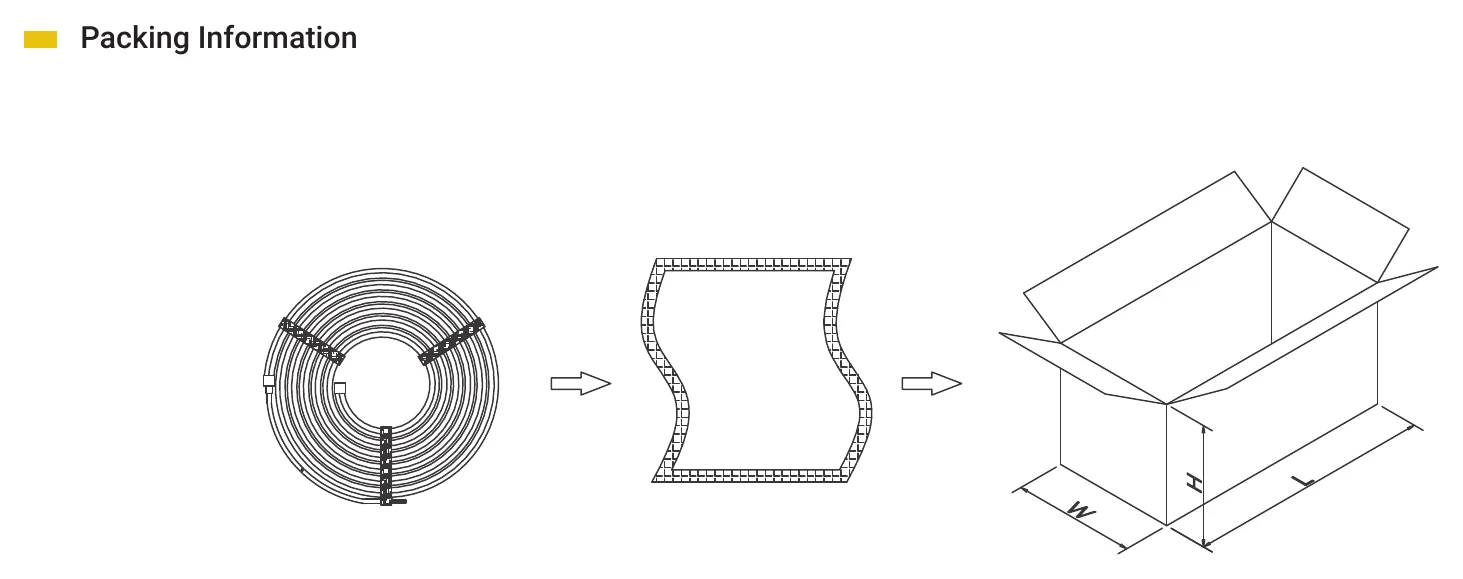

Archilight LED Neon Side-bend Glow-Wave Series Packing Information — Packing Information

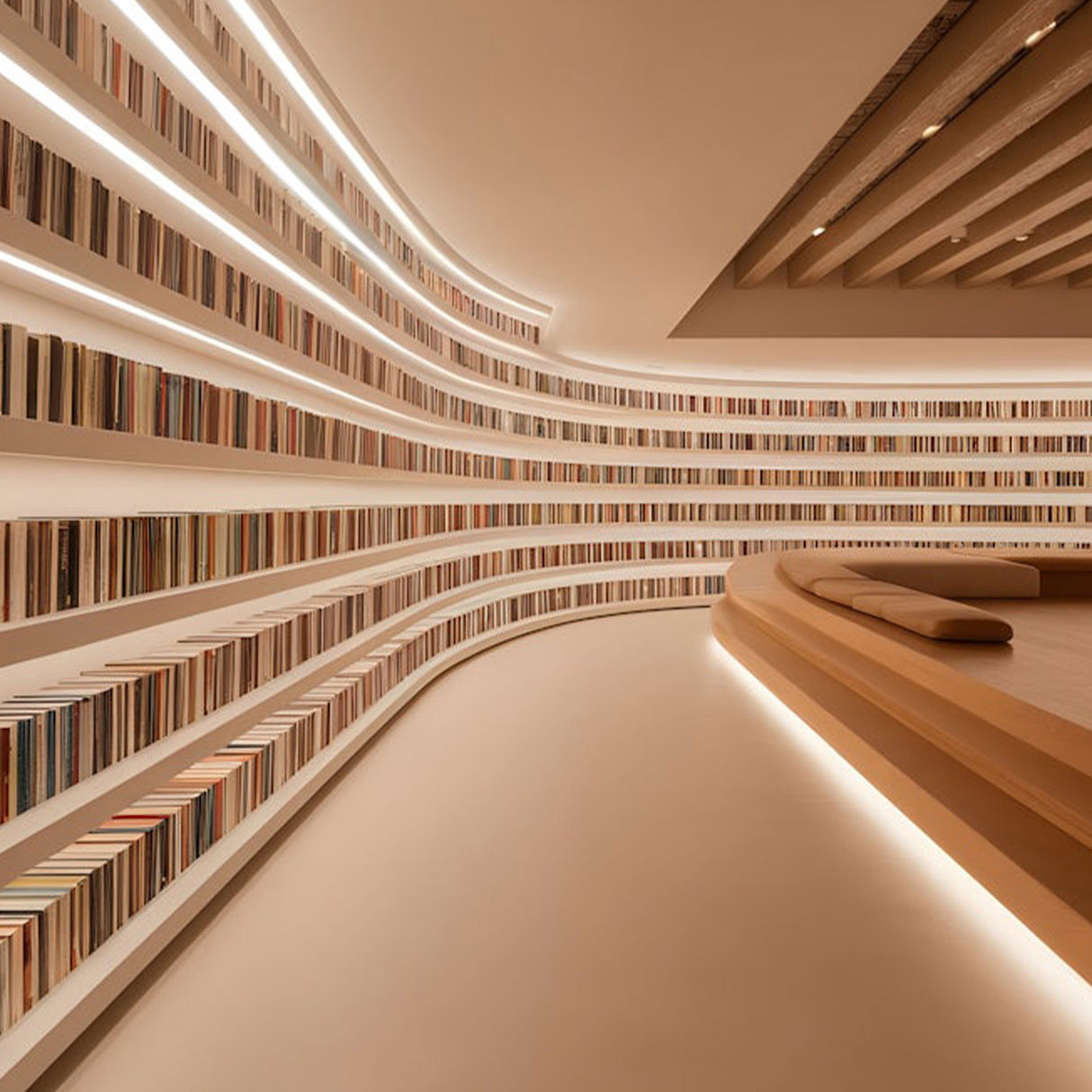

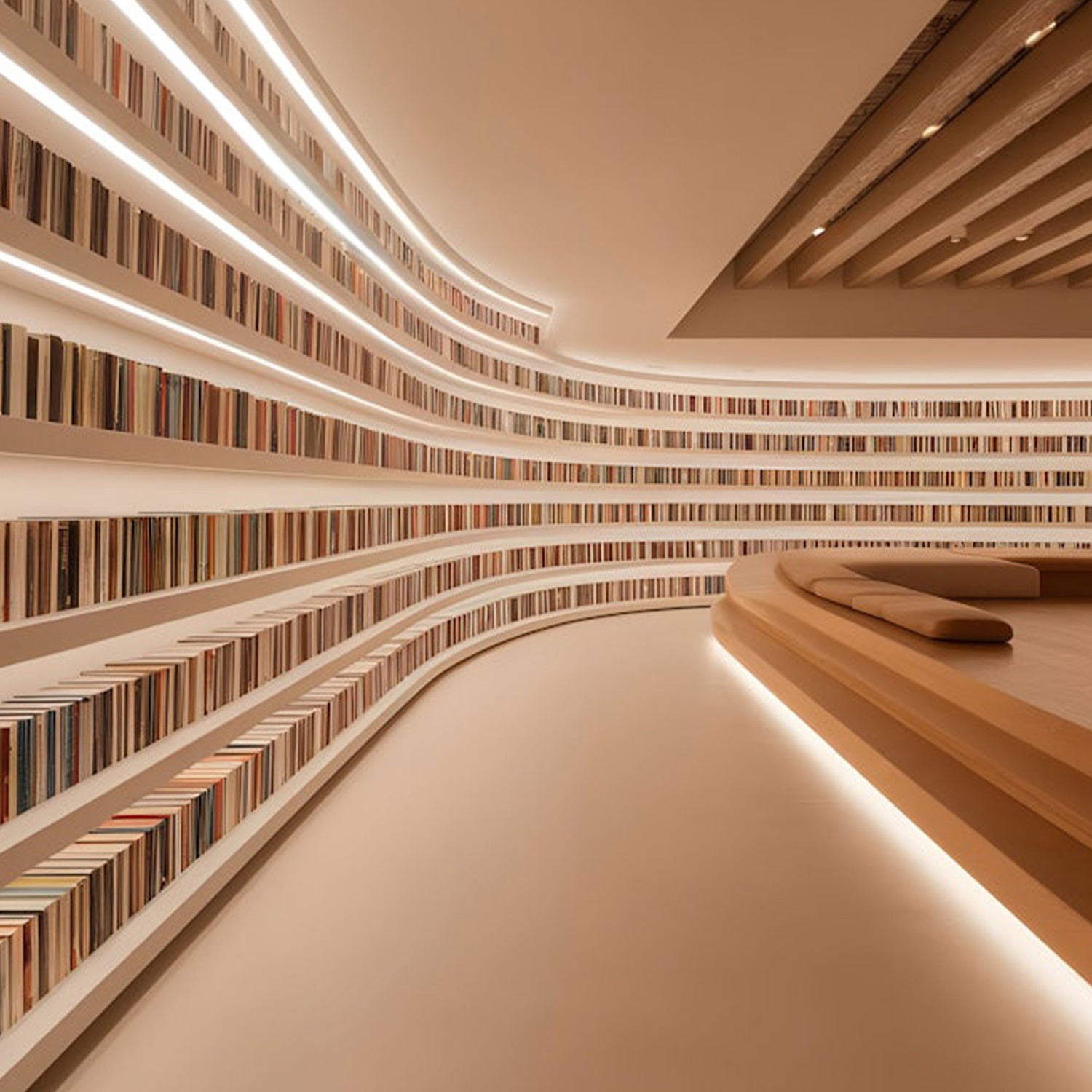

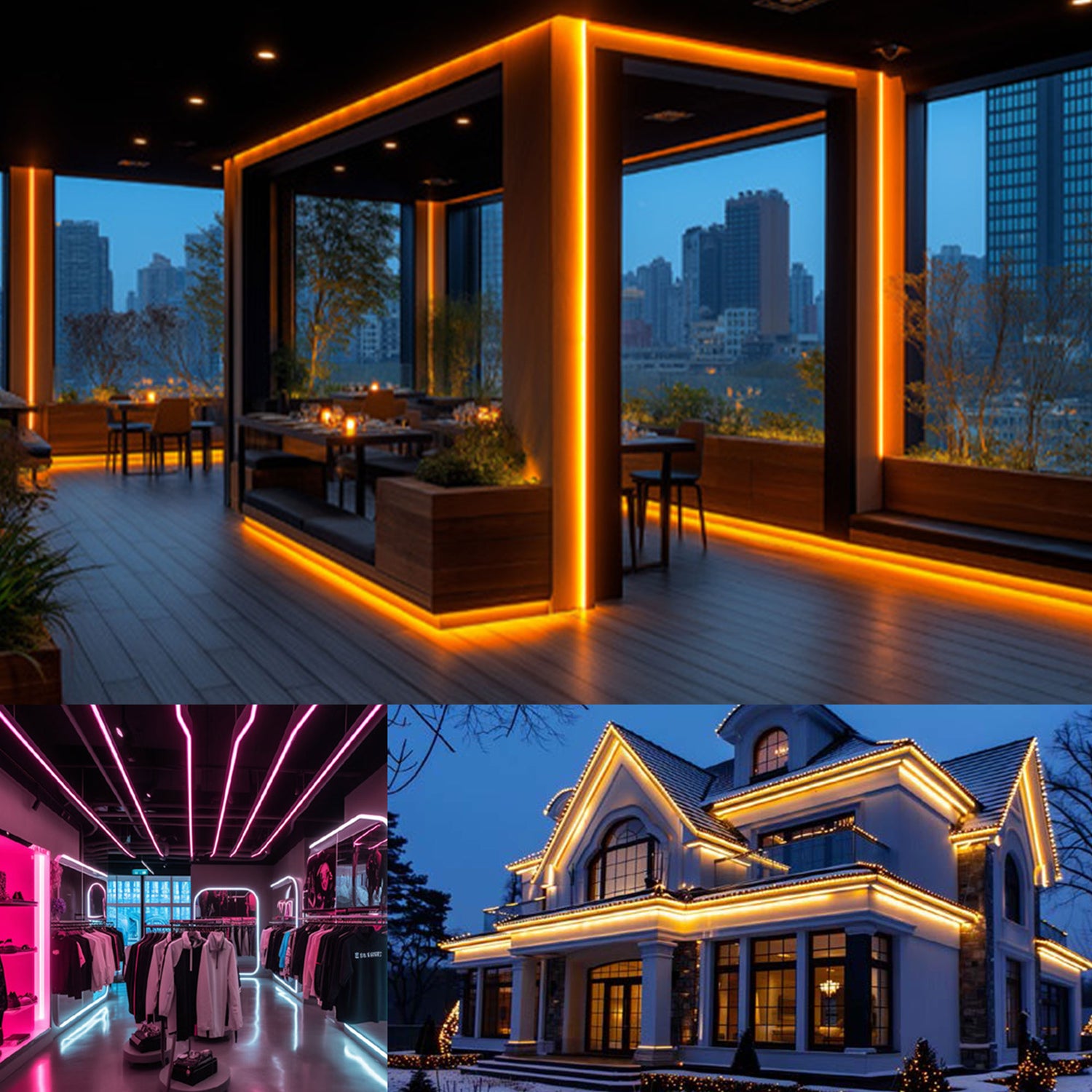

Typical applications

Commercial advertising and signs;
The decoration of irregular design (hotels, nightclubs,KTV Polygonal wall and ceiling groove design in other places);
Household dark groove design (door frame, bar counter, wine cabinet, etc.)

Downloads

Datasheet1

Archilight LED Neon Side-bend Glow-Wave Series datasheetNS1212_2467SCX_V605.pdf PDF Download

Catalogues1

LED Strip Selection Guide PDF Download

FAQ

What type of lighting is the Archilight LED Neon Side-bend Glow-Wave Series designed for?

This series is designed for decorative and architectural linear lighting where a soft, side-emitting glow is preferred. It is suitable for commercial advertising, signage, hospitality spaces, and residential accent applications. The side-bend design helps it follow curves and shapes more easily than rigid linear fixtures.

What variant options are available in this Glow-Wave family?

This product family includes warm white 3000K, neutral white 4000K, cool white 6500K, and RGB options. The white versions differ by color temperature and light output, while the RGB version is intended for color-changing effects. All listed variants share the same parent series and 3-year warranty.

How do the white and RGB versions compare in output and power?

The white variants operate at 9.6W per meter and deliver up to 600 lumens per meter, depending on the selected color temperature. The RGB variant operates at 14.4W per meter and is listed at 200 lumens per meter. This makes the white options better suited to functional illumination, while RGB is better for decorative color effects.

Is the Glow-Wave Series suitable for outdoor or exposed environments?

Yes. The product description states it has an IP67 rating and a UV- and heat-resistant silicone sleeve, which supports use in both indoor and outdoor environments. That makes it a practical choice for exterior accent lighting as well as interior architectural applications.

What are the main technical specifications of this neon strip family?

The parent model operates on 24VDC and has a 120-degree beam angle for broad light distribution. The strip dimensions are 12 mm wide by 12 mm high, with the parent length shown as 1000 mm. White variants provide up to 600 lm/m, and the family is covered by a 3-year warranty.

Does this product include a driver, and is dimming supported?

The listed data shows that a driver is not included with this product family. Dimming control is marked as optional, so the series supports dimming capability when paired with suitable external components. The exact control approach is not specified in the provided data.
