Envo

ENVO Movement PIR Sensor with Probe, DC, Indoor

PIRIndoor
SKU IX-PIRSEN
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

Features

  • Human-body detection sensor
  • Detection range: Max. 2.5m (98-7/16")
  • Detection angle: 80°
  • Detection time: 10 sec ~ 3 min
  • Output connection: mini plug

Specifications

IX-PIRSENSpecifications from the official datasheetDownload datasheet PDF

Specification

Rated input voltage
DC 12V / DC 24V
Rated output current
6.25A
Load
0-75W / 0-150W
Ta
-20~50℃
LxWxH(mm)
86x40x12

Sensor

Model No.
S103
Hole opening diameter(D)
Ø21mm
Day Light Detection
NO

Certifications & ratings

Certification marks
CE, UKCA

Technical drawings

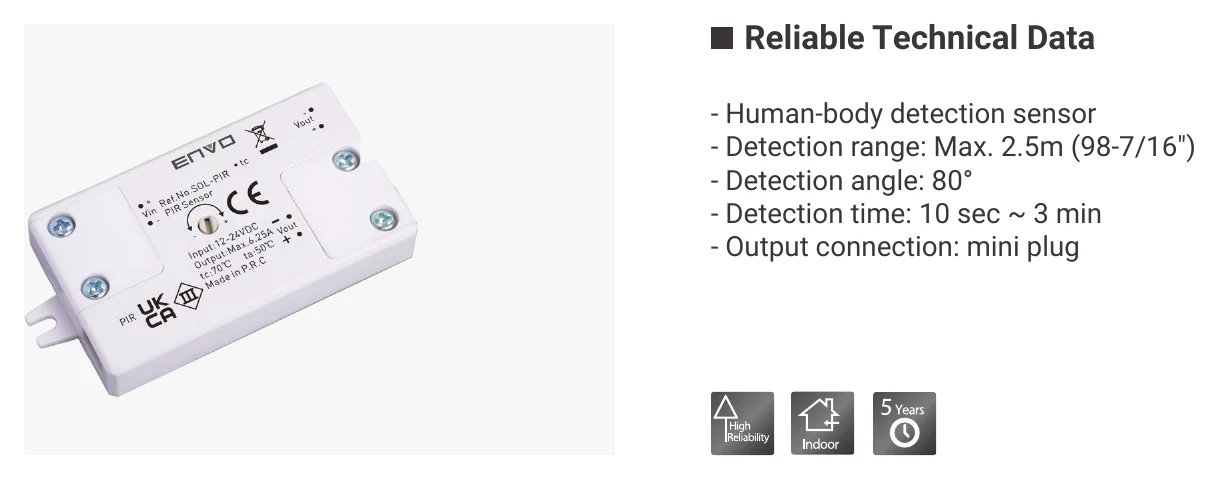

IX-PIRSEN Reliable Technical Data
Reliable Technical Data

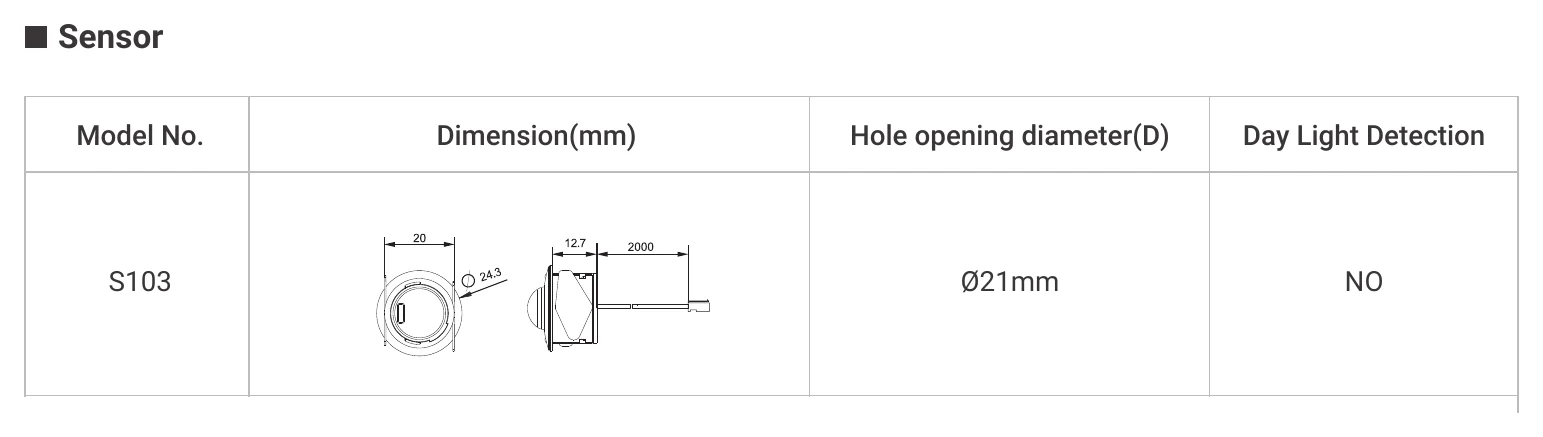

IX-PIRSEN Sensor
Sensor

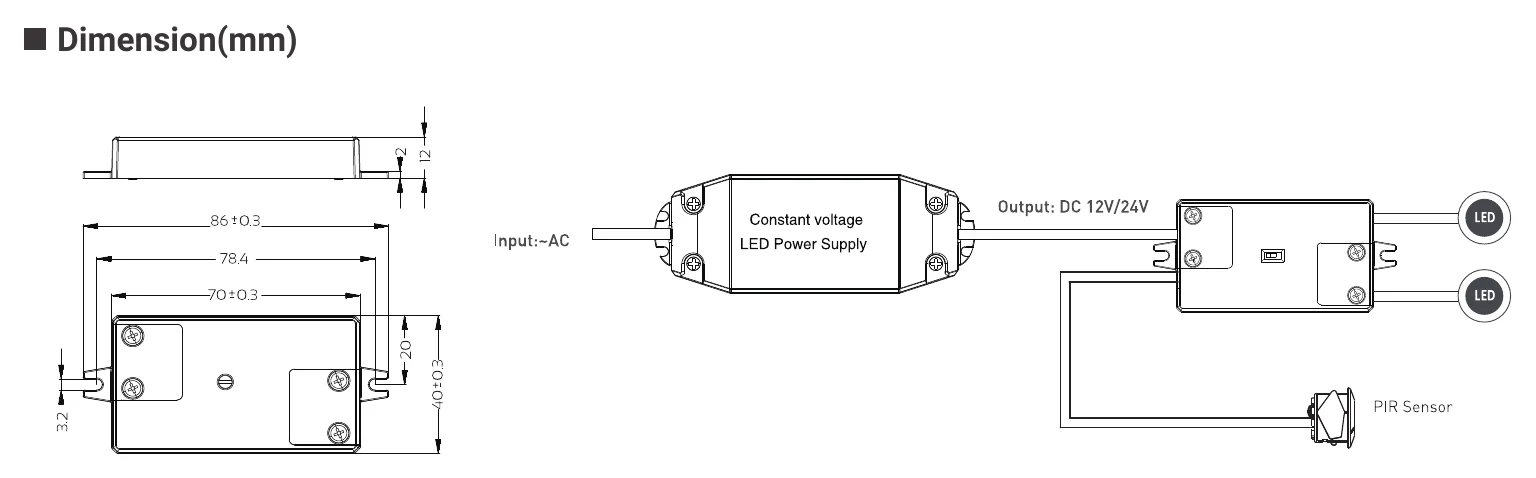

IX-PIRSEN Dimension (mm)
Dimension (mm)

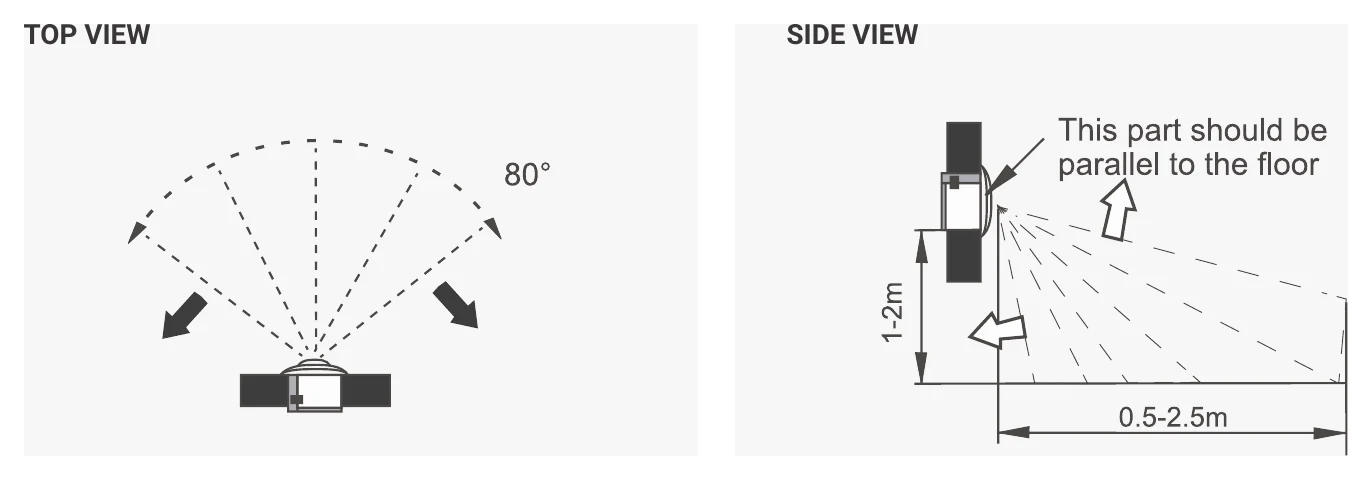

IX-PIRSEN TOP VIEW
TOP VIEW

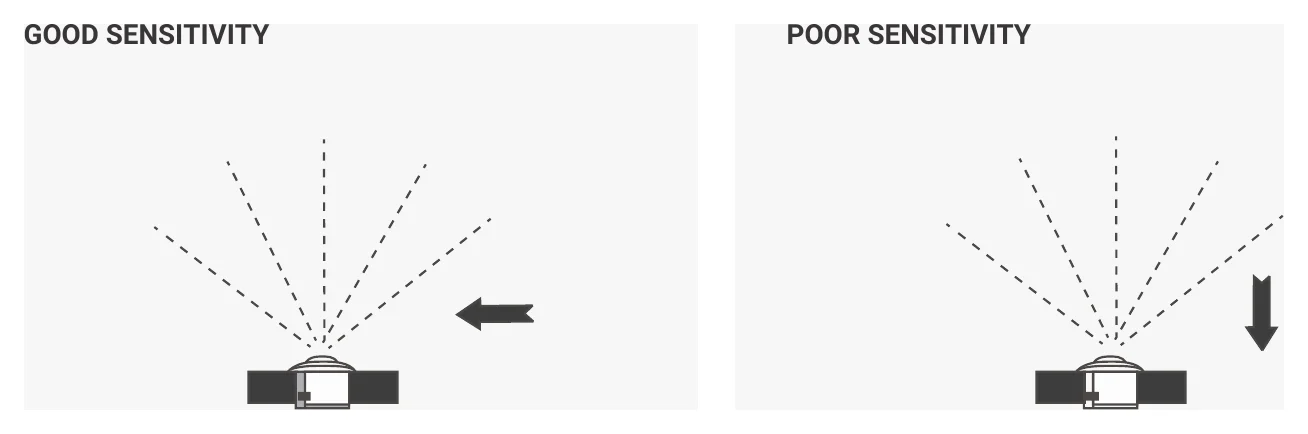

IX-PIRSEN GOOD SENSITIVITY
GOOD SENSITIVITY

Downloads

FAQ

What is the ENVO Movement PIR Sensor with Probe designed for?

This model is an IR movement sensor intended for LED lighting applications. Its compact probe design makes it suited to projects where a small sensor footprint is important and indoor use is required.

Is this sensor suitable for indoor or outdoor environments?

This is an indoor DC PIR sensor. Its stated operating temperature range is -20°C to 50°C, so it should be selected for environments that stay within that range.

What are the electrical ratings for this sensor?

The ENVO Movement PIR Sensor with Probe is rated for up to 150 W and 6.25 A. Those ratings make it appropriate for LED lighting control applications that stay within those limits.

Does this PIR sensor support dimming control?

No, the listed dimming control for this model is none. It is intended for motion-based sensing rather than integrated dimming control.

What makes this model different from larger motion sensors?

A key differentiator of this model is its compact probe, which opens up more mounting options where space is limited. It is a simple, small-footprint PIR sensor for indoor LED lighting rather than a larger-format control device.
