Lifud LF-GOE100YV024A LED Driver 100.08W 24V - Flicker Free 4.17A
Log in to see priceOverview
LF-GOE100YV024A is the 24VDC output model of this series: rated power 220-277VAC @100W 100-277VAC @75W.
Specifications
Output
- Output Voltage
- 24VDC
- Output Current
- 4.17A maximum @220-277VAC / 3.125A maximum @100-277VAC
- Rated Power
- 220-277VAC @100W 100-277VAC @75W
- Ripple Noise
- <1V
- Current Tolerance
- ±2.5%
- Start-up Time
- < 0.5s @230VAC
- Temperature Drift
- ±10%
- Load Regulation
- ±1%
Input
- Input Line Regulation
- ±1%
- Input Voltage
- 100-277Vac (limit voltage: 90-305Vac)
- Input Frequency
- 47Hz-63Hz
- Input Current
- 1.0A maximum
- Power Factor
- ≥0.97/100VAC @full load ≥0.95/230VAC @full load ≥0.90/277VAC @full load
- Total Harmonic Distortion
- ≤15% @full load
- Efficiency
- ≥86%/100VAC @full load ≥90%/230VAC @full load ≥90%/277VAC @full load
- Inrush Current
- <60A/500uS@230Vac
- Stand-by Power Consumption
- ≤1.5W @230VAC
Protective Feature
- Overvoltage Protection
- ≤35V (cut off the output voltage, restart and recover)
- Overcurrent Protection
- ≤150% (restart and recover)
- Short Circuit Protection
- Hiccup mode (restart and recover)
Environment Condition
- Working Temperature
- -40℃ - +60℃
- Working Humidity
- 20-90%RH (no condensation)
- Storage Temperature / Humidity
- -40℃ - +80℃(six months under class I environment); 10-90%RH (no condensation)
- Atmospheric Pressure
- 86-106KPa
Safety & Norm
- Certificate
- CE, CB, ENEC, SAA, RCM, UL, FCC
- Withstanding Voltage
- I/P-O/P: 3.75KVAC, <5mA 60s; I/P-FG: 1.5KVAC, <5mA 60s; O/P-FG: 0.5KVAC, <5mA 60s
- Insulation Resistance
- I/P-O/P, I/P-FG, O/P-FG: 500VDC, >100MΩ
- Surge Rating
- Conform to IEC61000-4-5 (L-N:6KV, L/N-PG:8KV)
- Electromagnetic Interference
- Conform to GB17743 / EN55015, EN61000-3-2, CLASS B, FCC Part15
- Electromagnetic Susceptibility
- Conform to EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Others
- Packing (Weight)
- Carton size: 420*300*210 (L*W*H); Weight: 0.7Kg ±5%/pc; 17Kg±5%/ctn; Quantity: 24 pcs/ctn
- IP Rating
- IP67
- Warranty Condition
- 5 years (TC≤76℃)
Testing Equipment
- Testing Equipment
- AC power source: CHROMA6530, Digital power meter: CHROMA66202, Oscilloscope: Tektronix DPO3014, DC electronic load: M9712B, LED strip light, constant temperature and humidity chamber, lightning surge generator: Everfine EMS61000-5B, rapid group pulse generator: Everfine EMS61000-4A, spectrum analyzer: KH3935, hi-pot tester: TH9201B, stroboscope (flicker index tester) 60N-01, etc.
Testing Condition
- Testing Condition
- Unless otherwise stated, the electrical parameters above, including the power factor, THD and efficiency, are tested under the ambient temperature 25℃ and humidity 50%, input 230Vac and 100% load.
Additional Remark
- Additional Remark
- 1. It is recommended that customer should install protection devices for surge, for overvoltage and for undervoltage to ensure safety before connecting to electricity. 2. The PC cover, casing, end caps and other parts of the LED driver inside the LED light fixture must conform to UL94 V-0 flammability standard or above. 3. As an accessory, the LED driver is not the only factor determining the EMC performance of the LED luminaire. The structure and the wiring of the light fixture are also relevant. Thus it’s strongly recommended the LED light fixture manufacturer re-confirms the EMC of the whole LED light fixture.

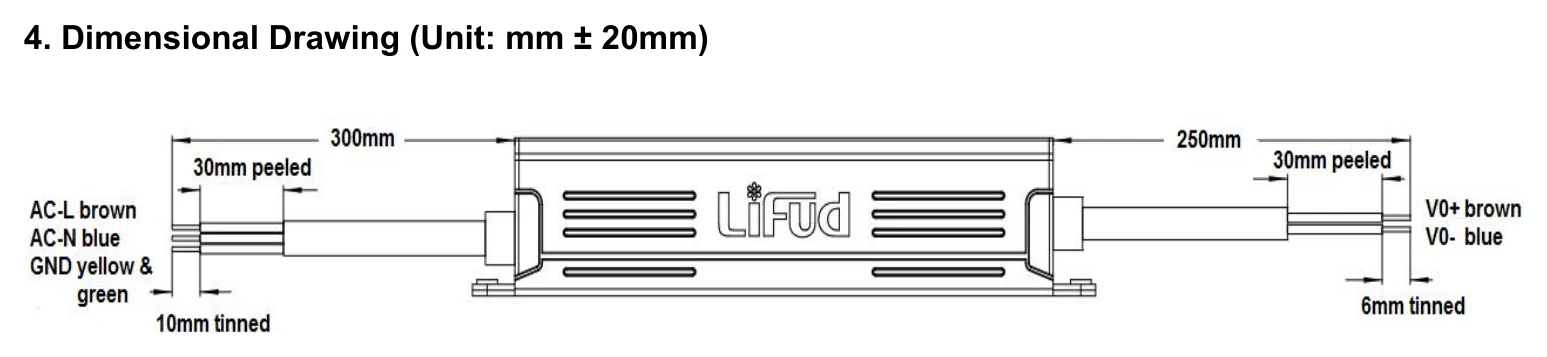

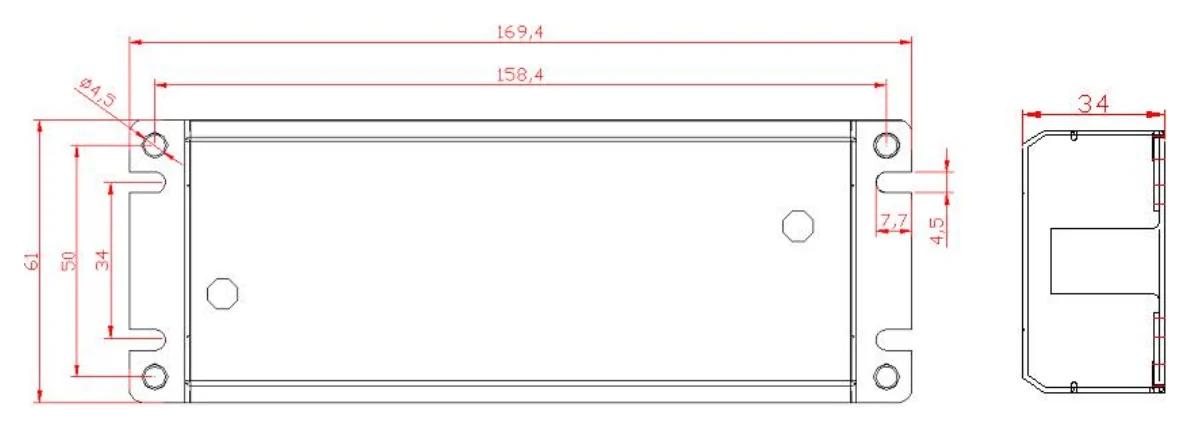

Technical drawings
Downloads
FAQ
What type of LED driver is the Lifud LF-GOE100YV024A?
The LF-GOE100YV024A is a 24V constant-voltage LED driver rated at 100.08W. It is designed for applications that need stable 24V output with flicker-free performance.
What applications is the LF-GOE100YV024A designed for?
This model is intended for outdoor lighting, LED flood lights, high bay lights, and general lighting projects. Its IP67 rating, surge protection, and wide operating temperature range make it suited to demanding commercial and industrial environments.
Is the LF-GOE100YV024A suitable for outdoor environments?
Yes. Lifud specifies this driver for outdoor lighting, and it carries an IP67 rating for protection against harsh environmental exposure. It also operates from -40°C to 60°C, which supports use in a wide range of climates.
Does this LED driver provide flicker-free output?
Yes, the LF-GOE100YV024A is described as flicker free. The listed percent flicker is 0.5% or less, which makes it a strong choice for lighting projects where output quality matters.
Can the output be adjusted on this model?
Yes. This driver includes a built-in potentiometer that allows the output voltage or power to be adjusted within the product's design range. That can be useful for projects that need some flexibility while staying within a 24V driver platform.
What input power range does the LF-GOE100YV024A support?
The rated input voltage is 100-277VAC, with an input limit range of 90-305VAC. This wide input range makes it practical for commercial projects where supply conditions may vary.
What protections and reliability features does this model include?
The LF-GOE100YV024A includes over-temperature protection, over-voltage protection, short-circuit protection, and surge protection rated at 6KV line-to-neutral and 8KV line/neutral-to-ground. Lifud also backs this model with a 5-year warranty.
