Ltech LM-240-24-G1D2 240W 24V DALI2 Driver - NFC 10A

address and dimming can be set through NFC app

SKU LM-240-24-G1D2

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

LM-240-24-G1D2 is the 24Vdc output model of this series: typical efficiency 94%.

Intelligent LED Driver (Constant Voltage)

Features

The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO.
The clamshell design and screwless type for strain-relief. The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
Change the DALI address, PWM frequency and other parameters via the APP.
Set the DALI group and scene in the advanced DALI template via the APP.
With soft-on and fade-in dimming function, enhancing your visual comfort.
The whole dimming process is flicker-free with high frequency exemption level.
T-PWM™ super deep dimming technology, 0.01% dimming depth.
Comply with the EU’s ErP Directive, networked standby<0.5W.
Overheat, over voltage, overload, short circuit protection and automatic recovery.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor).

Specifications

LM-240-24-G1D2Specifications from the official datasheetDownload datasheet PDF

Features

Output Type: Constant voltage
Dimming Interface: DALI-2 DT6, PUSH DIM
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (Suitable for class I/ II /III light fixtures)

OUTPUT

Output Voltage: 24Vdc
Output Voltage Range: 24Vdc±0.5Vdc
Output Current: Max. 10A
Output Power: Max. 240W
Dimming Range: 0~100%, down to 0.01%
Ripple(maximum): 200mVp-p
Voltage Accuracy: ±5%
PWM Frequency: 3600Hz (Default) / (NFC setting range 300-22000Hz)

INPUT

DC Voltage Range: 200-250Vdc
AC Voltage Range: 220-240Vac
EoFV: 99.6%
Input Voltage: 220-240Vac
Frequency: 50/60Hz
Input Current: Max. 1.18A/230Vac
Power Factor: PF>0.99/230Vac, at full load
THD: THD≤5%@230Vac, at full load
Efficiency (Typ.): 94%
Inrush Current: 55A (twidth=1200us, tested under 50% Ipeak) / 230Vac
Anti Surge: L-N: 2KV
Leakage Current: Max. 0.5mA

ENVIRONMENT

Working Temperature: ta: -20 ~ 45°C tc: 86°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40 ~ 80°C/10~95%RH
Temperature Coefficient: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection: Shut down the output when rated power≥102%, auto recovers
Overheat Protection: Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
Overvoltage Protection: Shut down the output when voltage≥28V, and recover automatically
Short Circuit Protection: Enter hiccup mode if short circuit occurs, and recover automatically

SAFETY & EMC

Withstand Voltage: I/P-O/P: 3750Vac
Insulation Resistance: I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards: Parameter Standard Test Level

CCC China GB19510.1, GB19510.14
TUV Germany EN61347-1, EN61347-2-13, EN62493
CB CB Member States IEC61347-1, IEC61347-2-13
CE European Union EN61347-1, EN61347-2-13, EN62384
KC Korea KC61347-1, KC61347-2-13
EAC Russia IEC61347-1, IEC61347-2-13
RCM Australia AS 61347-1, AS 61347-2-13
ENEC Europe EN61347-1, EN61347-2-13, EN62384
UKCA Britain BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
EMC Emission: Parameter Standard Test Level

CCC China GB/T17743, GB17625.1
CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547
KC Korea KSC 9815, KSC 9547
EAC Russia IEC62493, IEC61547, EH55015
RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547
UKCA Britain BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547
EMC Immunity: EN61000-4-2,3,4,5,6,8,11, EN61547

Parameter	Standard	Test Level
CCC	China	GB19510.1, GB19510.14
TUV	Germany	EN61347-1, EN61347-2-13, EN62493
CB	CB Member States	IEC61347-1, IEC61347-2-13
CE	European Union	EN61347-1, EN61347-2-13, EN62384
KC	Korea	KC61347-1, KC61347-2-13
EAC	Russia	IEC61347-1, IEC61347-2-13
RCM	Australia	AS 61347-1, AS 61347-2-13
ENEC	Europe	EN61347-1, EN61347-2-13, EN62384
UKCA	Britain	BS EN 61347-1, BS EN 61347-2-13, BS EN 62493

Parameter	Standard	Test Level
CCC	China	GB/T17743, GB17625.1
CE	European Union	EN55015, EN61000-3-2, EN61000-3-3, EN61547
KC	Korea	KSC 9815, KSC 9547
EAC	Russia	IEC62493, IEC61547, EH55015
RCM	Australia	EN55015, EN61000-3-2, EN61000-3-3, EN61547
UKCA	Britain	BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547

ErP

Power Consumption: Parameter Standard

Networked standby <0.5W [After shutdown by command]
No-load power consumption <0.5W [When the lamp is not connected]
Flicker/Stroboscopic Effect: Parameter Standard Test Level

IEEE 1789 Meet IEEE 1789 standard/High frequency exemption level
CIE SVM Pst LM≤1.0, SVM≤0.4
DF Phase factor DF≥0.9

Parameter	Standard
Networked standby	<0.5W [After shutdown by command]
No-load power consumption	<0.5W [When the lamp is not connected]

Parameter	Standard	Test Level
IEEE 1789	Meet IEEE 1789 standard/High frequency exemption level
CIE SVM	Pst LM≤1.0, SVM≤0.4
DF	Phase factor	DF≥0.9

OTHERS

Weight(N.W.): 555g±10g
Dimensions: 380×49.5×30mm(L×W×H)

Test conditions and notes1

The driver is suitable for connecting resistor current-limiting LED fixture (e.g. LED strip). The inrush current will be dozens of times increased if connecting built-in constant current IC current-limiting LED fixtures, the driver will activate the overloaded protection (hiccups flickering). When you order, please remark controlling the constant current LED fixture (e.g. MR16 lamp, underground light, LED wall washer, constant current LED strip, etc.), so that we can prepare them with special procedures.

Technical drawings

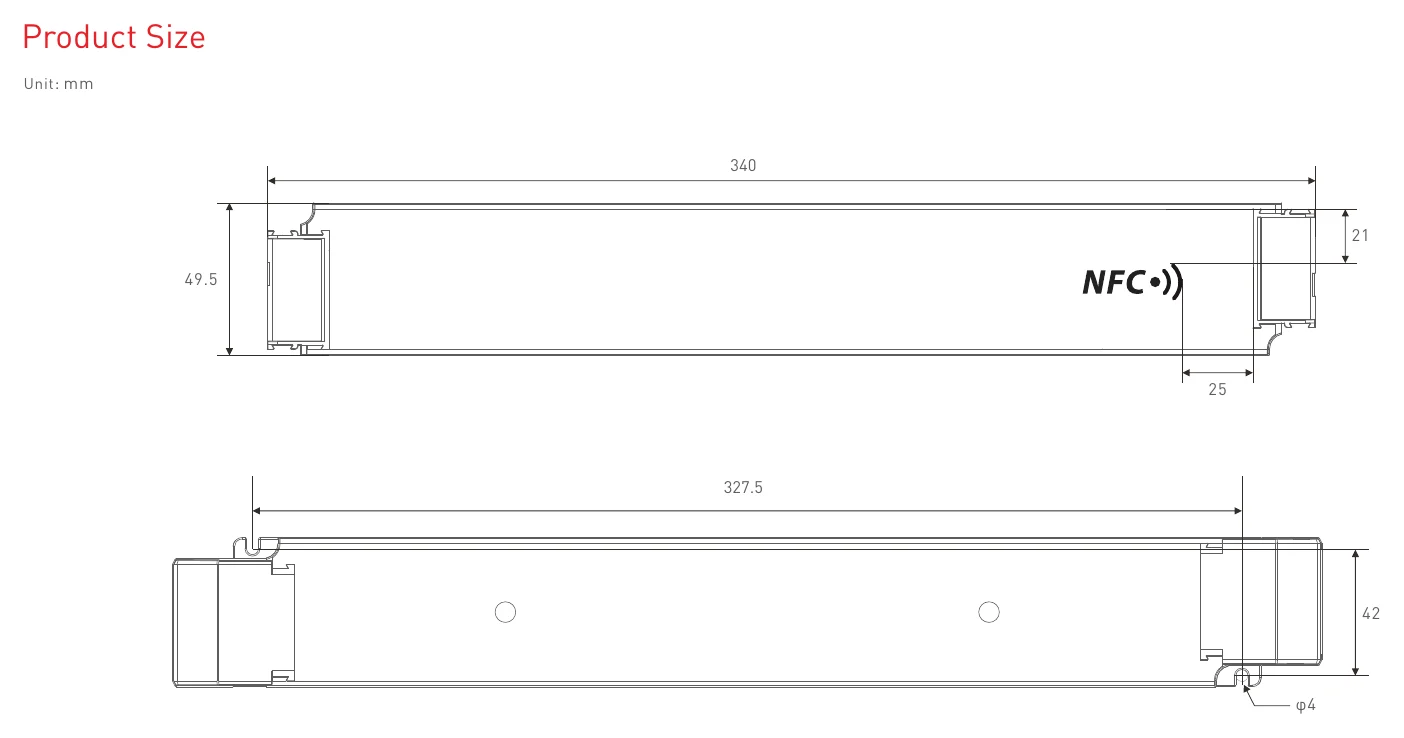

LM-240-24-G1D2 Product Size — Product Size

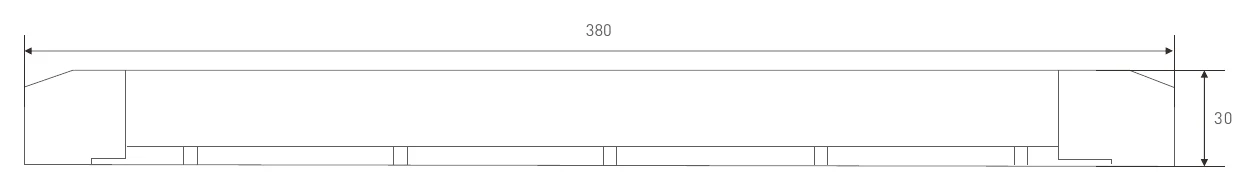

LM-240-24-G1D2 Dimensions (mm) — Dimensions (mm)

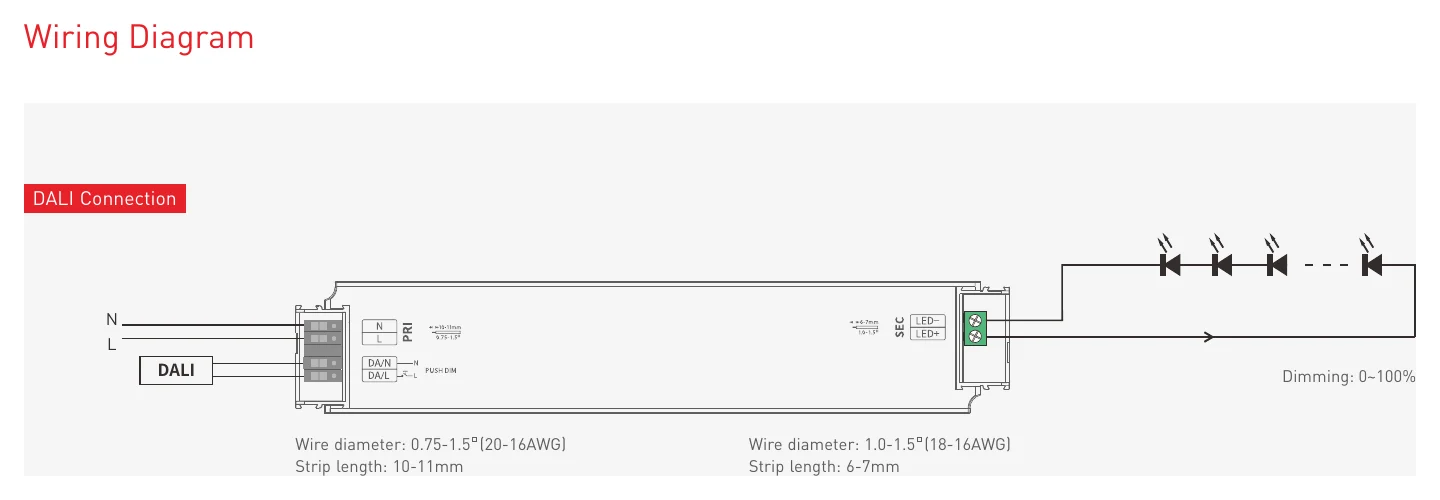

LM-240-24-G1D2 Wiring Diagram — Wiring Diagram

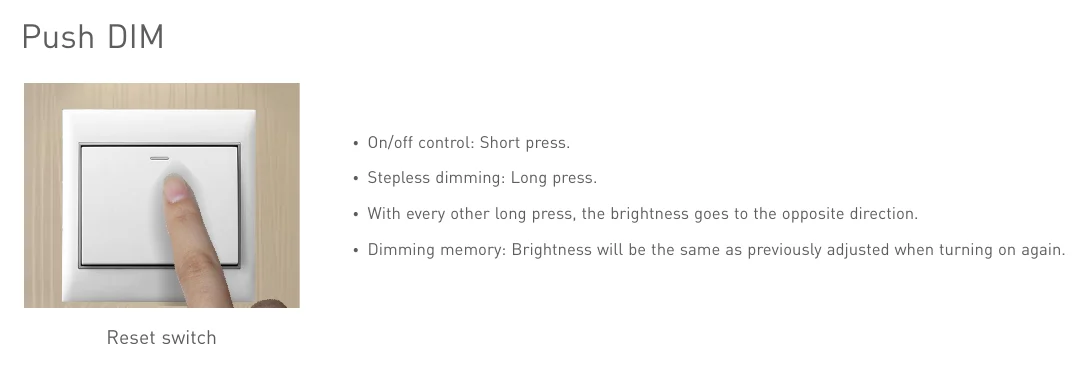

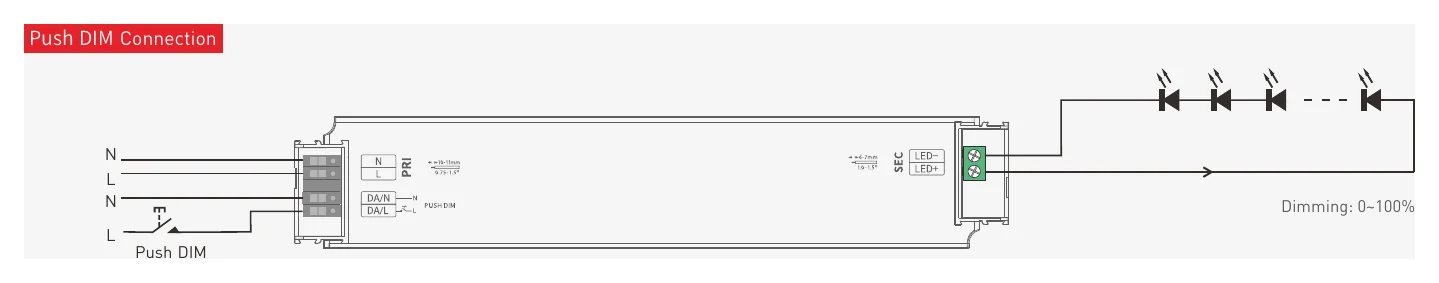

LM-240-24-G1D2 PushDIM Connection — PushDIM Connection

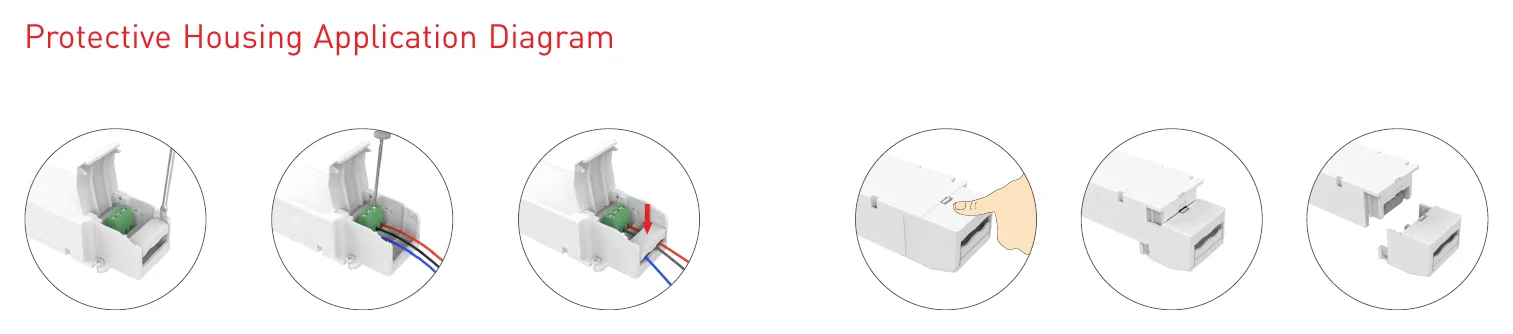

LM-240-24-G1D2 Protective Housing Application Diagram — Protective Housing Application Diagram

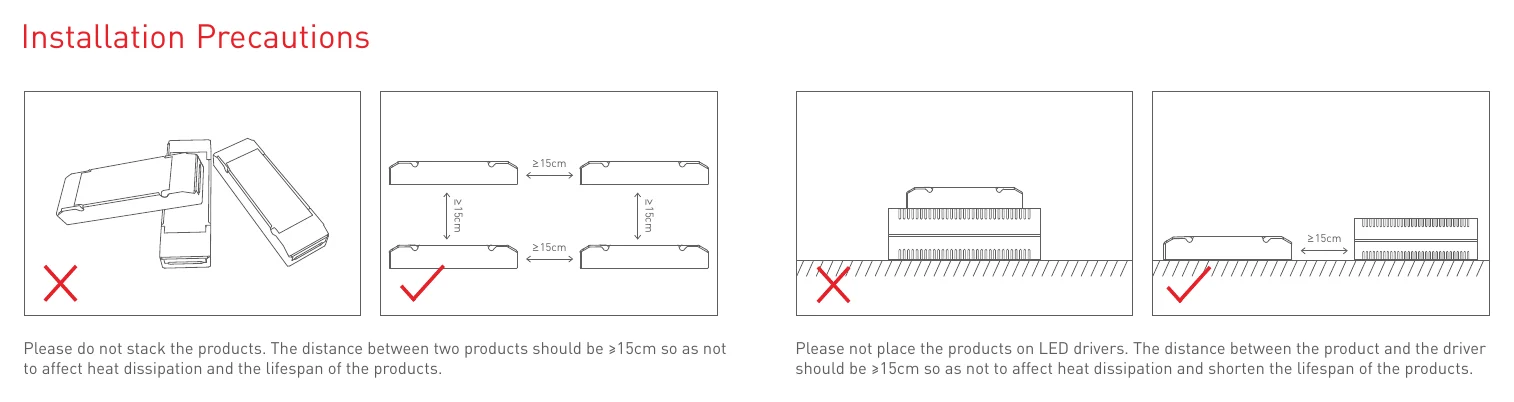

LM-240-24-G1D2 Installation Precautions — Installation Precautions

LM-240-24-G1D2 Use the NFC Lighting APP — Use the NFC Lighting APP

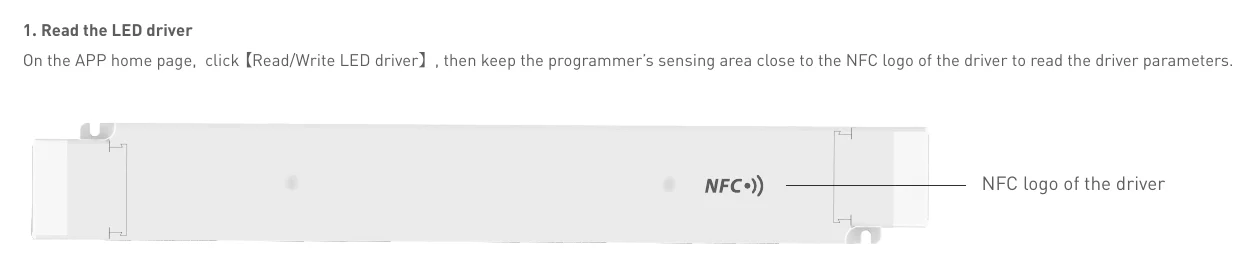

LM-240-24-G1D2 1.Read the LED driver — 1.Read the LED driver

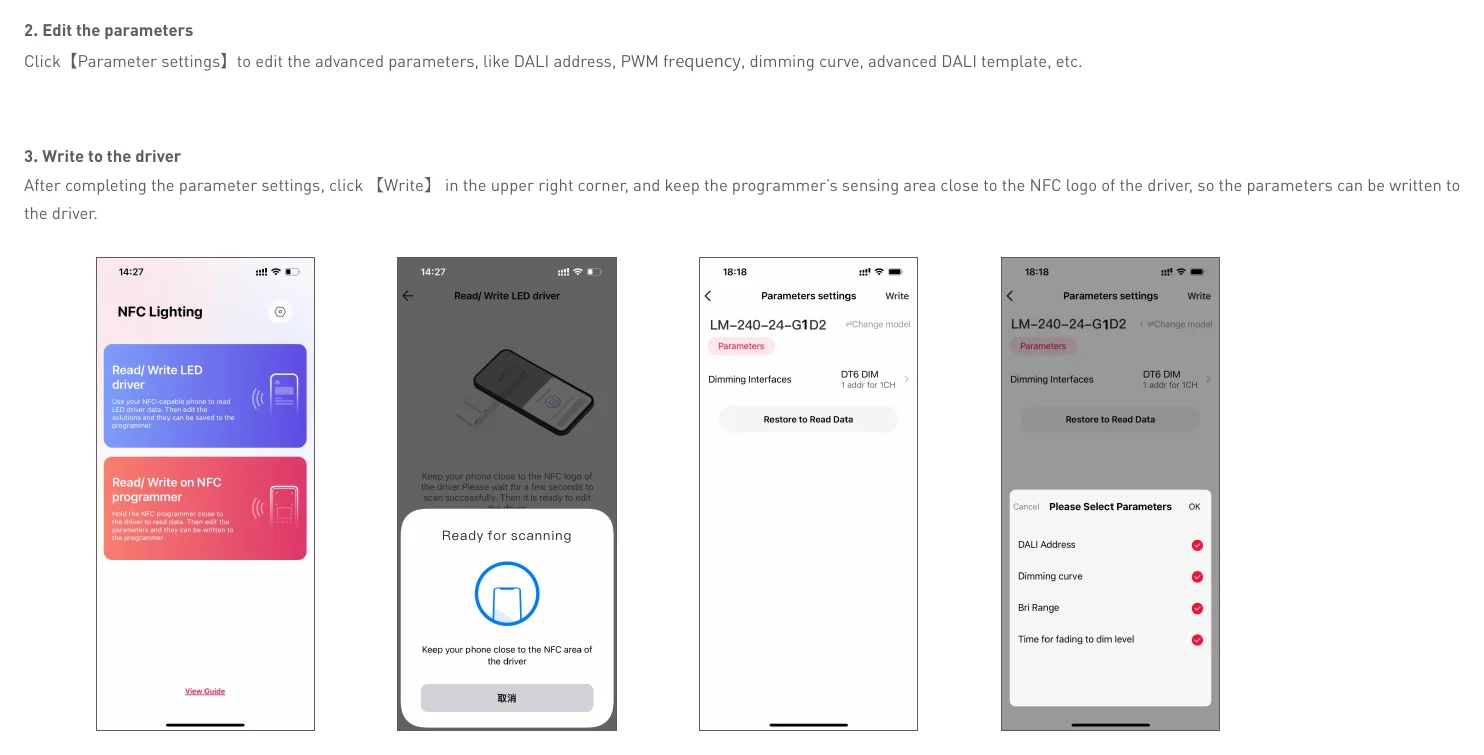

LM-240-24-G1D2 2.Edit the parameters — 2.Edit the parameters

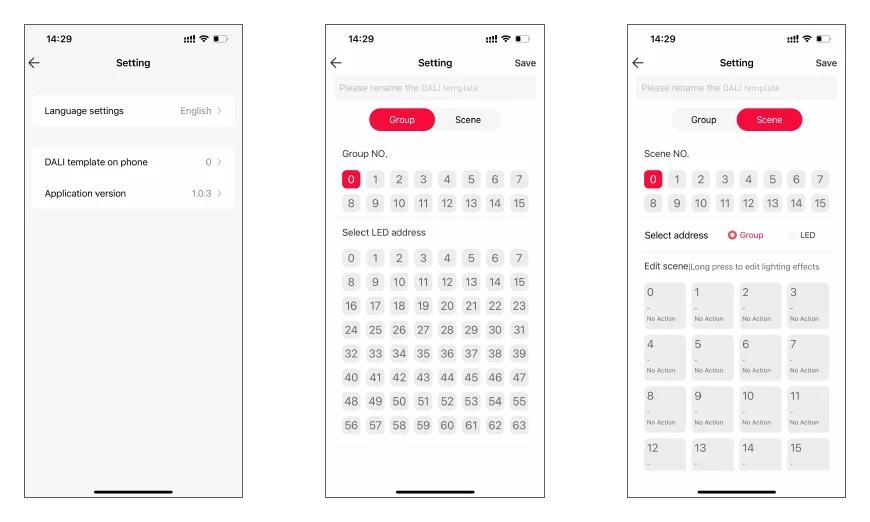

LM-240-24-G1D2 Advanced DALI template — Advanced DALI template

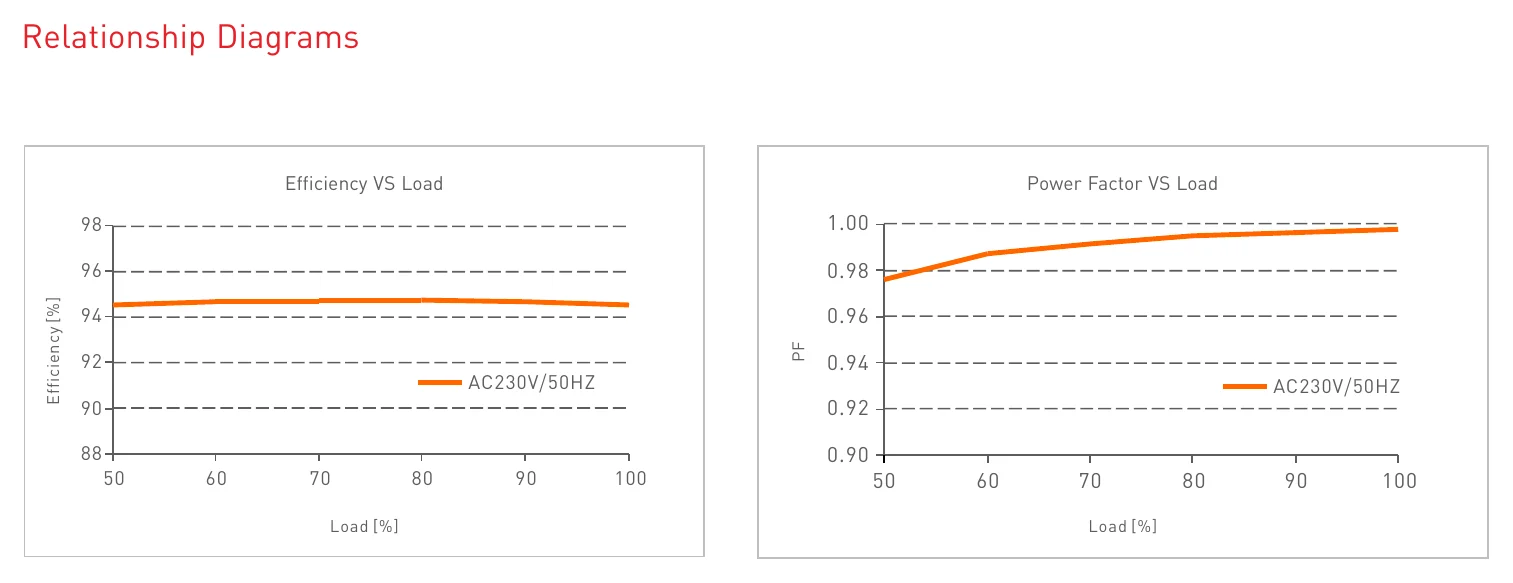

LM-240-24-G1D2 Relationship Diagrams — Relationship Diagrams

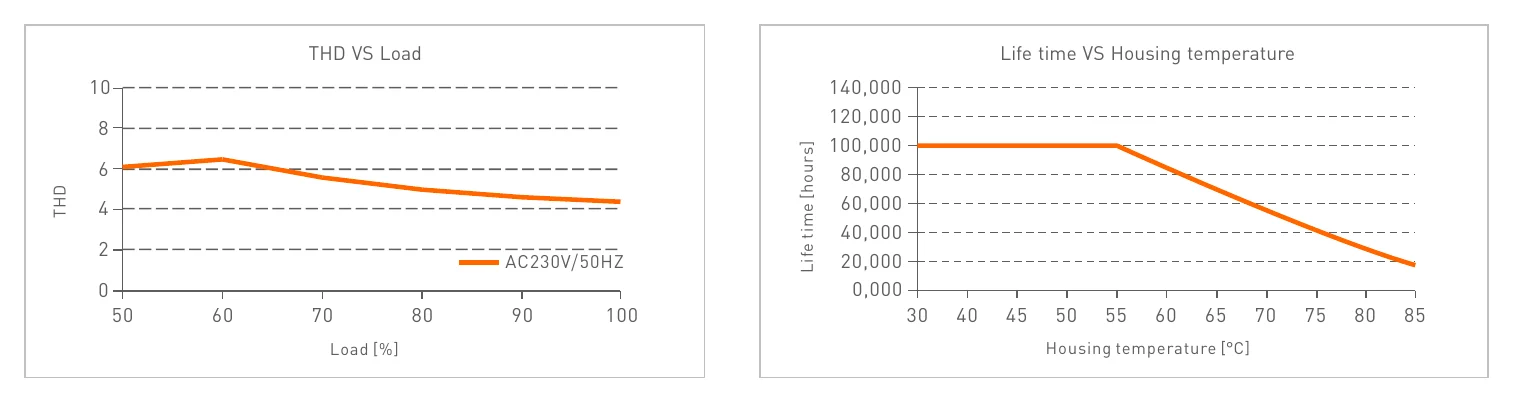

LM-240-24-G1D2 Lifetime[hours] — Lifetime[hours]

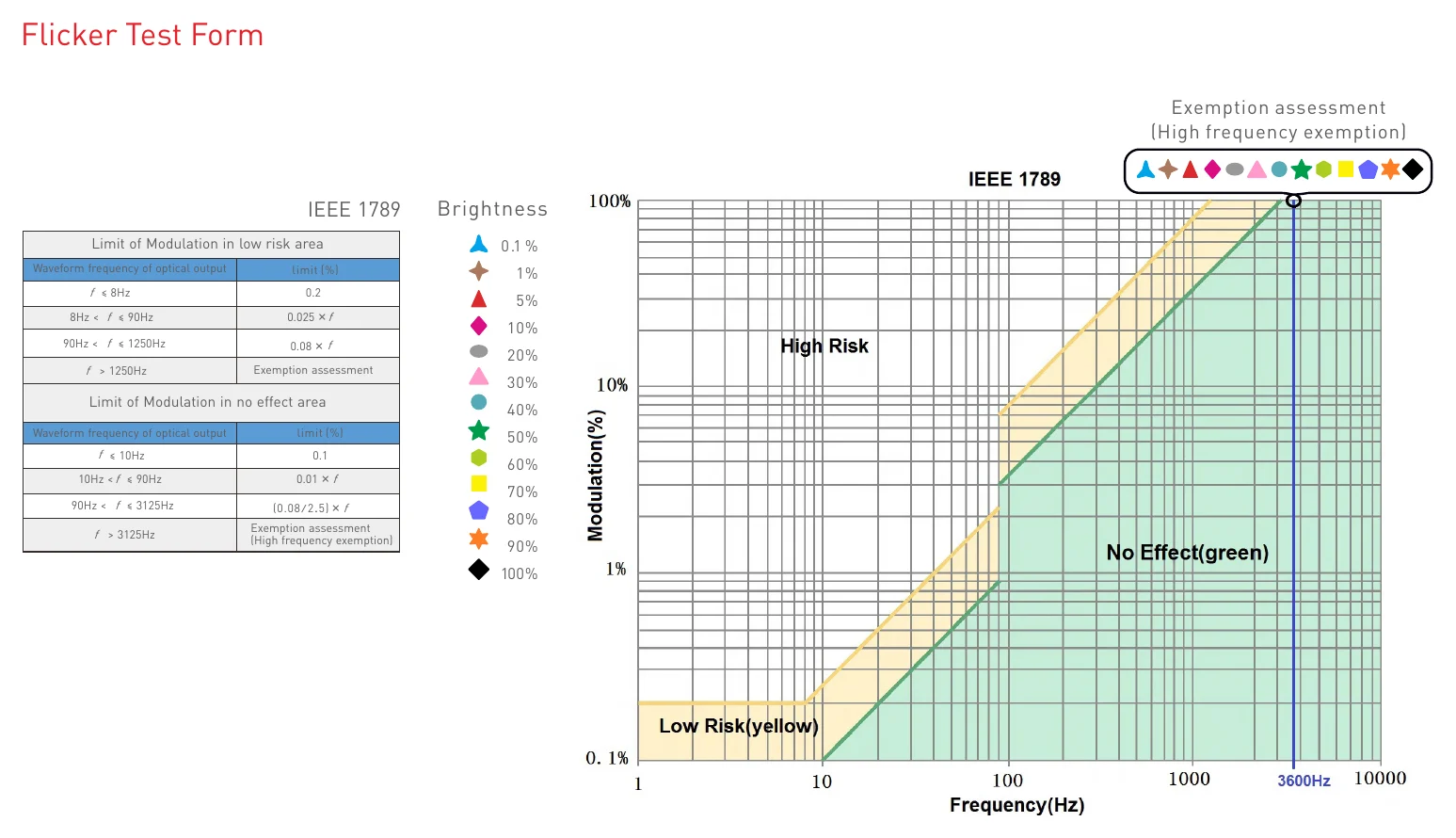

LM-240-24-G1D2 Flicker Test Form — Flicker Test Form

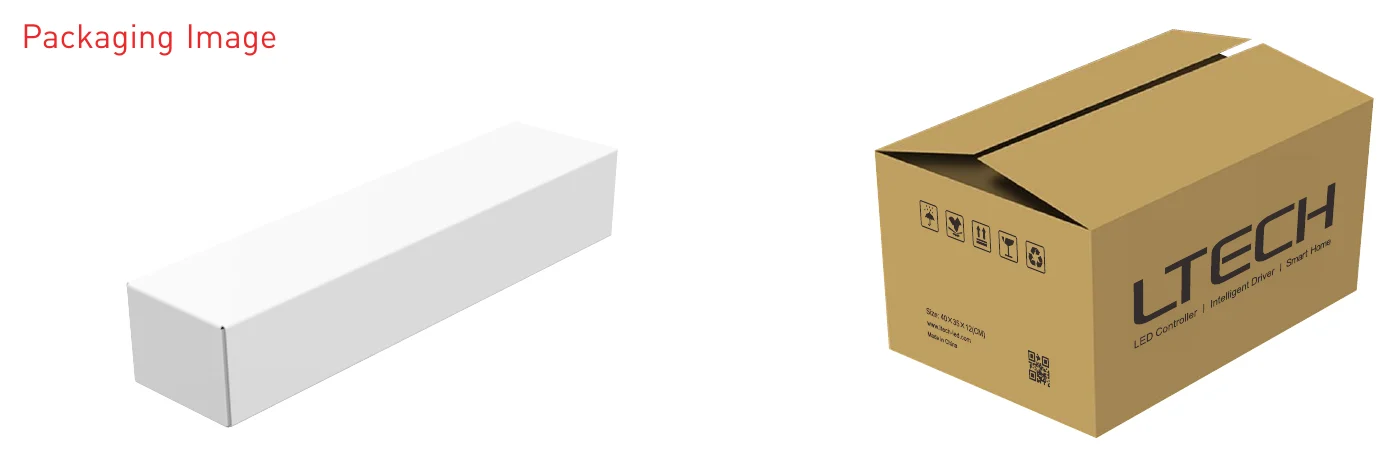

LM-240-24-G1D2 Packaging Image — Packaging Image

LM-240-24-G1D2 LED智能调光驱动器(恒压型) — LED智能调光驱动器(恒压型)

Downloads

Datasheet1

LM-240-24-G1D2 datasheetLM_240_24_G1D2_spec_sheet.pdf PDF Download

FAQ

What type of product is the Ltech LM-240-24-G1D2?

The Ltech LM-240-24-G1D2 is a 240W constant-voltage LED driver with a 24V DC output. It supports DALI2 dimming and includes NFC-based parameter adjustment through an app.

What output does this LED driver provide?

This model provides a 24V output and is rated for up to 10A current. Its maximum rated power is 240W, making it suitable for higher-power 24V constant-voltage LED lighting applications.

Does the LM-240-24-G1D2 support deep dimming?

Yes. This driver supports dimming down to 0.01% via DALI-2 DT6 and PUSH DIM interfaces. It features a PWM frequency of 3600Hz (default), adjustable via NFC.

Can DALI settings be adjusted on this model?

Yes. The LM-240-24-G1D2 allows you to change parameters such as the DALI address and PWM frequency through an app. It also supports setting DALI groups and scenes using an advanced DALI template in the app.

What operating environment is this driver rated for?

This model has a working ambient temperature range of -20 to 45°C. The specified case temperature is up to 86°C, and it includes overheat protection with automatic recovery behavior.

What protection features does the LM-240-24-G1D2 include?

The driver includes overheat, overvoltage, overload, and short-circuit protection. Depending on the fault condition, it shuts down or enters hiccup mode and then recovers automatically.

Is this driver intended for commercial or professional LED lighting use?

Yes. Its 240W power rating, DALI-2 control, and deep dimming capability make it a strong fit for professional LED lighting projects. It is designed for indoor use (IP20) and includes comprehensive protection features.
