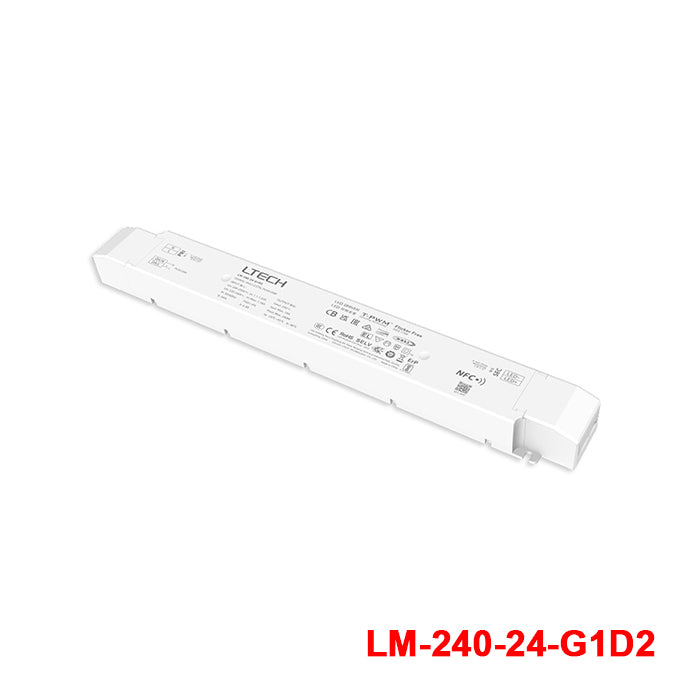

Ltech LM-240-24-G1D2 240W 24V DALI2 Driver - NFC 10A

Q: What type of product is the Ltech LM-240-24-G1D2?

The Ltech LM-240-24-G1D2 is a 240W constant-voltage LED driver with a 24V DC output. It supports DALI2 dimming and includes NFC-based parameter adjustment through an app.

Q: What output does this LED driver provide?

This model provides a 24V output and is rated for up to 10A current. Its maximum rated power is 240W, making it suitable for higher-power 24V constant-voltage LED lighting applications.

Q: Does the LM-240-24-G1D2 support deep dimming?

Yes. This driver uses T-PWM super deep dimming technology and supports dimming down to 0.01%. It also features soft-on and fade-in dimming for improved visual comfort, with a flicker-free dimming process.

Q: Can DALI settings be adjusted on this model?

Yes. The LM-240-24-G1D2 allows you to change parameters such as the DALI address and PWM frequency through an app. It also supports setting DALI groups and scenes using an advanced DALI template in the app.

Q: What operating environment is this driver rated for?

This model has a working ambient temperature range of -20 to 45°C. The specified case temperature is up to 86°C, and it includes overheat protection with automatic recovery behavior.

Q: What protection features does the LM-240-24-G1D2 include?

The driver includes overheat, overvoltage, overload, and short-circuit protection. Depending on the fault condition, it shuts down or enters hiccup mode and then recovers automatically.

Q: Is this driver intended for commercial or professional LED lighting use?

Yes. Its 240W power rating, DALI2 control, deep dimming capability, and multiple international safety certifications make it a strong fit for professional LED lighting projects. It is also designed for long service life, with a stated lifespan of up to 100,000 hours and a 5-year warranty.

address and dimming can be set through NFC app

SKU:

LM-240-24-G1D2

Please for Pricing

Notify me when it's back in stock

Description

Features:

The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO.
The clamshell design and screwless type for strain-relief. The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
Change the DALI address, PWM frequency and other parameters via the APP.
Set the DALI group and scene in the advanced DALI template via the APP.
With soft-on and fade-in dimming function, enhancing your visual comfort.
The whole dimming process is flicker-free with high frequency exemption level.
T-PWM™ super deep dimming technology, 0.01% dimming depth.
Comply with the EU’s ErP Directive, networked standby<0.5W.
Overheat, over voltage, overload, short circuit protection and automatic recovery.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor).

General Specification

AC input voltage range

220-240Vac

AC inrush current (max.)

Cold start 55A(Test twidth=1200us tested under 50% Ipeak)/230Vac

Overload Protection

Shut down the output when rated power≥102%, auto recovers

Over-heat Protection

Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically

Overvoltage Protection

Shut down the output when voltage≥28V, and recover automatically

Short Circuit Protection

Enter hiccup mode if short circuit occurs, and recover automatically

Withstand voltage

I/P-O/P: 3750Vac

Working temperature

ta: -20 ~ 45°C tc: 86°C

Safety standards

CCC - China - GB19510.1，GB19510.14

TUV - Germany - EN61347-1，EN61347-2-13，EN62493

CE - European Union - EN61347-1，EN61347-2-13，EN62384

KC - Korea - KC61347-1，KC61347-2-13

RCM - Australia - AS61347-1，AS61347-2-13

ENEC - Europe - EN61347-1，EN61347-2-13，EN62384

CB - CB member states - IEC61347-1，IEC61347-2-13

EAC - Russia - IEC61347-1，IEC61347-2-13

UKCA - Britain - BS EN 61347-2-13:2014+A1:2017，BS EN 61347-1:2015+A1:2021

Dimension (LxWxH)

380×49.5×30mm

Specifications

Brand

Ltech
Series

Ltech DALI Series
Power Rating

240 Watt
Output Voltage

24 Volt
Rated Current

10 Ampere
Input Voltage

200V~250V
Standards Met

CB,CCC,CE,EAC,ENEC,KC,SELV,TUV
Operation Mode

Constant Voltage
Operating Temperature

-20°C~45°C
Warranty

5 Year
Length

38 cm
Width

4.95 cm
Height

3 cm
Weight

0.01 kg
