Ltech LM-240-24-G2D2 240W 24V DALI2 Driver - NFC, Tunable White 10A
Log in to see priceOverview
LM-240-24-G2D2 is the 24Vdc output model of this series: typical efficiency 94%.
Intelligent Tunable White LED Driver (Constant Voltage)
Features
- The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO.

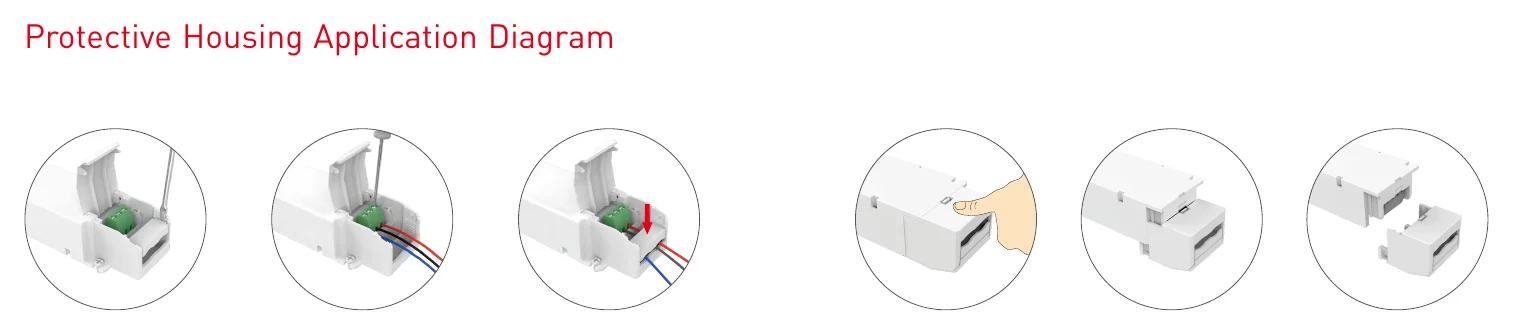

- The clamshell design and screwless type for strain-relief. The design of dismountable end cap allows you to adjust the length of housing depending on your needs.

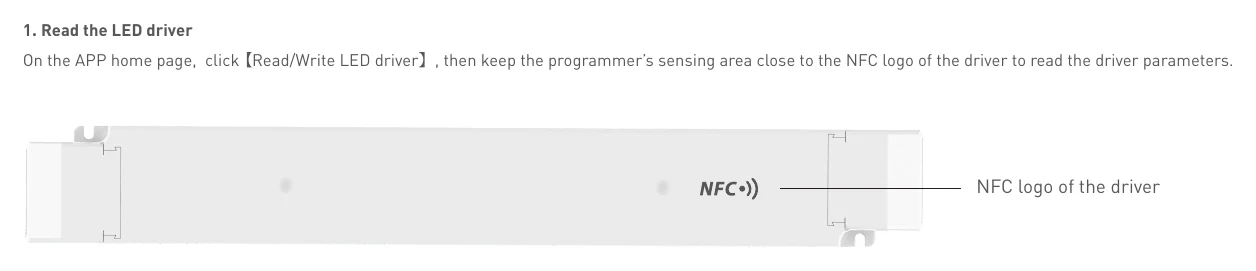

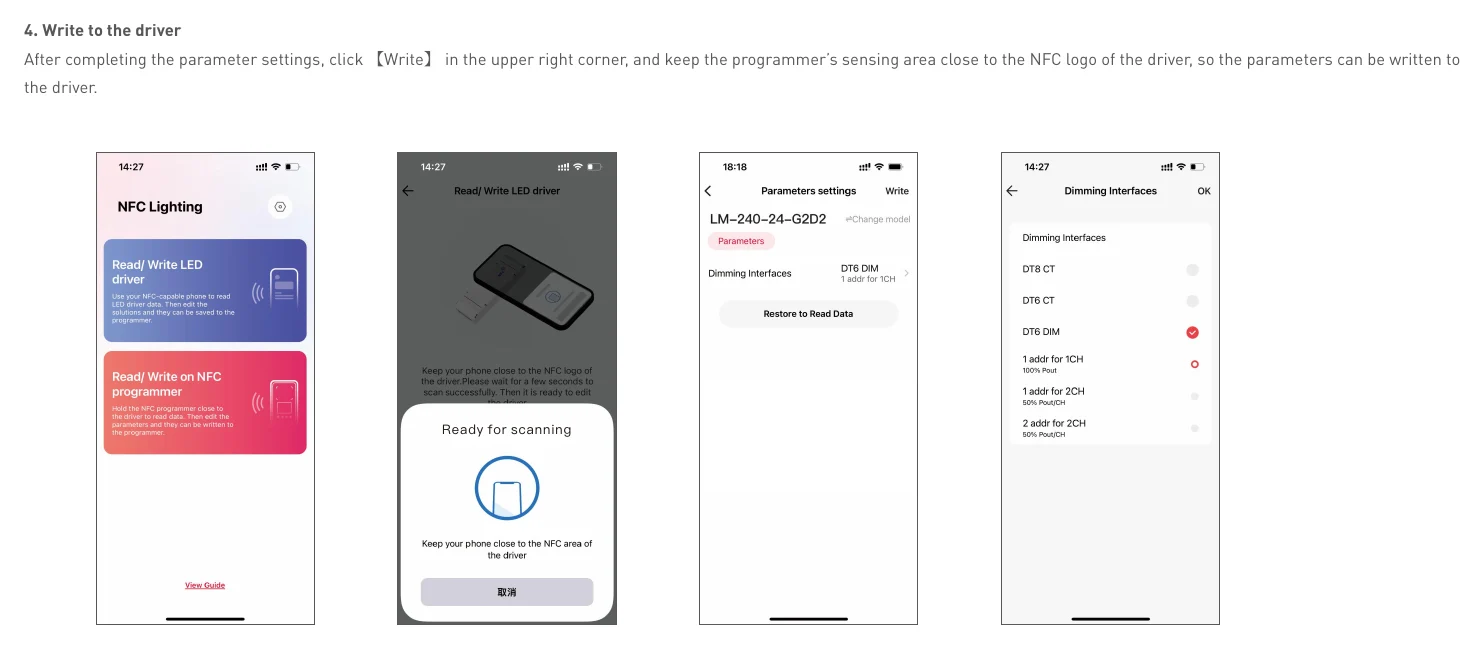

- Change the DALI address, PWM frequency and other parameters via the APP.

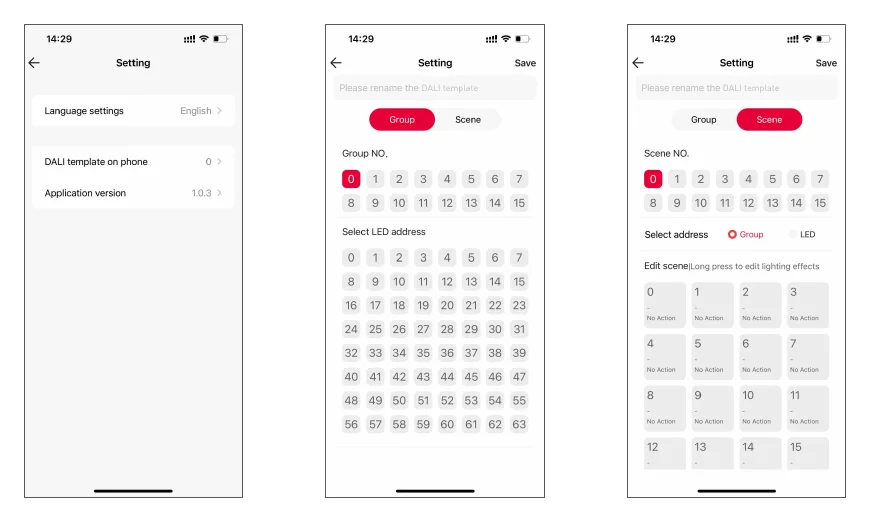

- Set the DALI group and scene in the advanced DALI template via the APP.
- Adopt constant power design that can adjust different color temperature while brightness remains the same.
- With soft-on and fade-in dimming function, enhancing your visual comfort.
- The whole dimming process is flicker-free with high frequency exemption level.
- T-PWM™ super deep dimming technology, 0.01% dimming depth.
- Comply with the EU’s ErP Directive, networked standby<0.5W.
- Overheat, over voltage, overload, short circuit protection and automatic recovery.
- Normal service life can reach 100,000 hours.
- 5-year warranty (Rubycon capacitor).
Specifications
Features
- Output Type
- Constant voltage
- Dimming Interface

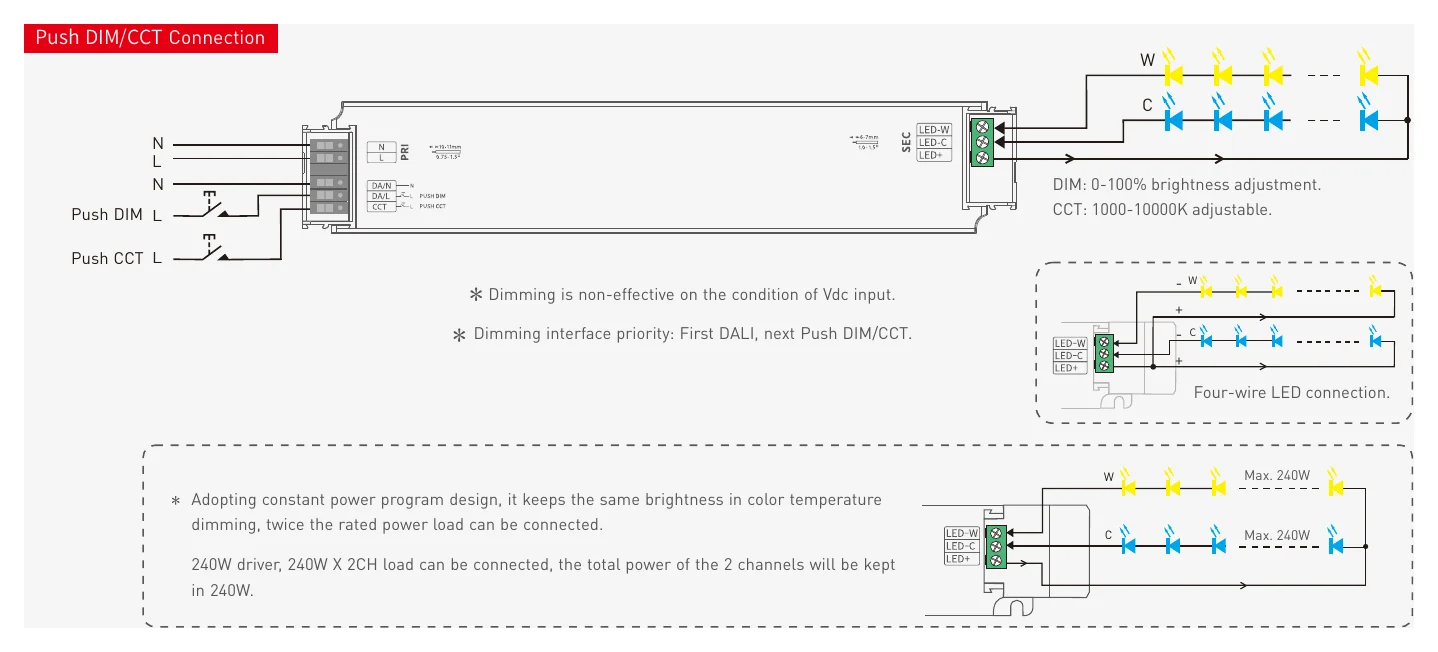

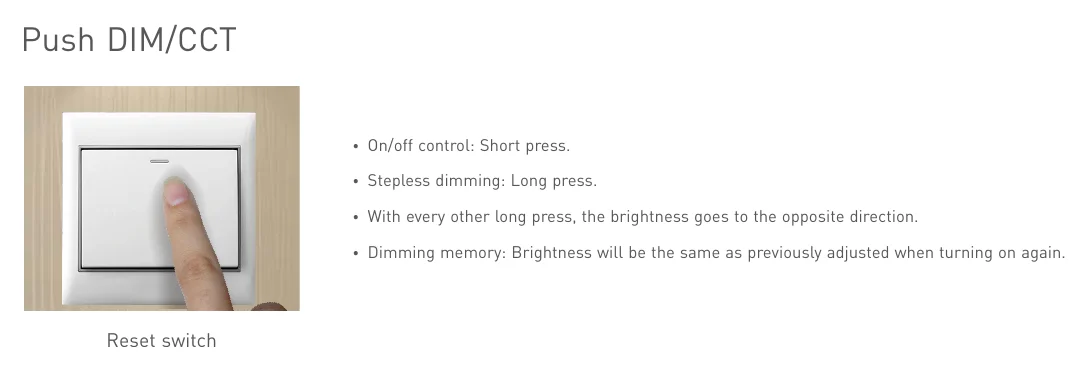

- DALI-2 DT6/DT8, PUSH DIM/CCT
- Output Feature
- Isolation
- Protection Grade
- IP20
- Insulation Grade
- Class II (Suitable for class I/ II /III light fixtures)
OUTPUT
- Output Voltage
- 24Vdc
- Output Voltage Range
- 24Vdc±0.5Vdc
- Output Current
- Max. 10A
- Output Power
- Max. 240W
- Dimming Range
- 0~100%, down to 0.01%
- Ripple(maximum)
- 200mVp-p
- Voltage Accuracy
- ±5%
- PWM Frequency
- 3600Hz (Default) / (NFC setting range 300-22000Hz)
INPUT
- DC Voltage Range
- 200-250Vdc
- AC Voltage Range
- 220-240Vac
- EoFV
- 99.6%
- Input Voltage
- 220-240Vac
- Frequency
- 50/60Hz
- Input Current
- Max. 1.18A/230Vac
- Power Factor
- PF>0.99/230Vac, at full load
- THD
- THD≤5%@230Vac, at full load

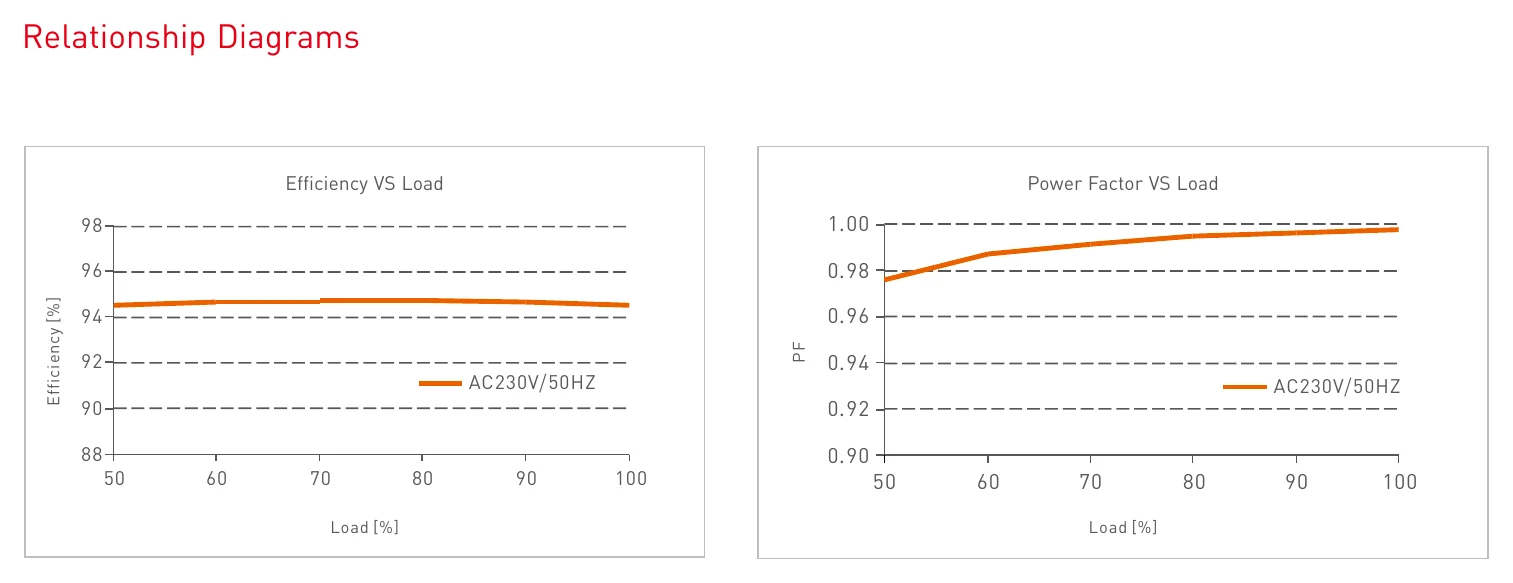

- Efficiency (Typ.)
- 94%
- Inrush Current
- 55A (twidth=1200us, tested under 50% Ipeak) @ 230Vac
- Anti Surge
- L-N: 2KV
- Leakage Current
- Max. 0.5mA
ENVIRONMENT
- Working Temperature
- ta: -20 ~ 45°C tc: 86°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temperature/Humidity
- -40 ~ 80°C/10~95%RH
- Temperature Coefficient
- ±0.03%/°C(0-50°C)
- Vibration
- 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Overload Protection
- Shut down the output when rated power≥102%, auto recovers
- Overheat Protection
- Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
- Overvoltage Protection
- Shut down the output when voltage≥28V, and recover automatically
- Short Circuit Protection
- Enter hiccup mode if short circuit occurs, and recover automatically
SAFETY & EMC
- Withstand Voltage
- I/P-O/P: 3750Vac
- Insulation Resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
- Safety Standards
-
Parameter Standard Test Level CCC China GB19510.1, GB19510.14 TUV Germany EN61347-1, EN61347-2-13, EN62493 CB CB Member States IEC61347-1, IEC61347-2-13 CE European Union EN61347-1, EN61347-2-13, EN62384 KC Korea KC61347-1, KC61347-2-13 EAC Russia IEC61347-1, IEC61347-2-13 RCM Australia AS 61347-1, AS 61347-2-13 ENEC Europe EN61347-1, EN61347-2-13, EN62384 UKCA Britain BS EN 61347-1, BS EN 61347-2-13, BS EN 62493 - EMC Emission
-
Parameter Standard Test Level CCC China GB/T17743, GB17625.1 CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547 KC Korea KSC 9815, KSC 9547 EAC Russia IEC62493, IEC61547, EH55015 RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547 UKCA Britain BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547 - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11, EN61547
ErP
- Power Consumption
-
Parameter Standard Networked standby <0.5W [After shutdown by command] No-load power consumption <0.5W [When the lamp is not connected] - Flicker/Stroboscopic Effect
-

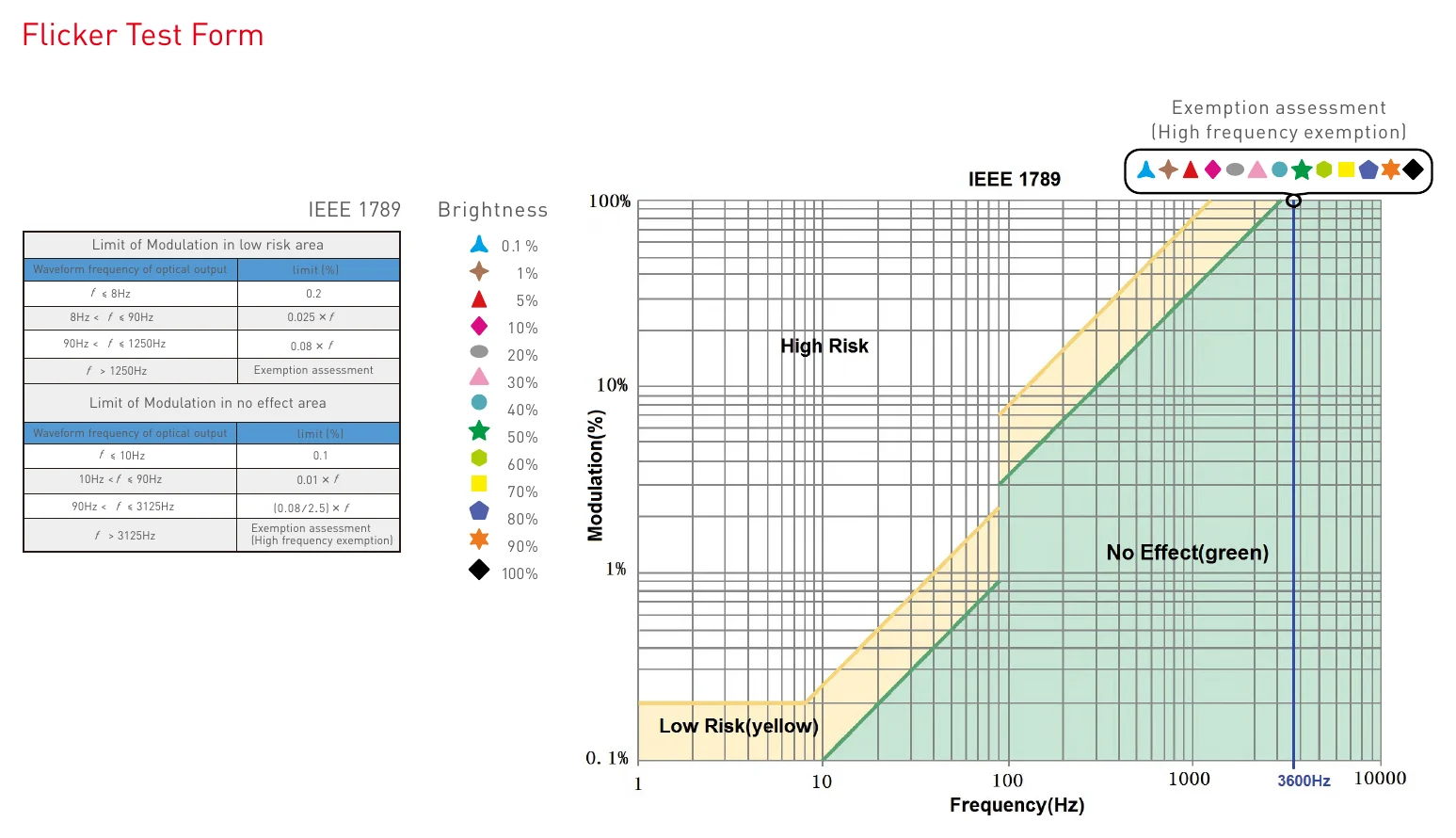

Parameter Standard Test Level IEEE 1789 Meet IEEE 1789 standard/High frequency exemption level CIE SVM Pst LM≤1.0, SVM≤0.4 DF Phase factor DF≥0.9
OTHERS
- Weight(N.W.)
- 555g±10g

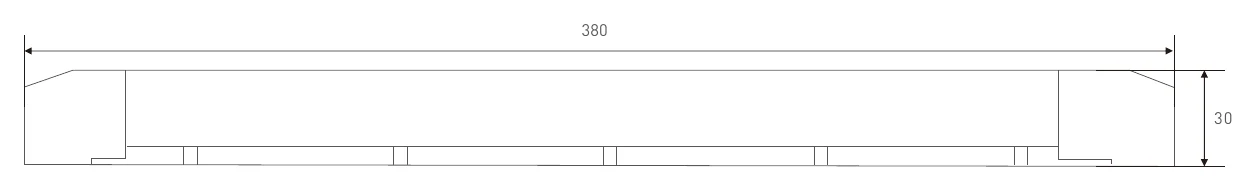

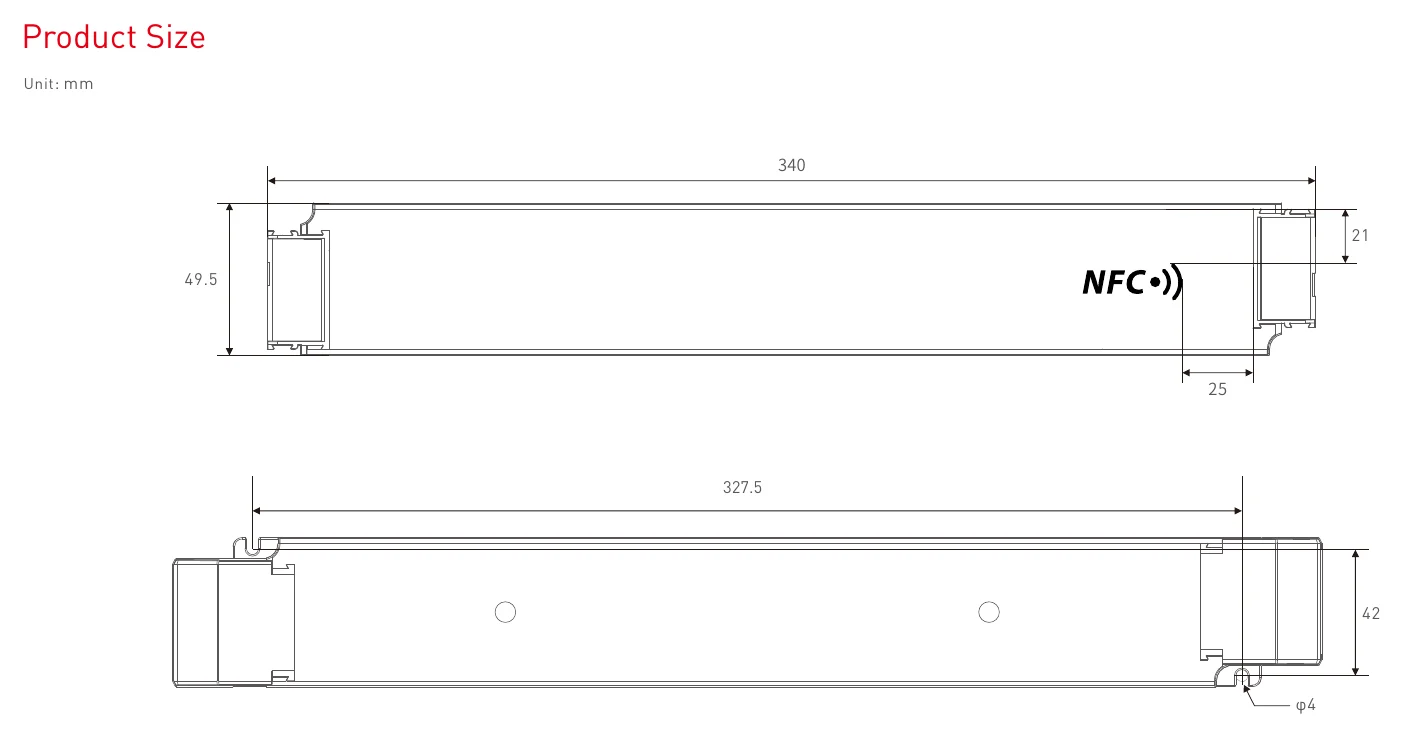

- Dimensions
- 380×49.5×30mm(L×W×H)
Certifications & ratings
- Marked features
- power program design
Test conditions and notes1
- The driver is suitable for connecting resistor current-limiting LED fixture (e.g. LED strip). The inrush current will be dozens of times increased if connecting built-in constant current IC current-limiting LED fixtures, the driver will activate the overloaded protection (hiccups flickering). When you order, please remark controlling the constant current LED fixture (e.g. MR16 lamp, underground light, LED wall washer, constant current LED strip, etc.), so that we can prepare them with special procedures.
Technical drawings

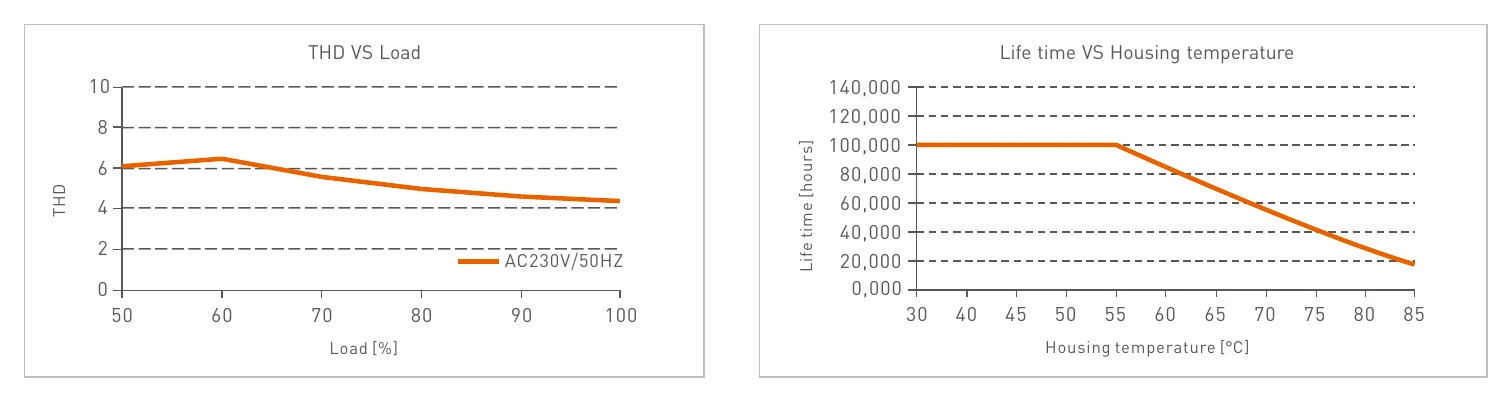

![LM-240-24-G2D2 Lifetime[hours]](https://wellforces-akeneo-pim.s3.ap-southeast-2.amazonaws.com/catalog/fd/34/fd34482d28e6a219cb25b8650a0607c4ec3c780c2b073f55f1f01544ddc99b21.webp)
Downloads
Datasheet1
FAQ
What type of LED driver is the Ltech LM-240-24-G2D2?
The Ltech LM-240-24-G2D2 is a 240W constant-voltage 24V LED driver with DALI2 dimming support. It is designed for tunable white lighting applications and includes NFC-based parameter adjustment through the app.
What output does the LM-240-24-G2D2 provide?
This model provides a 24V DC output with a rated current of 10A and a maximum power rating of 240W. It uses a constant voltage design to support color temperature adjustment while maintaining brightness.
Is the LM-240-24-G2D2 suitable for tunable white LED lighting projects?
Yes, this driver is specifically positioned for tunable white applications. Its constant voltage design helps maintain stable brightness when adjusting between different color temperatures.
What dimming performance does this DALI2 driver offer?
The LM-240-24-G2D2 supports DALI-2 DT6/DT8 control and PUSH DIM/CCT, with dimming depth down to 0.01%. It features a default PWM frequency of 3600Hz, adjustable via NFC setting range 300-22000Hz.
Can settings on the LM-240-24-G2D2 be adjusted without replacing the driver?
Yes, this model allows changes to parameters such as PWM frequency through the app via NFC. It also supports setting DALI groups and scenes in the advanced DALI template via the app.
What operating environment is this driver rated for?
The LM-240-24-G2D2 has a working ambient temperature range of -20 to 45°C, with a case temperature rating up to 86°C. It also includes over-heat, overload, short circuit, and over-voltage protection with automatic recovery.
What certifications and warranty does the LM-240-24-G2D2 have?
This model lists EMC immunity compliance with EN61000-4-2,3,4,5,6,8,11 and EN61547. It is backed by a 5-year warranty and is rated for a service life of up to 100,000 hours.
