Ltech SE-12-100-500-W1D 12W 100-500mA LED Driver - NFC, DALI2 Dimmable

0.01% dimming depthoutput current adjustable with 1mA stepsuitable for class I/II/III indoor light fixtures

SKU SE-12-100-500-W1D

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

SE-12-100-500-W1D is the 9-42Vdc output model of this series: typical efficiency 84%@300mA (at full load), 82%@500mA (at full load).

Features

Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
Ultra small, thin and lightweight, screwless end cap.
Change the output current, DALI address and other parameters via the APP.
Set the DALI group and scene in the advanced DALI template via the APP.
Adjustable output current with 1mA step.
Soft-on and fade-in dimming function enhances your visual comfort.
T-PWM™ super deep dimming technology, 0.01% dimming depth.
The whole dimming process is flicker-free with high frequency exemption level.
Comply with the EU’s ErP Directive, networked standby<0.5W.
When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.
Overheat, over voltage, overload, short circuit protection and automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor).

Specifications

SE-12-100-500-W1DSpecifications from the official datasheetDownload datasheet PDF

Features

Output Type: Constant current
Dimming Interface: DALI-2 DT6
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (Suitable for class I/ II /III light fixtures)

OUTPUT

Output Voltage: 9-42Vdc
Maximum output voltage(No-load): ≤48V
Output Current Range: 100-500mA
Output Power Range: 0.9W~12W
Dimming Range: 0~100%, down to 0.01%
LF Current Ripple: <3%(Maximum current for non dimming state)
Current Accuracy: ±5%
PWM Frequency: ≤3600Hz

INPUT

DC Voltage Range: 120-300Vdc
AC Voltage Range: 100-240Vac
Input Voltage: 115Vac/230Vac
Frequency: 50/60Hz
Input Current: ≤0.18A/115Vac ≤0.08A/230Vac
Power Factor: PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load)
THD: THD≤10%/230Vac (at full load)
Efficiency (Typ.): 84%@300mA (at full load), 82%@500mA (at full load)
Inrush Current: Cold start 15A (Test twidth=130us tested under 50% Ipeak)/230Vac
Anti Surge: L-N:2KV
Leakage Current: Max.0.24mA

ENVIRONMENT

Working Temperature: ta:-20~50°C tc:90°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40~80°C/10~95%RH
Temperature Coefficient: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection: Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
Overheat Protection: Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
Overvoltage Protection: Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
Short Circuit Protection: Enter hiccup mode if short circuit occurs, and recover automatically

SAFETY & EMC

Withstand Voltage: I/P-O/P: 3750Vac
Insulation Resistance: I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards: Parameter Standard Test Level

CCC China GB19510.1, GB19510.14
TUV Germany EN61347-1, EN61347-2-13, EN62493
CB CB Member States IEC61347-1, IEC61347-2-13
CE European Union EN61347-1, EN61347-2-13, EN62384
KC Korea KC61347-1, KC61347-2-13
EAC Russia IEC61347-1, IEC61347-2-13
RCM Australia AS 61347-1, AS 61347-2-13
ENEC Europe EN61347-1, EN61347-2-13, EN62384
UKCA Britain BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
BIS India IS 15885 (PART 2/SEC 13)
CUL Canada CSA C22.2 NO.250.13
UL America UL 8750
EMC Emission: Parameter Standard Test Level

CCC China GB/T17743, GB17625.1
CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547
KC Korea KSC 9815, KSC 9547
EAC Russia IEC62493, IEC61547, EH55015
RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547
UKCA Britain BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547
CUL Canada ICES-005
UL America FCC PART 15B
EMC Immunity: EN61000-4-2,3,4,5,6,8,11, EN61547

Parameter	Standard	Test Level
CCC	China	GB19510.1, GB19510.14
TUV	Germany	EN61347-1, EN61347-2-13, EN62493
CB	CB Member States	IEC61347-1, IEC61347-2-13
CE	European Union	EN61347-1, EN61347-2-13, EN62384
KC	Korea	KC61347-1, KC61347-2-13
EAC	Russia	IEC61347-1, IEC61347-2-13
RCM	Australia	AS 61347-1, AS 61347-2-13
ENEC	Europe	EN61347-1, EN61347-2-13, EN62384
UKCA	Britain	BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
BIS	India	IS 15885 (PART 2/SEC 13)
CUL	Canada	CSA C22.2 NO.250.13
UL	America	UL 8750

Parameter	Standard	Test Level
CCC	China	GB/T17743, GB17625.1
CE	European Union	EN55015, EN61000-3-2, EN61000-3-3, EN61547
KC	Korea	KSC 9815, KSC 9547
EAC	Russia	IEC62493, IEC61547, EH55015
RCM	Australia	EN55015, EN61000-3-2, EN61000-3-3, EN61547
UKCA	Britain	BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547
CUL	Canada	ICES-005
UL	America	FCC PART 15B

ErP

Power Consumption Standby power consumption: No standby mode
Power Consumption Networked standby: <0.5W (After shutdown by command)
Power Consumption No-load power consumption: <0.5W (When the lamp is not connected)

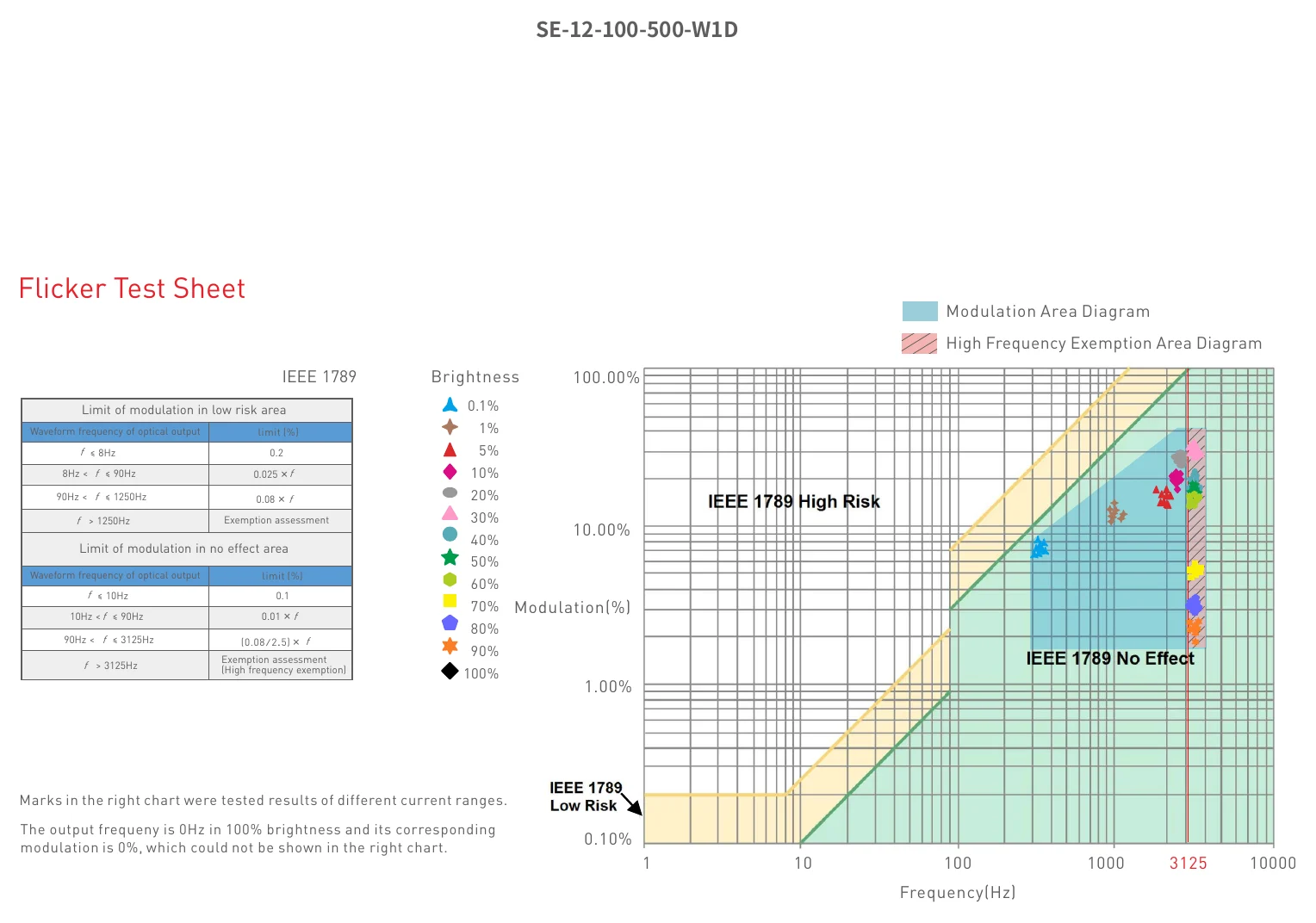

Flicker/Stroboscopic Effect IEEE1789: Meet IEEE 1789 standard/High frequency exemption level
Flicker/Stroboscopic Effect CIESVM: Pst LM≤1.0，SVM≤0.4
DF Phase factor: DF 0.9

OTHERS

Weight(N.W.): 85g±10g
Dimensions: 110×35×20mm(L×W×H)

Technical drawings

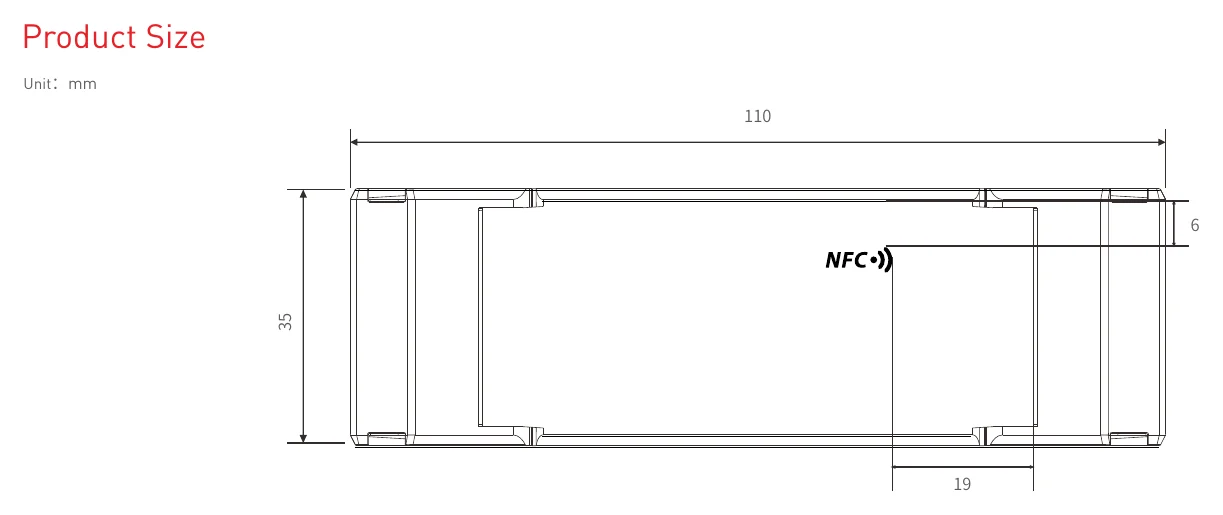

SE-12-100-500-W1D Product Size — Product Size

SE-12-100-500-W1D Dimensions (mm) — Dimensions (mm)

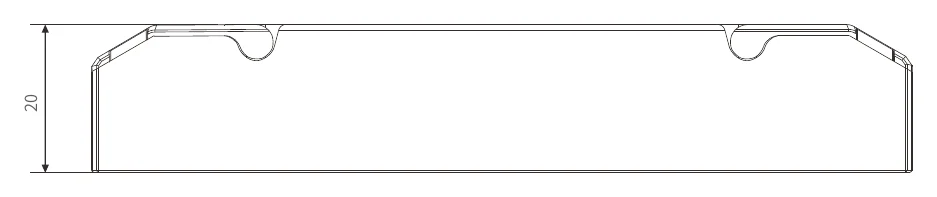

SE-12-100-500-W1D Product Size (2) — Product Size (2)

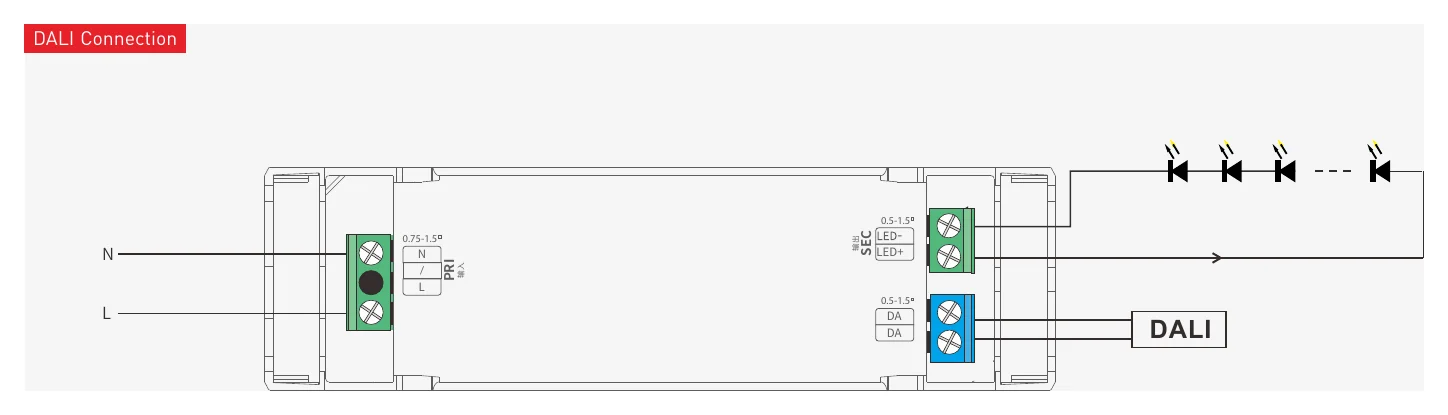

SE-12-100-500-W1D DALI Connection — DALI Connection

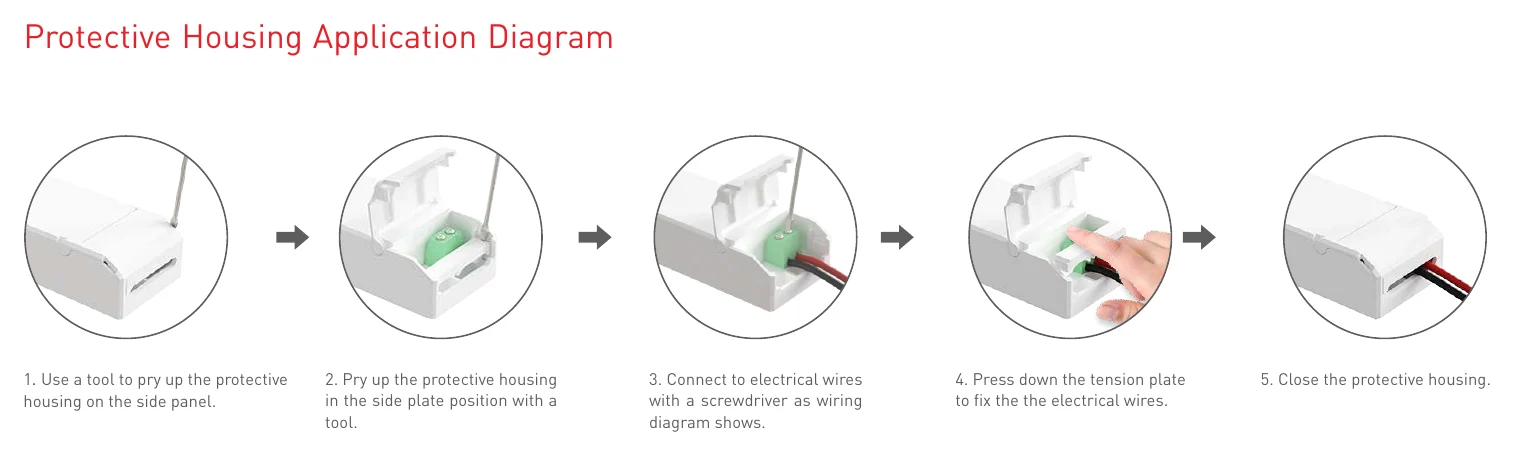

SE-12-100-500-W1D Protective Housing Application Diagram — Protective Housing Application Diagram

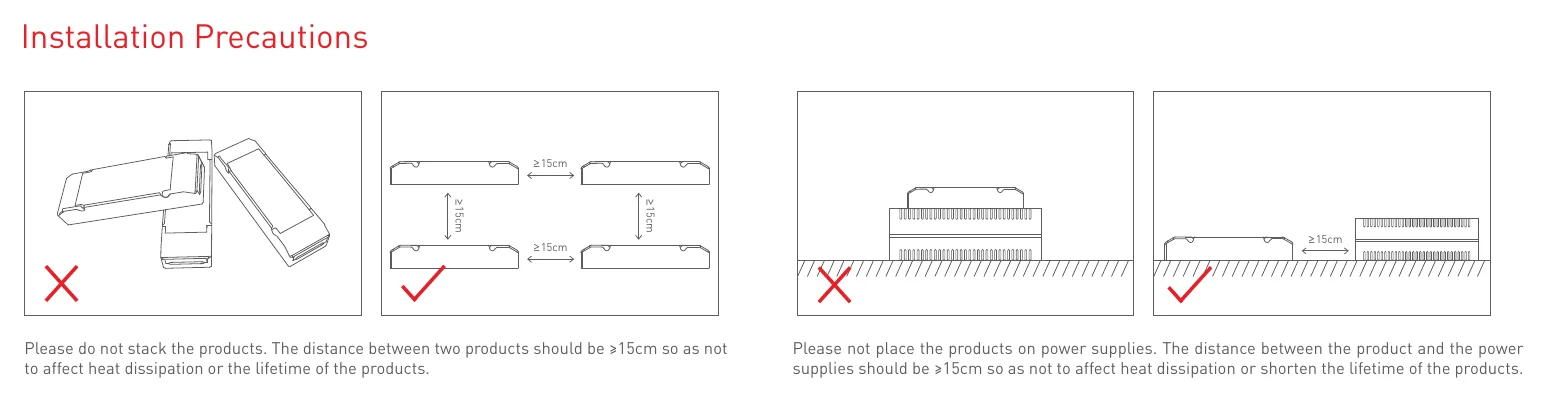

SE-12-100-500-W1D Installation Precautions — Installation Precautions

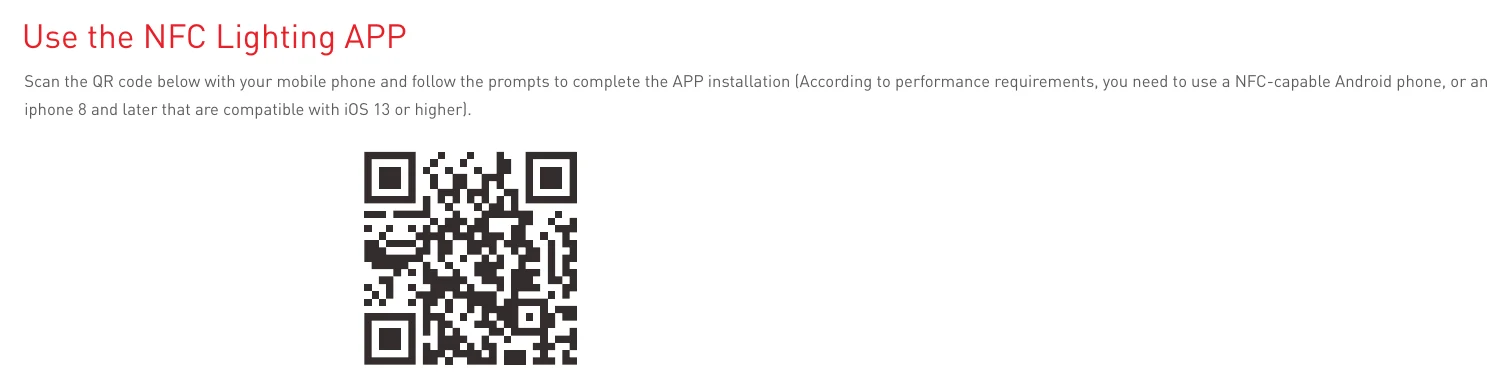

SE-12-100-500-W1D Use the NFC Lighting APP — Use the NFC Lighting APP

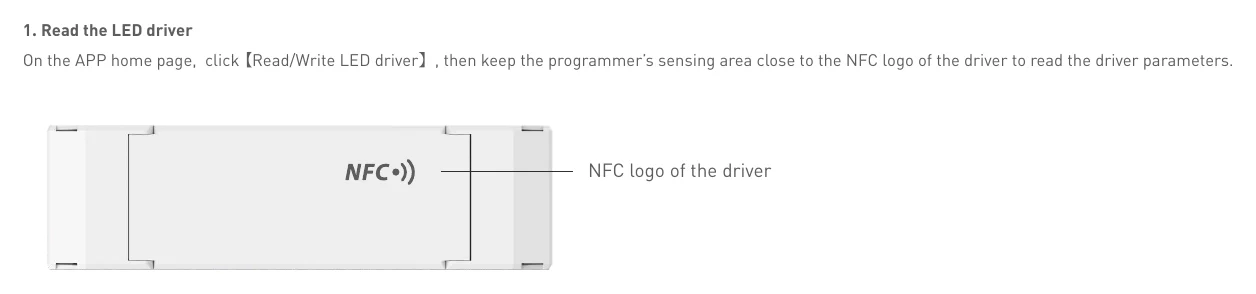

SE-12-100-500-W1D 1.Read the LED driver — 1.Read the LED driver

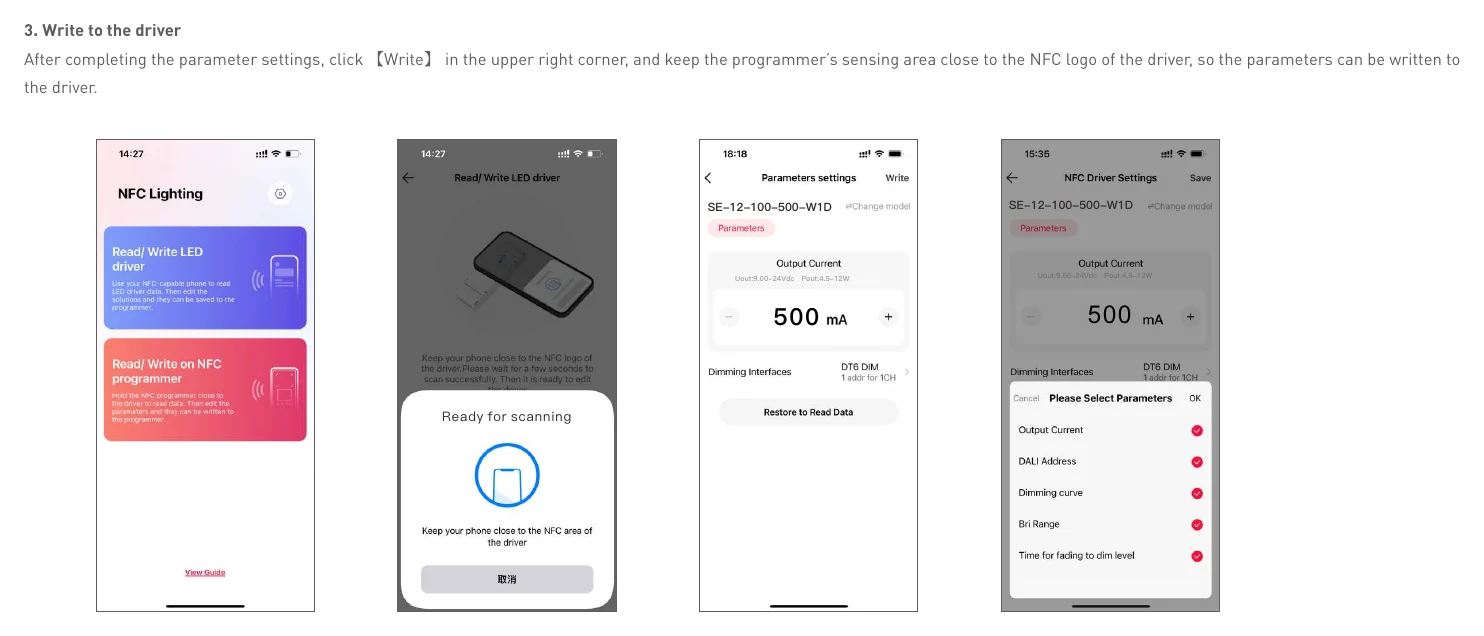

SE-12-100-500-W1D 3.Write to the driver — 3.Write to the driver

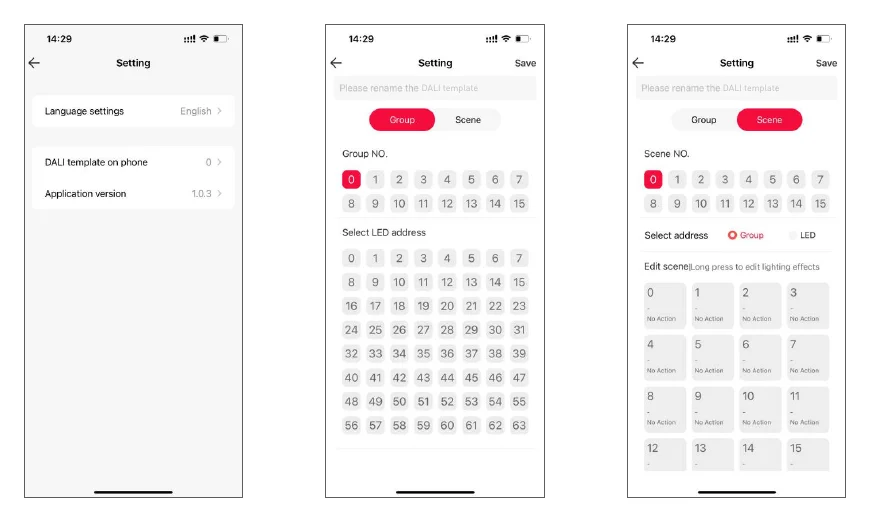

SE-12-100-500-W1D Advanced DALI template — Advanced DALI template

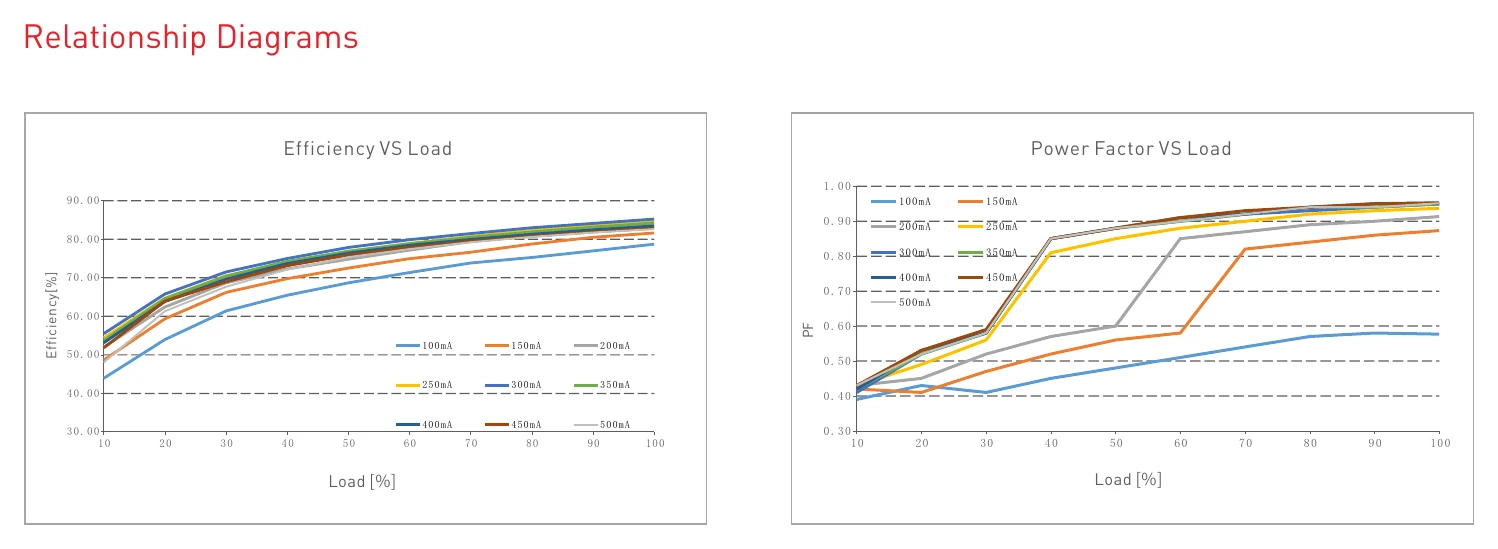

SE-12-100-500-W1D Relationship Diagrams — Relationship Diagrams

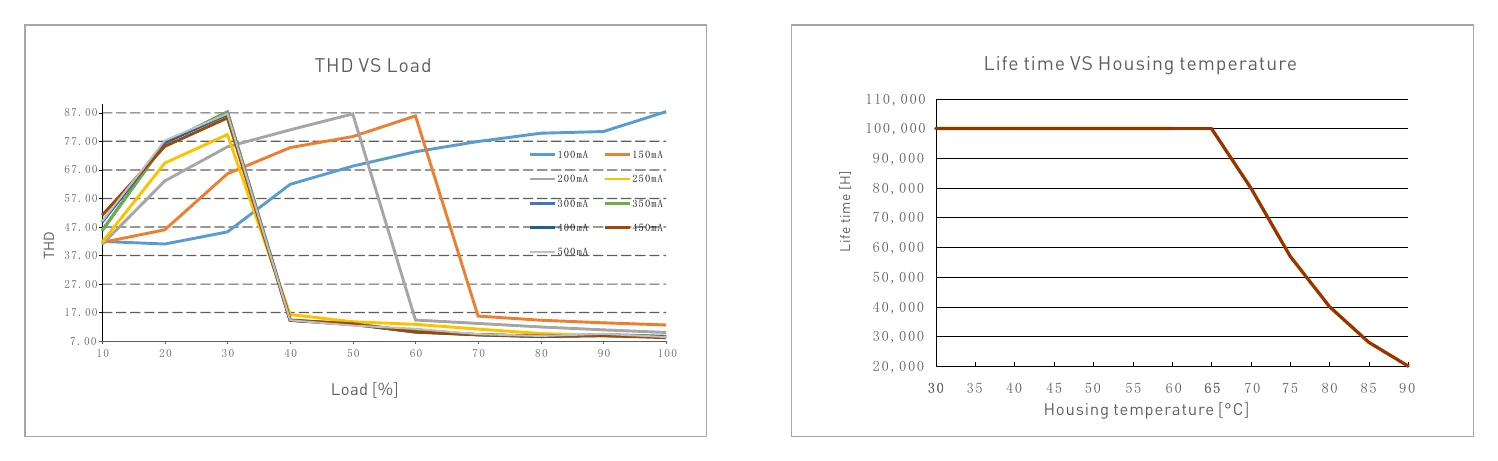

SE-12-100-500-W1D Life time VS Housing temperature — Life time VS Housing temperature

SE-12-100-500-W1D Life time VS Housing temperature (2) — Life time VS Housing temperature (2)

SE-12-100-500-W1D Packaging Image — Packaging Image

SE-12-100-500-W1D Packaging Image (2) — Packaging Image (2)

Downloads

Datasheet1

SE-12-100-500-W1D datasheetSE_12_100_500_W1D_Spec_sheet.pdf PDF Download

FAQ

What type of product is the Ltech SE-12-100-500-W1D?

The Ltech SE-12-100-500-W1D is a 12W constant-current LED driver for lighting applications that need dimming control. This model is designed for adjustable output current and supports DALI2 dimming, with NFC-based parameter configuration through an app.

What output range does this LED driver support?

This model supports an adjustable output current range of 100-500mA and a maximum no-load output voltage of ≤48V. Its total power rating is 12W, so it is best suited to low-power LED lighting applications that fit within those limits.

Does this driver support DALI dimming?

Yes, this driver is DALI2 dimmable. It also includes soft-on and fade-in dimming behavior, and the description highlights T-PWM super deep dimming technology with 0.01% dimming depth.

What makes this model different from a basic non-dimmable LED driver?

This model stands out because it combines DALI2 dimming with NFC app-based parameter adjustment. It also allows changes to output current, DALI address, groups, and scenes, which gives it more flexibility than a fixed-output, non-dimmable driver.

Can this driver be adjusted without replacing the unit?

Yes, the product description states that output current, DALI address, and other parameters can be changed through the app. It also notes 1mA step adjustment, which is useful when a project needs fine current tuning within the supported range.

What operating environment is this driver rated for?

This driver is specified for ambient temperatures from -20°C to 50°C. It features an IP20 protection grade, making it suitable for indoor use only.
