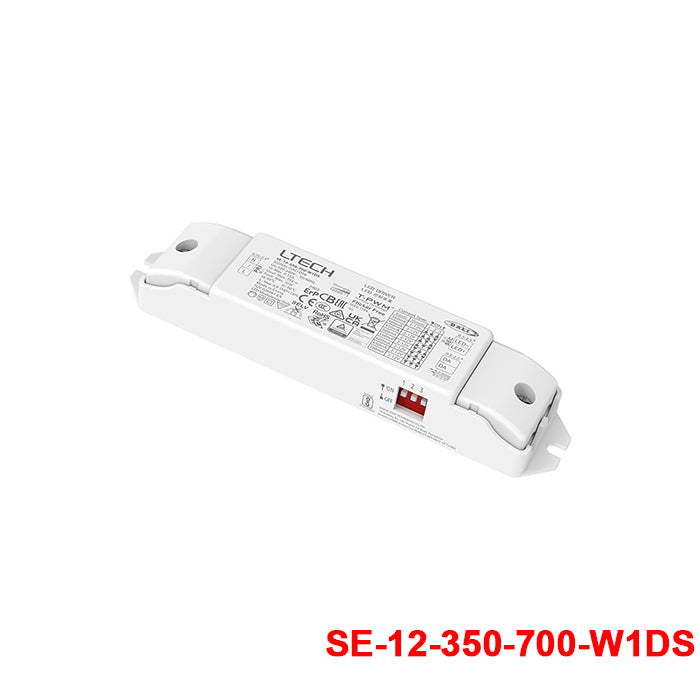

Ltech SE-12-350-700-W1DS 12W 350~700mA CC DALI2 LED Driver - Select...
Log in to see priceOverview
SE-12-350-700-W1DS is the 9-24Vdc output model of this series: typical efficiency 82%(at full load),.
Features
- Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
- Small size and light weight.
- DALI bus standard IEC62386-101, 102, 207.
- Class 2 LED driver, Safety Extra Low Voltage (SELV).
- Soft-on and fade-in dimming function enhances your visual comfort.
- T-PWM dimming technology allows quality and high-end lighting.
- The whole dimming process is flicker-free with high frequency exemption level.
- Multiple current levels, wide voltage range, suitable for LEDs with different power
- Comply with the EU’s ErP Directive, networked standby<0.5W.
- When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.
- Overheat, over voltage, overload, short circuit protection and automatic recovery.
- Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
- Normal service life can reach 100,000 hours.
- 5-year warranty (Rubycon capacitor).
Specifications
Features
- Output Type
- Constant current
- Dimming Interface
- DALI-2 DT6
- Output Feature
- Isolation
- Protection Grade
- IP20
- Insulation Grade
- Class II (Suitable for class I/ II /III light fixtures)
OUTPUT
- Output Voltage
- 9-24Vdc
- Output voltage range(No-load)
- ≤35Vdc

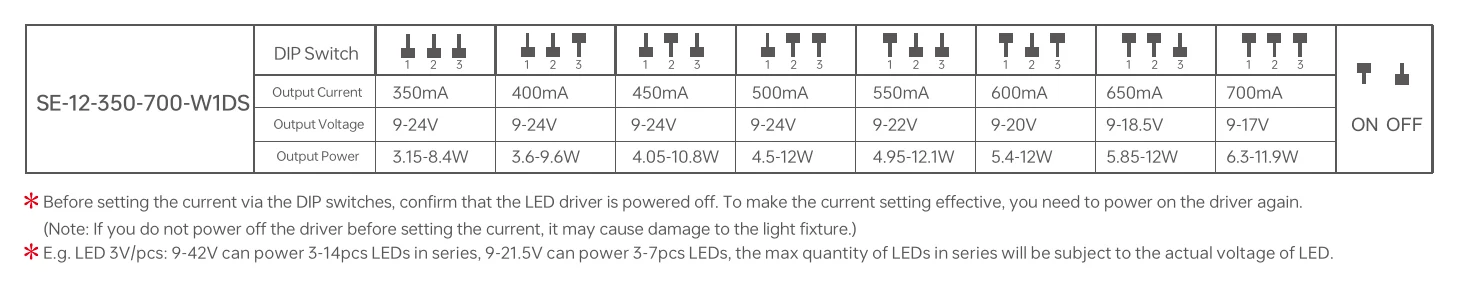

- Output Current Range
- 350-700mA
- Load power range
- 3.15W-12W
- Dimming Range
- 0~100%，down to 0.01%
- LF Current Ripple
- <3%(Maximum current for non dimming state)
- Current Accuracy
- ±5%
- PWM Frequency
- ≤3600Hz
INPUT
- DC Voltage Range
- 120-300Vdc
- AC Voltage Range
- 100-240Vac
- Input Voltage
- 115Vac/230Vac
- Frequency
- 50/60Hz
- Input Current
- ≤0.18A/115Vac (at full load), ≤0.08A/230Vac (at full load)
- Power Factor
- PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load),

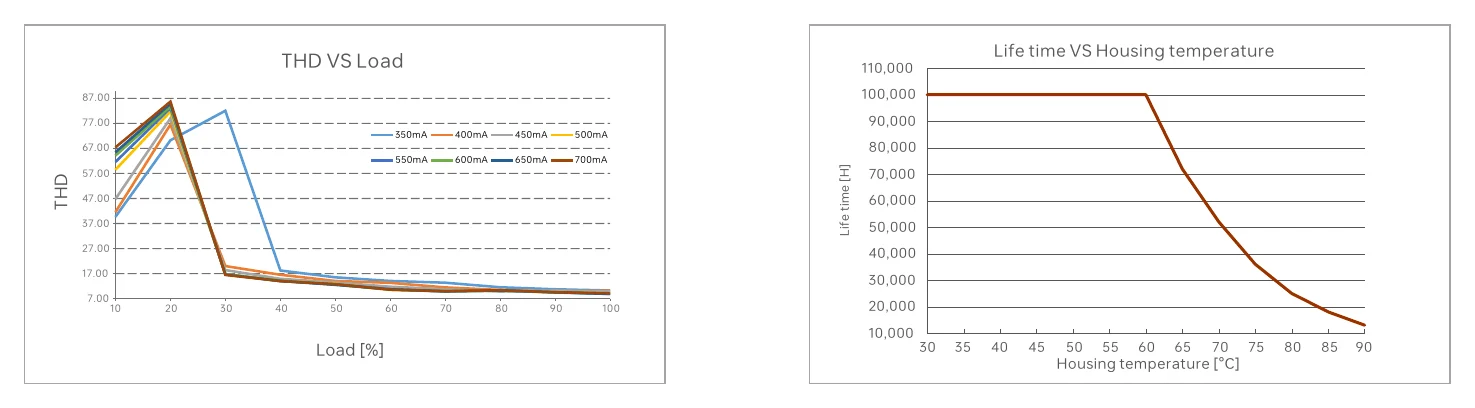

- THD
- THD≤10%/230Vac (at full load),

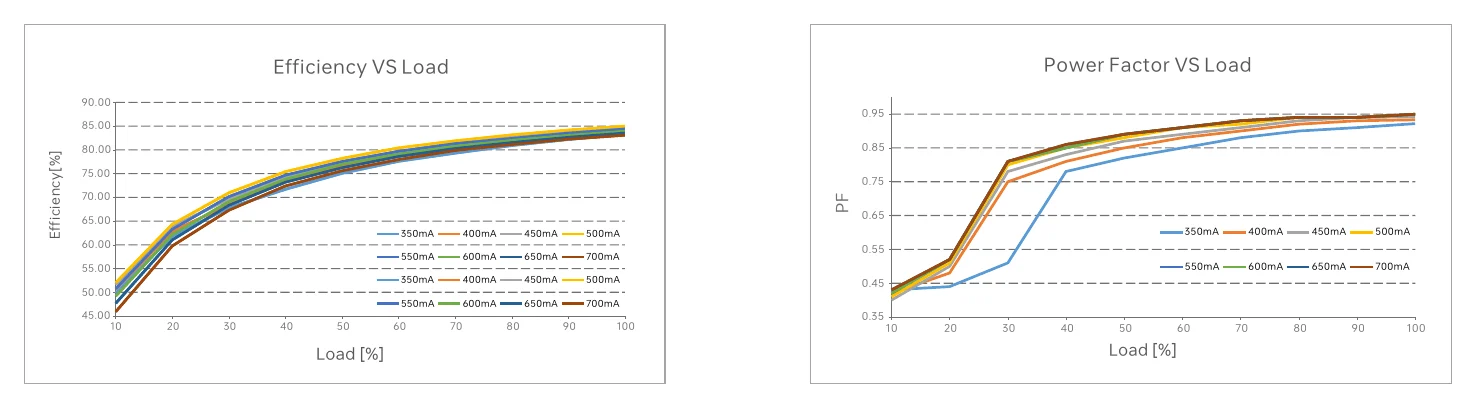

- Efficiency (Typ.)
- 82%(at full load),
- Inrush Current
- Cold start 15A(Test twidth=102us tested under 50% Ipeak)/230Vac
- Anti Surge
- L-N:2KV
- Leakage Current
- Max.0.24mA
ENVIRONMENT
- Working Temperature
- ta:-20~50°C tc:80°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temperature/Humidity
- -40~80°C/10~95%RH
- Temperature Coefficient
- ±0.03%/°C(-20°C-40°C)
- Vibration
- 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Overload Protection
- Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
- Overheat Protection
- Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
- Overvoltage Protection
- Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
- Short Circuit Protection
- Enter hiccup mode if short circuit occurs, and recover automatically
SAFETY & EMC
- Withstand Voltage
- I/P-O/P: 3750Vac
- Insulation Resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
- Safety Standards
-
Parameter Standard Test Level CCC China GB19510.1，GB19510.14 CB CB Member States IEC61347-1，IEC61347-2-13 CE European Union EN61347-1，EN61347-2-13，EN62384 EAC Russia IEC61347-1，IEC61347-2-13 RCM Australia AS 61347-1，AS 61347-2-13 UKCA Britain BS EN 61347-1，BS EN 61347-2-13，BS EN 62493 BIS India IS 15885 (PART 2/SEC 13) - EMC Emission
-
Parameter Standard Test Level CCC China GB/T17743，GB17625.1 CE European Union EN55015，EN61000-3-2，EN61000-3-3，EN61547 EAC Russia IEC62493，IEC61547，EH55015 RCM Australia EN55015，EN61000-3-2，EN61000-3-3，EN61547 UKCA Britain BS EN IEC 55015，BS EN IEC 61000-3-2，BS EN 61000-3-3，BS EN 61547 - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11,EN61547
ErP
- Power Consumption
-
Parameter Standard Standby power consumption No standby mode Networked standby ＜0.5W (After shutdown by command) - Flicker/Stroboscopic Effect
-
Parameter Standard No-load power consumption ＜0.5W (When the lamp is not connected) CIESVM PstLM≤1.0，SVM≤0.4 - DF
-
Parameter Standard Phase factor DF≥0.9
OTHERS
- Weight(N.W.)
- 80g±10g

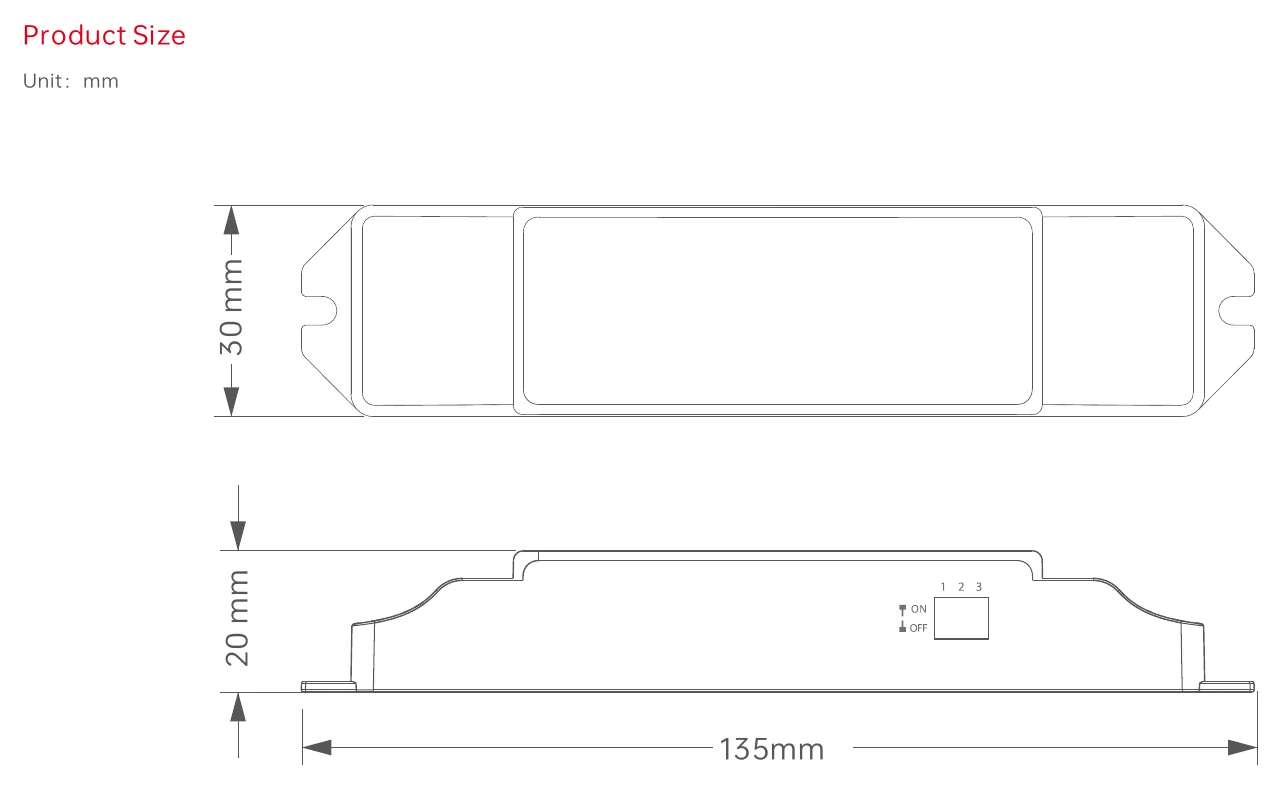

- Dimensions
- 135×30×20mm(L×W×H)
Certifications & ratings
- T-PWM
- Dimming Technology

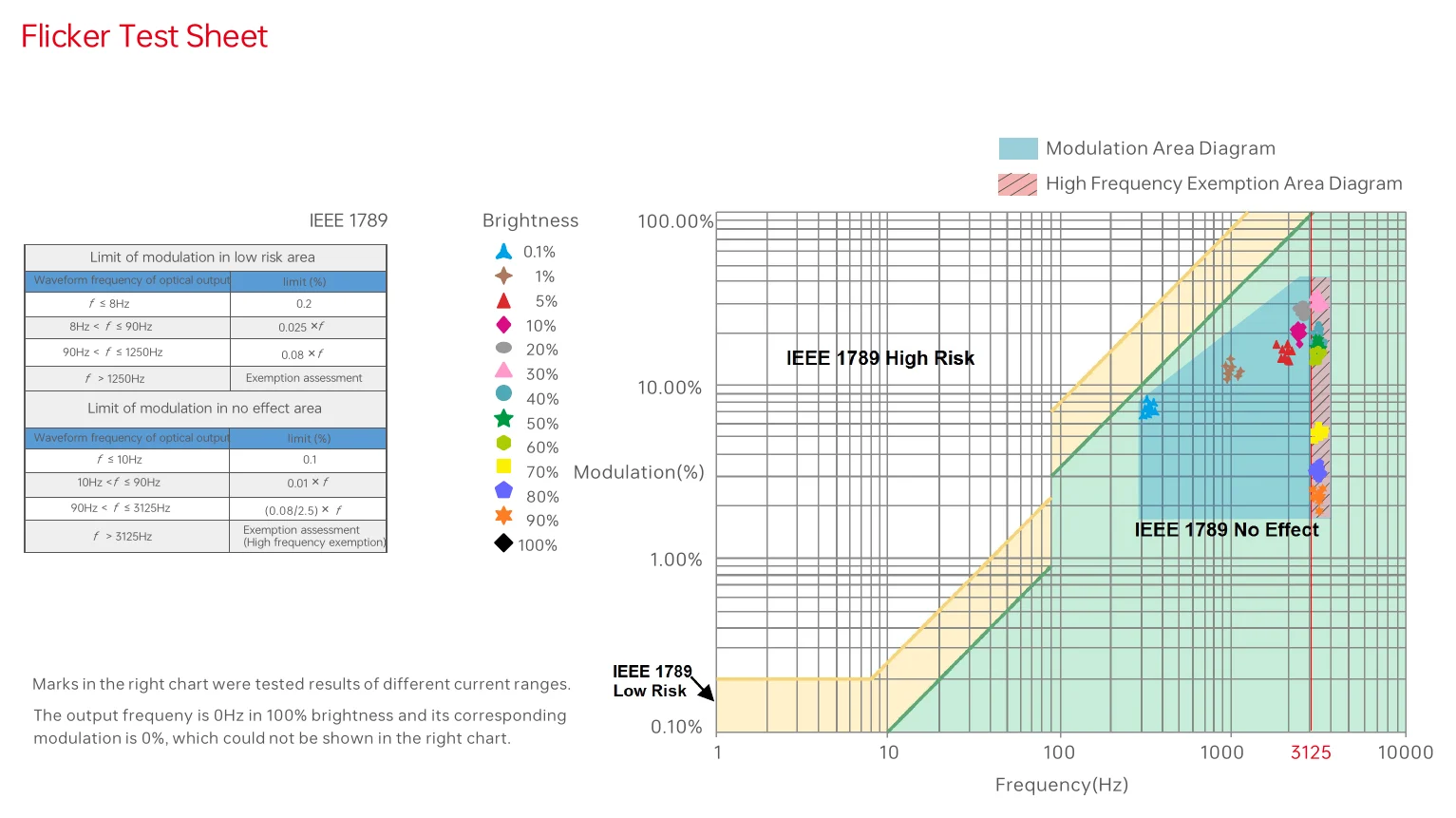

- Flicker Free
- IEEE 1789
- Marked features
- Multiple Current
Technical drawings
Downloads
Datasheet1
FAQ
What kind of LED driver is the Ltech SE-12-350-700-W1DS?
The Ltech SE-12-350-700-W1DS is a 12W constant-current LED driver with selectable output current from 350mA to 700mA. It is designed for dimmable LED lighting applications that use DALI DT6 control. This model is also described as a Class II driver.
Where is this LED driver typically used?
This model is suited to professional LED lighting applications where compact size and DALI dimming are important. Its ultra small, thin, lightweight housing makes it a practical choice for space-constrained lighting products and commercial projects. Buyers typically consider it for constant-current LED fixtures rather than general-purpose power supply use.
Does this model support DALI dimming?
Yes, the SE-12-350-700-W1DS supports DALI DT6 dimming. The product description references IEC62386-101, 102, and 207, which aligns it with DALI bus standards. It also includes soft-on and fade-in behavior plus flicker-free dimming performance features in the product description.
What makes this driver different from a fixed-current LED driver?
A key difference is its selectable output current range of 350mA to 700mA, which gives more flexibility than a single-output model. That can help buyers standardize on one driver across more than one constant-current requirement when the application matches this product's ratings. It also combines that flexibility with DALI dimming in a compact 12W format.
What operating environment is this driver rated for?
The specified ambient temperature range for this model is -20°C to 50°C. That makes it suitable for applications that need reliable performance across a moderate indoor temperature range. Ensure your project stays within that stated temperature window.
What are the main physical and warranty details for this model?
The driver has a listed weight of 80g±10g, supporting its positioning as a very lightweight unit. Its housing is made from V0 flame-retardant PC materials according to the product description. The listed warranty period for this model is 5 years.
