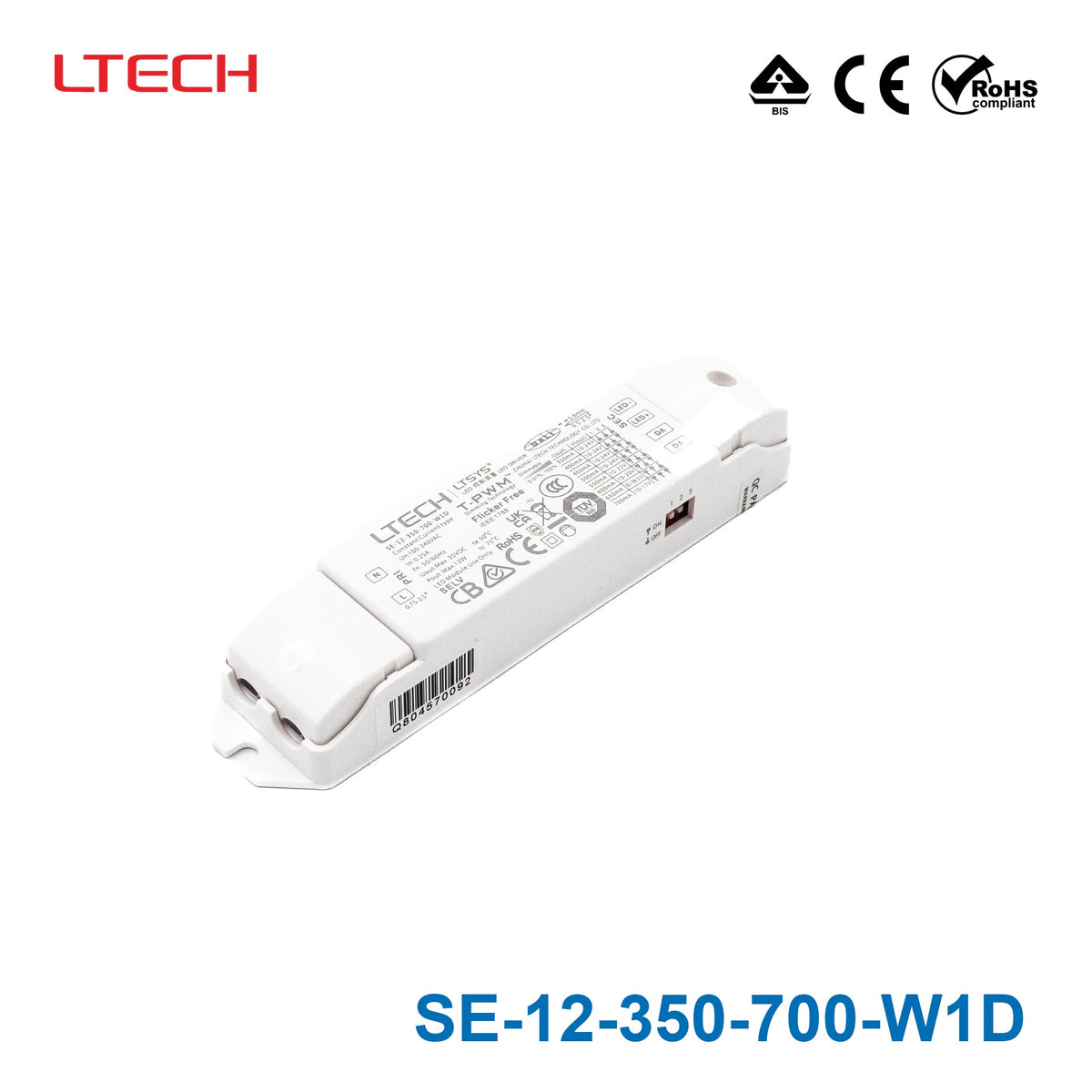

LTECH SE-12-350-700-W1D 12W 350mA ~ 700mA CC DALI2 LED Driver - S...
Log in to see priceOverview
SE-12-350-700-W1D is the 10-24Vdc output model of this series: typical efficiency 78%.
Features
- Dimming interface: DALI.
- T-PWM™ digital dimming.
- Dimming range: 0~100%, LED start at 0.01% possible.
- DALI dimming curve: liner curve or logarithmic curve.
- 0~100% flicker-free (IEEE 1789 standard).
- Innovative thermal management technology, intelligent power life protection.
- Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
- DALI bus standard: IEC62386-101,102, 207.
- Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
- 5 years warranty (Rubycon capacitor).
Specifications
OUTPUT
- Output Voltage
- 10-24Vdc
- Max Output Voltage
- 35Vdc
- Output Current
- 350-700mA
- Output Power Range
- 3.5W~12W
- Strobe Level
- Almost flicker-free / High frequency exemption assessment level.
- Dimming Range
- 0~100%, 0.01% dimming depth.
- LF current ripple(<120Hz)
- <2%
- Current Accuracy
- ±5%
- Ripple & Noise
- ≤2V
- PWM Dimming Frequency
- ≤3600Hz
INPUT
- Dimming Interface
- DALI
- Input Voltage
- 100-240Vac
- Frequency
- 50/60Hz
- Input Current
- 0.25A@115Vac, 0.15A@230Vac
- Power Factor
- PF>0.97/115Vac , PF>0.85/230Vac, at full load
- Efficiency
- 78%
- Inrush Current(typ.)
- Cold start 5A at 230Vac
- Anti Surge
- L-N: 1kV
- Leakage Current
- <0.5mA/230Vac
ENVIRONMENT
- Working Temperature
- ta: -30°C ~ 50°C tc: 75°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temp., Humidity
- -40°C ~ 80°C, 10~95%RH
- Temp. Coefficient
- ±0.03%/°C (0-50°C)
- Vibration
- 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
PROTECTION
- Over-heat Protection
- Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers.
- Over Load Protection
- Shut down the output when current load≥102%, auto recovers.
- Short Circuit Protection
- Shut down automatically if short circuit occurs, auto recovers.
SAFETY & EMC
- Withstand Voltage
- I/P-O/P: 3750Vac
- Isolation Resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
- Safety Standards
- IEC/EN61347-1, IEC/EN61347-2-13
- EMC Emission
- EN55015, EN61000-3-2 Class C, IEC61000-3-3
- EMC Immunity
- EN61000-4-2,3,4,5,6,8,11 EN61547
- Strobe Test Standard
- IEEE 1789
OTHERS

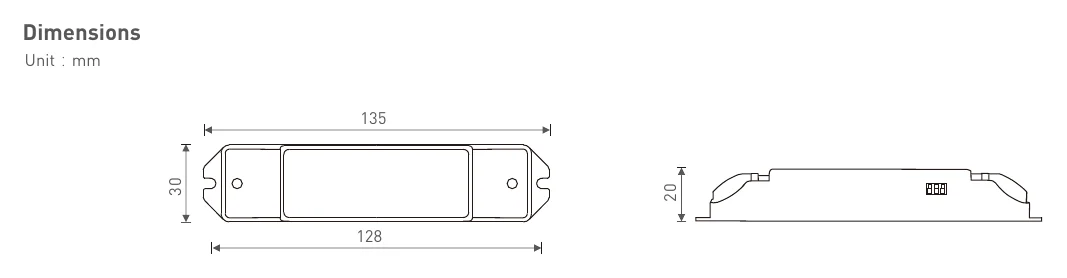

- Dimension
- 135×30×20mm(L×W×H)
- Packing
- 140×34×23mm(L×W×H)
- Weight(G.W.)
- 80g±10g
Certifications & ratings
- T-PWM
- Super depth dimming technology
- Certification marks
- TUV Certificate No. B 001119 0007 Rev. 00, CB Certificate No. SG PSB-LE-01925, RCM Certificate No. RCMP19279 001, CE EMC Certificate No. BSTXD190412501201EC, CE LVD Certificate No. BST190412501201SC, CCC Certificate No. 2019011002209509

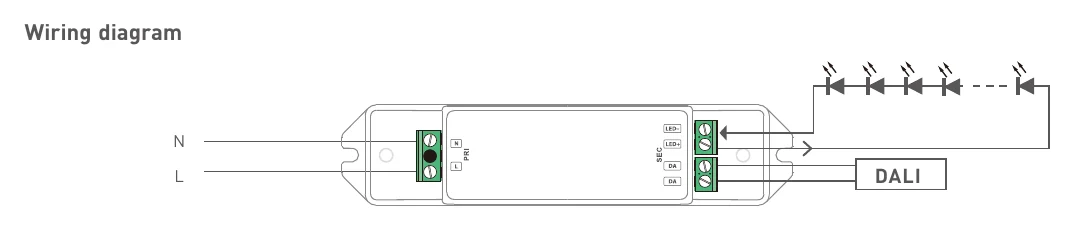

Technical drawings
Downloads
FAQ
What type of LED driver is the LTECH SE-12-350-700-W1D?
The LTECH SE-12-350-700-W1D is a 12W constant-current LED driver with DALI2 dimming support. It provides selectable output current from 350mA to 700mA, making it suitable for projects that need one driver model across different current requirements.
Is this driver suitable for DALI lighting control systems?
Yes. This model uses a DALI dimming interface. It is designed for applications where integration with DALI-based lighting control is required.
What makes this model different from a fixed-output LED driver?

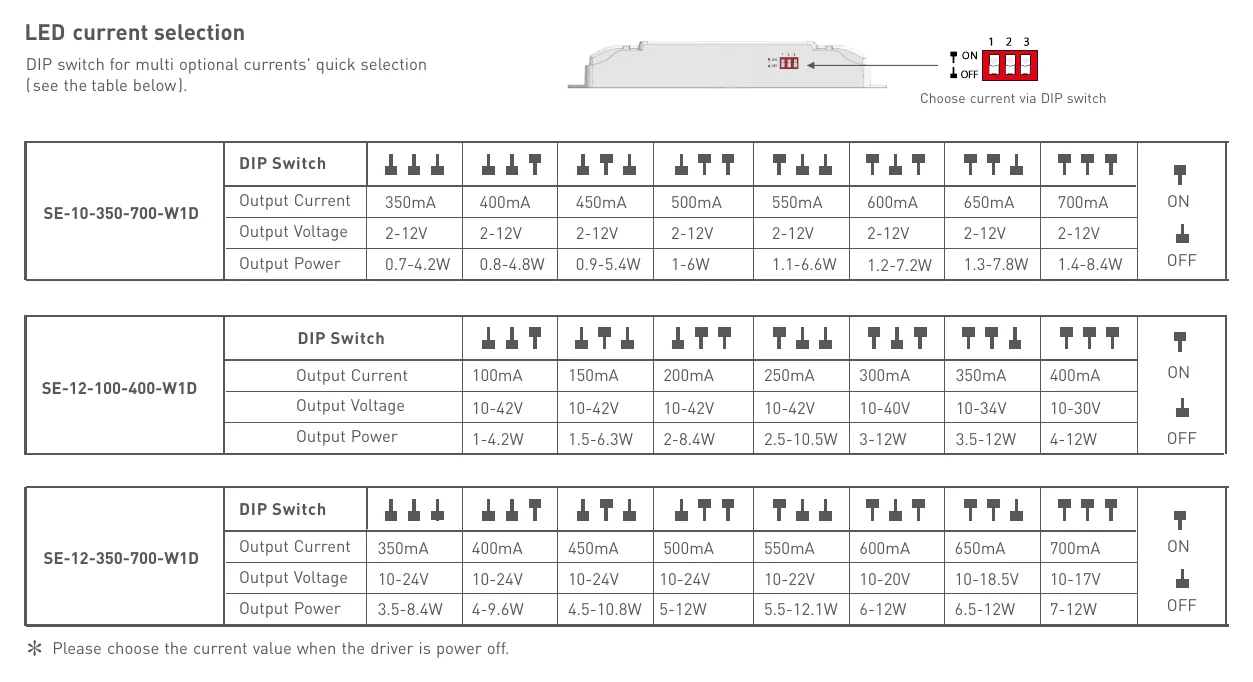

The key difference is its selectable constant-current output from 350mA to 700mA. That gives more flexibility than a fixed-current driver when matching one model to different compatible LED loads within the product range.
Can this LED driver support smooth low-level dimming?
Yes. The SE-12-350-700-W1D supports 0 to 100% dimming and states LED start at 0.01% is possible. It also specifies flicker-free dimming across 0 to 100% in line with IEEE 1789.
What kinds of lighting applications is this model intended for?
This model is suitable for internal lights application. It is a fit for indoor LED lighting projects where constant-current output and DALI dimming are required.
What operating environment is this driver rated for?
The specified operating temperature range is -30°C to 50°C. That makes it appropriate for indoor environments where the ambient conditions stay within that range.
What protection and reliability features does this driver include?
This model includes overload, overheat, and short-circuit protection with automatic recovery. It also states innovative thermal management and intelligent power life protection.
