Ltech SE-12-350-700-W1DS 12W 350~700mA CC DALI2 LED Driver - Selectable Output

9-24V for 350-500mAother current please check spec sheet

SKU SE-12-350-700-W1DS

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SE-12-350-700-W1DS 为该系列 9-24Vdc 输出型号：典型效率 82%(满载)。

Features

Specifications

SE-12-350-700-W1DSSpecifications from the official datasheetDownload datasheet PDF

特征

输出类型: 恒流
调光接口: DALI DT6
输出特征: 隔离
防护等级: IP20
绝缘等级: II类(适用于室内Ⅰ、Ⅱ、Ⅲ类灯具)

输出

输出电压: 9-24Vdc
最大输出电压: ≤35Vdc
工作电流范围: 350-700mA
负载功率范围: 3.15W-12W
调光范围: 0~100%，调光深度: Max. 0.01%
电流纹波: ＜3% (非调光状态)
电流精度: ±5%
PWM调光频率: ≤3600Hz

输入

直流电压范围: 120-300Vdc
交流电压范围: 100-240Vac
额定电压: 115Vac/230Vac
频率范围: 50/60Hz
输入电流: ≤0.18A/115Vac(满载) ≤0.08A/230Vac(满载)
功率因数: PF>0.95/115Vac(满载) PF>0.9/230Vac(满载)
谐波THD: THD≤10%/230Vac(满载)
效率(Typ.): 82%(满载)
浪涌电流: 冷启动,15A(在50%Ipeak下测twidth=102us)@230Vac
抗浪涌: L-N:2KV
漏电流: Max.0.24mA

环境

工作温度: ta: -20°C ~ 50°C tc: 80°C
工作湿度: 20 ~ 95%RH，无冷凝
储存温度/湿度: -40 ~ 80°C/10~95%RH
温度系数: ±0.03%/°C(-20°C-40°C)
耐振动: 10-500HZ，2G 12分钟/周期，X, Y, Z轴各72分钟

保护

过载保护: 负载超过额定功率≥1.02倍时自动保护，减轻负载自动恢复
过温保护: 根据PCB温度超标情况(≥110°C)，智能调节电流输出或关闭，可自动恢复；PCB温度＜90℃时，可自动恢复正常输出
过压保护: 超过空载电压值进入保护，可自行恢复
短路保护: 输出线路短路进入打嗝模式，可自动恢复
耐压: 输入对输出：3750Vac
绝缘阻抗: 输入对输出：100MΩ/500VDC/25℃/70%RH

安规和电磁规格

安全规范: Parameter Standard Test Level

CCC 中国 GB19510.1，GB19510.14
TUV 德国 EN61347-1，EN61347-2-13，EN62493
CB CB成员国 IEC61347-1，IEC61347-2-13
CE 欧盟 EN61347-1，EN61347-2-13，EN62384
KC 韩国 KC61347-1，KC61347-2-13
EAC 俄罗斯 IEC61347-1，IEC61347-2-13
RCM 澳洲 AS 61347-1，AS 61347-2-13
ENEC 欧洲 EN61347-1，EN61347-2-13，EN62384
UKCA 英国 BS EN 61347-1，BS EN 61347-2-13，BS EN 62493
BIS 印度 IS 15885 (PART 2/SEC 13)
电磁兼容发射: Parameter Standard Test Level

CCC 中国 GB/T17743，GB17625.1
CE 欧盟 EN55015，EN61000-3-2，EN61000-3-3，EN61547
KC 韩国 KSC 9815, KSC 9547
EAC 俄罗斯 IEC62493，IEC61547，EH55015
RCM 澳洲 EN55015，EN61000-3-2，EN61000-3-3，EN61547
UKCA 英国 BS EN IEC 55015，BS EN IEC 61000-3-2，BS EN 61000-3-3，BS EN 61547
电磁兼容抗扰度: EN61000-4-2,3,4,5,6,8,11,EN61547

Parameter	Standard	Test Level
CCC	中国	GB19510.1，GB19510.14
TUV	德国	EN61347-1，EN61347-2-13，EN62493
CB	CB成员国	IEC61347-1，IEC61347-2-13
CE	欧盟	EN61347-1，EN61347-2-13，EN62384
KC	韩国	KC61347-1，KC61347-2-13
EAC	俄罗斯	IEC61347-1，IEC61347-2-13
RCM	澳洲	AS 61347-1，AS 61347-2-13
ENEC	欧洲	EN61347-1，EN61347-2-13，EN62384
UKCA	英国	BS EN 61347-1，BS EN 61347-2-13，BS EN 62493
BIS	印度	IS 15885 (PART 2/SEC 13)

Parameter	Standard	Test Level
CCC	中国	GB/T17743，GB17625.1
CE	欧盟	EN55015，EN61000-3-2，EN61000-3-3，EN61547
KC	韩国	KSC 9815, KSC 9547
EAC	俄罗斯	IEC62493，IEC61547，EH55015
RCM	澳洲	EN55015，EN61000-3-2，EN61000-3-3，EN61547
UKCA	英国	BS EN IEC 55015，BS EN IEC 61000-3-2，BS EN 61000-3-3，BS EN 61547

ErP

功耗网络待机功耗: ＜0.5W（通过指令关机后）
功耗空载功耗: ＜0.5W（不接灯具时）

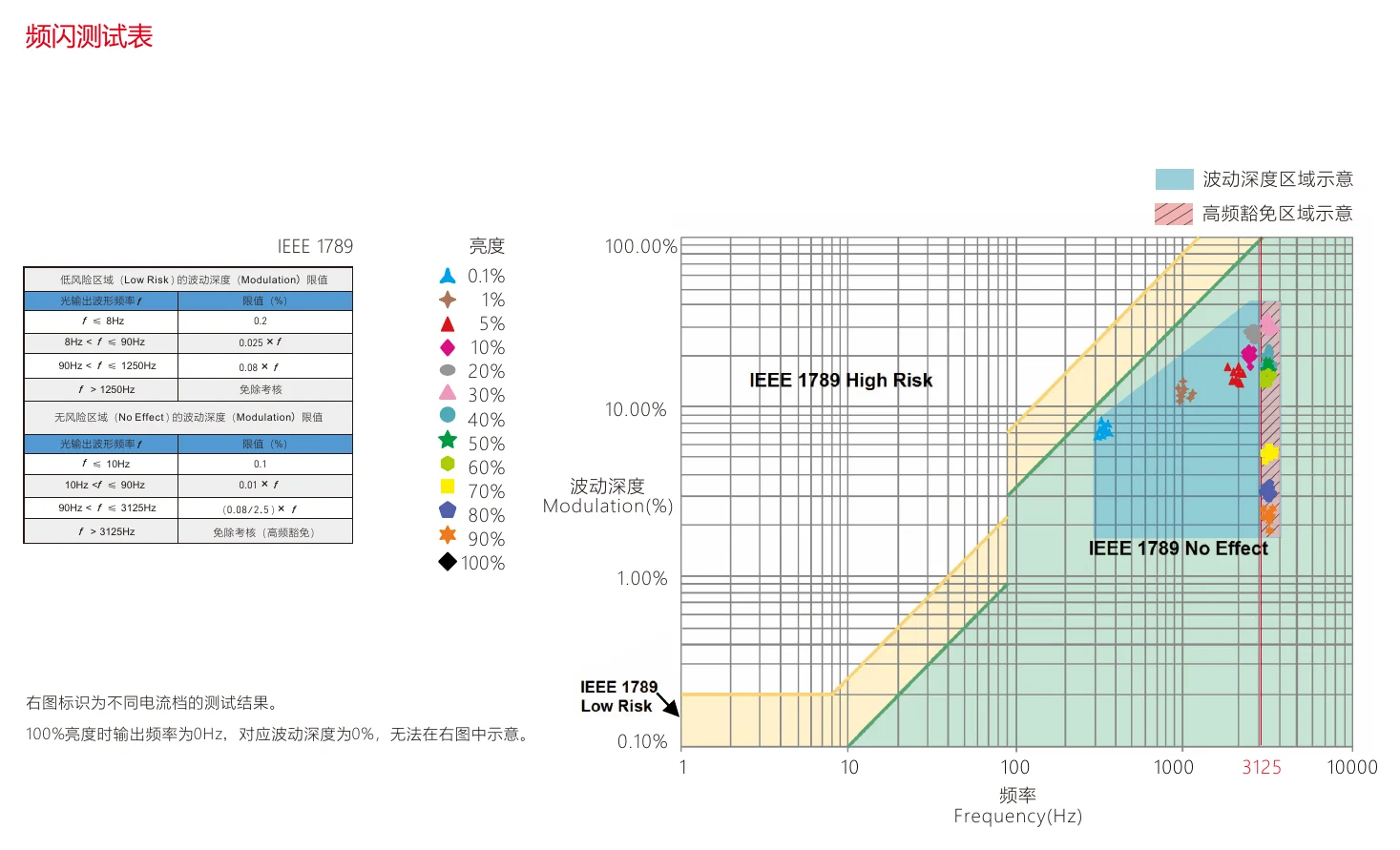

频闪/频闪效应 IEEE1789: 满足无影响/高频豁免考核级别
频闪/频闪效应 CIESVM: PstLM≤1.0，SVM≤0.4
DF 相位因素: DF≥0.9

其他

产品重量: 80g±10g

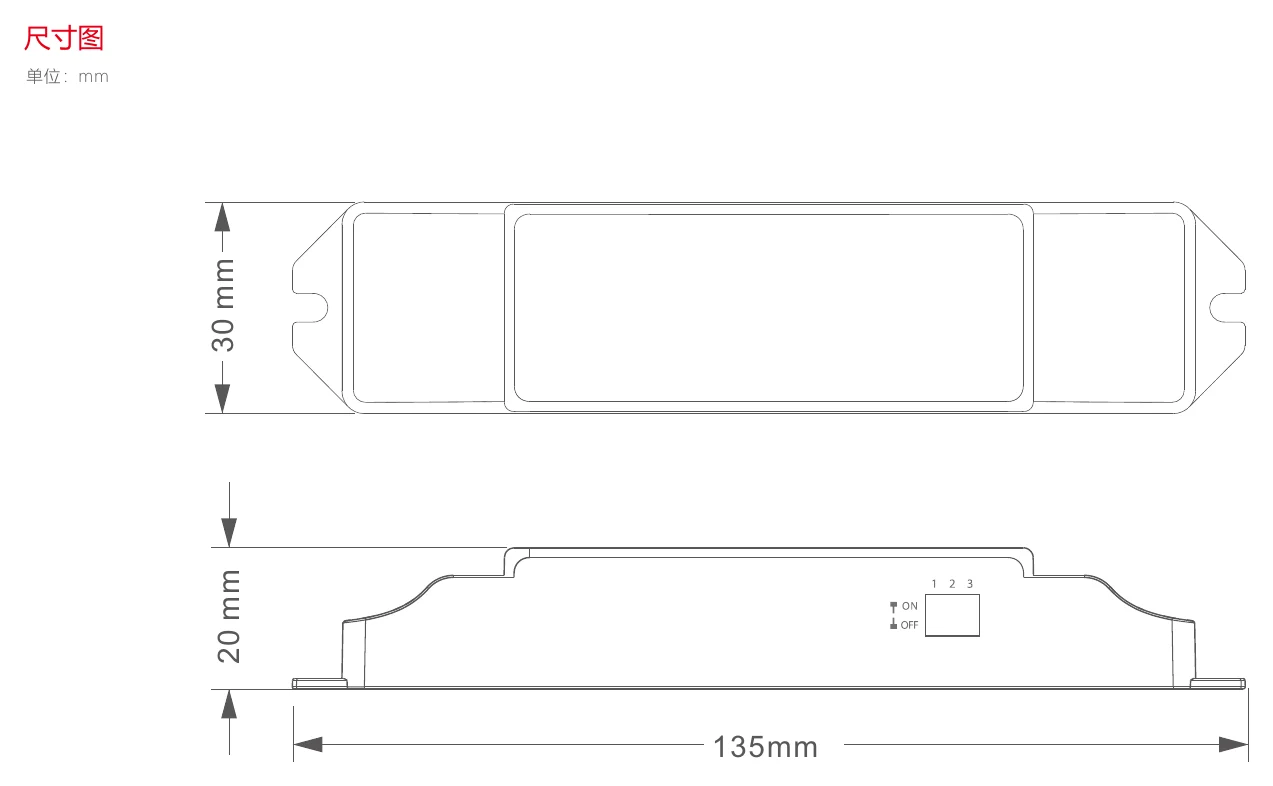

产品尺寸: 135×30×20mm(L×W×H)

Protection

Overload Protection: Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
Overheat Protection: Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
Overvoltage Protection: Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
Short Circuit Protection: Enter hiccup mode if short circuit occurs, and recover automatically

Environment

Working Temperature: ta:-20~50°C tc:80°C
Storage Temperature/Humidity: -40~80°C/10~95%RH

Others

Normal service life: 100,000 hours
Warranty: 5-year warranty (Rubycon capacitor)

Output

Efficiency (Typ.): 82%(at full load),

Input

Inrush Current: Cold start 15A(Test twidth=102us tested under 50% Ipeak)/230Vac
Leakage Current: Max.0.24mA

Certifications & ratings

Certification marks: CCC, TUV, CB, KC, CE, EAC, RCM, ENEC, UKCA, BIS

Technical drawings

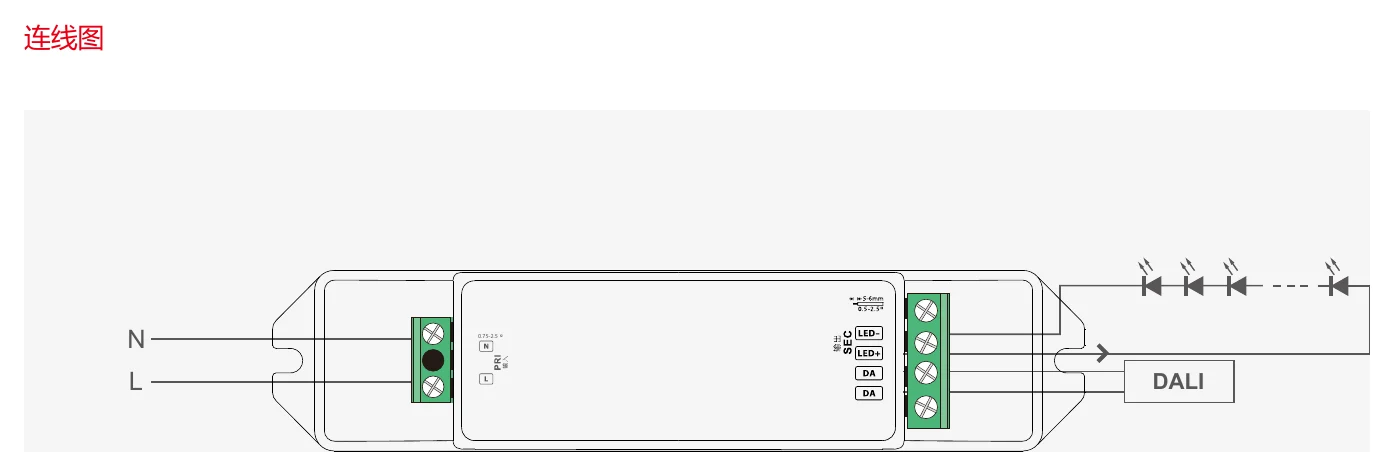

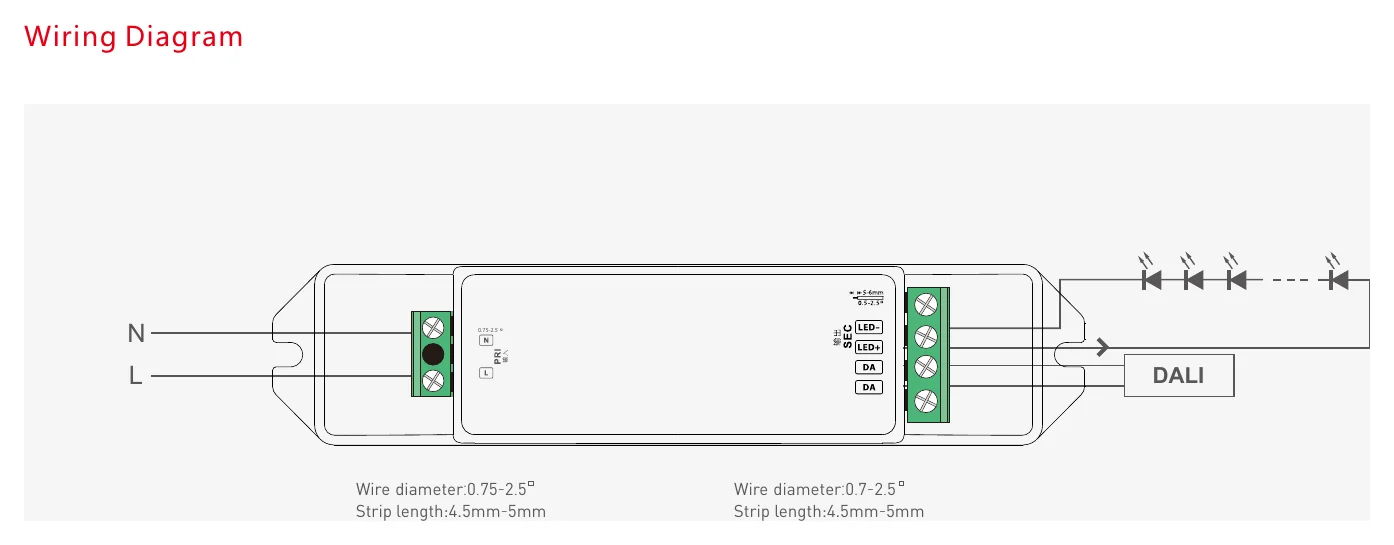

SE-12-350-700-W1DS Wiring Diagram — Wiring Diagram

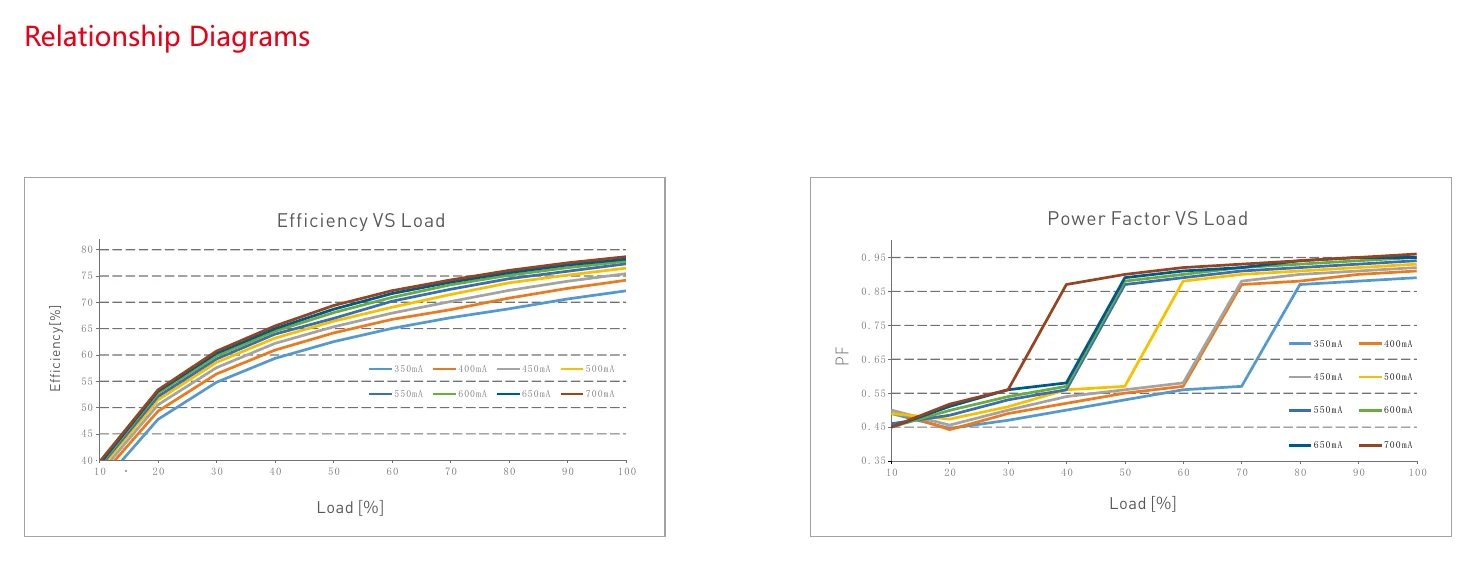

SE-12-350-700-W1DS Relationship Diagrams — Relationship Diagrams

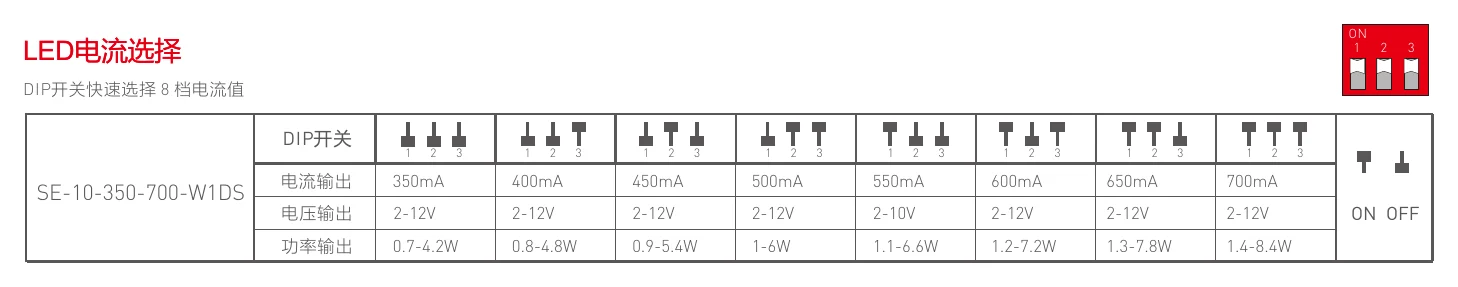

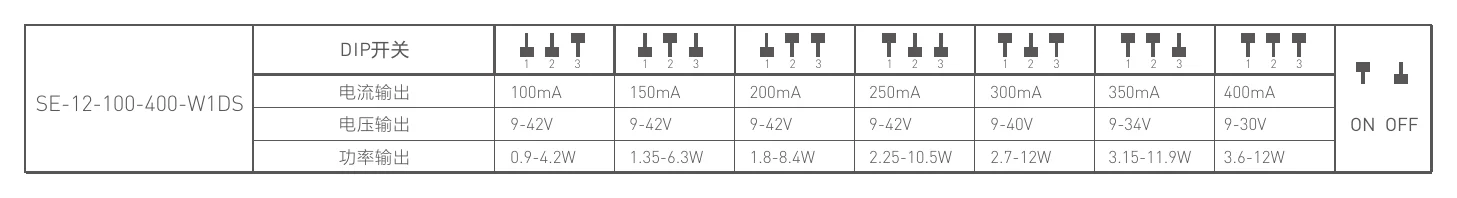

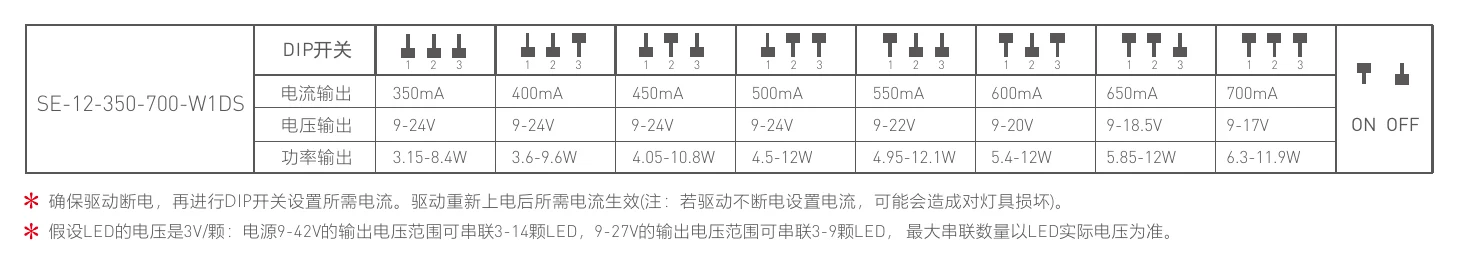

SE-12-350-700-W1DS DIP开关 (2) — DIP开关 (2)

SE-12-350-700-W1DS DIP开关 (3) — DIP开关 (3)

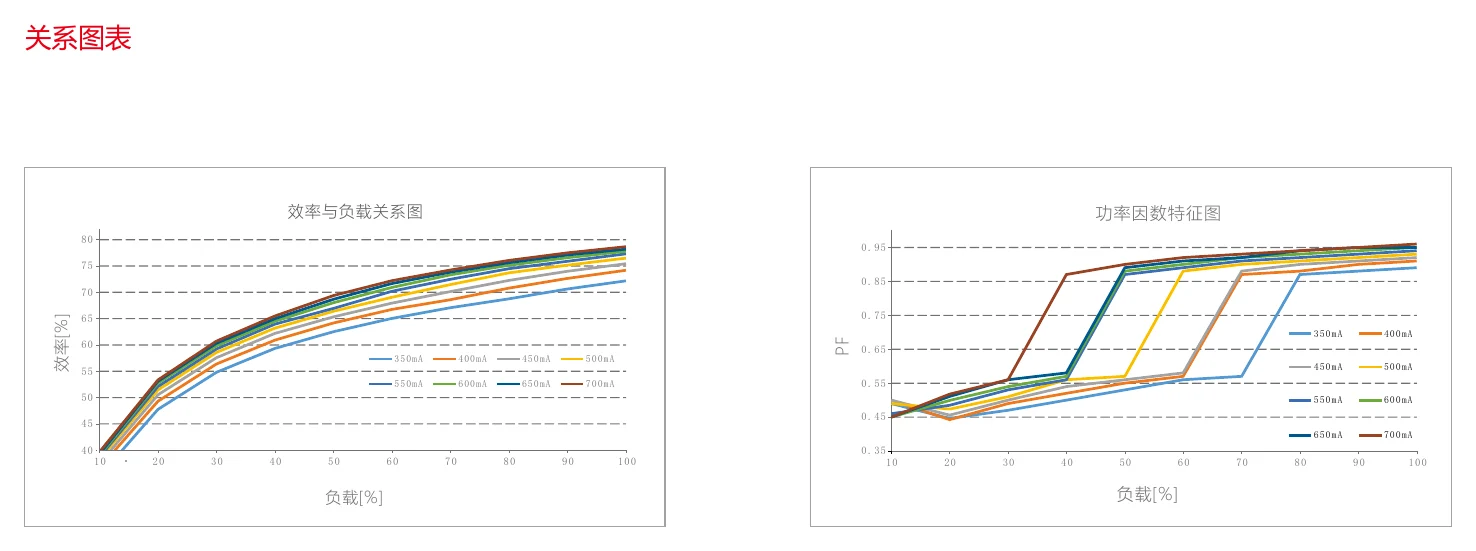

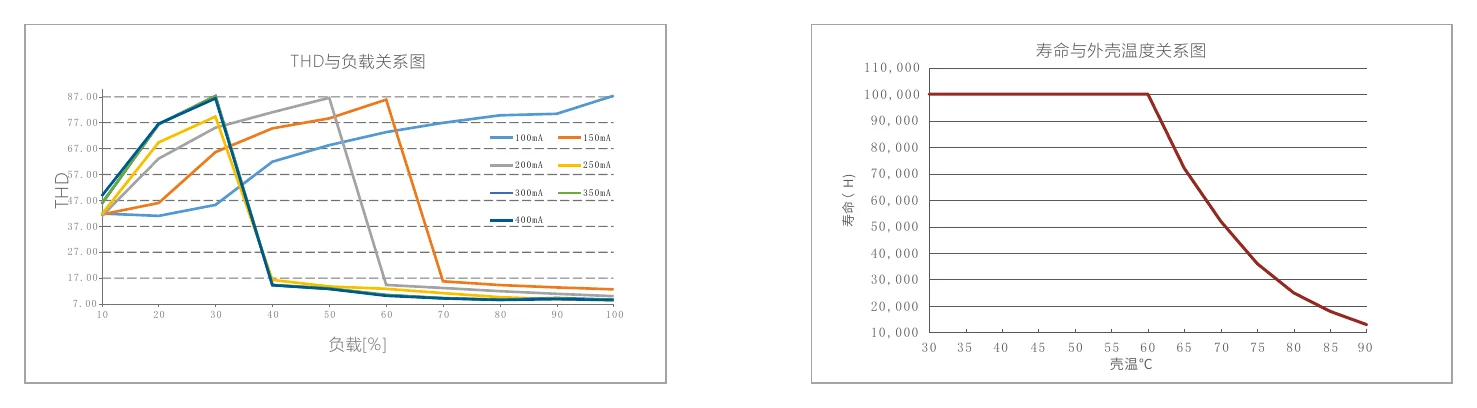

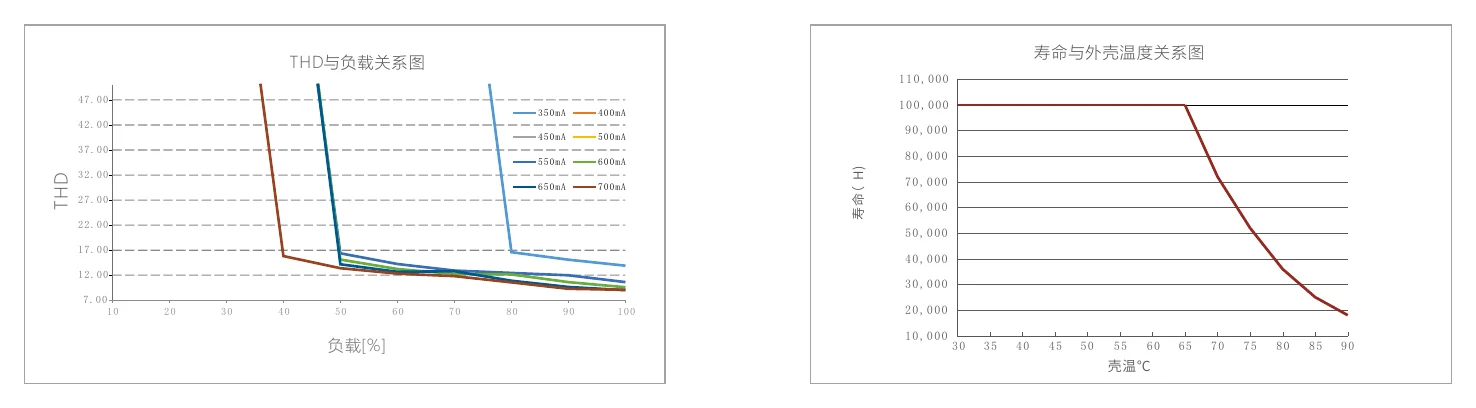

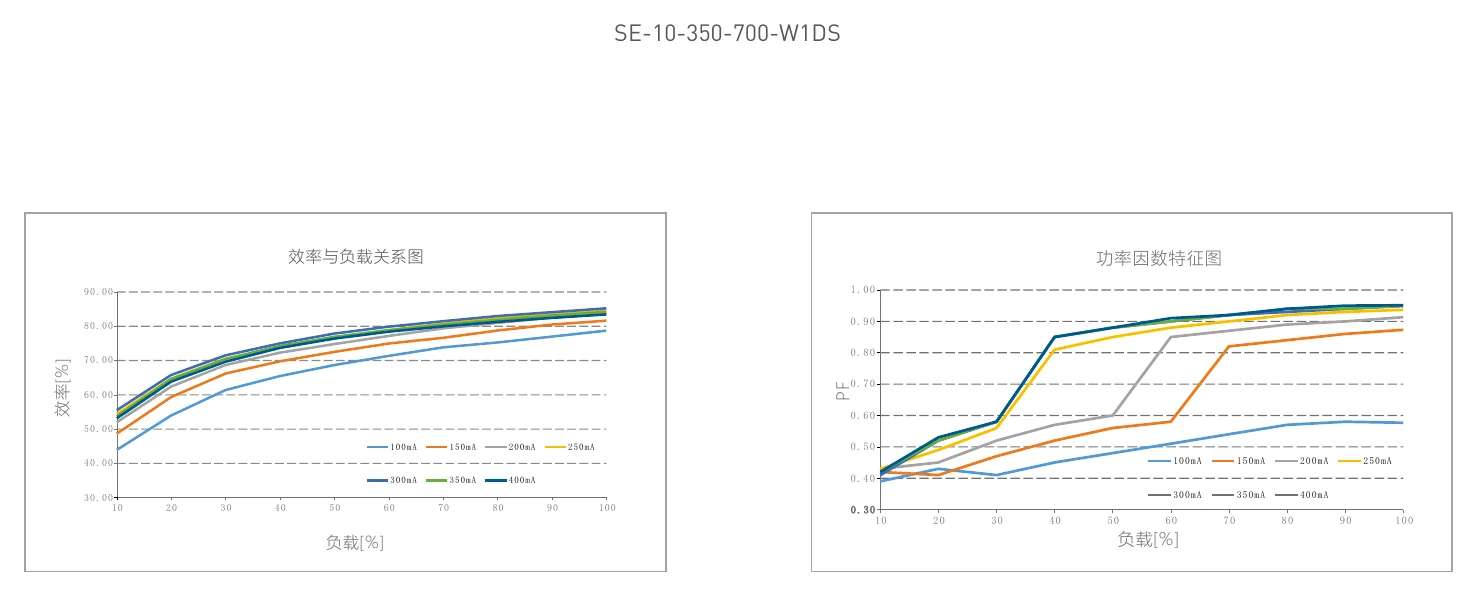

SE-12-350-700-W1DS Illustration (page 10) — Illustration (page 10)

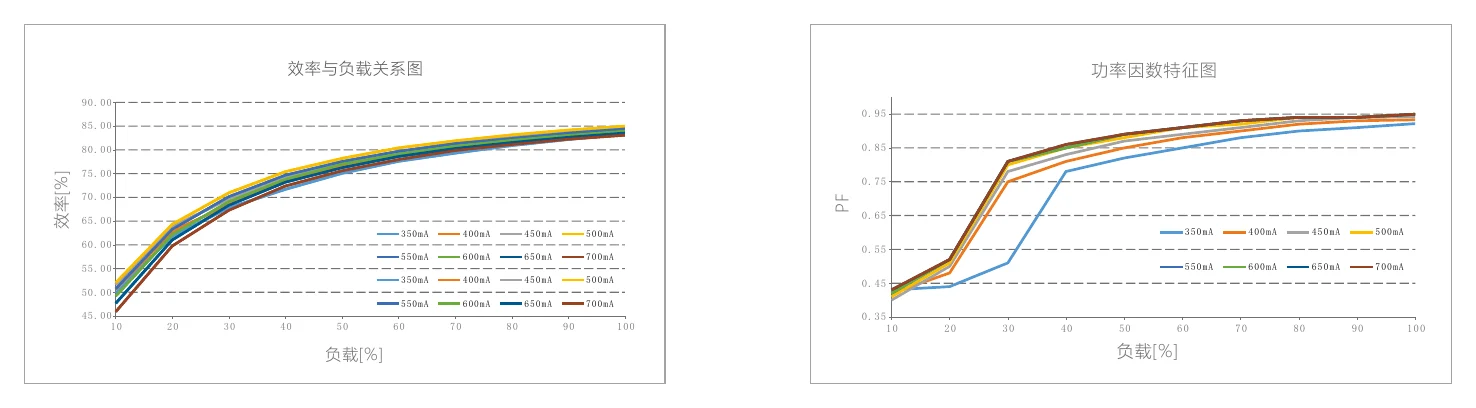

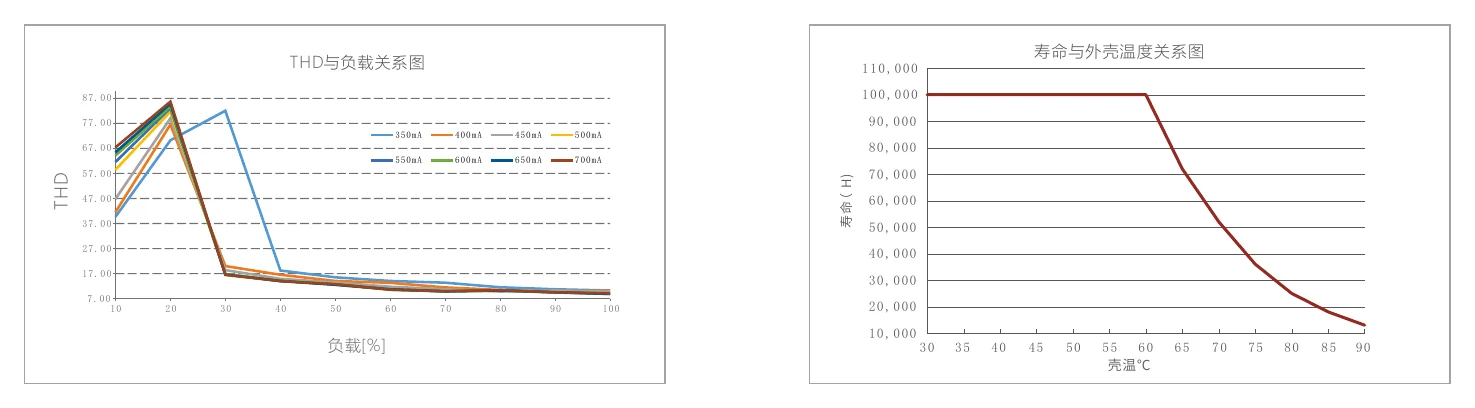

SE-12-350-700-W1DS Illustration (page 11) — Illustration (page 11)

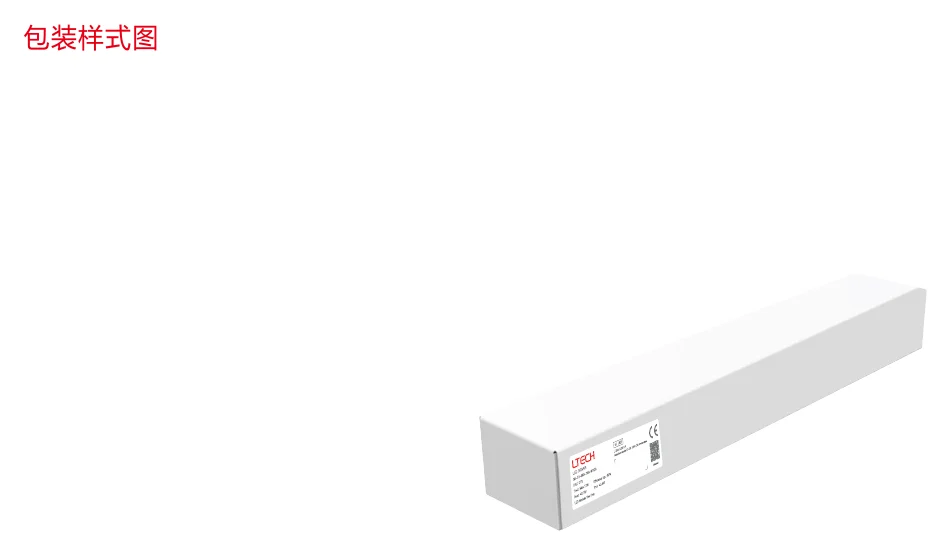

SE-12-350-700-W1DS Illustration (page 12) — Illustration (page 12)

Downloads

Datasheet1

SE-12-350-700-W1DS datasheetSE_10_350_700_W1DS_spec_sheet.pdf PDF Download

FAQ

What kind of LED driver is the Ltech SE-12-350-700-W1DS?

The Ltech SE-12-350-700-W1DS is a 12W constant-current LED driver with selectable output current from 350mA to 700mA. It is designed for dimmable LED lighting applications that use DALI DT6 control. This model is also described as a Class II driver.

Where is this LED driver typically used?

This model is suited to professional LED lighting applications where compact size and DALI dimming are important. Its ultra small, thin, lightweight housing makes it a practical choice for space-constrained lighting products and commercial projects. Buyers typically consider it for constant-current LED fixtures rather than general-purpose power supply use.

Does this model support DALI dimming?

Yes, the SE-12-350-700-W1DS supports DALI DT6 dimming. The product description references IEC62386-101, 102, and 207, which aligns it with DALI bus standards. It also includes soft-on and fade-in behavior plus flicker-free dimming performance features in the product description.

What makes this driver different from a fixed-current LED driver?

A key difference is its selectable output current range of 350mA to 700mA, which gives more flexibility than a single-output model. That can help buyers standardize on one driver across more than one constant-current requirement when the application matches this product's ratings. It also combines that flexibility with DALI dimming in a compact 12W format.

What operating environment is this driver rated for?

The specified ambient temperature range for this model is -20°C to 50°C. That makes it suitable for applications that need reliable performance across a moderate indoor temperature range. Ensure your project stays within that stated temperature window.

What are the main physical and warranty details for this model?

The driver has a listed weight of 80g±10g, supporting its positioning as a very lightweight unit. Its housing is made from V0 flame-retardant PC materials according to the product description. The listed warranty period for this model is 5 years.
