Ltech

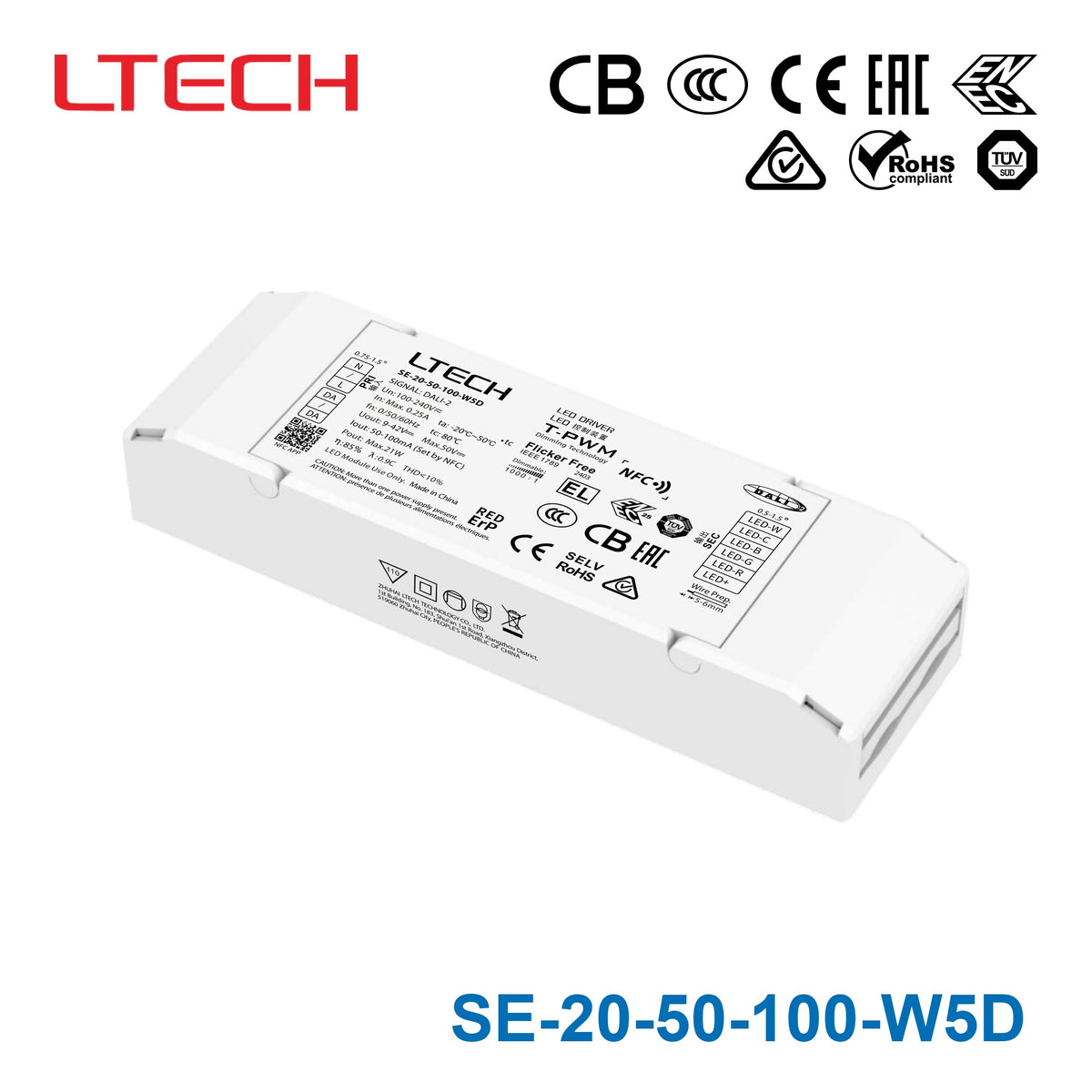

Ltech SE-20-50-100-W5D 21W 9-42VDC CC DALI-2 LED Driver 0.05-0.1A

DALI-2 DT8/DT6 mis-wiring protection (300vac)9-42VDC21W
SKU SE-20-50-100-W5D
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

SE-20-50-100-W5D is the 9-42Vdc output model of this series: typical efficiency 85%(at full load).

Features

  • Ultra-small, thin and light screwless end cap.
  • The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO.
  • Eight DT6/DT8 device types are integrated in one device, configurable via NFC Lighting APP. RGBCW, W, 2×CT (sync), and XY are single - address; 2×CT (async), XY+CT, RGB+CT, and XY+W are double - address.
  • Change the output current, fade time and other parameters on the NFC programmer or via the App, and sync the parameters to the driver.
  • The current gear step value can be set as low as 1mA, offering higher compatibility and finer precision.
  • Soft-on and fade-in dimming function enhances your visual comfort.
  • T-PWM Super depth dimming technology, dimming depth can reach 0.1%
  • 0-100% full dimming without video flash, high frequency exemption assessment level
  • Comply with the EU’s ErP Directive, networked standby<0.5W.
  • When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.
  • Overheat, over voltage, overload, short circuit protection and automatic recovery.
  • Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
  • Normal service life can reach 100,000 hours.
  • 5-year warranty (Rubycon capacitor)

Specifications

SE-20-50-100-W5DSpecifications from the official datasheetDownload datasheet PDF

Features

Output Type
Constant current
Dimming Interface
DALI-2
Output Feature
Isolation
Protection Grade
IP20
Insulation Grade
Class II (Suitable for class I/ II /III light fixtures)

OUTPUT

Output Voltage
9-42Vdc
Maximum output voltage
≤50Vdc
Output Current Range
50-100mA (Set this parameter using the NFC APP)
Output Power Range
0.45W-21W
Dimming Range
0.1~100%, down to 0.1%
LF Current Ripple
<5%(Maximum current for non dimming state)
Current Accuracy
±5%
PWM Frequency
≤3600Hz

INPUT

DC Voltage Range
100-240Vdc
AC Voltage Range
100-240Vac
DC current range
0.09-0.25A
Emergency output coefficient
EoF =98%
Input Voltage
115Vac/230Vac
Frequency
0/50/60Hz
Input Current
≤0.25A/115Vac, ≤0.13A/230Vac
Power Factor
PF>0.95/115Vac (at full load), PF>0.9/230Vac (at full load)
THD
THD≤10%/230Vac(at full load)
Efficiency (Typ.)
85%(at full load)
Inrush Current
Cold start 15A (Test twidth=102us tested under 50% Ipeak)/230Vac
Anti Surge
L-N: 2KV
Leakage Current
Max. 0.24mA

ENVIRONMENT

Working Temperature
ta: -20 ~ 50°C tc: 80°C
Working Humidity
20 ~ 95%RH, non-condensing
Storage Temperature/Humidity
-40 ~ 80°C/10~95%RH
Temperature Coefficient
±0.03%/°C(-20-50°C)
Vibration
10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection
Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced.
Overheat Protection
The temperature returns to normal and the abnormality is eliminated.
Overvoltage Protection
Automatically protect the device when voltage exceeds the no-load voltage.
Short Circuit Protection
Enter hiccup mode if short circuit occurs, and recover automatically.

SAFETY & EMC

Withstand Voltage
I/P-O/P: 3750Vac≦5mA/60S
Insulation Resistance
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards
ParameterStandardTest Level
CCCChinaGB19510.1, GB19510.14
TUVGermanyEN61347-1, EN61347-2-13, EN62493
CBCB Member StatesIEC61347-1, IEC61347-2-13
CEEuropean UnionEN61347-1, EN61347-2-13, EN62384
EACRussiaIEC61347-1, IEC61347-2-13
RCMAustraliaAS 61347-1, AS 61347-2-13
ENECEuropeEN61347-1, EN61347-2-13, EN62384
EMC Emission
ParameterStandardTest Level
CCCChinaGB/T17743, GB17625.1
CEEuropean UnionEN55015, EN61000-3-2, EN61000-3-3, EN61547
EACRussiaIEC62493, IEC61547, EH55015
RCMAustraliaEN55015, EN61000-3-2, EN61000-3-3, EN61547
EMC Immunity
EN61000-4-2,3,4,5,6,8,11, EN61547

ErP

Power Consumption Networked standby
<0.5W (After shutdown by command)
Power Consumption No-load power consumption
<0.5W (When the lamp is not connected)
Flicker/Stroboscopic Effect IEEE 1789
Meet IEEE 1789 standard/High frequency exemption level
Flicker/Stroboscopic Effect CIE SVM
Pst LM≤1.0，SVM≤0.4
DF Phase factor
DF≥0.9

OTHERS

Weight(N.W.)
100g±10g
Dimensions
127×40×23mm(L×W×H)

Certifications & ratings

Marked features
Color light control, Multi current setting, Constant power setting

Technical drawings

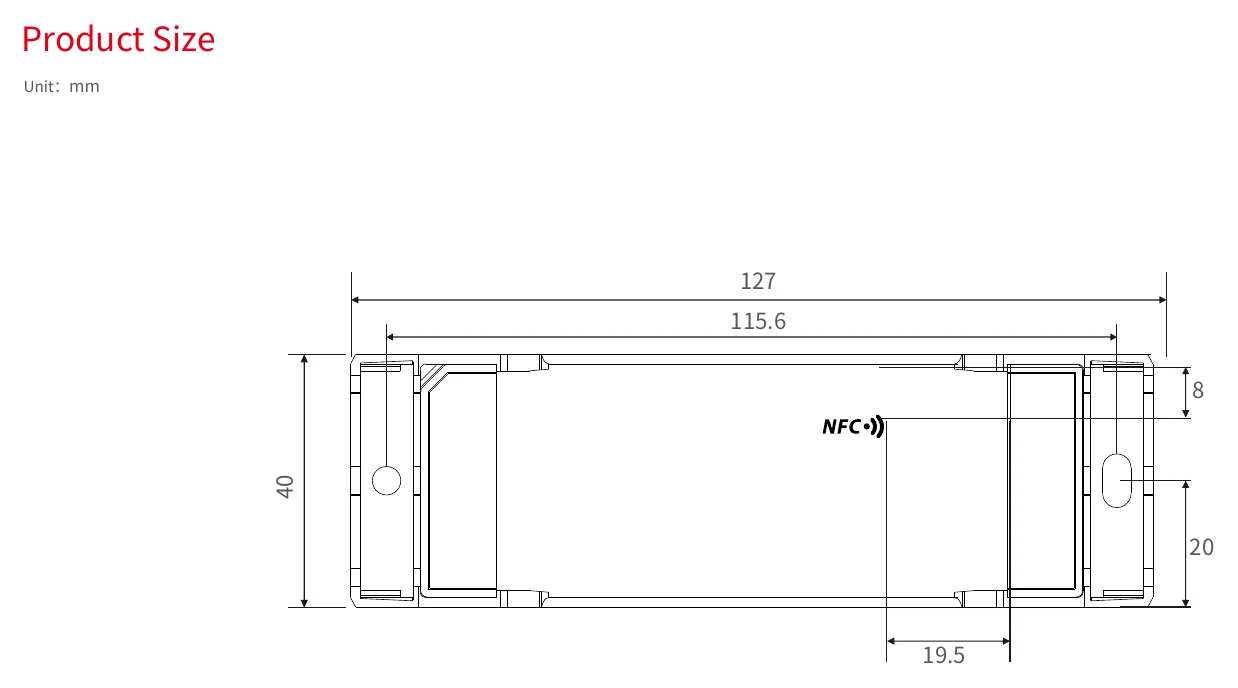

SE-20-50-100-W5D ProductSize
ProductSize

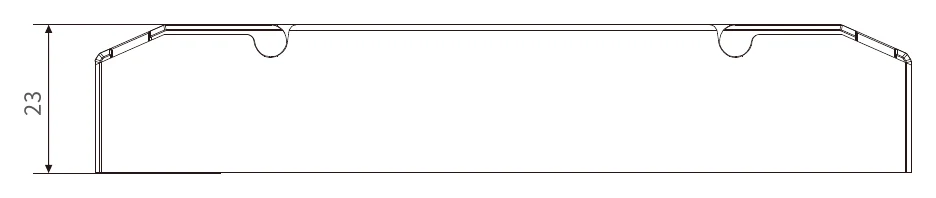

SE-20-50-100-W5D Dimensions (mm)
Dimensions (mm)
SE-20-50-100-W5D ProductSize (2)
ProductSize (2)
SE-20-50-100-W5D PRI
PRI

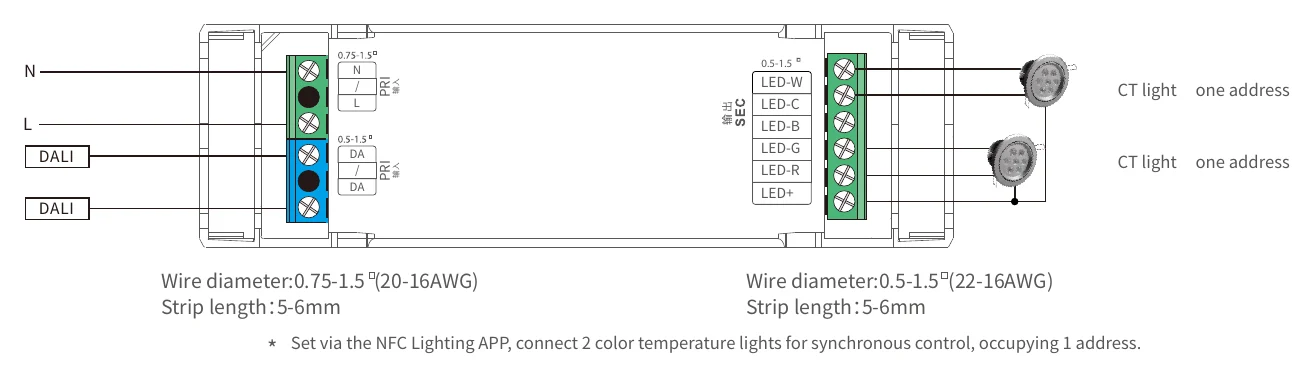

SE-20-50-100-W5D Single-address2-CTwiringmethod
Single-address2-CTwiringmethod
SE-20-50-100-W5D PRI
PRI
SE-20-50-100-W5D Single-addressXYwiringmethod
Single-addressXYwiringmethod
SE-20-50-100-W5D PRI
PRI

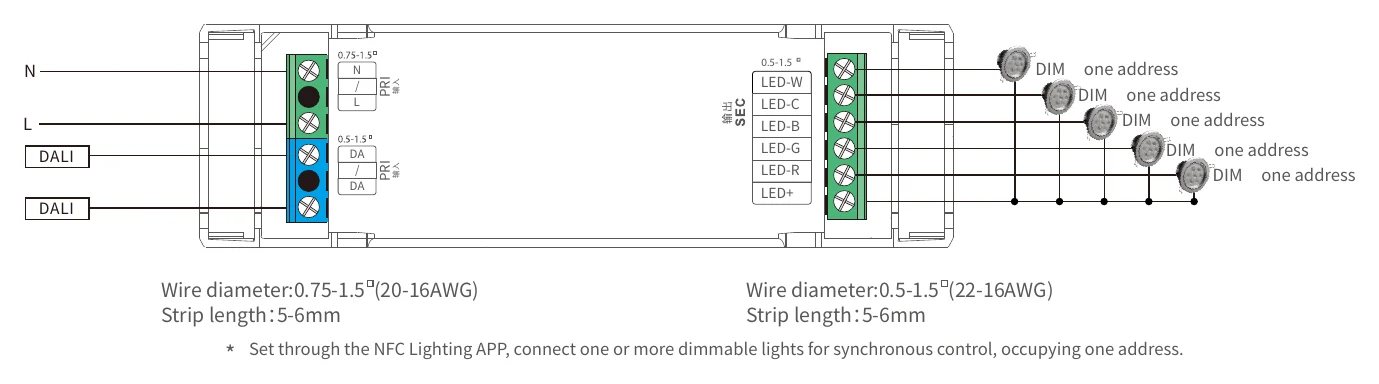

SE-20-50-100-W5D Single-addressWwiringmethod
Single-addressWwiringmethod
SE-20-50-100-W5D PRI
PRI
SE-20-50-100-W5D PRI
PRI

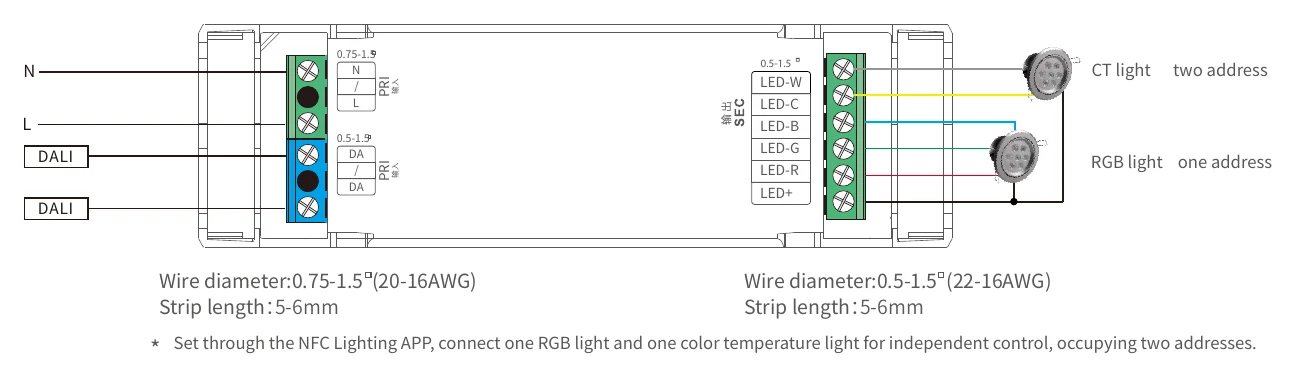

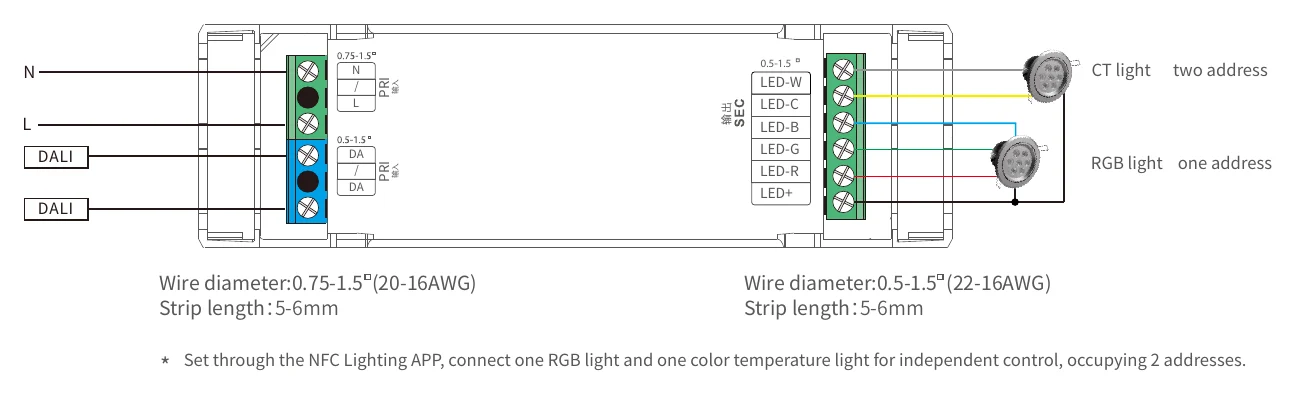

SE-20-50-100-W5D Multi-addressXY+CTwiringmethod
Multi-addressXY+CTwiringmethod
SE-20-50-100-W5D PRI
PRI

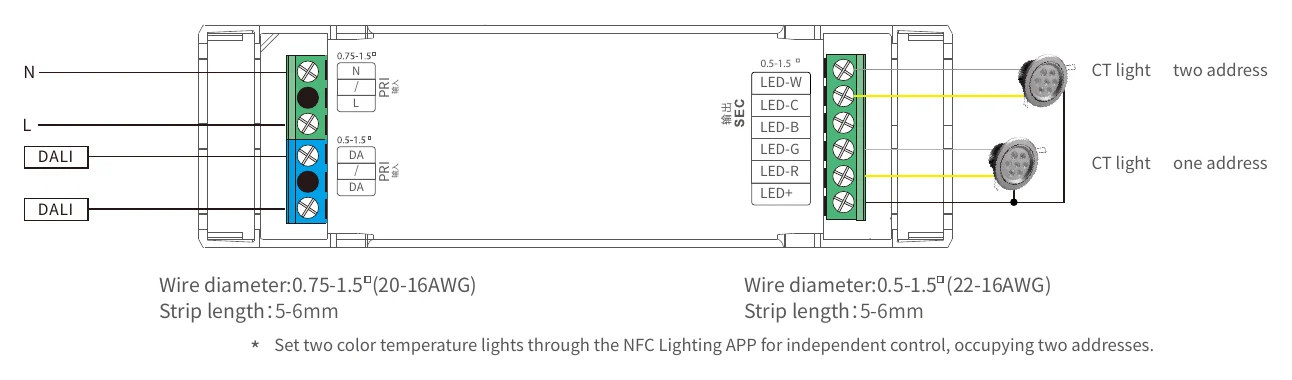

SE-20-50-100-W5D Multi-address2×CTWiringMethod
Multi-address2×CTWiringMethod
SE-20-50-100-W5D PRI
PRI
SE-20-50-100-W5D Multi-addressXY+WWiringMethod
Multi-addressXY+WWiringMethod

Downloads

FAQ

What is this LED driver used for?

It is a constant current LED driver designed for indoor lighting fixtures, supporting color light control and multi-current settings.

What are the output voltage and current specifications?

The output voltage ranges from 9-42Vdc (max 50Vdc), and the output current is set between 50-100mA using the NFC APP.

How do I dim the lights with this driver?

It supports DALI-2 dimming with a range of 0.1% to 100%, allowing for very low-level dimming.

What is the input voltage range?

It accepts a universal input of 100-240Vac or 100-240Vdc, with a power factor greater than 0.95 at 115Vac.

Where can this driver be installed?

It has an IP20 rating, making it suitable for indoor use only. The operating temperature range is -20 to 50°C.

What safety protections are included?

It includes automatic recovery for overload, overvoltage, and short circuit conditions, as well as overheat protection.

What are the physical dimensions and weight?

The unit measures 127x40x23mm and weighs approximately 100g.
