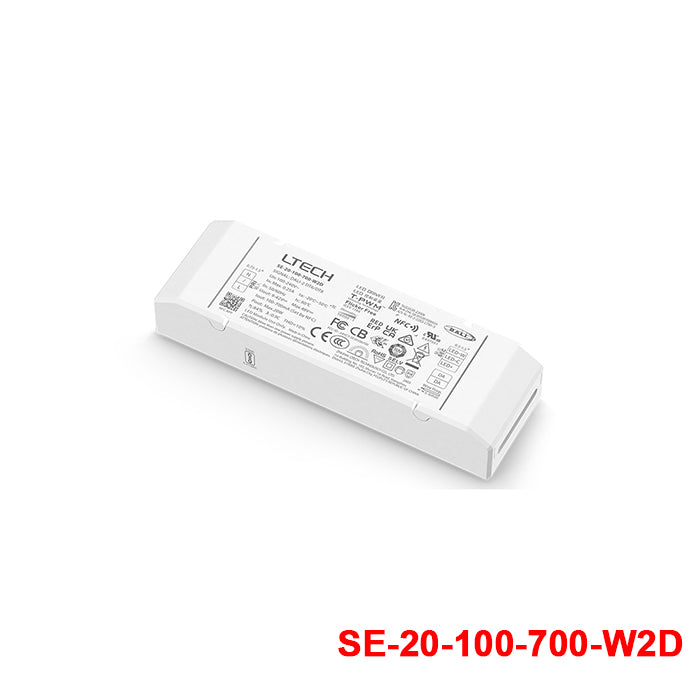

Ltech SE-20-100-700-W2D 20W 100-700mA LED Driver - NFC, DALI2, Tuna...
Log in to see priceOverview
SE-20-100-700-W2D is the 9-42Vdc output model of this series: typical efficiency 84%@700mA(at full load), 87%@500mA (at full load).
Intelligent Tunable White LED Driver (Constant Current)
Features
- Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
- Ultra small, thin and lightweight, screwless end cap.

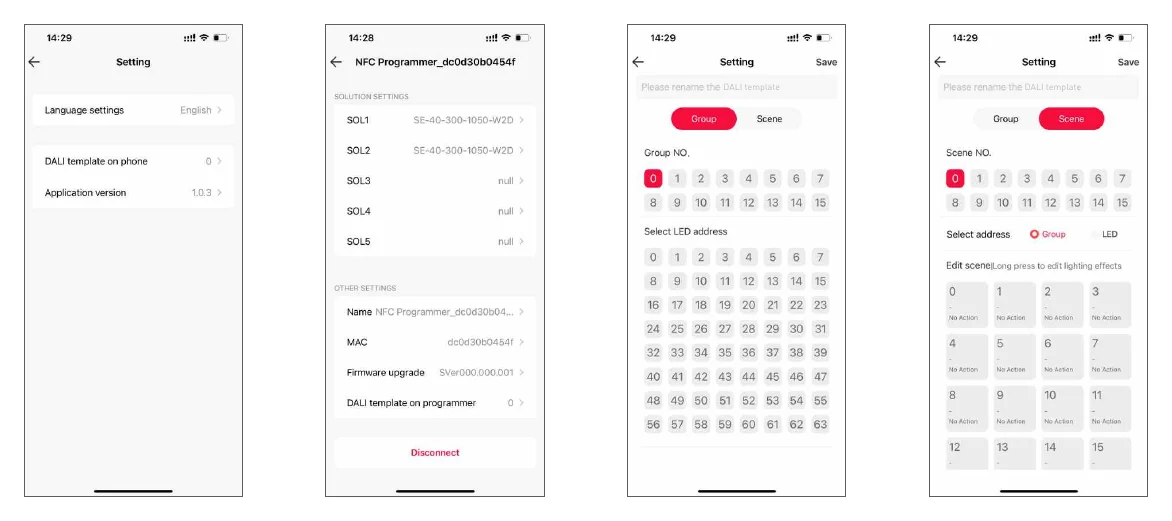

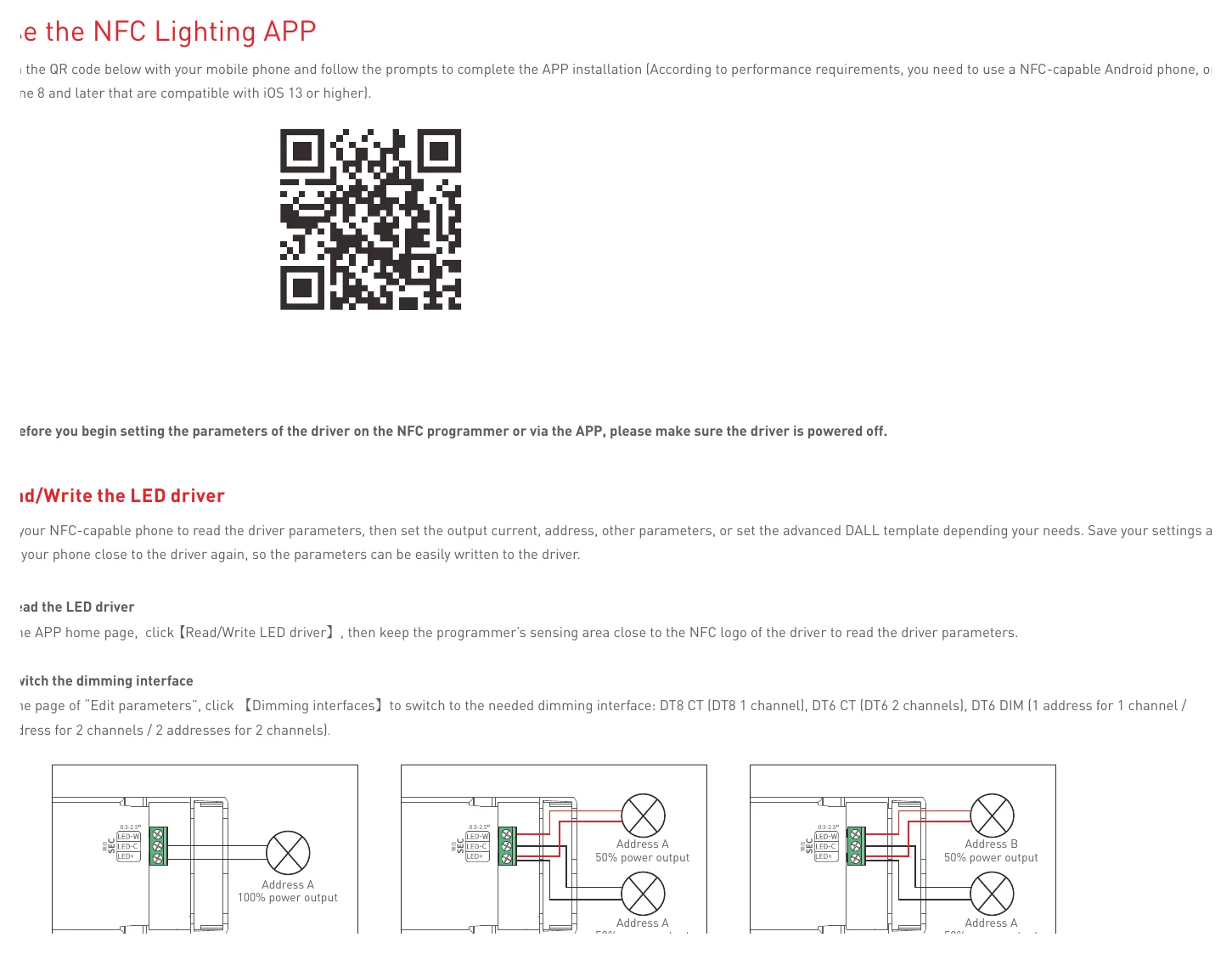

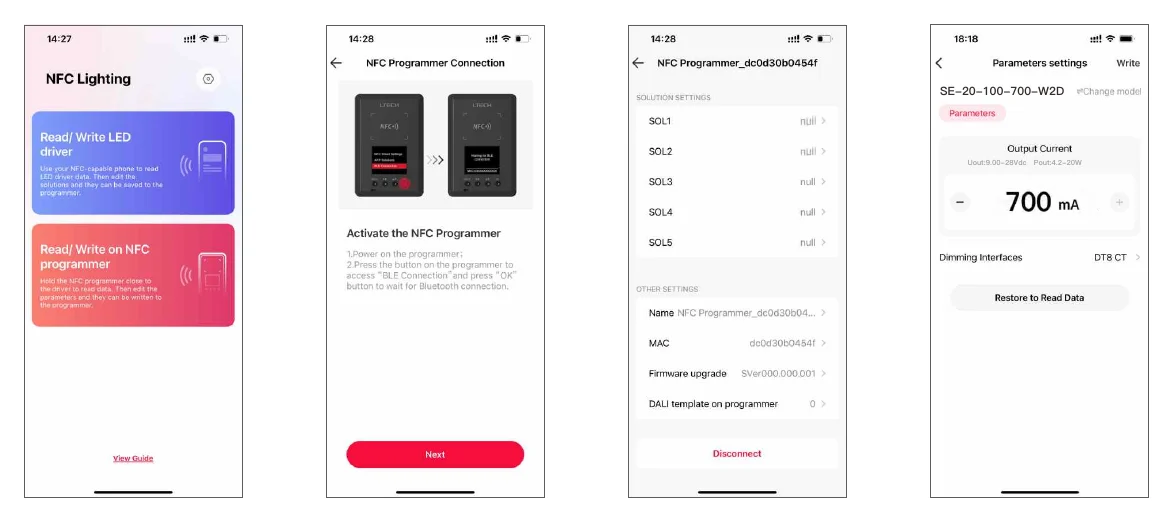

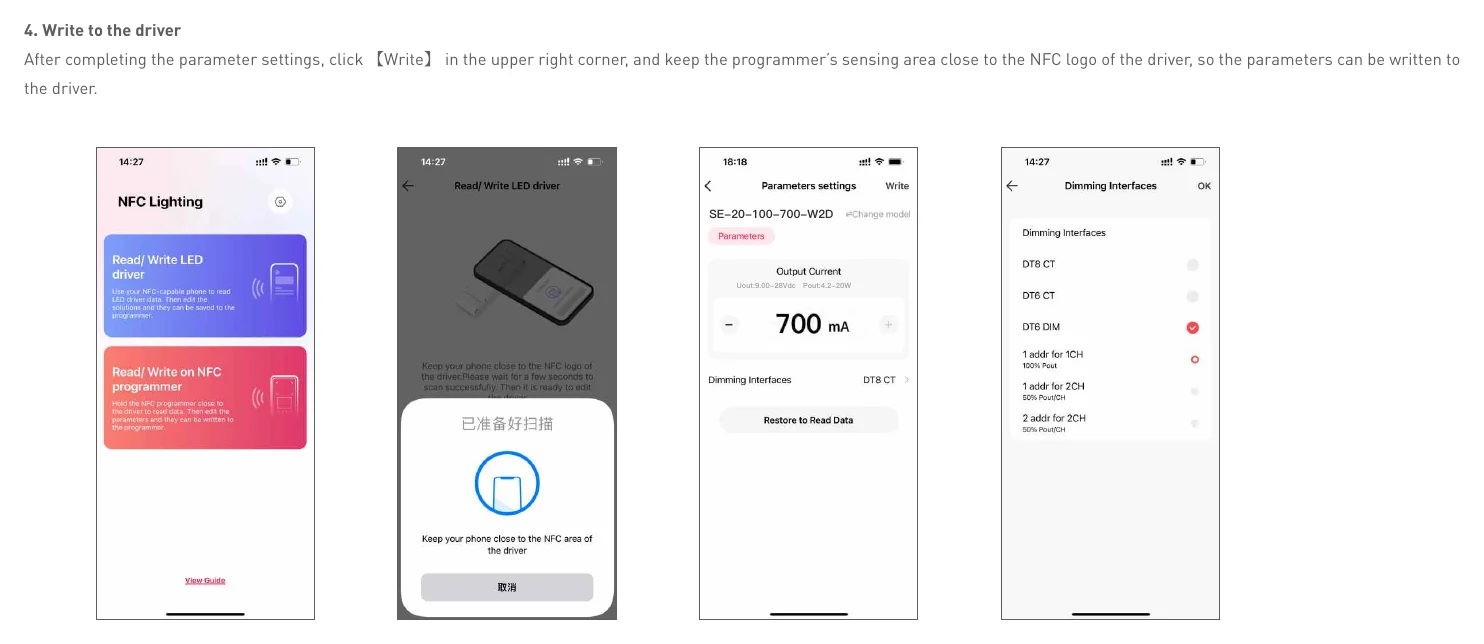

- Change the dimming interface, output current, DALI address and other parameters on the NFC programmer or via the App, and sync the parameters to the driver.
- Set the DALI group, scene in the advanced DALI template.
- Set the output current down to 1mA.
- DALI bus standard IEC62386-101, 102, 209.
- Class 2 LED driver, Safety Extra Low Voltage (SELV).
- Soft-on and fade-in dimming function enhances your visual comfort.
- T-PWM™ dimming technology allows quality and high-end lighting.
- The whole dimming process is flicker-free with high frequency exemption level.
- Comply with the EU’s ErP Directive, networked standby<0.5W.
- Multiple current levels, wide voltage range, suitable for LEDs with different power
- When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.
- Overheat, over voltage, overload, short circuit protection and automatic recovery.
- Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
- Normal service life can reach 100,000 hours.
- 5-year warranty (Rubycon capacitor).
Specifications
Features
- Output Type
- Constant current
- Dimming Interface

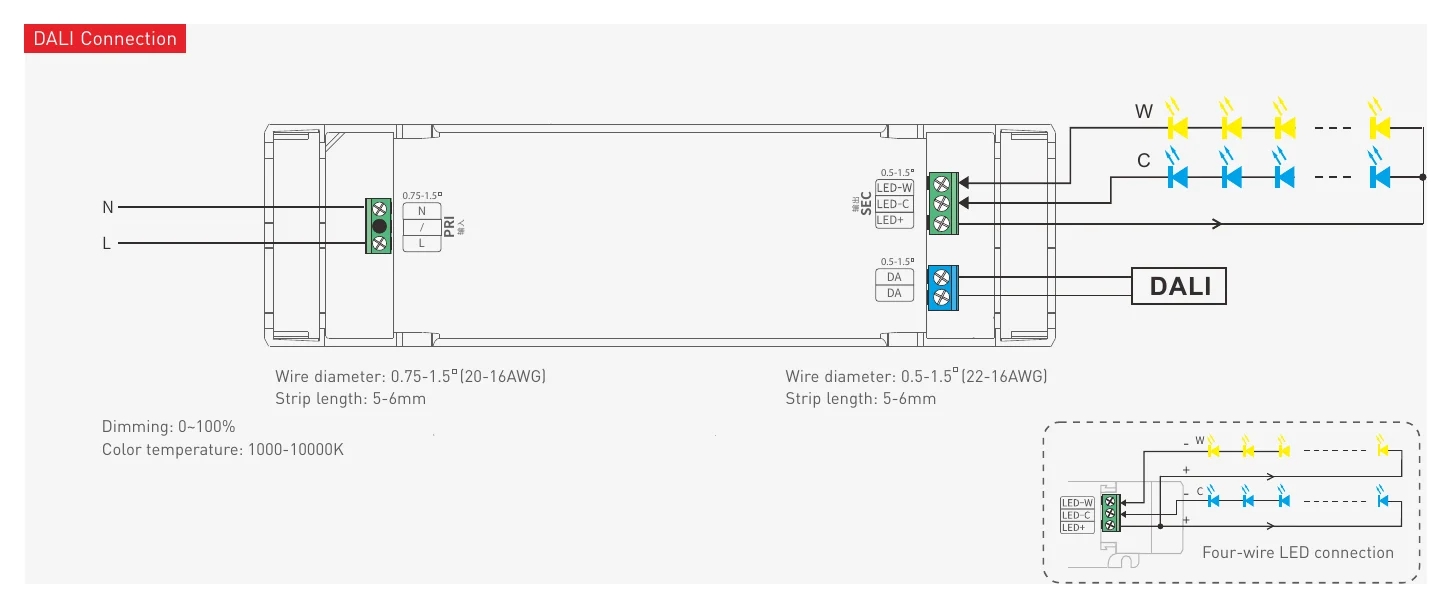

- DALI-2 DT6/DT8
- Output Feature
- Isolation
- Protection Grade
- IP20
- Insulation Grade
- Class II (Suitable for class I/ II /III light fixtures)
OUTPUT

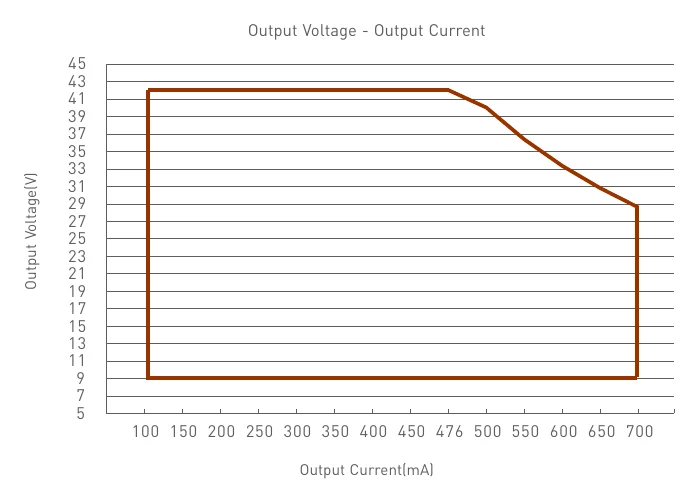

- Output Voltage
- 9-42Vdc
- Maximum output voltage
- ≤48Vdc
- Output Current Range
- 100-700mA
- Output Power Range
- 0.9W~20W
- Dimming Range
- 0~100% :0.01%
- LF Current Ripple
- <3%(Maximum current for non dimming state)
- Current Accuracy
- ±5%
- PWM Frequency
- ≤3600Hz
INPUT
- DC Voltage Range
- 120-300Vdc
- AC Voltage Range
- 100-240Vac
- Input Voltage
- 115Vac/230Vac
- Frequency
- 50/60Hz
- Input Current
- ≤0.25A/115Vac，≤0.13A/230Vac
- Power Factor
- PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load)
- THD
- THD≤10%/230Vac (at full load)

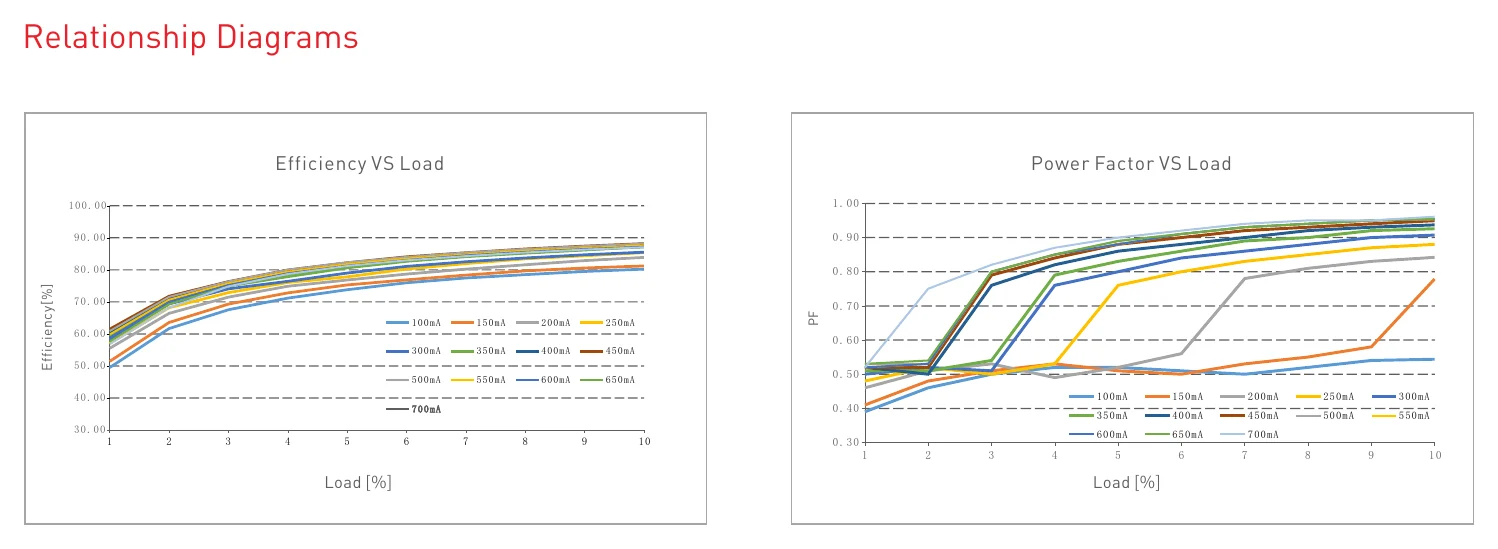

- Efficiency (Typ.)
- 84%@700mA(at full load), 87%@500mA (at full load)
- Inrush Current
- Cold start 15A (Test twidth=102us tested under 50% Ipeak)/230Vac
- Anti Surge
- L-N:2KV
- Leakage Current
- Max.0.24mA
ENVIRONMENT
- Working Temperature
- ta:-20~50°C tc:90°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temperature/Humidity
- -40~80°C/10~95%RH
- Temperature Coefficient
- ±0.03%/°C(0-50°C)
- Vibration
- 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Overload Protection
- Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
- Overheat Protection
- Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
- Overvoltage Protection
- Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
- Short Circuit Protection
- Enter hiccup mode if short circuit occurs, and recover automatically
- Withstand Voltage
- I/P-O/P: 3750Vac
- Insulation Resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
SAFETY & EMC
- Safety Standards
-
Parameter Standard Test Level CCC China GB19510.1, GB19510.14 TUV Germany EN61347-1, EN61347-2-13, EN62493 CB CB Member States IEC61347-1, IEC61347-2-13 CE European Union EN61347-1, EN61347-2-13, EN62384 KC Korea KC61347-1, KC61347-2-13 EAC Russia IEC61347-1, IEC61347-2-13 RCM Australia AS 61347-1, AS 61347-2-13 ENEC Europe EN61347-1, EN61347-2-13, EN62384 UKCA Britain BS EN 61347-1, BS EN 61347-2-13, BS EN 62493 BIS India IS 15885 (PART 2/SEC 13) CUL Canada CSA C22.2 NO.250.13 UL America UL 8750 - EMC Emission
-
Parameter Standard Test Level CCC China GB/T17743, GB17625.1 CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547 KC Korea KSC 9815, KSC 9547 EAC Russia IEC62493, IEC61547, EH55015 RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547 UKCA Britain BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN IEC 61000-3-3, BS EN 61547 CUL Canada ICES-005 UL America FCC PART 15B - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11, EN61547
ErP
- Power Consumption Standby power consumption
- No standby mode
- Power Consumption Networked standby
- ≤0.5W (After shutdown by command)
- Power Consumption No-load power consumption
- ≤0.5W (When the lamp is not connected)
- Flicker/Stroboscopic Effect IEEE 1789
- Meet IEEE 1789 standard/High frequency exemption level
- Flicker/Stroboscopic Effect CIE SVM
- Pst LM≤1.0，SVM≤0.4
- DF Phase factor
- 0.9
OTHERS
- Weight(N.W.)
- 105g±10g

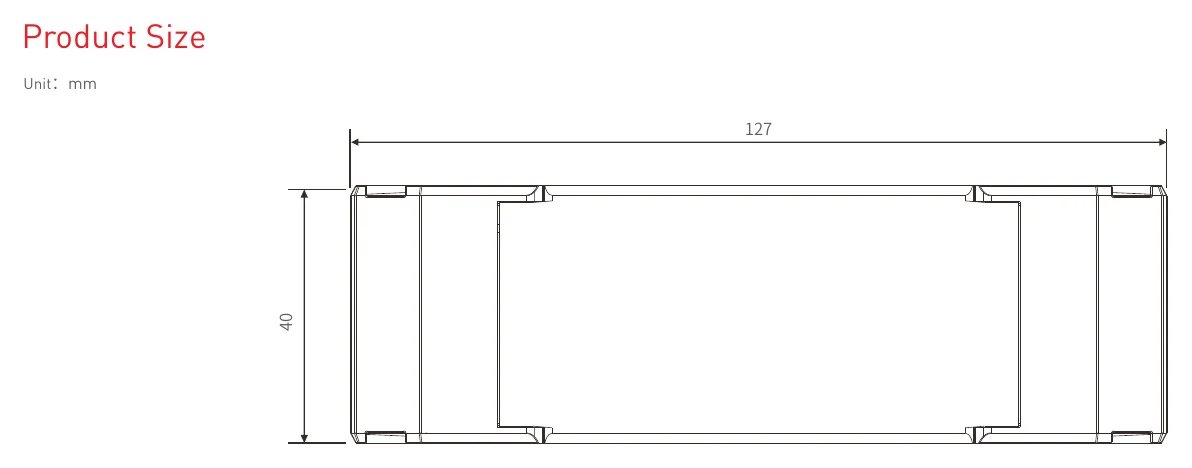

- Dimensions
- 127×40×23mm(L×W×H)
Certifications & ratings
- Marked features
- DIM / CT, T-PWM™ Dimming Technology

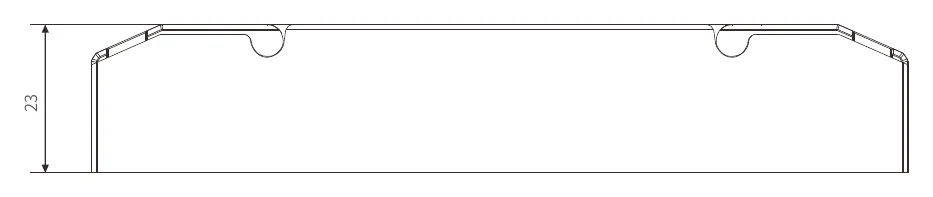

Technical drawings
Downloads
Datasheet1
FAQ
What kind of applications is the Ltech SE-20-100-700-W2D designed for?
This model is a 20W constant-current LED driver intended for professional lighting applications that need DALI-2 control. Its compact, thin housing also makes it suitable for space-constrained fixture designs where a lightweight driver is preferred.
What makes this LED driver different from a basic non-dimming driver?
The SE-20-100-700-W2D supports DALI-2 dimming, which makes it better suited to projects that need controllable light output rather than simple fixed-output operation. It also supports NFC parameter adjustment, including dimming interface, output current, and DALI address settings.
Can the output current be adjusted on this model?
Yes. Parameters such as output current can be changed using an NFC programmer or app and then synced to the driver. The listed model range is 100-700mA.
Is this driver compatible with DALI-based lighting control systems?
Yes, this driver uses DALI-2 control. That makes it appropriate for projects that require a driver aligned with standard DALI bus protocols.
What are the key electrical specifications of the SE-20-100-700-W2D?
This LED driver is rated at 20W with a listed output voltage range of 9-42Vdc (max 48Vdc). The product data identifies it as a constant-current model in the 100-700mA family.
Is this LED driver suitable for demanding indoor operating conditions?
It is specified for an ambient temperature range of -20°C to 50°C, which supports use across a broad range of indoor commercial lighting environments. The housing is also described as V0 flame-retardant PC material, supporting applications where material safety is a consideration.
What warranty is offered for this model?
The SE-20-100-700-W2D is a professional LED driver designed for commercial and project-based purchasing where longer service life expectations matter.
