Ltech LM-36-24-G1T2 36W 24V Triac Dimmable Driver 1.5A
Log in to see priceOverview
LM-36-24-G1T2 is the 24Vdc output model of this series: typical efficiency 85%.
Features
- Small size and light weight. Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings.

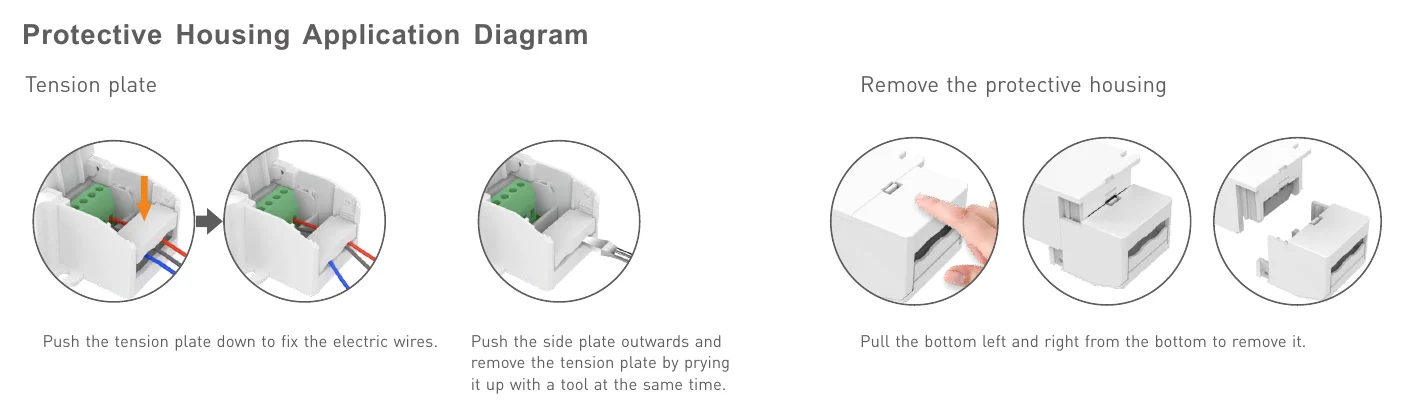

- The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
- With soft-on and fade in function, visual more comfortable.
- Dimming range: 0~100%, dimming down to 0.1%.
- 0-100% flicker-free, High frequency exemption level.

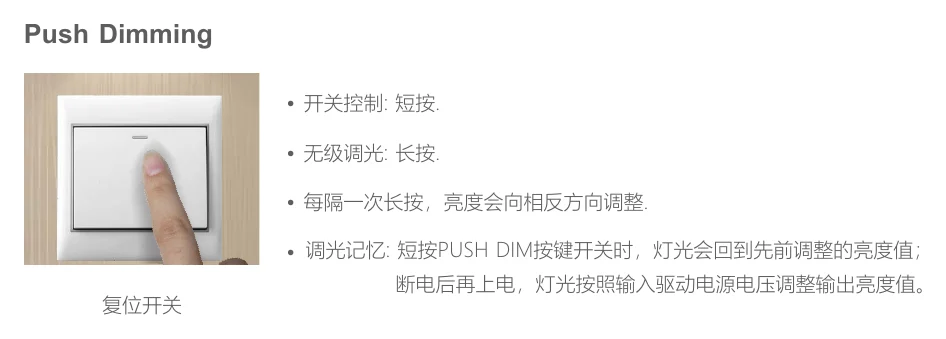

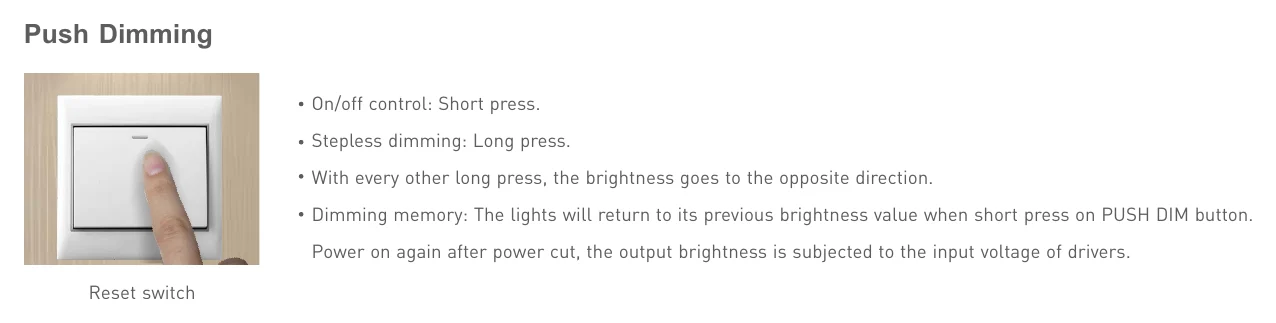

- Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.
- The secure and reliable design for signal isolation.
- Innovative thermal management technology intelligently protects the lifetime the driver.
- Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.
- Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
- Up to 50000-hour life time.
- 5 year warranty (Rubycon capacitor).
Specifications
OUTPUT
- Output voltage
- 24Vdc
- Output voltage range
- 24Vdc ± 0.5Vdc
- Output current
- Max. 1.5A
- Output power
- Max. 36W
- Output power range
- 0~36W
- Strobe level
- High frequency exemption level.
- Dimming range
- 0~100%, dimming down to 0.1%
- Overload power limitation
- ≥102%
- Ripple & Noise
- ≤200mV
- PWM frequency
- 3600Hz
INPUT
- Dimming interface

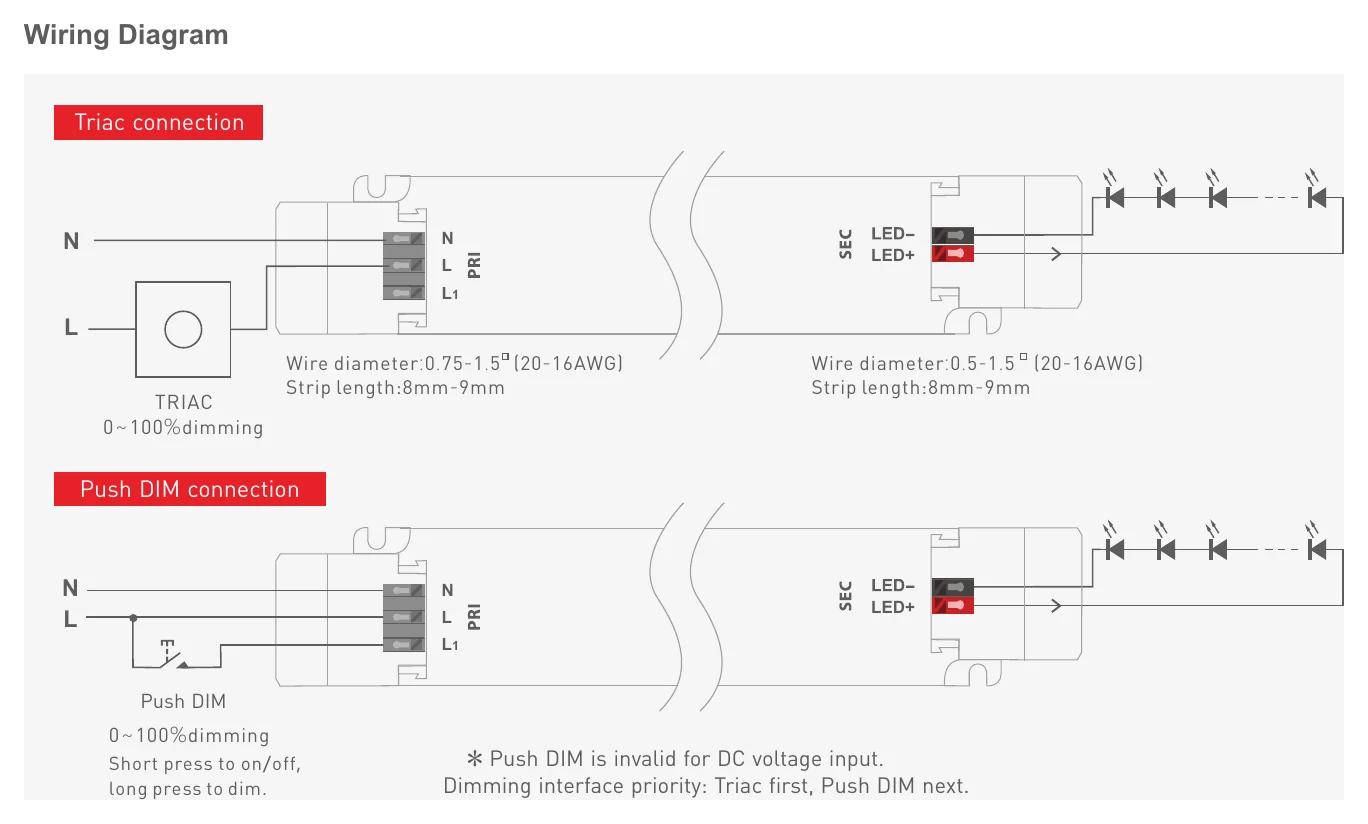

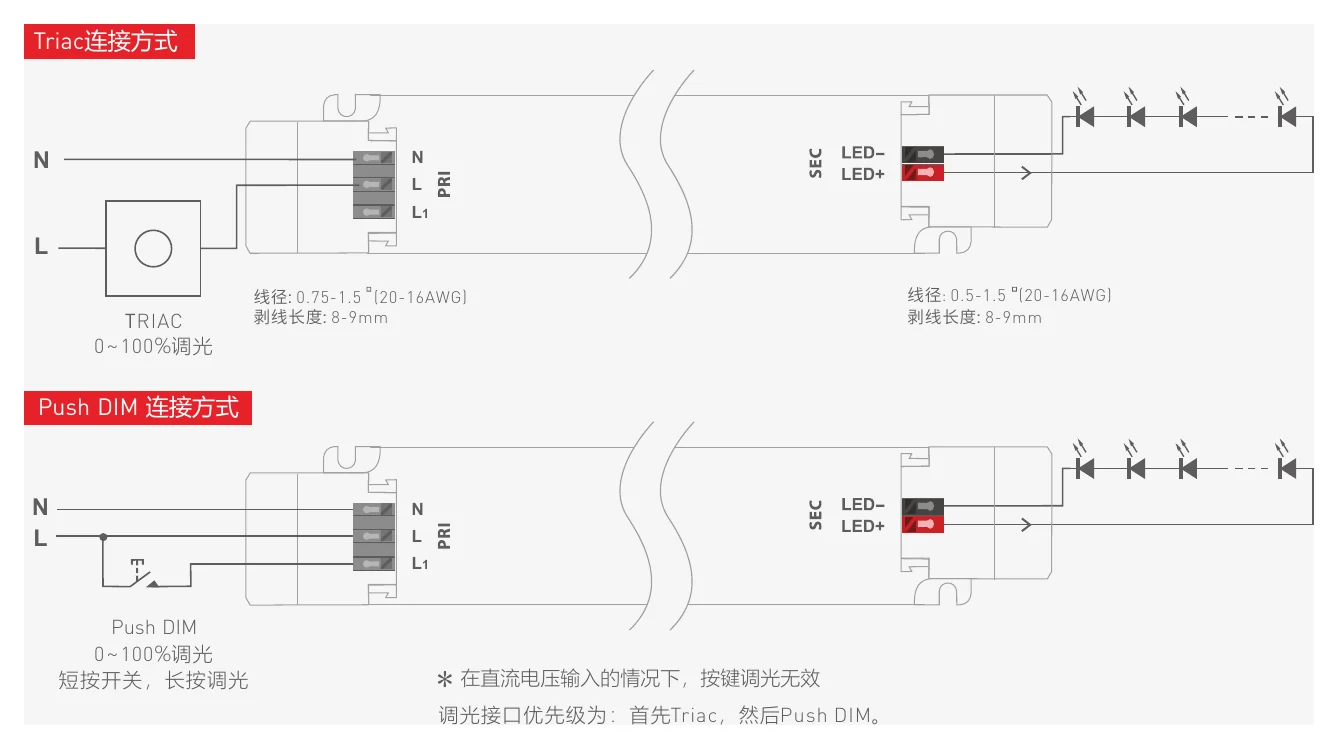

- Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.
- Input voltage
- 220-240Vac
- Frequency
- 50/60Hz
- Input current
- ≤0.2A/230Vac
- Power factor
- PF>0.95/230Vac , at full load
- THD
- 230Vac@THD＜10%, at full load
- Efficiency (typ.)
- 85%
- Inrush current(typ.)
- Cold start 30A at 230Vac
- Control surge capability
- L-N: 2kV
- Leakage current
- Max. 0.5mA
ENVIRONMENT
- Working temperature
- ta: -20 ~ 50°C tc: 90°C
- Working humidity
- 20 ~ 95%RH, non-condensing
- Storage Temperature humidity
- -40°C ~ 80°C, 10~95%RH
- Temperature coefficient
- ±0.03%/°C(0-50°C)
- Vibration
- 10~500Hz, 2G, 12min./1cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Over-heat protection
- Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
- Over load protection
- Shut down the output when current load≥102%, and recover automatically
- Short circuit protection
- Shut down automatically if short circuit occurs, and recover automatically
- Over voltage protection
- Shut down the output when non-load voltage≥26V, re-power on to recover after fault condition is removed
SAFETY & EMC
- Withstand voltage
- I/P-O/P: 3750Vac
- Isolation resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
- Safety Standards
-
Parameter Standard Test Level CCC China GB19510.1，GB19510.14 TUV Germany EN61347-1，EN61347-2-13，EN62493 CE European Union EN61347-1，EN61347-2-13，EN62384 KC Korea KC61347-1，KC61347-2-13 RCM Australia AS61347-1，AS61347-2-13 ENEC Europe EN61347-1，EN61347-2-13，EN62384 CB CB member states IEC61347-1，IEC61347-2-13 - EMC Emission
-
Parameter Standard Test Level EAC Russia IEC61347-1，IEC61347-2-13 CCC China GB/T17743，GB17625.1 CE European Union EN55015，EN61000-3-2，EN61000-3-3，EN61547 KC Korea KN15，KN61547 RCM Australia EN55015，EN61000-3-2，EN61000-3-3，EN61547 EAC Russia IEC62493，IEC61547，EH55015 - EMC immunity
- EN61000-4-2,3,4,5,6,8,11, EN61547

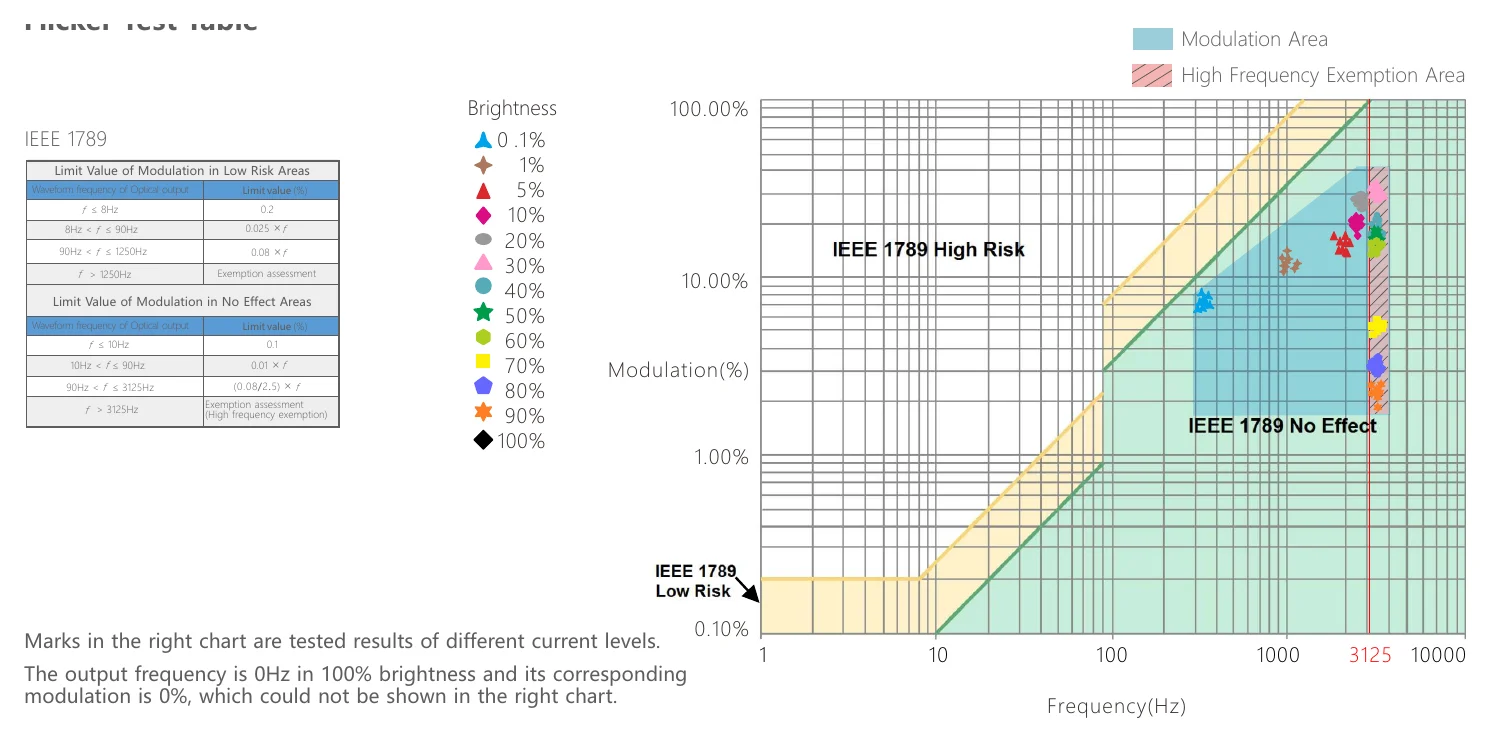

- Strobe test standard
- IEEE 1789
OTHERS
- Weight(G.W.)
- 210g±10g
- Dimension
- 210×43×30mm(L×W×H)
- Package Size
- 213×44×33mm(L×W×H)
- Carton Size
- 440×218×235mm(L×W×H), 40pcs/ctn, 9kg±5%/ctn
Certifications & ratings
- Marked features
- Triac/ELV Push DIM
Test conditions and notes1
- The driver is suitable for connecting resistor current-limiting LED fixture (e.g. LED strip). The inrush current will be dozens of times increased if connecting built-in constant current IC current-limiting LED fixtures, the driver will activate the overloaded protection (hiccups flickering). When you order, please remark controlling the constant current LED fixture (e.g. MR16 lamp, underground light, LED wall washer, constant current LED strip, etc.), then we can prepare the special programs.

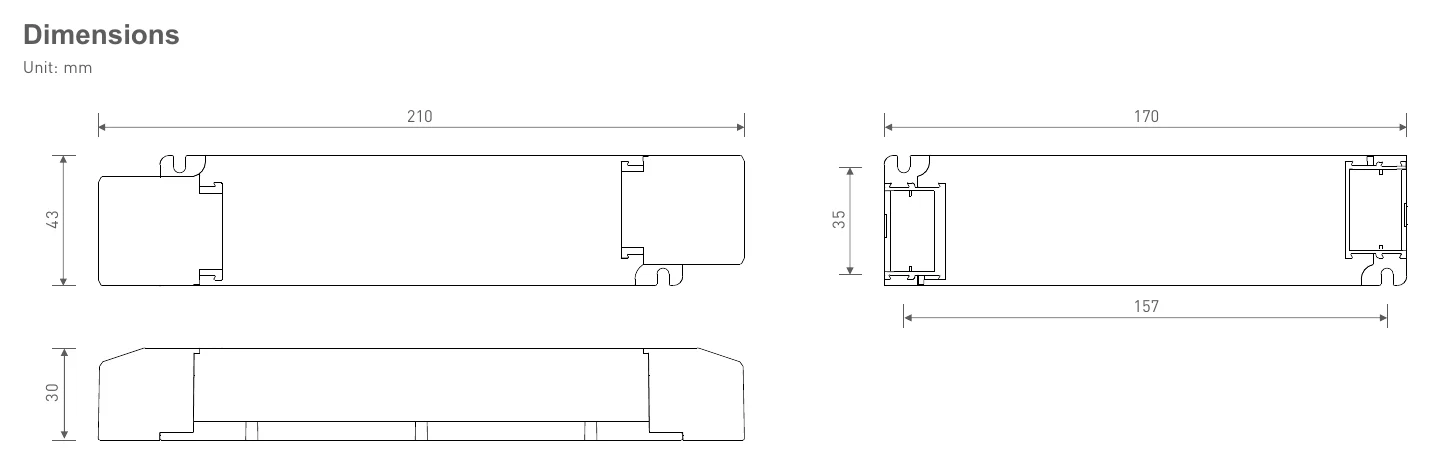

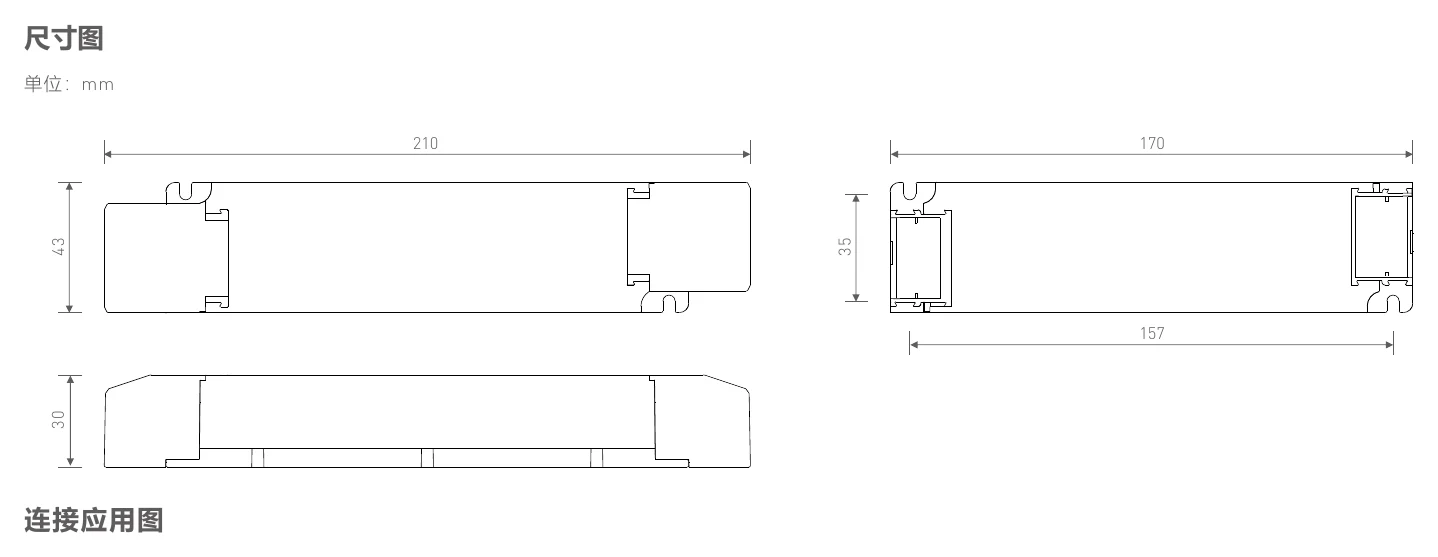

Technical drawings
Downloads

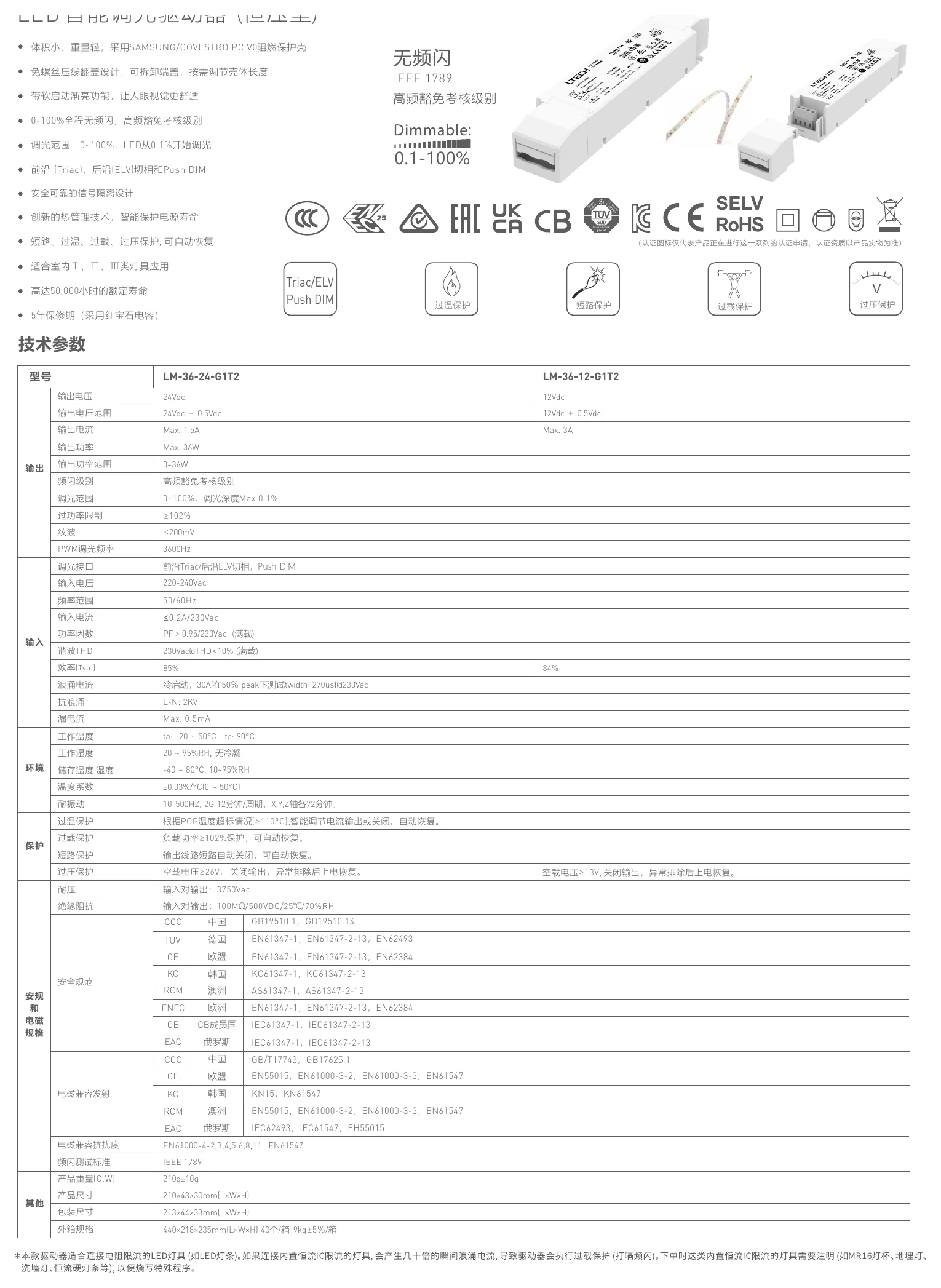

Datasheet1
FAQ
What type of product is the Ltech LM-36-24-G1T2?
The Ltech LM-36-24-G1T2 is a 36W constant-voltage 24V dimmable LED driver. It is designed for internal lighting applications and supports phase-cut dimming with a compact housing format.
What dimming methods does this 24V LED driver support?
This model supports leading-edge (Triac), trailing-edge (ELV) phase-cut dimming, and Push DIM. It offers a 0-100% dimming range and can dim down to 0.1%, with flicker-free performance noted in the product description.
What output does the LM-36-24-G1T2 provide?
This driver provides a 24V output with a rated current of 1.5A and a 36W power rating. It is intended for applications that require a constant 24V LED power supply within that output capacity.
Is the Ltech LM-36-24-G1T2 suitable for commercial indoor lighting projects?
Yes, this model is suited to internal lighting applications and is relevant for commercial or professional indoor LED projects that need 24V constant-voltage dimming. Its compact size, phase-cut dimming support, and multiple built-in protection features make it a practical option for space-conscious lighting systems.
What protection features are included in this LED driver?
The LM-36-24-G1T2 includes overload, over-temperature, short-circuit, and over-voltage protection. According to the specification, these protection functions recover automatically after the fault condition is cleared or the device is repowered where required.
What operating environment is this driver rated for?
This driver is rated for a working ambient temperature range of -20 to 50°C, with a case temperature rating of 90°C. It is intended for indoor use and has a stated lifetime of up to 50,000 hours under appropriate operating conditions.
Does this model include compliance approvals and warranty coverage?
Yes, the LM-36-24-G1T2 lists approvals and standards including TUV, CE, RCM, ENEC, CB, KC, CCC, and EAC in the provided specification. It also carries a 5-year warranty.
