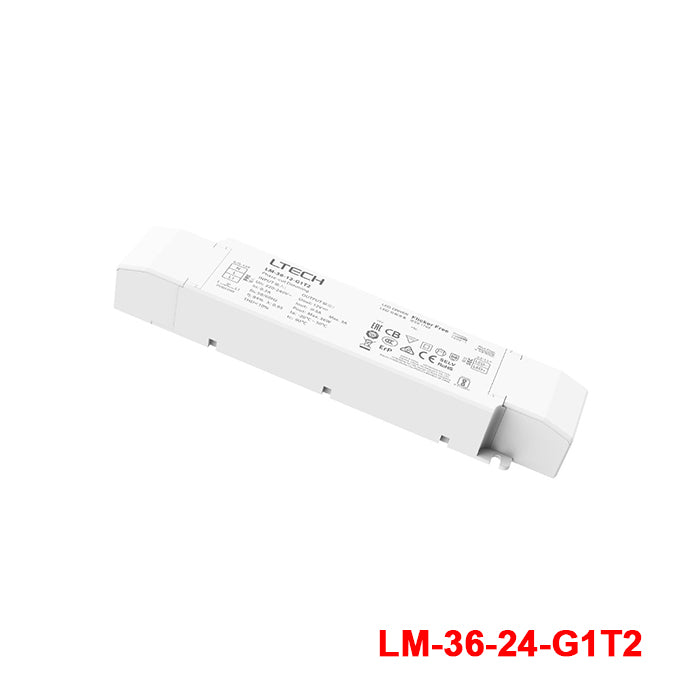

Ltech LM-36-24-G1T2 36W 24V Triac Dimmable Driver 1.5A
Log in to see priceOverview
LM-36-24-G1T2 is the 24Vdc output model of this series: typical efficiency 85%.
Features
- Small size and light weight. Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings.

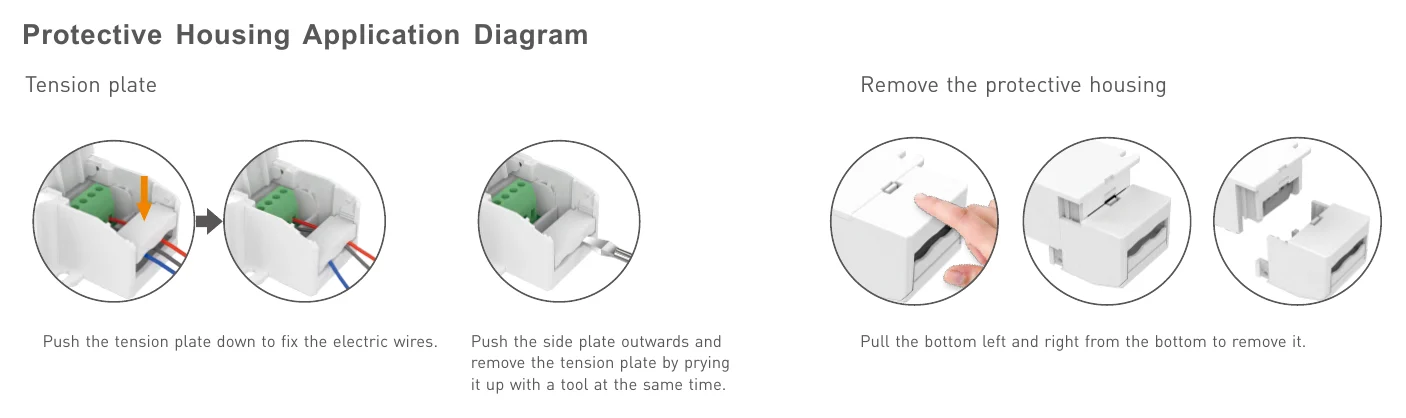

- The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
- With soft-on and fade in function, visual more comfortable.
- Dimming range: 0~100%, dimming down to 0.1%.
- 0-100% flicker-free, High frequency exemption level.

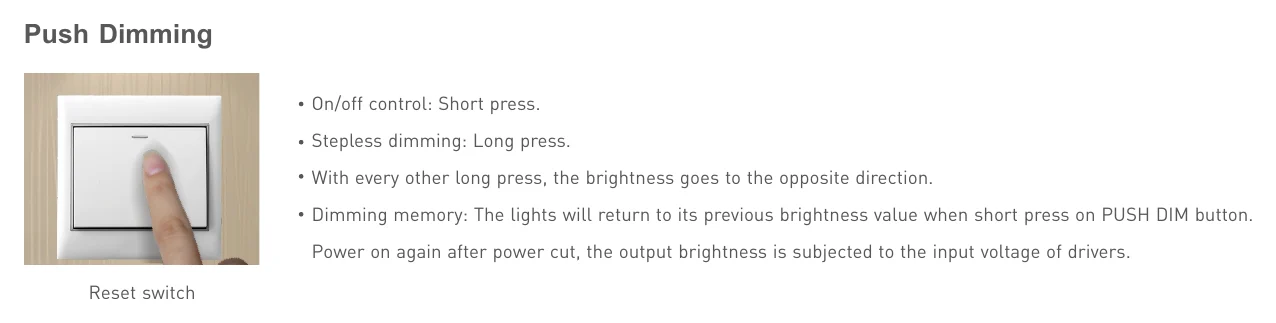

- Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.
- The secure and reliable design for signal isolation.
- Innovative thermal management technology intelligently protects the lifetime the driver.
- Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.
- Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
- Up to 50000-hour life time.
- 5 year warranty (Rubycon capacitor).
Specifications
OUTPUT
- Output voltage
- 24Vdc
- Output voltage range
- 24Vdc ± 0.5Vdc
- Output current
- Max. 1.5A
- Output power
- Max. 36W
- Output power range
- 0~36W
- Strobe level
- High frequency exemption level.
- Dimming range
- 0~100%, dimming down to 0.1%
- Overload power limitation
- ≥102%
- Ripple & Noise
- ≤200mV
- PWM frequency
- 3600Hz

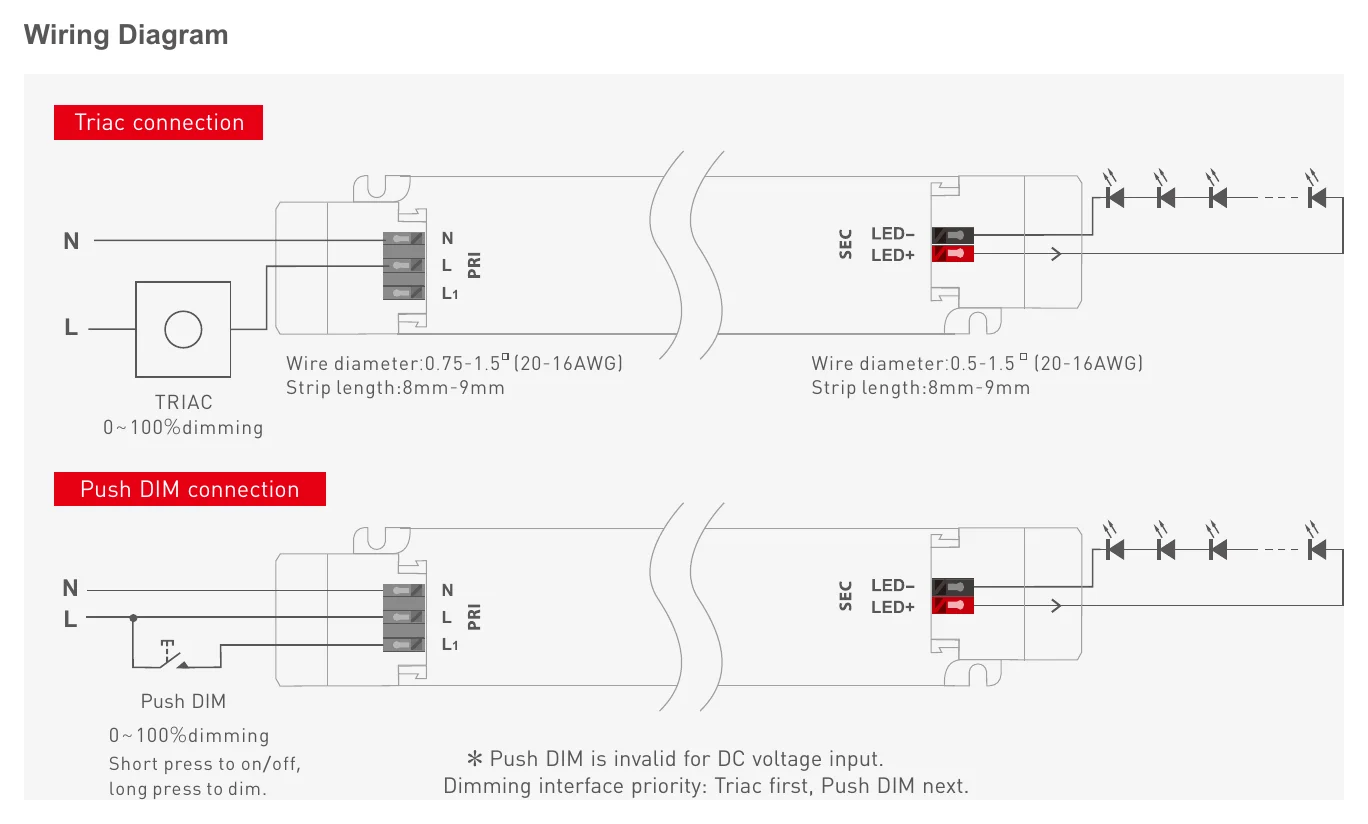

- Dimming interface
- Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.
INPUT
- Input voltage
- 220-240Vac
- Frequency
- 50/60Hz
- Input current
- ≤0.2A/230Vac
- Power factor
- PF>0.95/230Vac , at full load
- THD
- 230Vac@THD＜10%, at full load
- Efficiency (typ.)
- 85%
- Inrush current(typ.)
- Cold start 30A at 230Vac
- Control surge capability
- L-N: 2kV
- Leakage current
- Max. 0.5mA
ENVIRONMENT
- Working temperature
- ta: -20 ~ 50°C tc: 90°C
- Working humidity
- 20 ~ 95%RH, non-condensing
- Storage Temperature humidity
- -40°C ~ 80°C, 10~95%RH
- Temperature coefficient
- ±0.03%/°C(0-50°C)
- Vibration
- 10~500Hz, 2G 12min./1cycle, 72 min for X, Y and Z axes respectively .
PROTECTION
- Over-heat protection
- Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically .
- Over load protection
- Shut down the output when current load≥102%, and recover automatically .
- Short circuit protection
- Shut down automatically if short circuit occurs, and recover automatically .
- Over voltage protection
- Shut down the output when non-load voltage≥26V, re-power on to recover after fault condition is removed.
SAFETY & EMC
- Withstand voltage
- I/P-O/P: 3750Vac
- Isolation resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
- Safety Standards CCC
-
Parameter Standard China GB19510.1，GB19510.14 - Safety Standards TUV
-
Parameter Standard Germany EN61347-1，EN61347-2-13，EN62493 - Safety Standards CE
-
Parameter Standard European Union EN61347-1，EN61347-2-13，EN62384 - Safety Standards KC
-
Parameter Standard Korea KC61347-1，KC61347-2-13 - Safety Standards RCM
-
Parameter Standard Australia AS61347-1，AS61347-2-13 - Safety Standards CB
-
Parameter Standard CB member states IEC61347-1，IEC61347-2-13 - Safety Standards BIS
-
Parameter Standard India IS 15885 (PART 2/SEC 13) - Safety Standards EAC
-
Parameter Standard Russia IEC61347-1，IEC61347-2-13 - EMC Emission CCC
-
Parameter Standard China GB/T17743，GB17625.1 - EMC Emission CE
-
Parameter Standard European Union EN55015，EN61000-3-2，EN61000-3-3，EN61547 - EMC Emission KC
-
Parameter Standard Korea KN15，KN61547 - EMC Emission RCM
-
Parameter Standard Australia EN55015，EN61000-3-2，EN61000-3-3，EN61547 - EMC Emission EAC
-
Parameter Standard Russia IEC62493，IEC61547，EH55015 - EMC immunity
- EN61000-4-2,3,4,5,6,8,11, EN61547

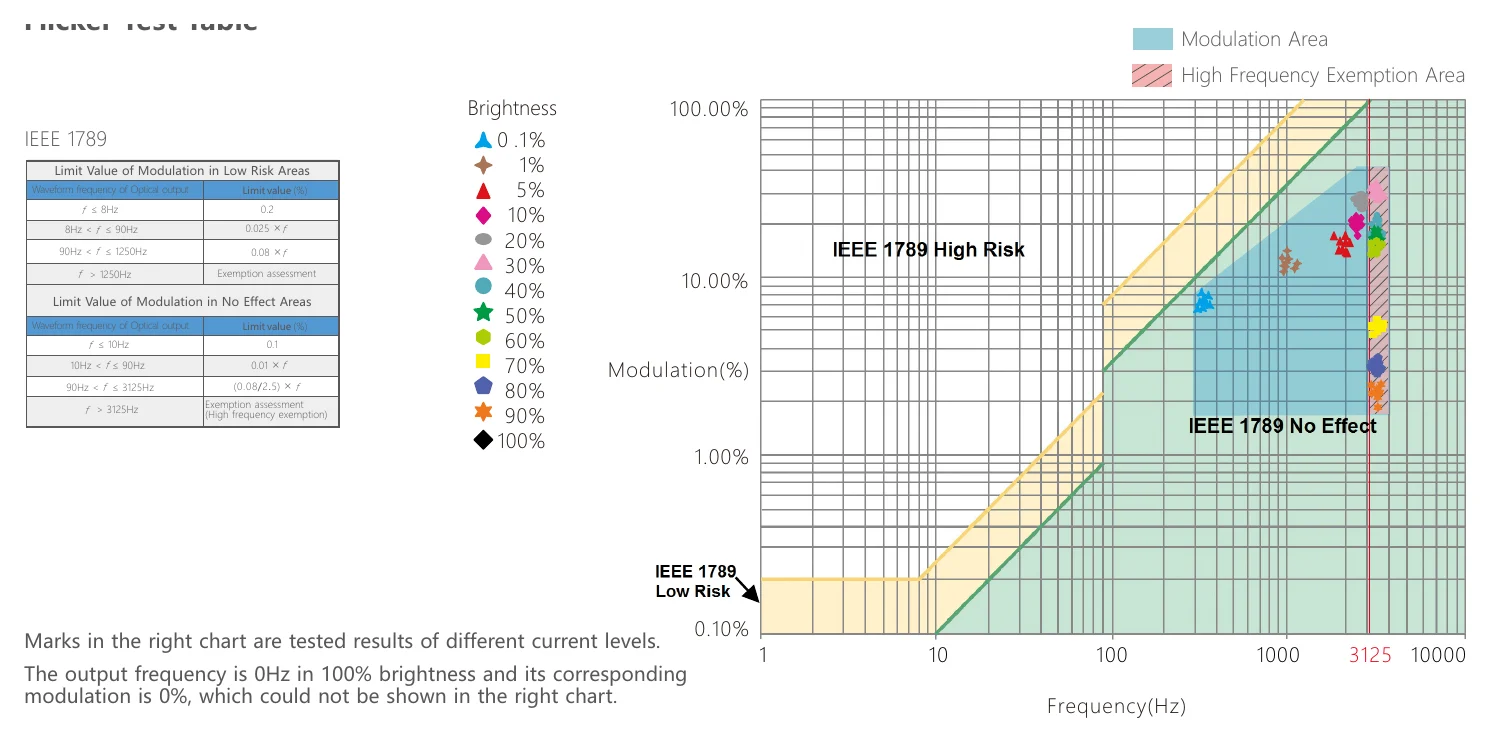

- Strobe test standard
- IEEE 1789
OTHERS
- Weight(G.W.)
- 210g±10g
- Dimension
- 210×43×30mm(L×W×H)
- Package Size
- 213×44×33mm(L×W×H)
- Carton Size
- 440×218×235mm(L×W×H) 40pcs/ctn 9kg±5%/ctn
Technical drawings
Downloads
Datasheet1
FAQ
What type of product is the Ltech LM-36-24-G1T2?
The Ltech LM-36-24-G1T2 is a 36W constant-voltage 24V dimmable LED driver. It is designed for internal lighting applications and supports phase-cut dimming with a compact housing format.
What dimming methods does this 24V LED driver support?
This model supports leading-edge (Triac), trailing-edge (ELV) phase-cut dimming, and Push DIM. It offers a 0-100% dimming range and can dim down to 0.1%, with flicker-free performance noted in the product description.
What output does the LM-36-24-G1T2 provide?
This driver provides a 24V output with a rated current of 1.5A and a 36W power rating. It is intended for applications that require a constant 24V LED power supply within that output capacity.
Is the Ltech LM-36-24-G1T2 suitable for commercial indoor lighting projects?
Yes, this model is suited to internal lighting applications and is relevant for commercial or professional indoor LED projects that need 24V constant-voltage dimming. Its compact size, phase-cut dimming support, and multiple built-in protection features make it a practical option for space-conscious lighting systems.
What protection features are included in this LED driver?
The LM-36-24-G1T2 includes overload, over-temperature, short-circuit, and over-voltage protection. According to the specification, these protection functions recover automatically after the fault condition is cleared or the device is repowered where required.
What operating environment is this driver rated for?
This driver is rated for a working ambient temperature range of -20 to 50°C, with a case temperature rating of 90°C. It is intended for indoor use and has a stated lifetime of up to 50,000 hours under appropriate operating conditions.
Does this model include compliance approvals and warranty coverage?
Yes, the LM-36-24-G1T2 lists approvals and standards including TUV, CE, RCM, ENEC, CB, KC, CCC, and EAC in the provided specification. It also carries a 5-year warranty.
