Ltech LM-75-24-G1T2 75W 24VDC CV Triac Driver 3.125A
Log in to see priceOverview
LM-75-24-G1T2 is the 24Vdc output model of this series: typical efficiency 88%.
Features

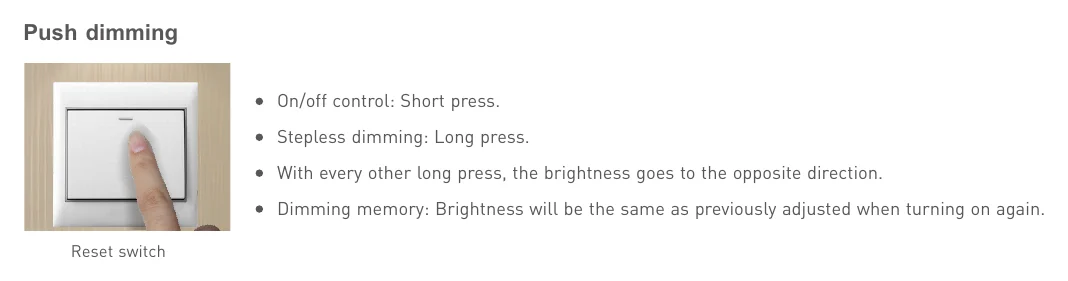

- Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.
- With soft-on and fade in function, makes the human vision more comfortable.
- Dimming range: 0~100%, LED start at 0.1% possible.
- 0-100% flicker-free, High Frequency Exemption
- High Efficient driver: efficiency 88%,PF>0.98, THD<6%
- Innovative thermal management technology, intelligent power life protection.
- Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.
- Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
- 5 years warranty (Rubycon capacitor).
Specifications
OUTPUT
- Output voltage
- 24Vdc
- Output voltage range
- 24Vdc ± 0.5Vdc
- Output current
- Max. 3.125A
- Output power
- Max. 75W
- Output power range
- 0~75W
- Strobe level
- High frequency exemption level.
- Dimming range
- 0~100%, dimming depth: Max. 0.1%
- Overload power limitation
- ≥102%
- Ripple & Noise
- ≤150mV
- PWM frequency
- 3600Hz
INPUT
- Dimming interface
- Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.
- Input voltage
- 220-240Vac
- Frequency
- 50/60Hz
- Input current
- 0.4A max (230Vac)
- Power factor
- >0.98 (230Vac, full load)
- THD
- <6% (230Vac, full load)

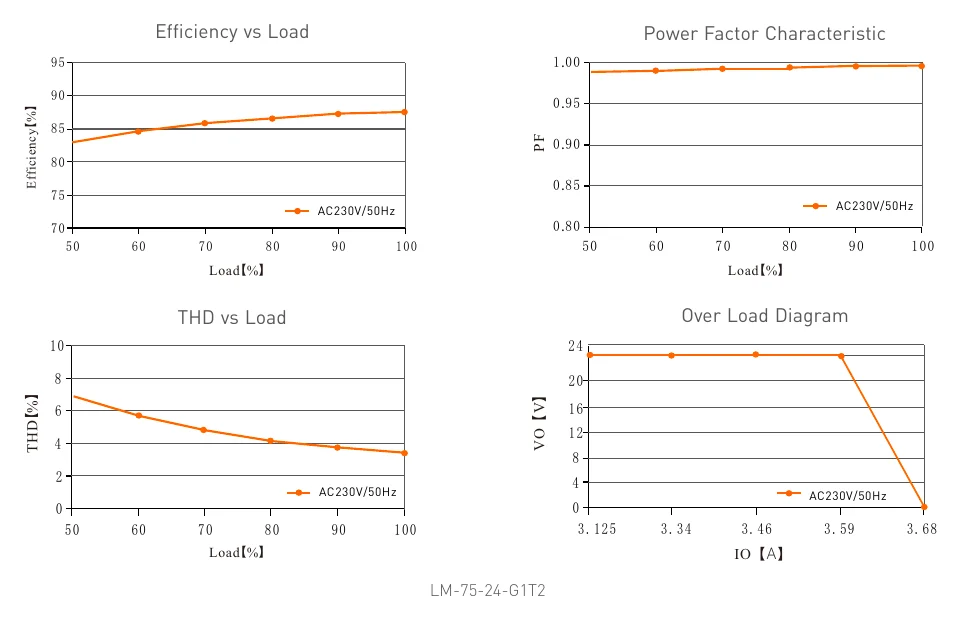

- Efficiency (typ.)
- 88%
- Inrush current(typ.)
- 30A (cold start, 230Vac)
- Control surge capability
- L-N: 2kV
- Leakage current
- Max. 0.5mA
ENVIRONMENT
- Working temperature
- -20 ~ 50°C (ta), 90°C (tc)
- Working humidity
- 20 ~ 95%RH, non-condensing
- Storage temp., humidity
- -40°C ~ 80°C, 10~95%RH
- Temp. coefficient
- ±0.03%/°C (0-50°C)
- Vibration
- 10~500Hz, 2G, 12min./1cycle, 72min. each along X, Y, Z axes
PROTECTION
- Over-heat protection
- Adjusts or turns off output if PCB temp ≥110°C, auto recovers
- Over load protection
- Shut down when load ≥102%, auto recovers
- Short circuit protection
- Shut down on short circuit, auto recovers
- Over voltage protection
- Shut down when non-load voltage ≥26V, re-power on to recover
SAFETY & EMC
- Withstand voltage
- I/P-O/P: 3750Vac
- Isolation resistance
- 100MΩ (500VDC, 25°C, 70%RH)
- Safety standards
- IEC/EN61347-1, IEC/EN61347-2-13
- EMC emission
- EN55015, EN61000-3-2 Class C, IEC61000-3-3
- EMC immunity
- EN61000-4-2,3,4,5,6,8,11, EN61547

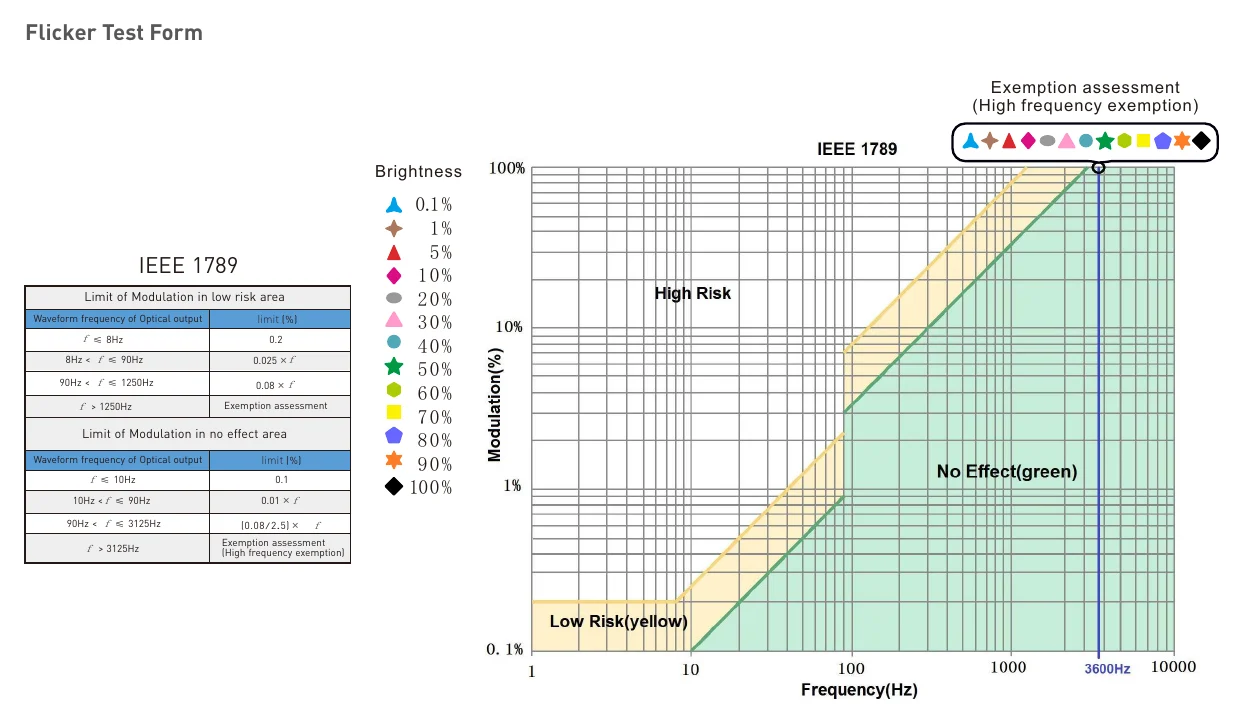

- Strobe test standard
- IEEE 1789
OTHERS
- Dimension
- 293×43×30mm (L×W×H)
- Packing
- 296×44×33mm (L×W×H)
- Weight(G.W.)
- 350g ±10g
Certifications & ratings
- Dimming Dept
- 0.1%
- Marked features
- Triac/ELV, Push DIM

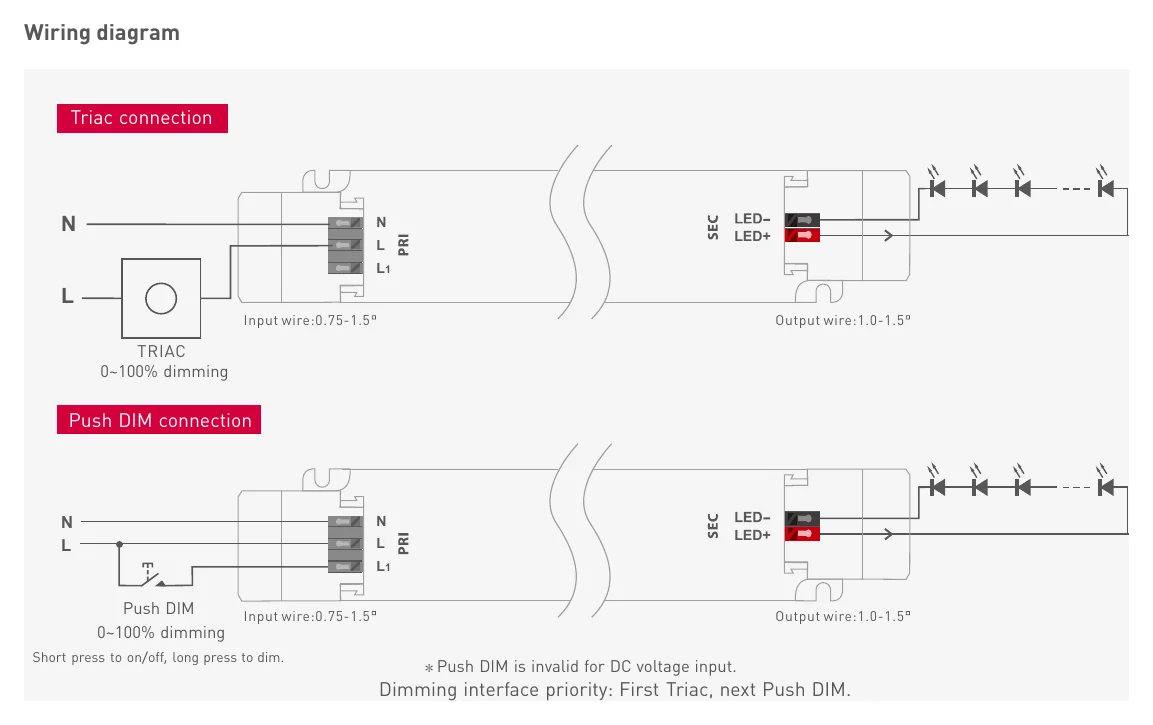

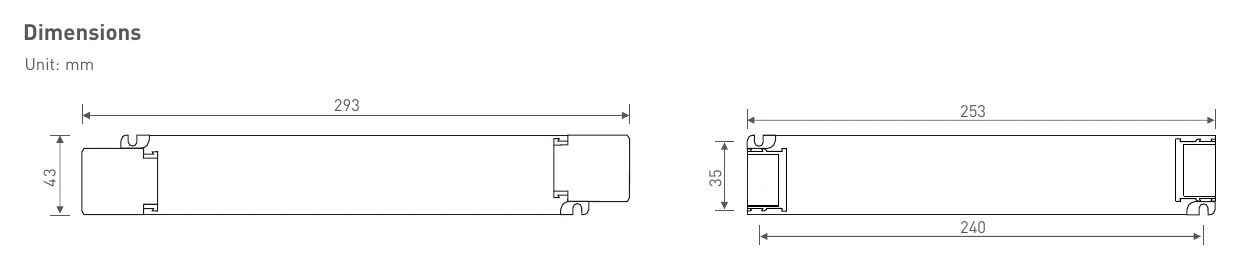

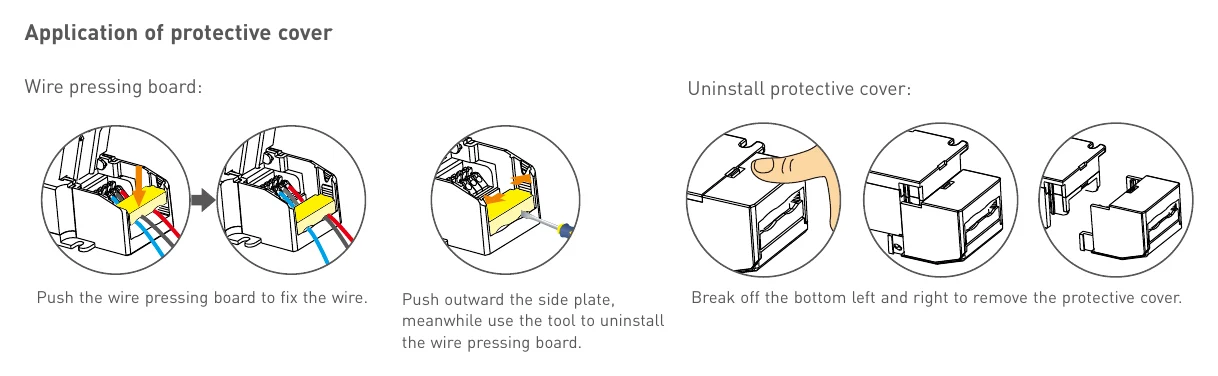

Technical drawings
Downloads
FAQ
What is the Ltech LM-75-24-G1T2 designed for?
The Ltech LM-75-24-G1T2 is a 75W constant-voltage 24VDC Triac driver for internal lighting applications. It is intended for LED lighting systems that need phase-cut dimming and supports both Push DIM and Triac/ELV dimming.
What dimming methods does the LM-75-24-G1T2 support?
This model supports leading-edge (Triac) and trailing-edge (ELV) phase-cut dimming. It also supports Push DIM, giving more flexibility for lighting control in compatible applications.
How smooth is the dimming performance on this 24V driver?
The LM-75-24-G1T2 offers a 0 to 100% dimming range and can start LEDs at 0.1%. It is described as flicker-free across the 0 to 100% range in line with IEEE 1789, which makes it suitable for applications where stable light output matters.
What output does the Ltech LM-75-24-G1T2 provide?
This driver provides a 24VDC constant-voltage output with a 75W power rating. Its rated current is 3.125A, matching applications that require a 24V constant-voltage driver within that power range.
What protection features are included in the LM-75-24-G1T2?
The LM-75-24-G1T2 includes overload, over-temperature, short-circuit, and over-voltage protection. Overload, over-temperature, and short-circuit protections recover automatically, while over-voltage protection requires re-powering to recover.
What operating environment is this driver rated for?
This model is rated for ambient temperatures from -20°C to 50°C. It is specified for internal lights application, so it is intended for indoor use rather than exposed outdoor environments.
What makes this model different from a basic non-dimming 24V power supply?
Unlike a basic 24V constant-voltage power supply, the LM-75-24-G1T2 is built specifically for dimmable LED lighting applications. It adds phase-cut dimming support, Push DIM capability, flicker-free dimming performance, and built-in protection features tailored to lighting use.
What warranty is offered on the Ltech LM-75-24-G1T2?
The LM-75-24-G1T2 is designed for long-life operation with high-quality components. It features a robust protection suite and meets safety standards IEC/EN61347-1 and IEC/EN61347-2-13.
