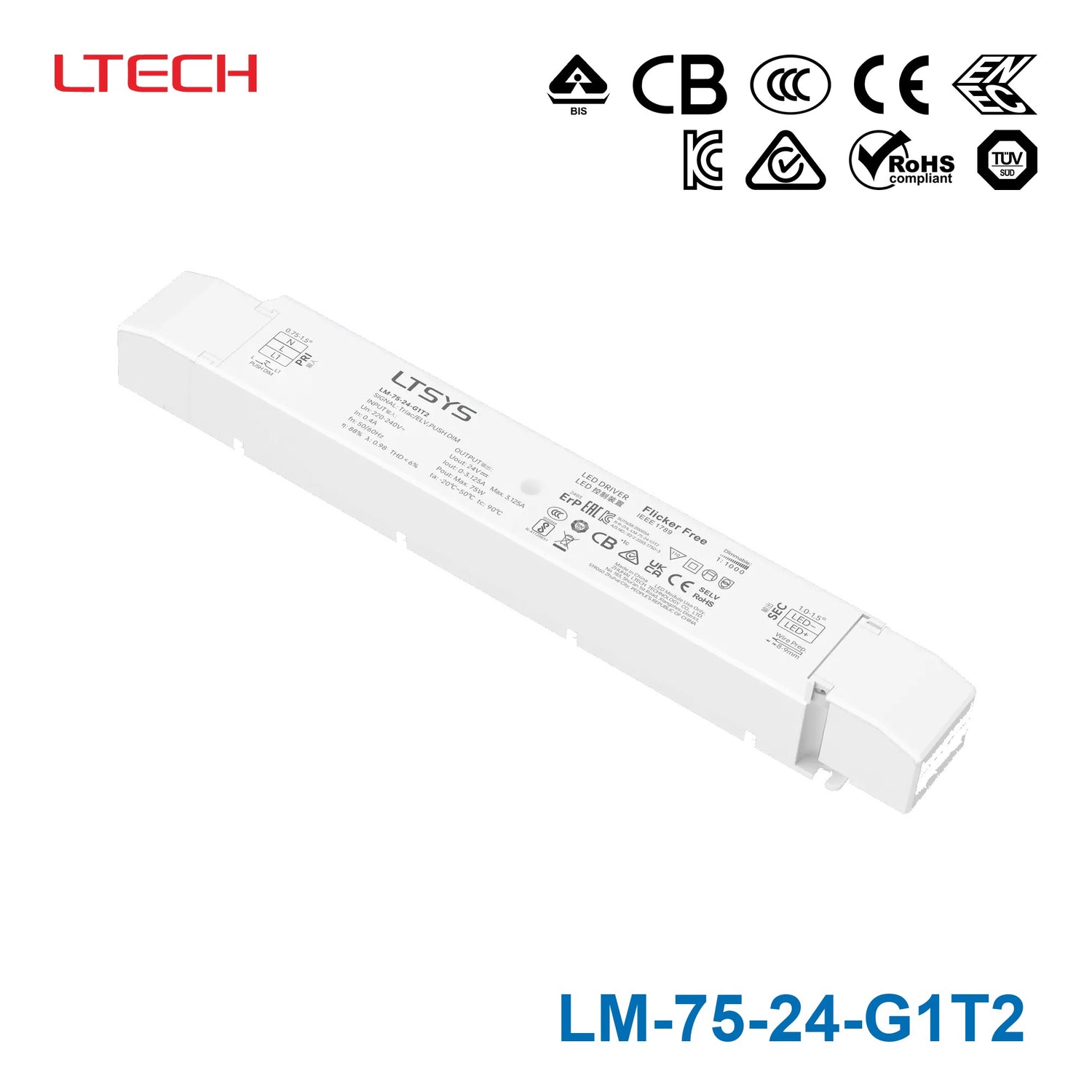

Ltech LM-75-24-G1T2 75W 24VDC CV Triac Driver 3.125A

The Ltech LM-75-24-G1T2 is a 75W constant-voltage 24VDC Triac driver for internal lighting applications. It is intended for LED lighting systems that need phase-cut dimming and supports both Push DIM and CCT functions.

This model supports leading-edge (Triac) and trailing-edge (ELV) phase-cut dimming. It also supports Push DIM/CCT, giving more flexibility for lighting control in compatible applications.

The LM-75-24-G1T2 offers a 0 to 100% dimming range and can start LEDs at 0.1%. It is described as flicker-free across the 0 to 100% range in line with IEEE 1789, which makes it suitable for applications where stable light output matters.

This driver provides a 24VDC constant-voltage output with a 75W power rating. Its rated current is 3.125A, matching applications that require a 24V constant-voltage driver within that power range.

The LM-75-24-G1T2 includes overload, over-temperature, short-circuit, and over-voltage protection. According to the product details, it recovers automatically after protection events.

This model is rated for ambient temperatures from -20°C to 50°C. It is specified for internal lights application, so it is intended for indoor use rather than exposed outdoor environments.

Unlike a basic 24V constant-voltage power supply, the LM-75-24-G1T2 is built specifically for dimmable LED lighting applications. It adds phase-cut dimming support, Push DIM/CCT capability, flicker-free dimming performance, and built-in protection features tailored to lighting use.

This model comes with a 5-year warranty. The product description also notes Rubycon capacitors, which are part of the long-life positioning of this driver.
