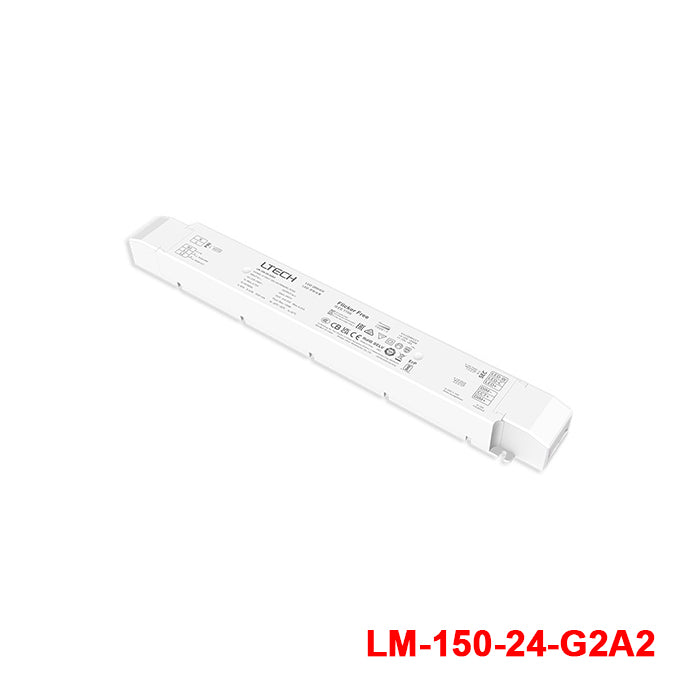

Ltech LM-150-24-G2A2 150W 24V 5-in-1 Dimmable Driver, Tunable White 6.25A

0-10V1-10V10VPWMRX and Push DIM

SKU LM-150-24-G2A2

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The LM-150-24-G2A2 is a 150W constant-voltage 24V driver intended for professional LED lighting projects that need dimming and tunable white control. It is suited to commercial and architectural applications where stable 24V output and smooth low-level dimming matter.

Input 220~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 220~240VAC (200~280VDC)
✓Dimming: 0-10V
✓Output voltage: 24V
✓Rated output current: 6.25A
✓Rated power: 150W
✓Ingress protection: IP20
✓Operating temperature: -20~+50°C
✓Certifications: CB, CCC, CE, EAC, ENEC, KC, SELV, TUV
✓Dimensions: 352 x 30 x 43mm
✓5 year warranty

Frequently Asked Questions

What kind of lighting applications is the LM-150-24-G2A2 designed for?

What are the main electrical ratings of this driver?

This model is rated for 150W output at 24V DC with a rated current of 6.25A. Its AC input range is 220-240Vac, making it appropriate for regions and projects using that supply range.

What makes this model different from a standard non-dimmable 24V power supply?

Unlike a basic fixed-output power supply, the LM-150-24-G2A2 is built for dimmable LED applications and supports tunable white operation. It also includes features such as soft-on and fade-in dimming, flicker-free dimming performance, and T-PWM super deep dimming down to 0.01%.

Is this driver suitable for projects where visual comfort and smooth dimming are important?

Yes. Ltech specifies soft-on and fade-in dimming, along with flicker-free performance at a high-frequency exemption level, which helps support visually comfortable lighting changes. This makes it a stronger fit for premium lighting environments than a basic on/off driver.

What protection features are included in the LM-150-24-G2A2?

This driver includes over-heat, over-voltage, overload, and short-circuit protection with automatic recovery behavior. Over-temperature protection responds when PCB temperature reaches 110°C or higher, and over-voltage protection shuts output down at 28V or above before auto recovery.

Can this driver be used in demanding indoor environments?

It is designed for operating temperatures from -20°C to 45°C ambient, with a case temperature rating of 86°C. The housing uses V0 flame-retardant PC materials, and the unit is backed by a 5-year warranty with a stated service life up to 100,000 hours.

What compliance and market approvals does this model have?

The LM-150-24-G2A2 lists multiple safety and compliance approvals including TUV, CE, RCM, ENEC, CB, UKCA, KC, EAC, and CCC. That broad certification profile can be useful for commercial buyers working across different regulated markets.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Ltech LM-150-24-G2A2F 150W 24VDC CV 0-10V LED Driver 6.25A	—	—	—	IP20	View
Ltech LM-150-24-G1A2F 150W 24VDC CV 0-10V LED Driver 6.25A	—	—	—	IP20	View
Ltech LM-150-12-G1A2F 150W 12VDC CV 0-10V LED Driver 12.5A	—	—	—	IP20	View
