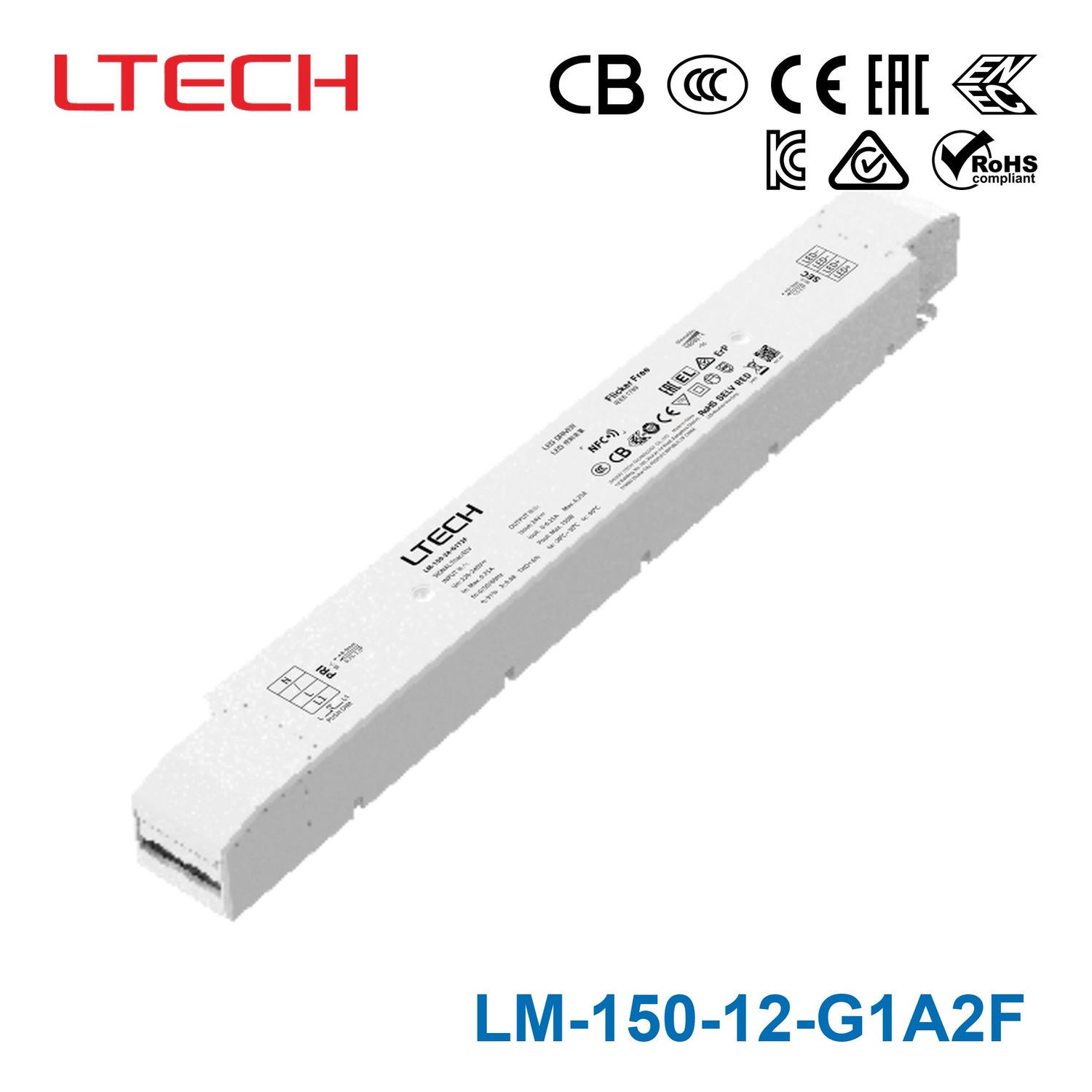

Ltech LM-150-12-G1A2F 150W 12VDC CV 0-10V LED Driver 12.5A

5-in-1 1-10V0-10V 10V PWMRX Push DIM150W

SKU LM-150-12-G1A2F

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

LM-150-12-G1A2F is the 12V output model of this series: typical efficiency 92%.

Intelligent LED Driver (Constant Voltage)

Features

The housing is made of V0 flame-retardant PC material, sourced from SAMSUNG/COVESTRO.
Features a tool-free clamshell design with detachable end caps, allowing length adjustment as needed.
Via NFC-enabled mobile app, users can adjust dimming mode, PWM frequency, brightness range, and interact with driver data.
Supports 0-10V, Push DIM, and corridor light DIM modes.
The ultra-low consumption of the 0-10V port is less than 0.05mA.
Supports deep dimming from 0–100%, with a minimum dimming level of 0.01%.
It is equipped with a soft-start gradually brightening function, making the visual experience more comfortable for the human eye.
The dimming interface is equipped with photoelectric isolation and complies with the latest safety regulations and standards, making it safer and more reliable.
High-efficiency driver with 93% efficiency, power factor > 0.98, and THD < 6%.
In compliance with the EU ERP Directive, standby power consumption is below 0.5W.
Equipped with an advanced thermal management system to protect internal components.
Includes protections against overheating, overload, short circuit, and open circuit.
Suitable for Class I / II / III indoor luminaires.
Designed for a service life exceeding 100,000 hours under normal operating conditions.
5-year warranty (Rubycon capacitor).

Specifications

LM-150-12-G1A2FSpecifications from the official datasheetDownload datasheet PDF

OUTPUT

Output Voltage: 12V
Output Voltage Range: 12V ± 0.5V
Output Current: Max. 12.5A
Output Power: Max. 150W
Output Power Range: 0~150W
Strobe Level: High frequency exemption level
Dimming Range: 0~100%，down to 0.01%
Overload Power Limitation: ≥102%
Ripple & Noise: Switch ripple≤200mV, noise≤800mV
PWM Frequency: 300-22000Hz
Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM

INPUT

AC Voltage Range: 220-240V
DC Voltage Range: 220-240V (EMI needs to be evaluated after the luminaire is installed)
Frequency: 50/60Hz
Input Current: Max. 0.75A/230V
Power Factor: PF>0.98/230V (at full load)
THD: THD<6%@ 230V (at full load)
Efficiency (Typ.): 92%
Standby Power Loss: ＜0.5W
Inrush Current: 45.6A (Cold start, Test twidth=500us tested under 50% Ipeak)/230V
Anti Surge: L-N: 2KV
Leakage Current: Max. 0.5mA

ENVIRONMENT

Working Temperature: ta: -20 ~ 50°C tc: 85°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40 ~ 80°C, 10~95%RH
Temperature Coefficient: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection: Shut down the output when rated power≥102%, auto recovers
Overheat Protection: Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
Short Circuit Protection: Enter hiccup mode if short circuit occurs, and recover automatically
Overvoltage Protection: Shut down the output when no-load voltage≥16V, and recover automatically
Withstand Voltage: I/P-O/P：3750V
Insulation Resistance: I/P-O/P：100MΩ/500VDC/25°C/70%RH

SAFETY & EMC

SafetyStandards CCC: Parameter Standard

China GB19510.1，GB19510.14，GB19510.213
SafetyStandards TUV: Parameter Standard

Germany EN61347-1，EN61347-2-13，EN62493
SafetyStandards CB: Parameter Standard

CB MEMBER STATES IEC61347-1，IEC61347-2-13
SafetyStandards CE: Parameter Standard

European Union EN61347-1，EN61347-2-13，EN62384
SafetyStandards KC: Parameter Standard

Korea KC61347-1，KC61347-2-13
SafetyStandards EAC: Parameter Standard

Russia IEC61347-1，IEC61347-2-13
SafetyStandards RCM: Parameter Standard

Australia AS 61347-1，AS 61347-2-13
SafetyStandards ENEC: Parameter Standard

Europe EN61347-1，EN61347-2-13，EN62384
EMC Emission CCC: Parameter Standard

China GB/T17743，GB17625.1
EMC Emission CE: Parameter Standard

European Union EN55015，EN61000-3-2，EN61000-3-3，EN61547
EMC Emission KC: Parameter Standard

Korea KN15，KN61547
EMC Emission EAC: Parameter Standard

Russia IEC62493，IEC61547，EH55015
EMC Emission RCM: Parameter Standard

Australia EN55015，EN61000-3-2，EN61000-3-3，EN61547

Parameter	Standard
China	GB19510.1，GB19510.14，GB19510.213

Parameter	Standard
Germany	EN61347-1，EN61347-2-13，EN62493

Parameter	Standard
CB MEMBER STATES	IEC61347-1，IEC61347-2-13

Parameter	Standard
European Union	EN61347-1，EN61347-2-13，EN62384

Parameter	Standard
Korea	KC61347-1，KC61347-2-13

Parameter	Standard
Russia	IEC61347-1，IEC61347-2-13

Parameter	Standard
Australia	AS 61347-1，AS 61347-2-13

Parameter	Standard
Europe	EN61347-1，EN61347-2-13，EN62384

Parameter	Standard
China	GB/T17743，GB17625.1

Parameter	Standard
European Union	EN55015，EN61000-3-2，EN61000-3-3，EN61547

Parameter	Standard
Korea	KN15，KN61547

Parameter	Standard
Russia	IEC62493，IEC61547，EH55015

Parameter	Standard
Australia	EN55015，EN61000-3-2，EN61000-3-3，EN61547

ErP

Power Consumption Networked standby: ＜0.5W(After shutdown by command)
Power Consumption No-load power consumption: No no-load mode
Flicker/Stroboscopic Effect IEEE1789: Meet IEEE 1789 standard/High frequency exemption level
Flicker/Stroboscopic Effect CIE SVM: PstLM≤1.0，SVM≤0.4
DF Phase factor: DF≥0.9

OTHERS

Weight(N.W.): 430g±10g
Dimensions: 352×43×30mm(L×W×H)

Certifications & ratings

Digital dimming: PWM

Technical drawings

LM-150-12-G1A2F Product Size — Product Size

LM-150-12-G1A2F Dimensions (mm) — Dimensions (mm)

LM-150-12-G1A2F Wiring Diagram — Wiring Diagram

LM-150-12-G1A2F Push DIM Connection — Push DIM Connection

LM-150-12-G1A2F Corridor Dimming Application — Corridor Dimming Application

LM-150-12-G1A2F Corridor Dimming: Working Process — Corridor Dimming: Working Process

LM-150-12-G1A2F Tension plate — Tension plate

LM-150-12-G1A2F Installation Precautions — Installation Precautions

LM-150-12-G1A2F Use the NFC Lighting APP — Use the NFC Lighting APP

LM-150-12-G1A2F 1.Read the LED driver — 1.Read the LED driver

LM-150-12-G1A2F 3. Write to the drive — 3. Write to the drive

LM-150-12-G1A2F Relationship Diagrams — Relationship Diagrams

LM-150-12-G1A2F Life time VS Housing temperature — Life time VS Housing temperature

LM-150-12-G1A2F Efficiency[%] — Efficiency[%]

LM-150-12-G1A2F （hours）Lifetime — （hours）Lifetime

Downloads

Datasheet1

LM-150-12-G1A2F datasheetLM_150_12_G1A2F.pdf PDF Download

FAQ

What is the LM-150-12-G1A2F?

It is a 150W constant voltage LED driver with a 12V output and a maximum current of 12.5A. It features high efficiency (92%) and a power factor greater than 0.98 at full load.

What is the input voltage range?

The unit operates on an AC input range of 220-240V at 50/60Hz. It also supports a DC input range of 220-240V, though EMI evaluation is required after luminaire installation.

How does the dimming control work?

It supports 0-10V dimming (including 1-10V, 10V PWM, and RX) and Push DIM. The dimming range is 0-100%, capable of dimming down to 0.01% with a PWM frequency of 300-22000Hz.

What protection features are included?

It includes overload protection (shuts down at ≥102% rated power), overheat protection (adjusts or turns off output if PCB temp ≥110°C), short circuit protection (hiccup mode), and overvoltage protection (shuts down if no-load voltage ≥16V). All protections recover automatically.

What are the operating temperature limits?

The ambient operating temperature (ta) is -20°C to 50°C, with a case temperature (tc) limit of 85°C. It operates in humidity levels of 20-95% RH, non-condensing.

What are the dimensions and weight?

The driver measures 352 x 43 x 30 mm (L x W x H) and weighs approximately 430g (±10g).

Is the driver flicker-free?

Yes, it meets the IEEE 1789 standard for high-frequency exemption and has a PstLM ≤ 1.0 and SVM ≤ 0.4, ensuring minimal stroboscopic effects.
