Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

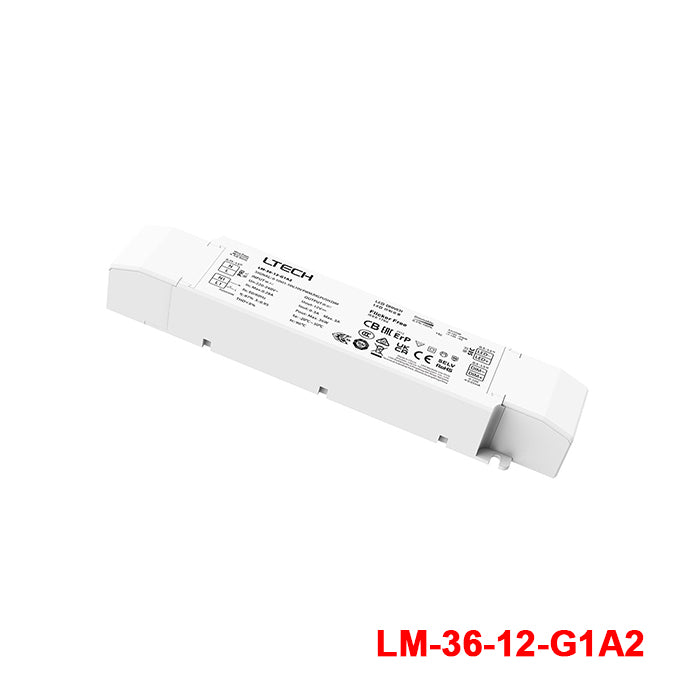

Ltech LM-36-12-G1A2 36W 12V 5-in-1 Dimmable Driver 3A

0-10V1-10V10VPWMRX and Push DIM

SKU LM-36-12-G1A2

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The LM-36-12-G1A2 is a 36W constant-voltage dimmable driver with a 12V DC output and 3A rated current. It is intended for 12V LED lighting applications that need smooth dimming performance and a compact driver format.

Input 200~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 200~240VAC (200~280VDC)
✓Dimming: 0-10V
✓Output voltage: 12V
✓Rated output current: 3A
✓Rated power: 36W
✓Ingress protection: IP20
✓Operating temperature: -20~+50°C
✓Certifications: CB, CCC, CE, EAC, ENEC, KC, SELV, TUV
✓Dimensions: 210 x 30 x 43mm
✓5 year warranty

Frequently Asked Questions

What type of LED lighting is the Ltech LM-36-12-G1A2 designed for?

This model is a 36W constant-voltage dimmable driver with a 12V DC output and 3A rated current. It is intended for 12V LED lighting applications that need smooth dimming performance and a compact driver format.

Which dimming methods does the LM-36-12-G1A2 support?

The LM-36-12-G1A2 supports 0-10V, 1-10V, 10V PWM, RX, and Push DIM control methods. It can automatically recognize 0-10V and 1-10V input signals, making it suitable for projects that require 5-in-1 dimming flexibility.

How smooth is the dimming performance on this driver?

This driver offers a 0 to 100 percent dimming range and can dim down to 0.1 percent. It is specified as flicker-free through the full dimming range and also includes soft-on and fade-in functions for a more comfortable visual effect.

What are the main electrical specifications of the Ltech LM-36-12-G1A2?

This model is rated at 36W with a 12V output voltage and 3A rated current. Its input range is 200-240Vac or 200-280Vdc, with efficiency up to 88 percent, power factor above 0.95, and THD below 8 percent.

Is the LM-36-12-G1A2 suitable for demanding indoor environments?

It is specified for indoor lamp applications of Class I, II, and III types and has an operating ambient temperature range of -20°C to 50°C. The driver also uses flame-resistant polycarbonate housing material and includes intelligent thermal management to help protect service life.

What protection features are built into this LED driver?

The LM-36-12-G1A2 includes over-heat, over-voltage, over-load, and short-circuit protection. Depending on the fault condition, it either recovers automatically or requires re-powering after the fault is removed, as specified in the product data.

What makes this model a strong choice compared with basic non-dimmable or limited-dimming drivers?

Compared with simpler drivers, this model combines 12V constant-voltage output with 5-in-1 dimming support, deep dimming to 0.1 percent, and flicker-free performance. It also adds low standby power under 0.5W, photoelectric isolation on dimming interfaces, and a 5-year warranty.

What certifications and expected lifetime does the LM-36-12-G1A2 offer?

This driver is listed with multiple safety and compliance standards including TUV, CE, RCM, ENEC, CB, KC, CCC, and EAC as stated in the product specifications. It is rated for up to 50,000 hours of lifetime and backed by a 5-year warranty.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Ltech LM-36-24-G1A2 36W 24V 5-in-1 Dimmable Driver 1.5A	36W	24V	1.5A	IP20	View
