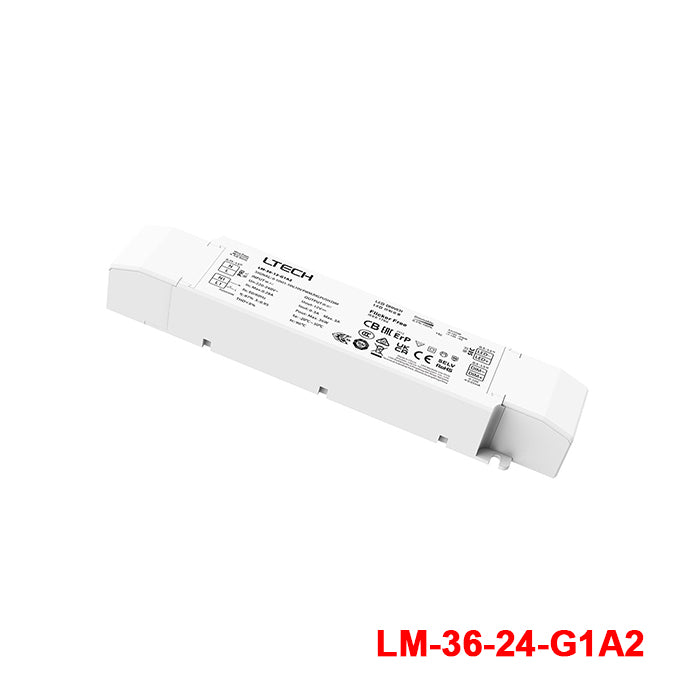

Ltech LM-36-24-G1A2 36W 24V 5-in-1 Dimmable Driver 1.5A
Please Login for Pricing
Description
Description
Features:
- Small size and light weight. Adopt SAMSUNG/COVESTRO V0 flame resistant
- polycarbonate protective housings.
- The design of dismountable end cap allows you to adjust the length of housing
- depending on your needs.
- Dimming interfaces: 0-10V(1-10V/10V PWM/RX), Push DIM.
- Automatically recognize 0-10V and 1-10V input signals.
- Ultra-low consumption of 0-10V ports < 0.05mA.
- Dimming range: 0~100%, dimming dowm to 0.1%.
- Flicker-free with high frequency exemption level in 0~100% dimming process.
- With soft-on and fade-in function, bringing more comfortable visual experiences.
- High-performance drivers: Effeciency 88%, PF>0.95, THD<8%.
- Dimming interfaces have photoelectric isolation that are compliant with the latest safety
- standards and more secure and reliable.
- Comply with the EU’s ErP Directive, stand-by power consumption＜0.5W.
- The secure and reliable design for signal isolation.
- Innovative thermal management technology intelligently protects the lifetime the driver.
- Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
- Suitable for lamp applications of indoor Ⅰ/Ⅱ/Ⅲ types.
- Up to 50000-hour life time.
- 5 year warranty (Rubycon Capacitor).
General Specification
AC input voltage range
200-240Vac / 200-280Vdc
AC inrush current (max.)
Cold start 25A at 230Vac
Over-heat Protection
Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
Over Voltage Protection
Shut down the output when non-load voltage≥28V, re-power on to recover after fault condition is removed.
Shut down the output when non-load voltage≥16V, re-power on to recover after fault condition is removed.
Over Load Protection
Shut down the output when current load≥102%, and recover automatically
Short Circuit Protection
Enter hiccup mode if short circuit occurs, and recover automatically.
Withstand voltage
I/P-O/P:3750Vac
Working temperature
ta: -20°C ~ 50°C tc: 90°C
Safety standards
CCC - China - GB19510.1，GB19510.14
TUV - Germany - EN61347-1，EN61347-2-13，EN62493
CE - European Union - EN61347-1，EN61347-2-13，EN62384
KC - Korea - KC61347-1，KC61347-2-13
RCM - Australia - AS61347-1，AS61347-2-13
ENEC - Europe - EN61347-1，EN61347-2-13，EN62384
CB - CB member states - IEC61347-1，IEC61347-2-13
EAC - Russia - IEC61347-1，IEC61347-2-13
Dimension (LxWxH)
210×43×30mm
Specifications
Specifications
-
BrandLtech
-
SeriesLtech 0/1-10V Series
-
Power Rating36 Watt
-
Output Voltage24 Volt
-
Rated Current1.5 Ampere
-
Input Voltage200V~280V
-
Standards MetCB,CCC,CE,EAC,ENEC,KC,SELV,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length21 cm
-
Width3 cm
-
Height4.3 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of product is the Ltech LM-36-24-G1A2?
The Ltech LM-36-24-G1A2 is a 36W constant voltage LED driver with a 24V DC output. It is designed for indoor lighting applications and supports 5-in-1 dimming functionality, including 0-10V, 1-10V, 10V PWM, resistance-based dimming, and Push DIM.
What dimming options does this 24V LED driver support?
This model supports 0-10V, 1-10V, 10V PWM, RX, and Push DIM control methods. It also automatically recognizes 0-10V and 1-10V input signals, with a dimming range from 0 to 100% and dimming down to 0.1%.
Is the LM-36-24-G1A2 suitable for flicker-sensitive lighting applications?
Yes, this driver is specified as flicker-free with a high frequency exemption level throughout the 0 to 100% dimming process. It also includes soft-on and fade-in functions for a more comfortable visual experience in indoor lighting environments.
What are the electrical output ratings of this driver?
The LM-36-24-G1A2 is rated for 36W output power at 24V DC with a rated current of 1.5A. These specifications make it appropriate for constant voltage 24V LED lighting systems that require dimming control.
What operating environment is this LED driver designed for?
This model is intended for indoor lamp applications and has a working ambient temperature range of -20°C to 50°C. Its case temperature rating is 90°C, and it uses flame-resistant polycarbonate housing for added durability.
What protections are built into the Ltech LM-36-24-G1A2?
The driver includes over-heat, over-voltage, over-load, and short-circuit protection. Depending on the fault type, it either shuts down or enters protective mode and is specified to recover automatically once the fault condition is cleared.
How efficient is the LM-36-24-G1A2 compared with typical dimmable LED drivers?
This model is specified with 88% efficiency, power factor above 0.95, and total harmonic distortion below 8%. It also complies with the EU ErP Directive with standby power consumption below 0.5W, which can be important for commercial and architectural projects.
What warranty and service life does this LED driver offer?
The LM-36-24-G1A2 is rated for up to 50,000 hours of lifetime under its stated operating conditions. It also carries a 5-year warranty.
Other LM-36 Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Ltech LM-36-12-G1A2 36W 12V 5-in-1 Dimmable Driver 3A | 36W | 12V | 3A | IP20 | View |
