Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

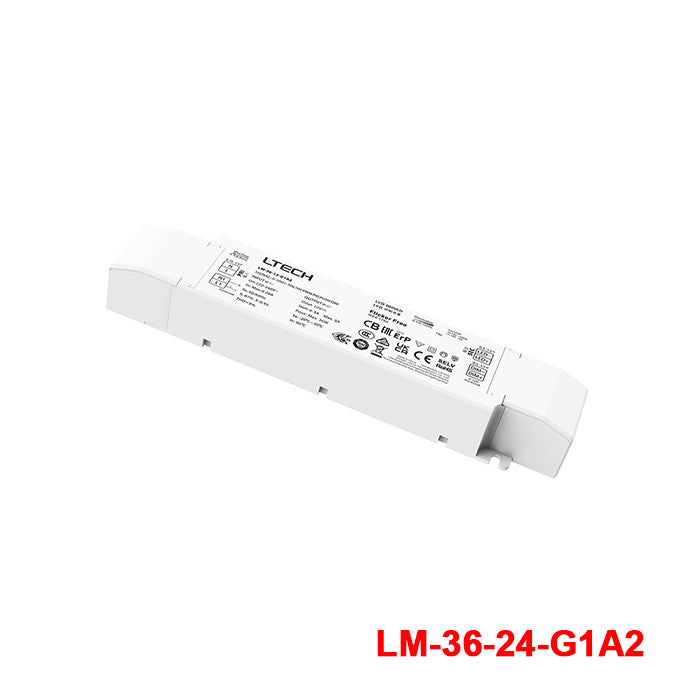

Ltech LM-36-24-G1A2 36W 24V 5-in-1 Dimmable Driver 1.5A

0-10V1-10V10VPWMRX and Push DIM

SKU LM-36-24-G1A2

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Ltech LM-36-24-G1A2 is a 36W constant voltage LED driver with a 24V DC output. It is designed for indoor lighting applications and supports 5-in-1 dimming functionality, including 0-10V, 1-10V, 10V PWM, resistance-based dimming, and Push DIM.

Input 200~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 200~240VAC (200~280VDC)
✓Dimming: 0-10V
✓Output voltage: 24V
✓Rated output current: 1.5A
✓Rated power: 36W
✓Ingress protection: IP20
✓Operating temperature: -20~+50°C
✓Certifications: CB, CCC, CE, EAC, ENEC, KC, SELV, TUV
✓Dimensions: 210 x 30 x 43mm
✓5 year warranty

Frequently Asked Questions

What type of product is the Ltech LM-36-24-G1A2?

What dimming options does this 24V LED driver support?

This model supports 0-10V, 1-10V, 10V PWM, RX, and Push DIM control methods. It also automatically recognizes 0-10V and 1-10V input signals, with a dimming range from 0 to 100% and dimming down to 0.1%.

Is the LM-36-24-G1A2 suitable for flicker-sensitive lighting applications?

Yes, this driver is specified as flicker-free with a high frequency exemption level throughout the 0 to 100% dimming process. It also includes soft-on and fade-in functions for a more comfortable visual experience in indoor lighting environments.

What are the electrical output ratings of this driver?

The LM-36-24-G1A2 is rated for 36W output power at 24V DC with a rated current of 1.5A. These specifications make it appropriate for constant voltage 24V LED lighting systems that require dimming control.

What operating environment is this LED driver designed for?

This model is intended for indoor lamp applications and has a working ambient temperature range of -20°C to 50°C. Its case temperature rating is 90°C, and it uses flame-resistant polycarbonate housing for added durability.

What protections are built into the Ltech LM-36-24-G1A2?

The driver includes over-heat, over-voltage, over-load, and short-circuit protection. Depending on the fault type, it either shuts down or enters protective mode and is specified to recover automatically once the fault condition is cleared.

How efficient is the LM-36-24-G1A2 compared with typical dimmable LED drivers?

This model is specified with 88% efficiency, power factor above 0.95, and total harmonic distortion below 8%. It also complies with the EU ErP Directive with standby power consumption below 0.5W, which can be important for commercial and architectural projects.

What warranty and service life does this LED driver offer?

The LM-36-24-G1A2 is rated for up to 50,000 hours of lifetime under its stated operating conditions. It also carries a 5-year warranty.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Ltech LM-36-12-G1A2 36W 12V 5-in-1 Dimmable Driver 3A	36W	12V	3A	IP20	View
