Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

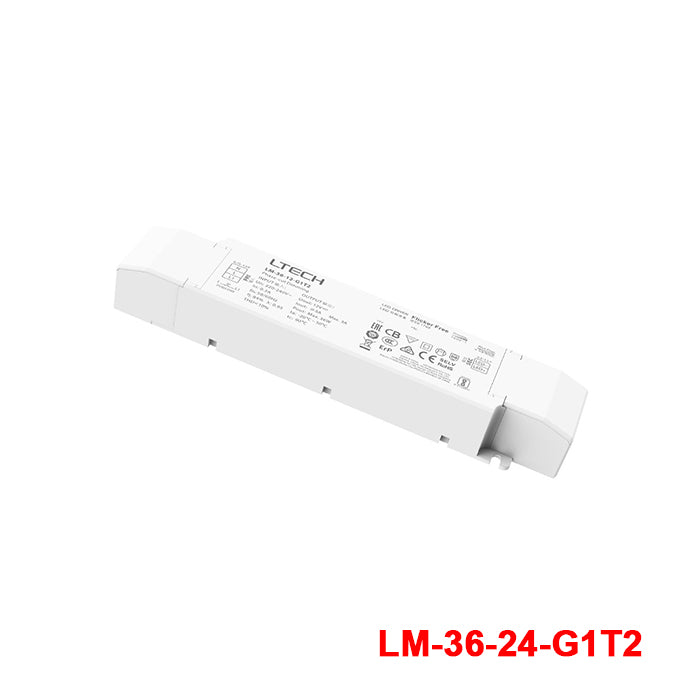

Ltech LM-36-24-G1T2 36W 24V Triac Dimmable Driver 1.5A

small sizelight weight0.1% dimming depthflicker-free design

SKU:

LM-36-24-G1T2

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Features:

Small size and light weight. Adopt SAMSUNG/COVESTRO V0 flame
resistant polycarbonate protective housings.
The design of dismountable end cap allows you to adjust the length
of housing depending on your needs.
With soft-on and fade in function, visual more comfortable.
Dimming range: 0~100%, dimming down to 0.1%.
0-100% flicker-free, High frequency exemption level.
Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.
The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently protects the
lifetime the driver.
Over load / Over temp. / Short circuit / Over voltage protection,
recover automatically.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Up to 50000-hour life time.
5 year warranty (Rubycon capacitor).

General Specification

AC input voltage range

220-240Vac

AC inrush current (max.)

Cold start 30A at 230Vac

Over-heat Protection

Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically .

Over Load Protection

Shut down the output when current load≥102%, and recover automatically .

Short Circuit Protection

Shut down automatically if short circuit occurs, and recover automatically

Over voltage protection

Shut down the output when non-load voltage≥26V, re-power on to recover after fault condition is removed

Shut down the output when non-load voltage ≥13V, re-power on to recover after fault condition is removed.

Withstand voltage

I/P-O/P: 3750Vac

Working temperature

ta: -20 ~ 50°C tc: 90°C

Safety standards

CCC - China - GB19510.1，GB19510.14

TUV - Germany - EN61347-1，EN61347-2-13，EN62493

CE - European Union - EN61347-1，EN61347-2-13，EN62384

KC - Korea - KC61347-1，KC61347-2-13

RCM - Australia - AS61347-1，AS61347-2-13

ENEC - Europe - EN61347-1，EN61347-2-13，EN62384

CB - CB member states - IEC61347-1，IEC61347-2-13

EAC - Russia - IEC61347-1，IEC61347-2-13

Dimension (LxWxH)

210×43×30mm

Frequently Asked Questions

What type of product is the Ltech LM-36-24-G1T2?

The Ltech LM-36-24-G1T2 is a 36W constant-voltage 24V dimmable LED driver. It is designed for internal lighting applications and supports phase-cut dimming with a compact housing format.

What dimming methods does this 24V LED driver support?

This model supports leading-edge (Triac), trailing-edge (ELV) phase-cut dimming, and Push DIM. It offers a 0-100% dimming range and can dim down to 0.1%, with flicker-free performance noted in the product description.

What output does the LM-36-24-G1T2 provide?

This driver provides a 24V output with a rated current of 1.5A and a 36W power rating. It is intended for applications that require a constant 24V LED power supply within that output capacity.

Is the Ltech LM-36-24-G1T2 suitable for commercial indoor lighting projects?

Yes, this model is suited to internal lighting applications and is relevant for commercial or professional indoor LED projects that need 24V constant-voltage dimming. Its compact size, phase-cut dimming support, and multiple built-in protection features make it a practical option for space-conscious lighting systems.

What protection features are included in this LED driver?

The LM-36-24-G1T2 includes overload, over-temperature, short-circuit, and over-voltage protection. According to the specification, these protection functions recover automatically after the fault condition is cleared or the device is repowered where required.

What operating environment is this driver rated for?

This driver is rated for a working ambient temperature range of -20 to 50°C, with a case temperature rating of 90°C. It is intended for indoor use and has a stated lifetime of up to 50,000 hours under appropriate operating conditions.

Does this model include compliance approvals and warranty coverage?

Yes, the LM-36-24-G1T2 lists approvals and standards including TUV, CE, RCM, ENEC, CB, KC, CCC, and EAC in the provided specification. It also carries a 5-year warranty.
