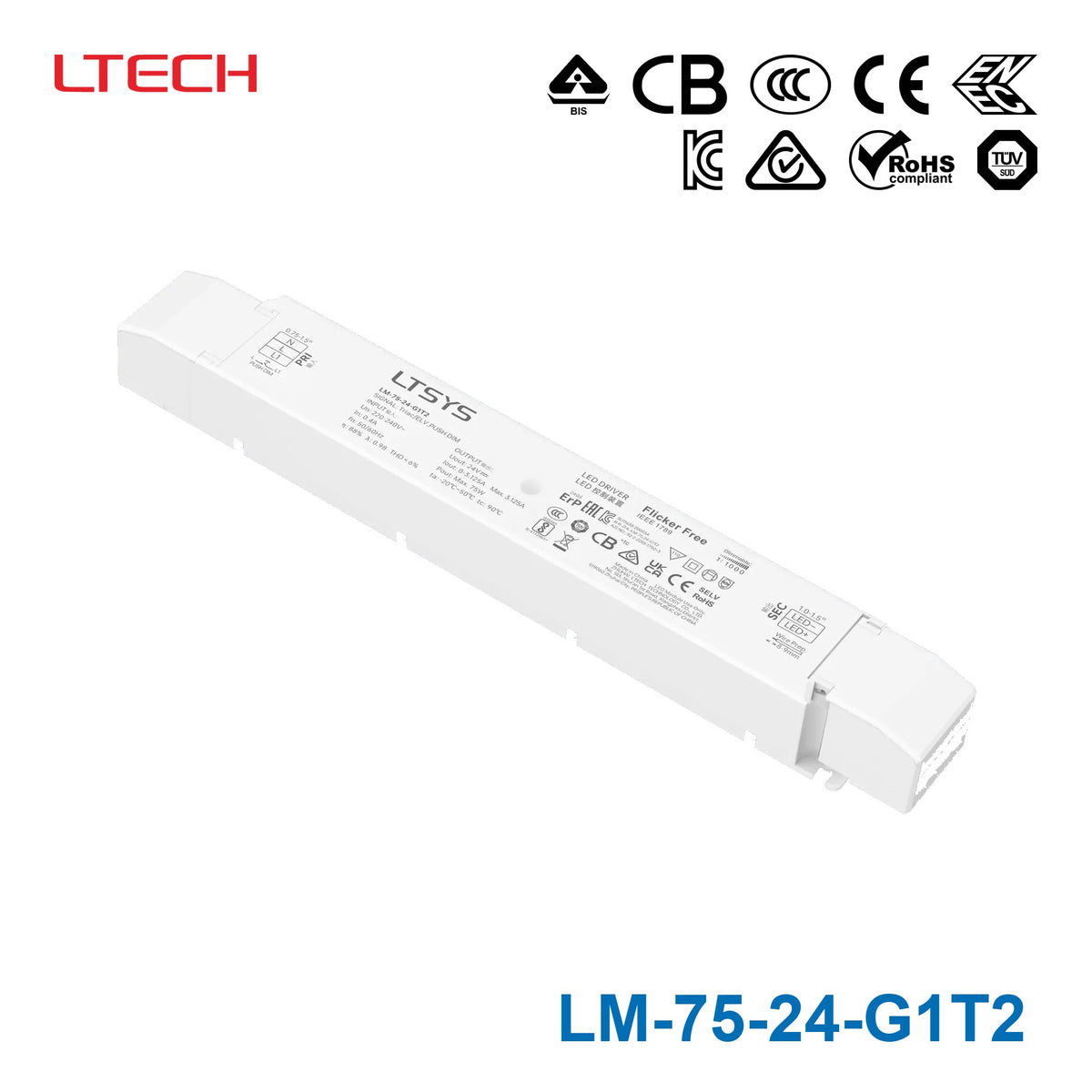

Ltech LM-75-24-G1T2 75W 24VDC CV Triac Driver 3.125A
Log in to see priceThe Ltech LM-75-24-G1T2 is a 75W constant-voltage 24VDC Triac driver for internal lighting applications. It is intended for LED lighting systems that need phase-cut dimming and supports both Push DIM and CCT functions.
Input 220~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 220~240VAC
- ✓Dimming: AC phase cut (TRIAC)
- ✓Output voltage: 24V
- ✓Rated output current: 3.125A
- ✓Rated power: 75W
- ✓Ingress protection: IP20
- ✓Operating temperature: -20~+50°C
- ✓Certifications: BIS, CB, CCC, CE, ENEC, KC, RCM, ROHS, TUV
- ✓Dimensions: 293 x 43 x 30mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating75 Watt
-
Output Voltage24 Volt
-
Rated Current3.12 Ampere
-
Input Voltage220V~240V
-
Standards MetBIS,CB,CCC,CE,ENEC,KC,RCM,ROHS,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length29.3 cm
-
Width4.3 cm
-
Height3 cm
-
Weight0.35 kg
::specification::
Frequently Asked Questions
What is the Ltech LM-75-24-G1T2 designed for?
The Ltech LM-75-24-G1T2 is a 75W constant-voltage 24VDC Triac driver for internal lighting applications. It is intended for LED lighting systems that need phase-cut dimming and supports both Push DIM and CCT functions.
What dimming methods does the LM-75-24-G1T2 support?
This model supports leading-edge (Triac) and trailing-edge (ELV) phase-cut dimming. It also supports Push DIM/CCT, giving more flexibility for lighting control in compatible applications.
How smooth is the dimming performance on this 24V driver?
The LM-75-24-G1T2 offers a 0 to 100% dimming range and can start LEDs at 0.1%. It is described as flicker-free across the 0 to 100% range in line with IEEE 1789, which makes it suitable for applications where stable light output matters.
What output does the Ltech LM-75-24-G1T2 provide?
This driver provides a 24VDC constant-voltage output with a 75W power rating. Its rated current is 3.125A, matching applications that require a 24V constant-voltage driver within that power range.
What protection features are included in the LM-75-24-G1T2?
The LM-75-24-G1T2 includes overload, over-temperature, short-circuit, and over-voltage protection. According to the product details, it recovers automatically after protection events.
What operating environment is this driver rated for?
This model is rated for ambient temperatures from -20°C to 50°C. It is specified for internal lights application, so it is intended for indoor use rather than exposed outdoor environments.
What makes this model different from a basic non-dimming 24V power supply?
Unlike a basic 24V constant-voltage power supply, the LM-75-24-G1T2 is built specifically for dimmable LED lighting applications. It adds phase-cut dimming support, Push DIM/CCT capability, flicker-free dimming performance, and built-in protection features tailored to lighting use.
What warranty is offered on the Ltech LM-75-24-G1T2?
This model comes with a 5-year warranty. The product description also notes Rubycon capacitors, which are part of the long-life positioning of this driver.
